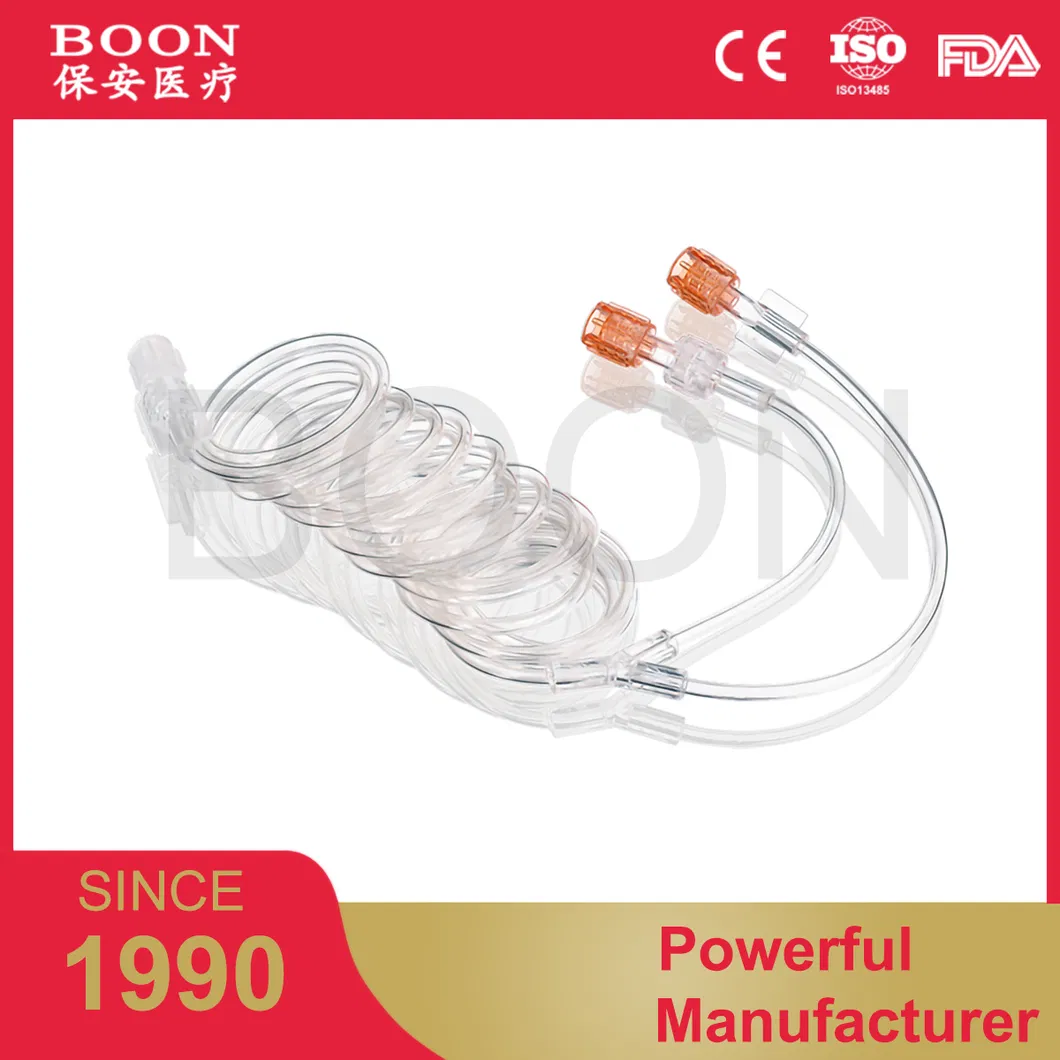

Boon 60inch 96inch 350psi Low Pressure spiral Coiled Tubing with Y Connector with Dual Check Valves

Model NO.	400102
Ethylene Oxide Sterilization	Ethylene Oxide Sterilization
Quality Guarantee Period	3years
Group	Adult
Logo Printing	With Logo Printing
Product Name	Boon 1800mm CT Connector Tubing
Scope	for CT Injection Procedure
Original Material	PVC Dehp /Totm/ABS
Applicable to Injector	Medrad /Lf/Ezem/Imaxeon/ Nemoto
Disposable	Yes
OEM	Acceptable
Check Valve	No Valve
Weight	13.5kg Per Carton
Luer Lock	6% International Luer Lock
Female/Male Connector	One Female/One Male
Max Pressure	350psi
Package	Blister Pack
Inner Diameter	1.85mm
Outer Diameter	3.25mm
Transport Package	400PCS Per Box
Specification	1500mm/1800mm
Trademark	BOON
Origin	Shenzhen
HS Code	9018310000
Production Capacity	150, 000 PCS Per Month

Description

Boon Sterile CT coiled tubing used for Enhancing scan imaging, compatible with various different CT injectors.
helping doctors find lesions more clearly and quickly. Contrast agents and saline are injected through various CT contrast media injectors. Mainly used in the hospital radiology department and medical imaging department.

Boon Angiographic syringes have covered the world's main popular contrast media injectors models, such as Medrad, LF, Medtron, Nemoto, Bracco, SINO, SEACROWN.


Specification

 1.5m (1.8m) is for option   400pcs per case
Pressure : 300psi/350psi

19400102300psi1800mmY Coiled Tube without Valve 20400102A300psi1800mmY Coiled Tube
with one Valve 21400102B300psi1800mmY Coiled Tube  22400102D300psi1500mmY Coiled Tube without Valve 23400102E300psi1500mmY Coiled Tube
with one Valve 24400102F300psi1500mmY Coiled Tube  25400102G300psi100mmY Coiled Tube  26400102H300psi300mmY Coiled Tube  27400102J300psi1000mmY Coiled Tube  28400102K300psi1000mmY Coiled Tube
with one Valve 29400102M300psi1200mmY Coiled Tube  30400102N300psi2000mmY Coiled Tube  31400102L300psi600mmY Coiled Tube without Valve 32400102Y350psi1800mmY Coiled Tube without Valve 33400102P350psi1800mmY Coiled Tube
with one Valve 34400102Q350psi1800mmY Coiled Tube  35400102R350psi1500mmY Coiled Tube without Valve 36400102S350psi1500mmY Coiled Tube
with one Valve 37400102T350psi1500mmY Coiled Tube  38400102W350psi1000mmY Coiled Tube  39400102X350psi1200mmY Coiled Tube


Quality Control

Boon high-pressure syringes strictly implement ISO9001 and ISO13485 quality management systems and are produced in 100,000-level purification workshops. Quality is the life of an enterprise. Boon is always following the quality policy of "Pursuing Product Excellence Ensuring Public Health"

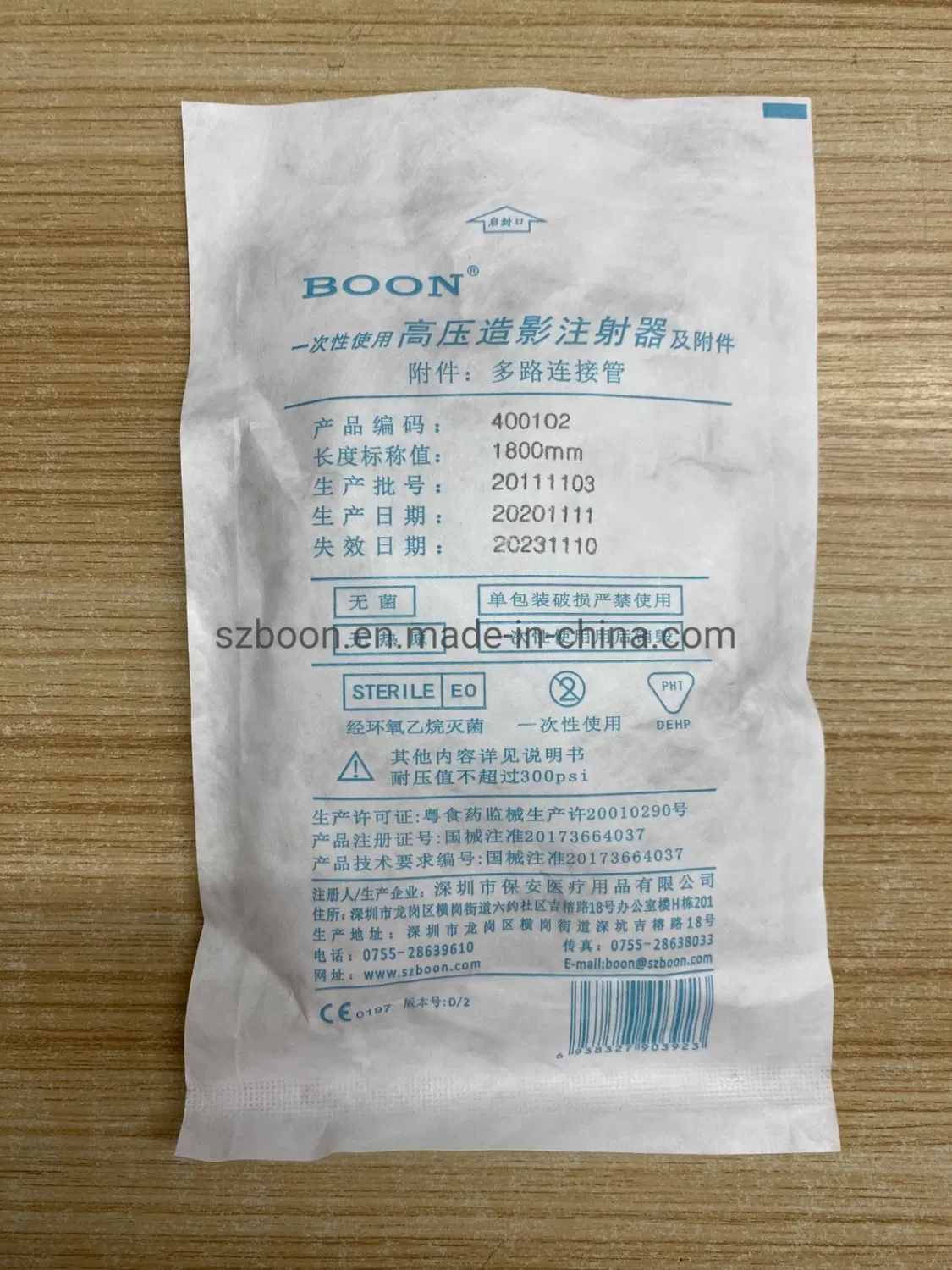

Package


 Reference Data (Sea Freight) Container20GP40GP40HQ45HQ Area(M3)25546886 Quantity(Case)260440550700

Instructions for Use
Syringe Filling
1.NOTE: One person should fill and arm the injector. If you must change the injector operator, be certain that the second operator verifies that the syringe is properly filled and that any air is eliminated.
2.Tilt the injector head (or the syringe interface module) up.
3.Advance the plunger to full forward position.
4.Remove the protective cover from the syringe luer tip and attach a sterile filling device onto the tip of the syringe. Fill straw, or spike.
5.Transfer the contrast media into the syringe by one of following methods:
6.Fill Straw: raise the contrast bottle until the Fill Straw is fully inserted. The end of the Fill Straw should be near the bottom of the contrast bottle.
7.Spike: prepare the bottle or container of contrast and/or saline solution. Push the bottle or bag onto the Filling Device until the seal is punctured.
8.NOTE: Use Fill Straw or equivalent device to reduce the volume and size of air bubbles drawn into the syringe during filling. It is more difficult to remove the air bubbles if you use smaller diameter tubes, such as catheter-over-needle, or a tube longer than 10 in.(25cm.)
9.Aspirate contrast media into the syringe.
10.If the syringe has dot indicators use them to help you detect the presence of contrast media in the syringe. Verify that the Syringe disposable dot indicators are round in the filled portion of the syringe. The rounded shape of the dot indicators varies according to the type of contrast media, but an oblong shape indicates the presence of air. Rounded dot indicators do not indicate the total absence of air bubbles in the syringe tip.
* Refer to the injector operation manual for further instructions.
Expelling Air & Attaching the Connector Tubing
1.After you fill the syringe, you must expel all air from the syringe and then attach the connector tubing. To do so:
2.Remove the filling device and expel air from the syringe. Do not hit the syringe to remove air bubbles. Reverse the plunger 3 to 5 ml, then, if applicable, rock the injector head on the pivot to dislodge the bubbles. Expel the remaining air.
3.If you are using a Y low pressure connector tubing, attach shorter side of the Y to the contrast syringe and the longer side of the Y to the saline syringe. Do not reverse the piston plunger after you have attached the tubing.
4.Verify that the tubing is not kinked or obstructed.
5.(If your injector does not have a manual knob, proceed to Step 6.) Use the manual knob to advance the syringe plunger to provide
6.Prime the connector tubing and make certain that the air is expelled.
7.Verify that all the air has been expelled from the syringe and fluid path.
8.Attach the connector tube to the vascular entry device.
9.Tilt the injector head (or syringe interface module) down.
* Refer to the injector operation manual for further instructions.
Removing the Syringe
10.To detach the syringe when the procedure has been completed, Remove it from the injector head. Discard all used components.
* Refer to the injector operation manual for further instructions.
11.Check the integrity of each primary package before use!
12.Confirm syringe model and injector model compatibility per Table 1 above.
13.Remove the syringe from the package. Attach the syringe to the injector according to the injector instructions for use.
14.Use the injector to push the piston of the syringe to the front of the barrel.
15.Remove the sheath from the conical fitting. Assemble the J shape tube/ spike on the conical fitting of the syringe.
16.Draw the required contrast media or saline into the syringe at the lowest speed of the injector to prevent air leakage.
17.Remove the J shape tube/spike from the syringe; discard it per the hospital or local regulations. Do not reuse!
18.Remove the protective cap from the conical fitting of the high pressure tube. Attach the tube to the syringe.
19.Attach the I.V. catheter or contrast media catheter to the other conical fitting of the high pressure tube.
20.Expel the air in the catheter and tube.
21.Inject the contrast media or saline in accordance with the instruction for use of the injector.
22.After the injection, disconnect the I.V. catheter or contrast media catheter and the high pressure tube.  Remove the syringe from the injector.
23.Discard the syringe, tube and catheter immediately per hospital or local regulations.

More information,please contact us kindly.
