ASTM A269 316L Stainless Steel Bright Annealed Coiled Tubing Cold Rolled For Chemical Injection

Model NO.	316L coiled tubing
Length	Max. 800meter Per Coi
Material	316 Stainless Steel
Outer Diameter	1/4", 3/8",1/2"
Type	Seamless Pipe
Wall Thickness	BWG 16 18 20
Test	Ht/Et/Ut
Delivery Time	Stock 7 Days; Mto 30 Days
Trade Terms	EXW, Fob, CFR, CIF etc.
Markings	According to A999/A999m
Transport Package	Packed in Bundles or Plywooden Box
Specification	Coiled Tube
Trademark	GH-STEEL
Origin	China
HS Code	7304419000
Production Capacity	2000ton Per Month

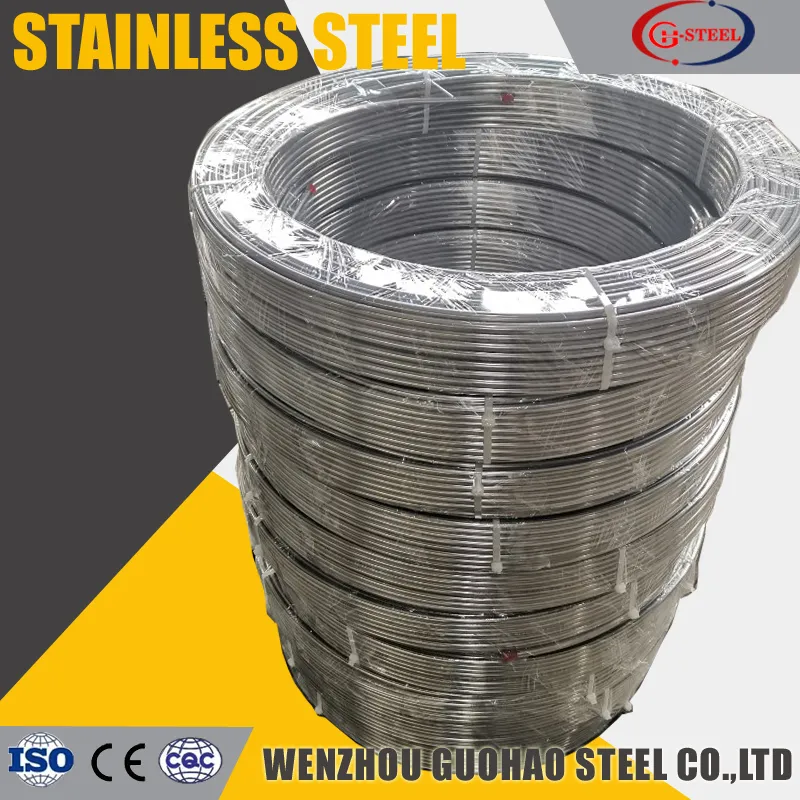

Coiled tubing are long, continuous lengths of tubing that are wound onto a spool or drum in a tightly coiled configuration, without the need for coupling or joining multiple shorter lengths. This can reduce installation time and minimize potential leak points. Coiled tubes take up less storage space compared to straight lengths of tubing. The compact coiled design allows for efficient transportation, storage, and handling, particularly in situations where space is limited.

Product NameSeamless Stainless Steel Pipes /Tubes Company Inform1.Name:WENZHOU GUOHAO STEEL., LTD
2.Type: Manufacturer  MaterialTP304 ,TP304L ,TP316L,TP321  StandardASTM A269
ASTM A213
EN10216-5
JIS G3463 SpecificationOuter diameter3/16" - 1 1/4"
(4.76-31.8mm)  Wall thickness0.028"-0.083"
(0.7mm-2.11mm) Length1:According to the different outer diameter and wall thickness, the weight of one coil of seamless coiled tubes is about 80kg-100kg.
2:Please Note:The longer the length of seamless coiled tubes, the more expensive the price Is. The most economical price is that the weight of single  coil is less than 28kg.
3:According to the required outer diameter and wall thickness, the  length of stainless steel seamless coiled tubes is converted by the theoretical calculation formula of stainless steel tube.
4:Solemnly Note:There is no welding point in the whole coils of seamless coiled tubes.
5:According to the demand, multi coils stainless steel seamless coiled tubes can also be used to form super long stainless steel coil tubes of several thousand meters by butt welding.  SurfaceBright Annealing MarkingsAs Customer's Requirement. Hydrostatic or Nondestructive TestingEach pipe shall be subjected to the nondestructive electric test or the hydrostatic test Delivery Time1.for ready stock :7 days after receiving the deposit of T/T
2.For MTO: 35 days after receiving the  deposit of T/T Trade TermsEXW,FOB, CFR, CIF etc. Loading PortNingbo/Wenzhou/Shanghai Remittance methodTT/LC/CASH Container20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM ApplicationEvaporator Coil Tube
Steam Coil Tube
Bear Cooling Coil Tube
Solar Heater Coil Tube
Condenser Coil Tube
Cooling Tower Coil Tube Referenced DocumentsASTM Referenced Standards
A262 Practices for Detecting Susceptibility to Intergranular Attack in Austenitic Stainless Steels
A370 Test Methods and Definitions for Mechanical Testing of Steel Products
A941 Terminology Relating to Steel, Stainless Steel, Related Alloys, and Ferroalloys
A999/A999M Specification for General Requirements for Alloy and Stainless-Steel Pipes
A1016/A1016M Specification for General Requirements for Ferritic Alloy Steel, Austenitic Alloy Steel, and Stainless-Steel Tubes
E112 Test Methods for Determining Average Grain Size
E381 Method of Macroetch Testing Steel Bars, Billets, Blooms, and Forgings
E527 Practice for Numbering Metals and Alloys in the Unified Numbering System (UNS)

CHEMICAL COMPOSITION OF ASTM A269  COILED TUBE

MaterialChemical Composition %  C(max)Mn(max)P(max)S(max)Si(max)Cr(max)NiMoTi TP3040.0802.000.0450.0301.0018.0-20.08.0-11.0// TP304L0.0352.000.0450.0301.0018.0-20.08.0-12.0// TP3160.0802.000.0450.0301.0016.0-18.010.0-14.02.00-3.00/ TP316L0.0352.000.0450.0301.0016.0-18.010.0-15.02.00-3.00/ TP3210.0802.000.0450.0301.0017.0-19.09.0-12.0/5x(C+N) -0.70

MECHANICAL PROPERTIES OF ASTM A269  COILED TUBE

MaterialHeat treatmentTemperure F (C) Min.Hardness BrinellRockwell TP304Solution1900 (1040)192HBW/200HV90HRB TP304LSolution1900 (1040)192HBW/200HV90HRB TP316Solution1900(1040)192HBW/200HV90HRB TP316LSolution1900(1040)192HBW/200HV90HRB TP321Solution1900(1040) F192HBW/200HV90HRB

STAINLESS STEEL COILDED TUBE WORKING PRESSURE

Nominal DiameterNominal Wall Thickness(in/mm) Tubing O.D. Inch.mmCoil Length(Ft)WT(in)0.0280.0350.0490.0650.083 WT(mm)0.710.891.241.652.11 Cal/WT2220181614 1/4"6.35400WP(Psi)4,0005,1007,50010,200  Kg/Coil12.0714.6119.1223.34  800WP(Psi)4,0005,1007,50010,200  Kg/Coil24.1329.2138.2346.68  1200WP(Psi)4,0005,1007,50010,200  Kg/Coil36.243.8257.3570.02  3/8"9.53400WP(Psi) 3,3004,8006,500  Kg/Coil 23.1131.0239.14  800WP(Psi) 3,3004,8006,500  Kg/Coil 46.2262.0578.27  1200WP(Psi) 3,3004,8006,500  Kg/Coil 69.3393.08117.41  1/2"12.7400WP(Psi) 2,6003,7005,1006,700 Kg/Coil 31.5942.8954.8867.18 800WP(Psi) 2,6003,7005,1006,700 Kg/Coil 63.1885.79109.77134.36 1200WP(Psi) 2,6003,7005,1006,700 Kg/Coil 94.77128.68164.64201.54

STANDARD TOLERANCE OF ASTM A269 COILED TUBE

No.Size, Outside Diameter, in.Permissible Variations in Outside Diameter, in. (mm)Permissible Variations in Wall Thickness, %Permissible Variations in Cut Length, in. (mm)Thin Walled Tubes OverUnder 1Up to ½[13]±0.005(0.13)±15⅛(3.2)0... 2½ to 1½, excl±0.005(0.13)±10⅛(3.2)0less than 0.065 in. (1.65 mm) nominal 31½ to 3½, excl±0.010(0.25)±103/16(4.8)0less than 0.095 in. (2.41 mm) nominal 43½ to 5½, excl±0.015(0.38)±103/16(4.8)0less than 0.150 in. (3.81 mm) nominal 55½ to 8, excl±0.030(0.76)±103/16(4.8)0less than 0.150 in. (3.81 mm) nominal 68 to 12, excl±0.040(1.01)±103/16(4.8)0less than 0.200 in. (5.08 mm) nominal 712 to 14, excl±0.050(1.26)±103/16(4.8)0less than 0.220 in. (5.59 mm) nominal

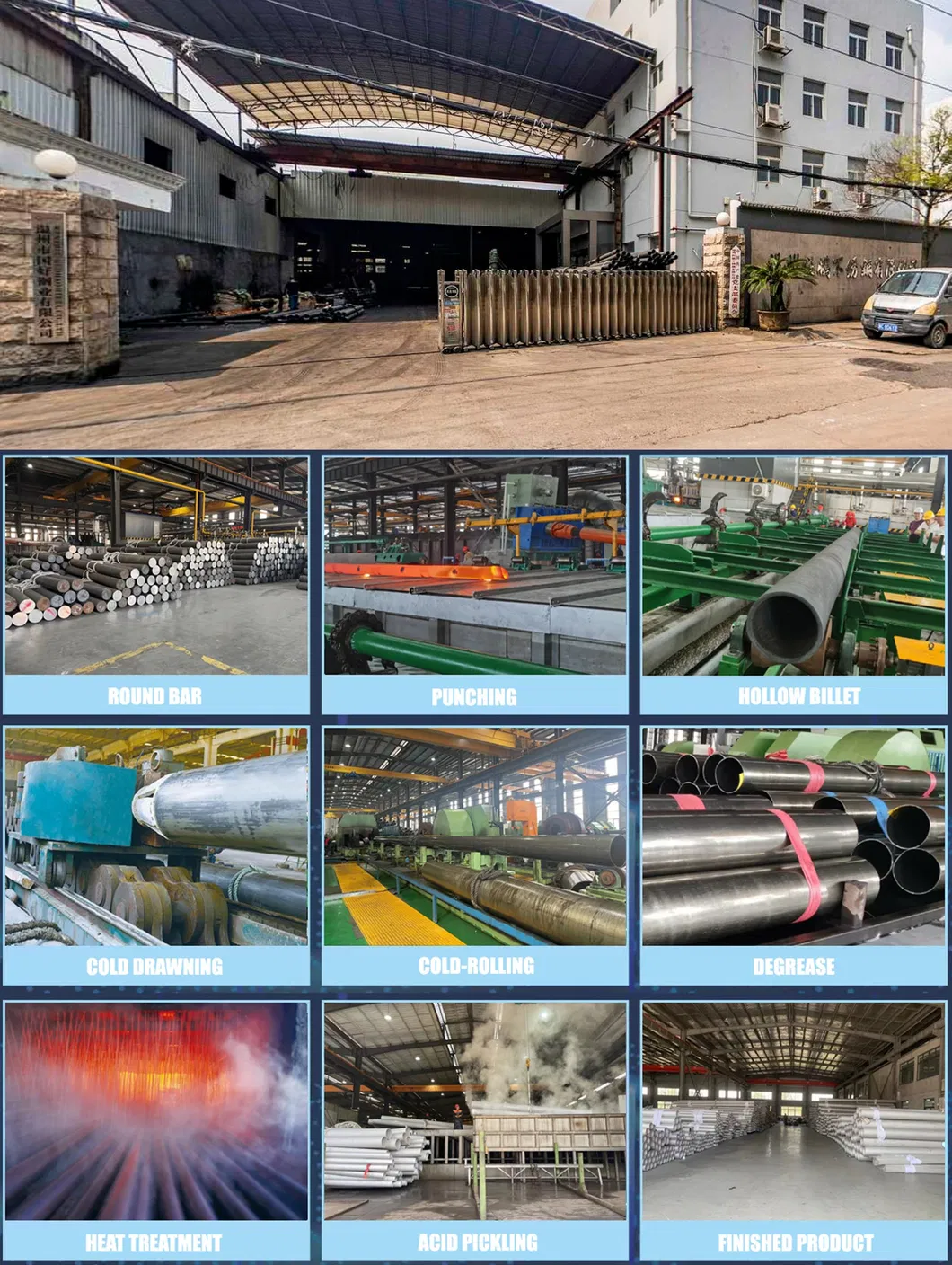

Wenzhou Guohao Steel was established in 2008. We are ISO 9001:2015 approved manufacturer, having a state-of-the-art infrastructure facility for having smooth production process. One of our company strengths is its people, with many colleagues having been with the company from the beginning. This provides our customers with the benefit of a wealth of experience and industry knowledge. Guohao Steel now has the whole of manufactured stainless steel products to add to its already large range of High Performance Nickel Alloys.
Guohao Steel adhere to the high standards of integrity and compliance required, including:Environmental standards/Health and safety standards/Ethical trading standardsExport compliance requirements
We now stock and have direct access to a wide range of other materials, including stainless steels and nickel alloys. We supply and process pipes for numerous key industry sectors, collaborating with both small businesses and large international traders across various countries. Due to our reputation for quality, reliability, and industry approvals, we are a well-regarded supplier in diverse sectors. Our delivery of long-term tangible benefits enables our customers to compete in today's challenging global marketplace.In order to achieve our goals, we are improving our facilities and expanding our machinery to offer broader processing capabilities. We aim for our customers to receive the best experience and trust in the expertise, knowledge, and experience of our teams. As we continue looking towards the future, we rely on our core values to guide both decisions and actions.

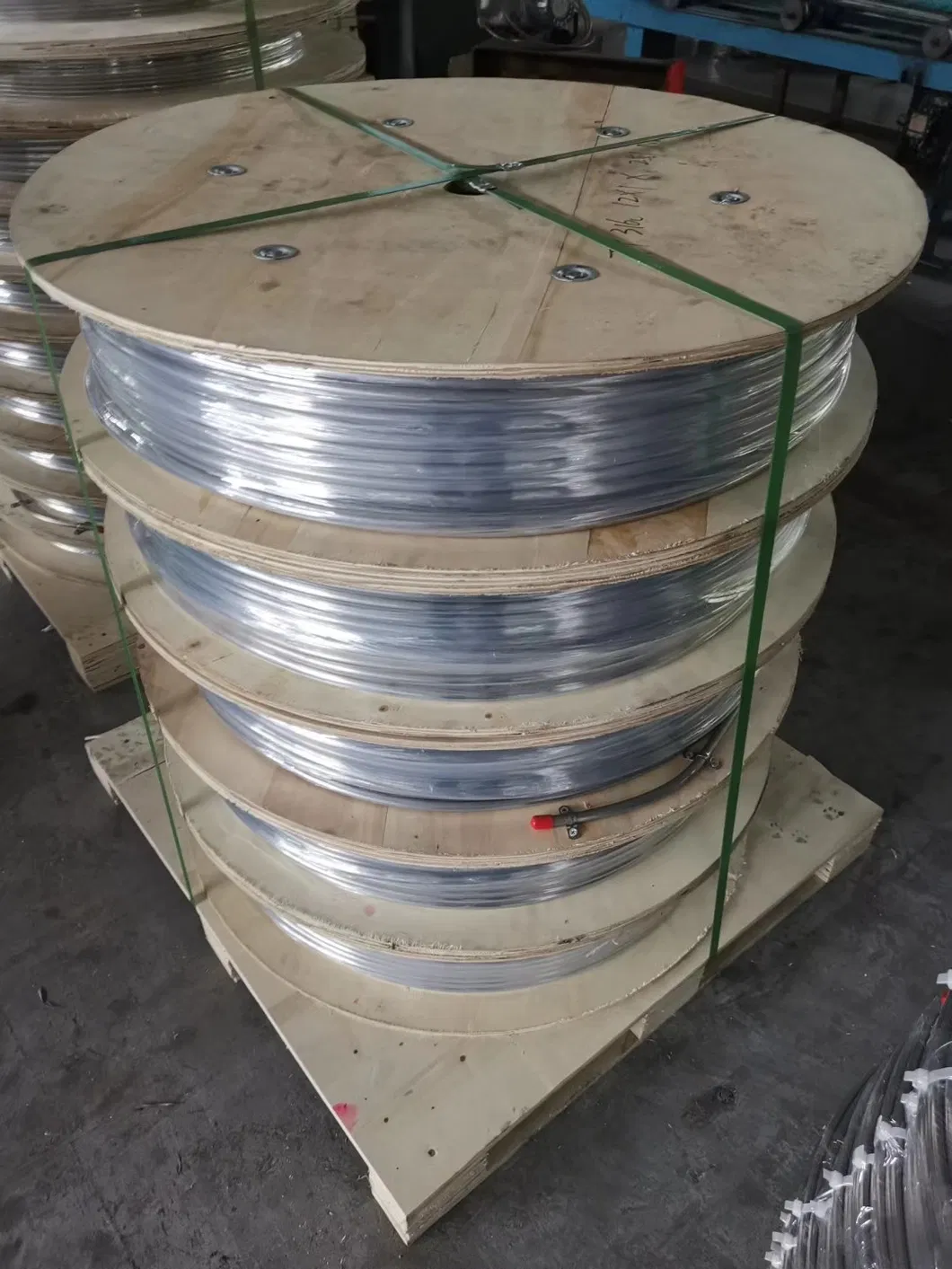

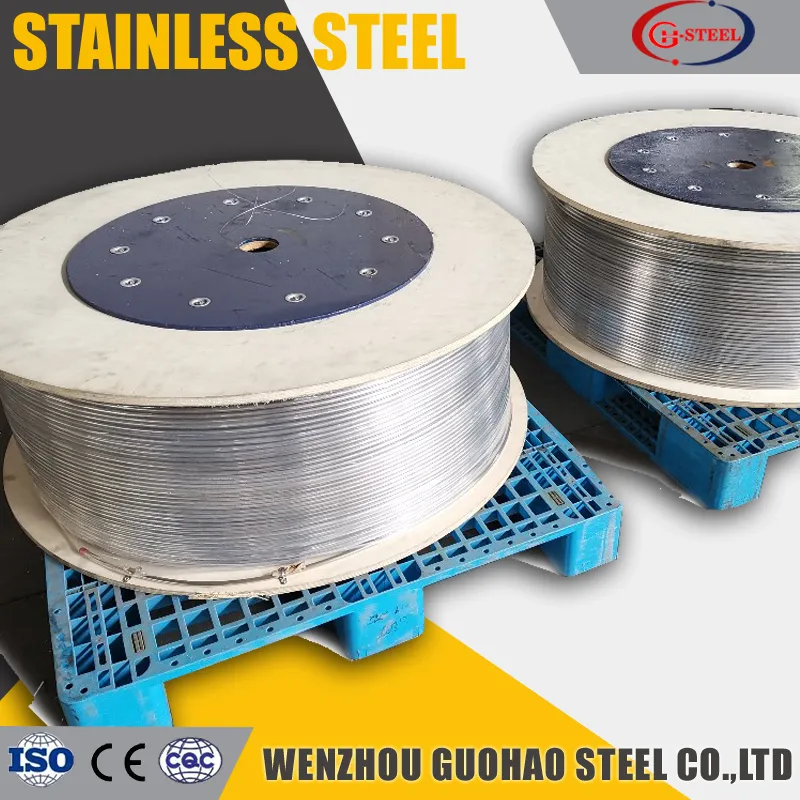

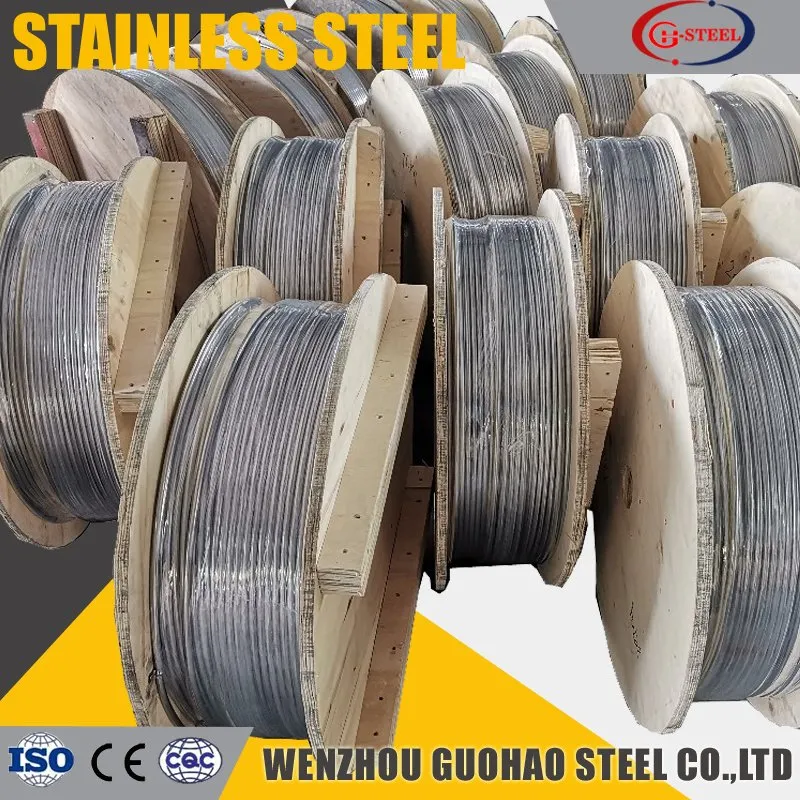

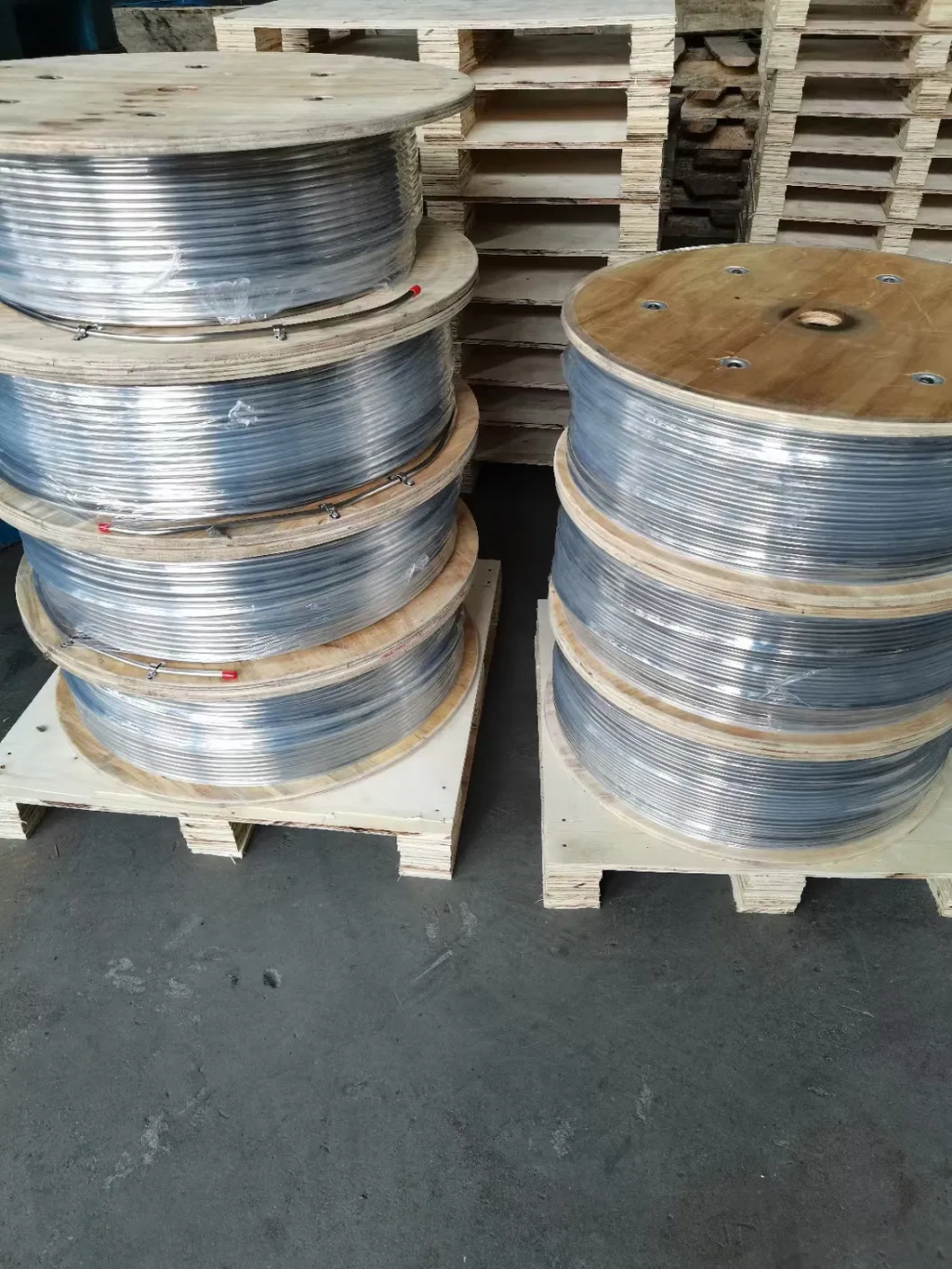

Packed in woven bag or plywood box, plywood spool, convenient for transportation and storage;The finished stainless steel coiled tubes will be wound into a roll and packed into plywood box,or it's wrapped in plywood spools,Maritime, ground and air transport are convenient,Reduce transportation costs and facilitate customer inventory storage.

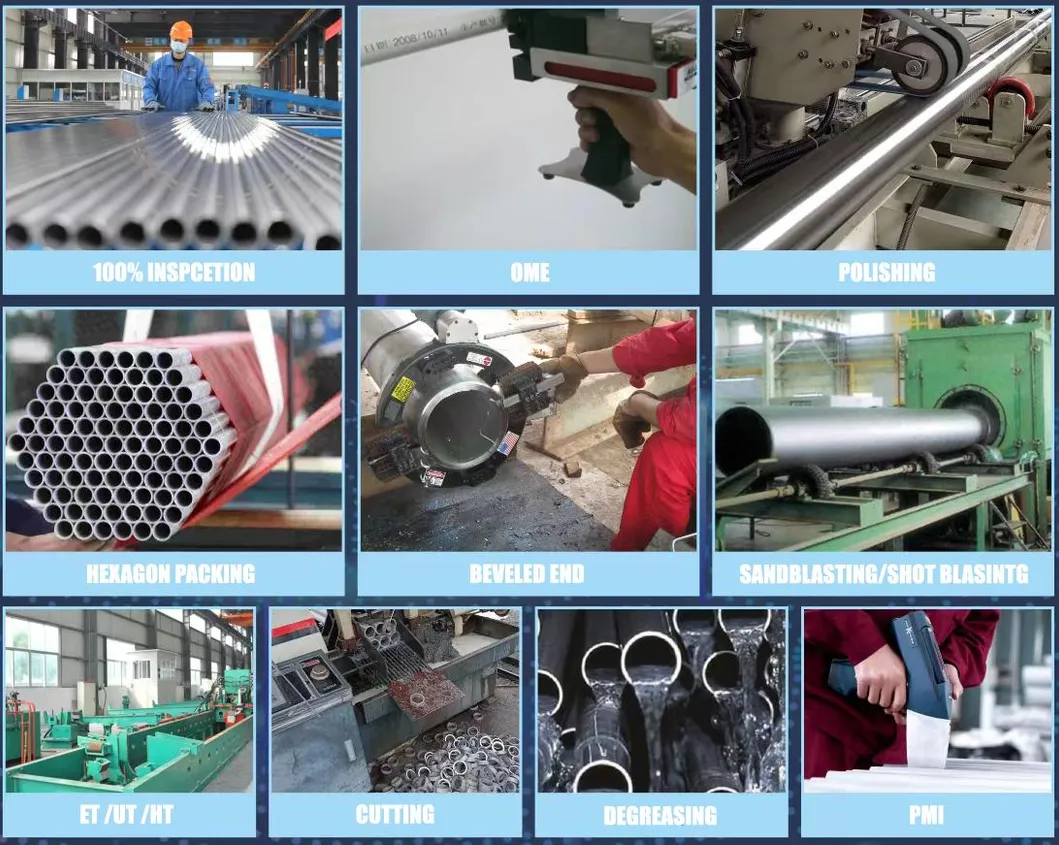

The inspection of our company and products is open to customers themselves or their designated third-party inspectors, such as SGS, BV, TUV, DNV, etc., who are well-known in the industry.

• Heat Exchangers: Stainless steel coil tubes are widely used in heat exchanger systems for applications like cooling or heating fluids.
• Instrumentation: They are used in instrumentation and control systems in industries such as oil and gas, chemical processing, and petrochemicals.
• Oil and Gas Industry: Coil tubes find applications in the oil and gas industry for transportation of fluids and gases.
• Instrumentation and Control Systems
• Automotive and Aerospace Industries
