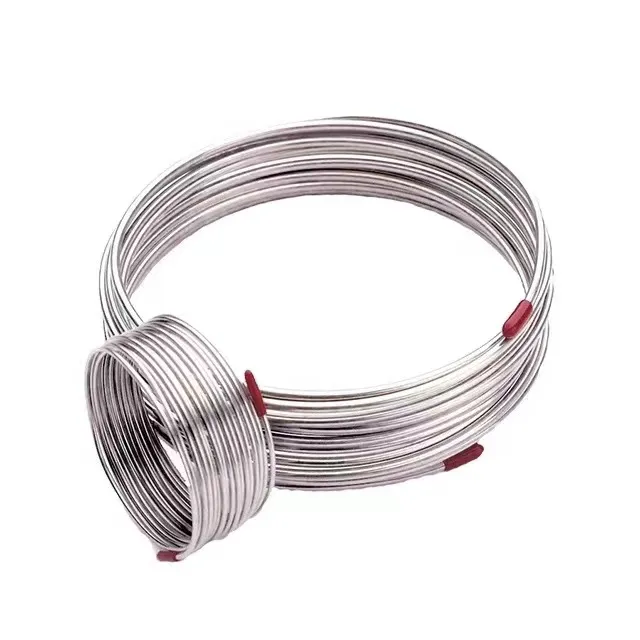

High-Performance Inconel 625 Coiled Tubing for Oil and Gas
Detailed specification for High-Performance Inconel 625 Coiled Tubing for Oil and Gas
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | UNS N06625/Inconel 625 |
| Material | Stainless Steel |
| Surface Treatment | Pickling |
| Usage | Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe, Oil/Gas Drilling, Food/Beverage/Dairy Products, Machinery Industry, Chemical Industry, Mining, Construction & Decoration, Special Purpose, Hose Clamps,Cookware,Window Channel Spacers |
| Section Shape | Round |
| Outside Diameter | 1/4'', 3/8'', 1/2'' |
| Thickness | 0.035'', 0.049'', 0.065'' |
| Length | up to 10m |
| Working Pressure | 50-200 MPa |
| Hole Count | Single/Multi Core |
| Transport Package | as Customer's Requirement |
| Trademark | ZYTC |
| Origin | Tianjin, China |
| HS Code | 73064000 |
| Production Capacity | 500 Tons/Month |
ZYTC has been supplying welded coiled tubing to the oil and gas industry for more than a decade. We mainly supply materials of stainless steel, duplex steel, and nickel alloy (such as 304/L,316/L, 2205, 2507, alloy 625, and alloy 825). Diameters from 4mm to 25mm and our length can be up to 33000ft (10000m). It has been successfully used in kinds of the heat exchanger, certain harsh subsea and downhole conditions, and through continuous research and development, is able to meet the stringent quality requirements of the oil industry. This type of coiled tubing can also be processed to encapsulated tubing to meet customer requirements. ZYTC welded coiled tubing is certificated by ISO/ABS/CCS/BV/DNV/LR/GL/KR/NK, which is not only the service but also the quality can be assured.
Grade: TP316/L, 304/L, 2205, 2507, Alloy825/N08825, Alloy625 /N06625, Alloy400/ N04400,etc
Type: Welded
Hole count: Single/Multi Core
Outer Diameter: 4mm-25mm
Wall Thickness: 0.3mm-2.5mm
Length: According to customers' needs, up to 10000m
Standard: ASTM A269/A213/A789/B704/B163,etc.
Certificate: ISO/CCS/DNV/BV/ABS, etc.
Inspection: NDT; Hydrostatic test
Package: Wooden or iron reel
Features of Nickel Alloy 625 Coiled Tubing
High creep fracture strength
Resistant to oxidation at 1800°F
Good fatigue resistance
Excellent weldability
Excellent resistance to chloride pitting and crevice corrosion
Resistant to chloride ion stress corrosion cracking
Resistant to seawater under flowing and stagnant conditions as well as under contaminated conditions
Nickel Alloy 625 Chemical composition:
%
Ni
Cr
Mo
Fe
C
Mn
Si
P
S
Co
Nb+Ta
Al
Ti
min
58.0
20.0
8.0
3.15
max
23.0
10.0
5.0
0.10
0.50
0.50
0.015
0.015
1.00
4.15
0.40
0.40
Features: Alloy 625 has excellent strength at temperatures up to 816ºC. At higher temperatures, its strength is generally lower than that of other solid solution-strengthened alloys. Alloy 625 has good oxidation resistance at temperatures up to 980ºC and shows good resistance to aqueous corrosion, but is relatively moderate compared to other more capable corrosion-resistant alloys.

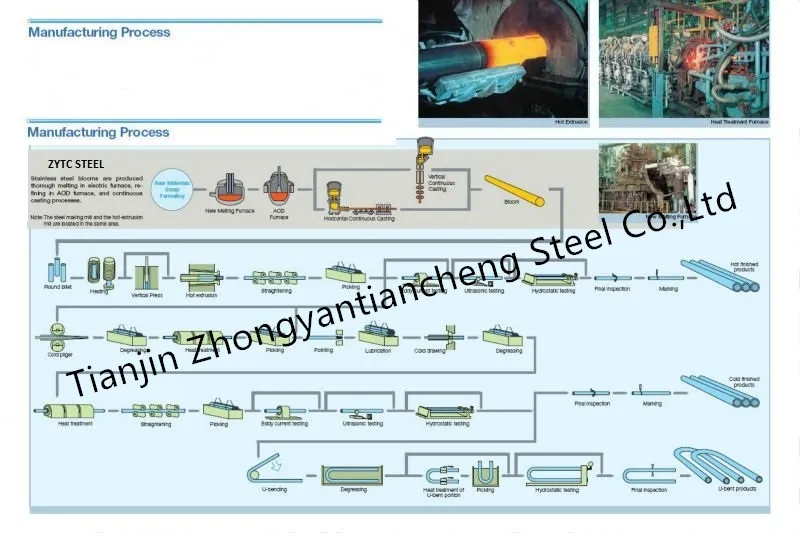

2: Stainless Steel Seamless Pipe Or Welded Pipe Process
