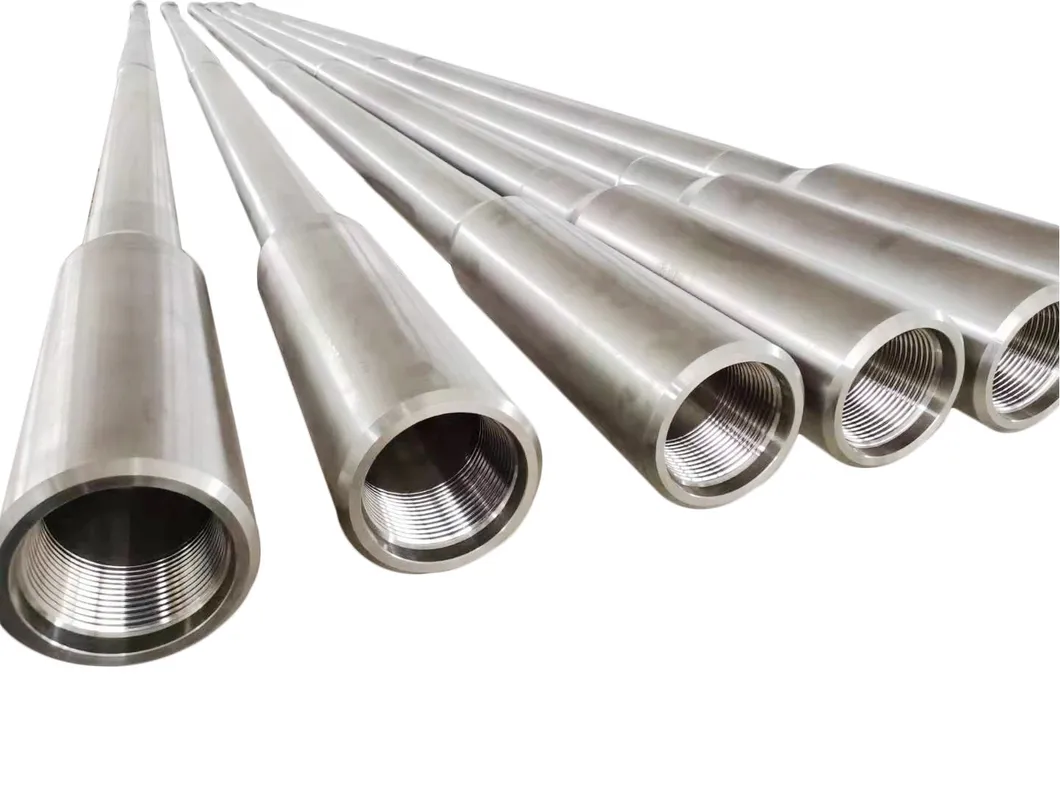

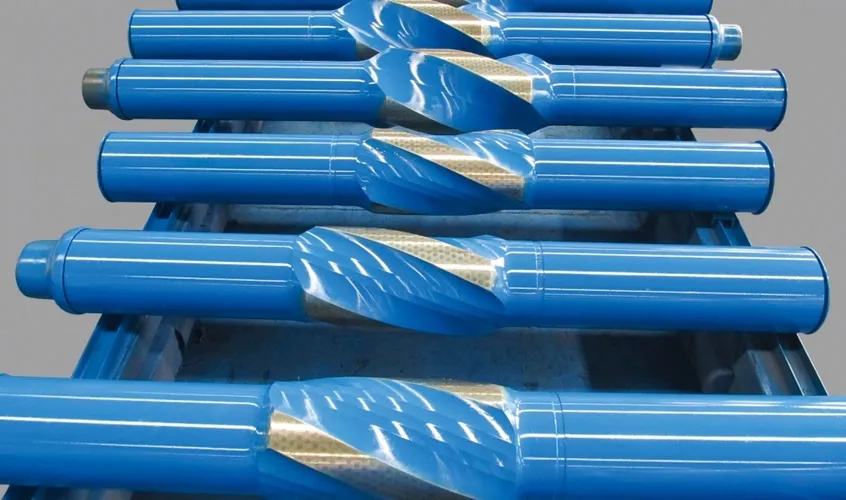

1-3/4" Downhole Mud Motor for Coiled Tubing
Detailed specification for 1-3/4" Downhole Mud Motor for Coiled Tubing
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | 1.25 1.5 1.75 2 2.3 |
| Manufacturing Process | Forging |
| Surface Treatment | Spray-Paint |
| Operation Pressure | Atmospheric Pressure |
| Material | Alloy |
| Certificate | API 11d |
| Size | 43-244mm |
| Application | Well Drilling |
| Type | Downhole Motor, Mud Motor, Drilling Motor |
| Temperature | 95-180 Degree |
| Place of Origin | Shandong, China |
| Machine Type | Drilling Tool |
| Types | Straight Housing, Adjustable Bend Housing |
| Transport Package | Wooden Case |
| Specification | 5"---9 5/8" |
| Trademark | YCPT Yacheng |
1-3/4" Downhole Mud Motor for Coiled Tubing
Product Description
Down-hole motor is a kind of downhole drilling tool powered by mud. The mud from mud pump enters motor by way of bypass valve, and a pressure drop between motor inlet and outlet created, such pressure drop will drive the motor rotator to rotate, and transmit the torque and rotary speed to bit by universal shaft and transmission shaft. The downhole motor property mainly depends upon its property parameters. This product uses the high and new technology of coating to avoid coating off of rotors resulted from the traditional technology. Its strength and life are greatly improved. It is applicable to directional drilling horizontal drilling, composite drilling, cluster wells, sidetrack wells and well workover etc.
Product Parameters
Type
5LZ73 7.0
5LZ89 7.0
5LZ95 7.0
7LZ95 3.5
9LZ95 7.0
5LZ120 7.0
Hole Size
Mm
95~121
114~152
118~152
118~152
118~152
149~200
In
33/4~43/4
41/2~6
45/8~6
45/8~6
45/8~6
57/8~77/8
Thread Type
Top
23/8"REG
23/8"REG
27/8"REG
27/8"TBG
27/8"REG
31/2"REG
Bottom
23/8"REG
23/8"REG
27/8"REG
27/8"REG
27/8"REG
31/2"REG
Nozzle pressure drop
Mpa
1.4~7
1.4~7
1.4~7
1.4~3.5
1.4~7
1.4~7
Recommend Flow
L/S
3~8
3~8
7~12
7~11
6~10
9~14
Bit rotary
R/Min
109~291
95~200
90~195
120~240
90~200
95~200
Motor pressure drop
Mpa
2.4
2.4
3.2
2.4
2.4
3.2
Working torque
N.M
460
628~838
1260~1630
723~960
750~1020
1480~1820
Lagging torque
N.M
650
1300
2200
1500
1550
2440
Output power
KW
4.7~12.5
7.3~15.3
13.6~29.5
18~24
8.3~18.5
16.4~34.5
Recommended bit weight
T
4.7~12.5
2.0
2.5
1.0
2.5
3
Max bit weight
T
2.5
3.0
5
1.5
5
5
Length
(mm)
Straight
3450
3570
4450
2500
3590
5085
Single curve
3450
4675
3590
5335
Weight
(Kg)
Straight
100
98
140
89
120
390
Single curve
102
150
120
420
Recommended Product
Company Products
Certifications
Packaging & Shipping
1) About Packing
Inner packing: white box, color boxes (upon request), Outer packing: cartons or pallets
2) Terms of payment:
We accept T/T,L/C
3)Terms of Shipment:
About 30 days after receiving the advance payment,or according to both parties agreement
4)Ports of shipment:
Tianjin,Qingdao, shanghai or other required Port, by sea or air
5)Guarantee:
One year since delivery.
6)Inspection:
100% testing before delivery.
