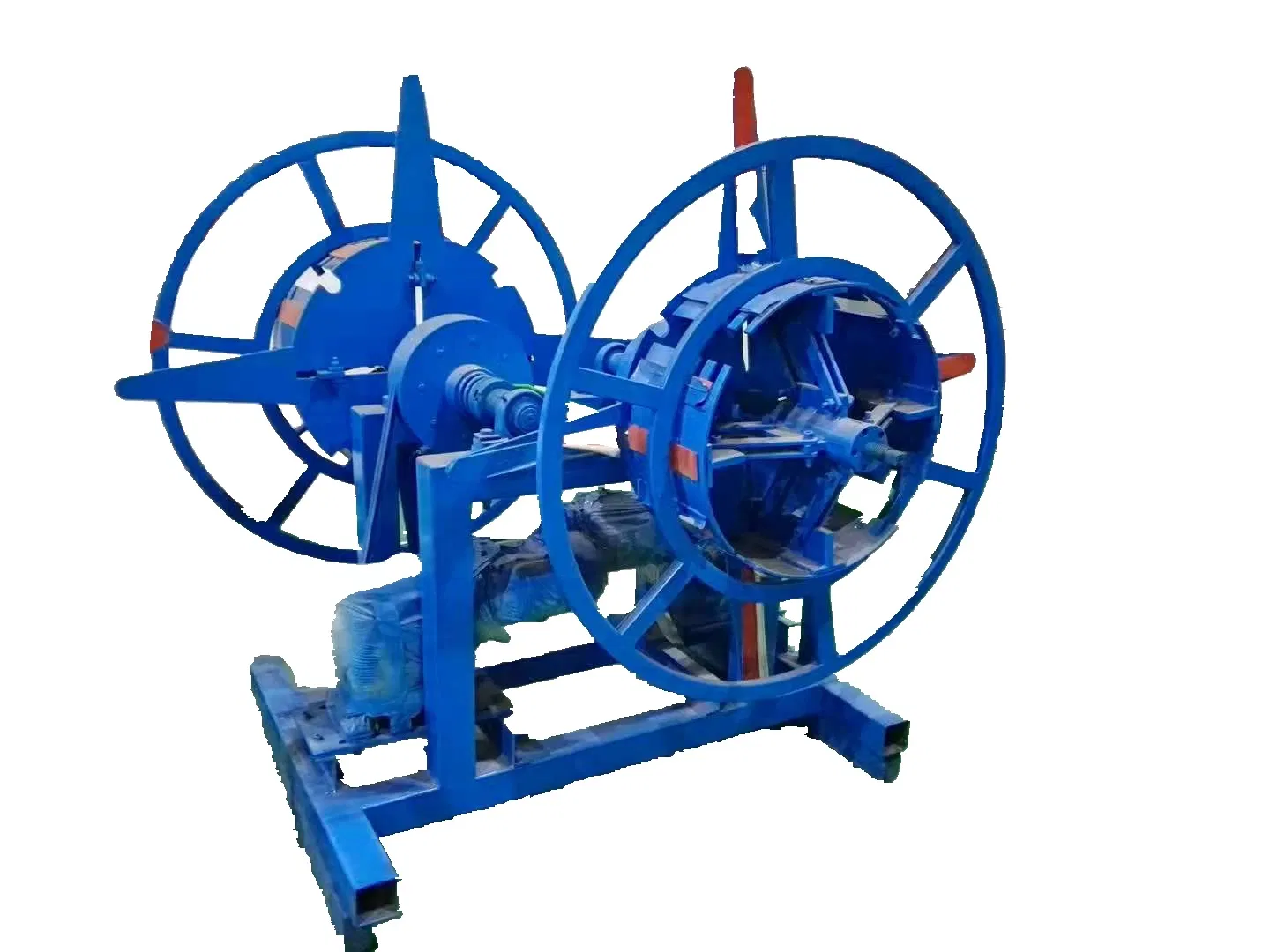

Double Head Electric Strip Uncoiler

Structural form: Double-shaft expansion and contraction uncoiler. The mandrel is composed of 4 wedge-shaped blocks. The inner diameter of the coil is tightened through the screw expansion and contraction mandrel. The unwinding speed is controlled by a manual brake. One roll is produced online and one roll is prepared to adapt to continuous production.

√ Higher loading capacity
√ Stainless steel edging to prevent iron ions from contaminating the steel strip
√ Cleaner workshop environment

Self-designed horizontal strip accumulator

√ Max stocking length could reach 200-300M

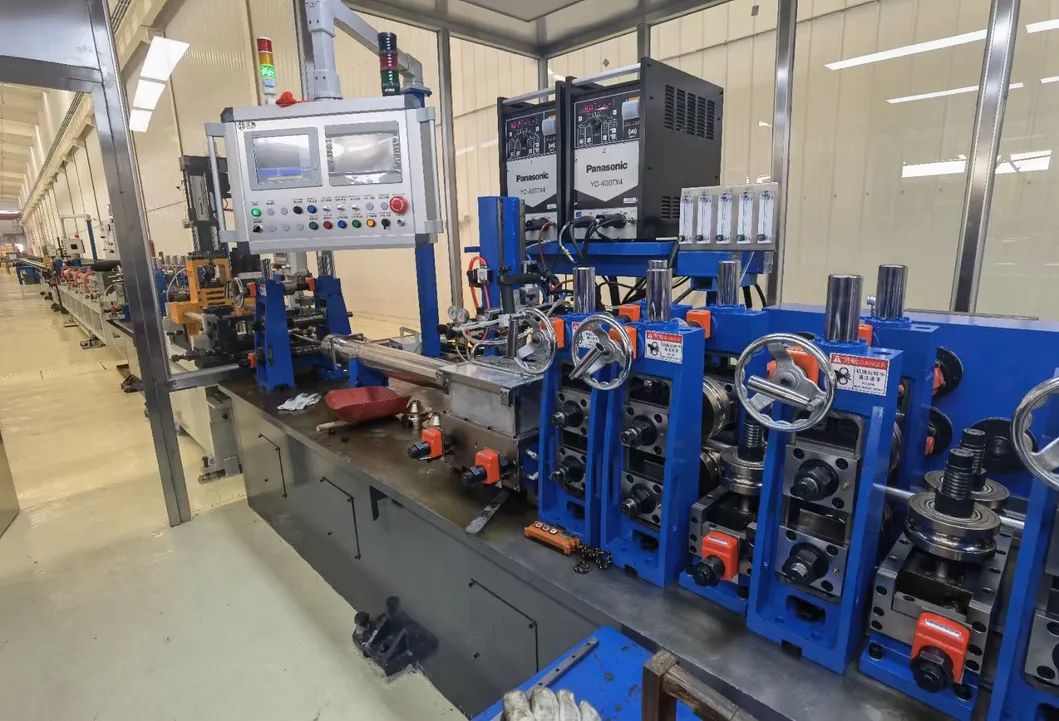

Forming & welding section
Function: The strip is deformed in stages by alternately arranged horizontal roller stands and rollers in the vertical roll stand to obtain the required stainless steel pipe products of different specifications.

√ The frame adopts integral type to strengthen rigidity and reduce accumulated error.
√ Roller material accepta customization.

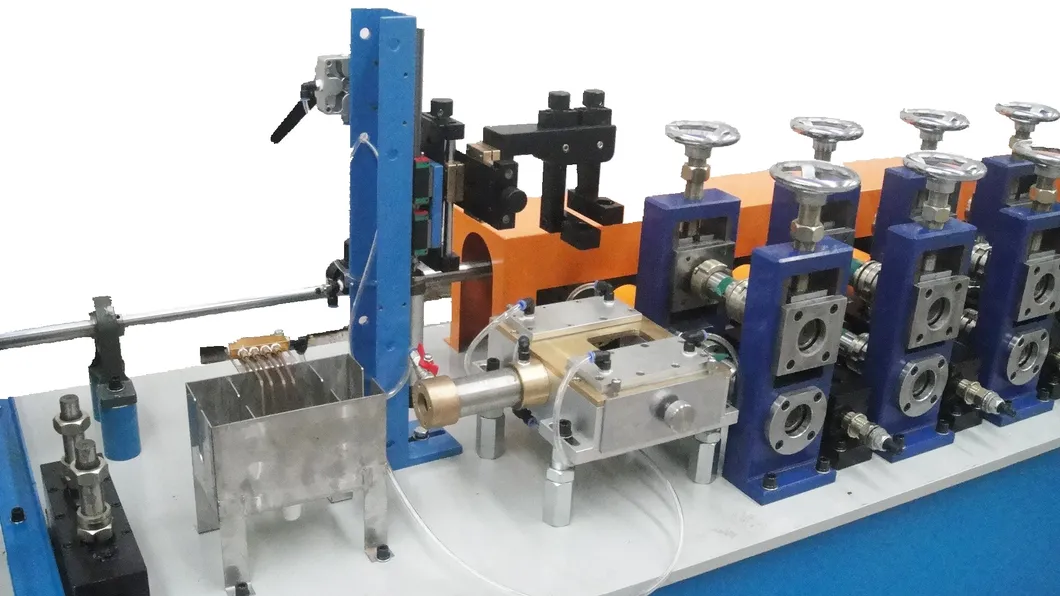

Protective atmosphere welding box

Function: Welding the formed strip in a closed protective box.
Structure: horizontal roller device, extrusion device, welding system.

√ Variuos welding type customization aceepted

online bright annealing heat treatment

The stainless steel tube enters the online bright solid solution system after first sizing, and the stainless steel tube in induction heating furnace is given a certain tension (about 1%) through the speed control system. The heat treatment system matches the line speed and the yield is high. The equipment is easy to operate, simple, high degree of automation, and high efficiency of heating power supply. Power supply damage will not occur when the production line fails.
The sealing system of the cooling channel is safe, stable and reliable. Annealing outlet temperature is below 100 °C. The system uses a closed loop softened water cooling system.

Product Photos

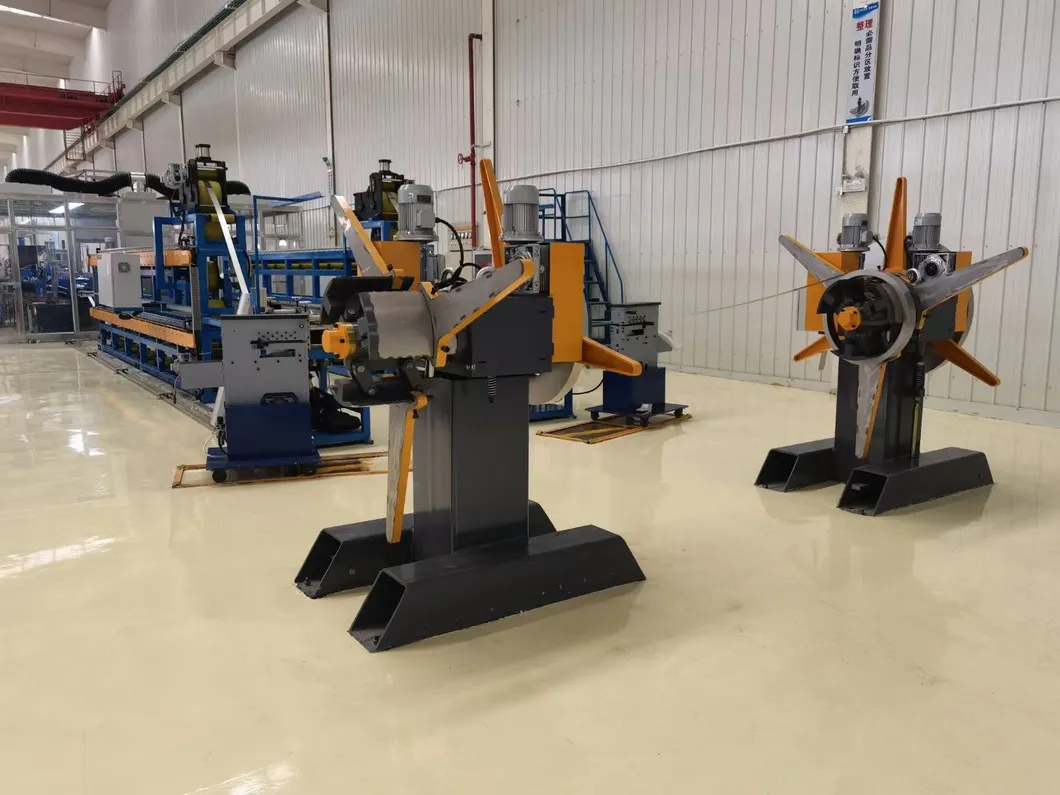

Uncoiler

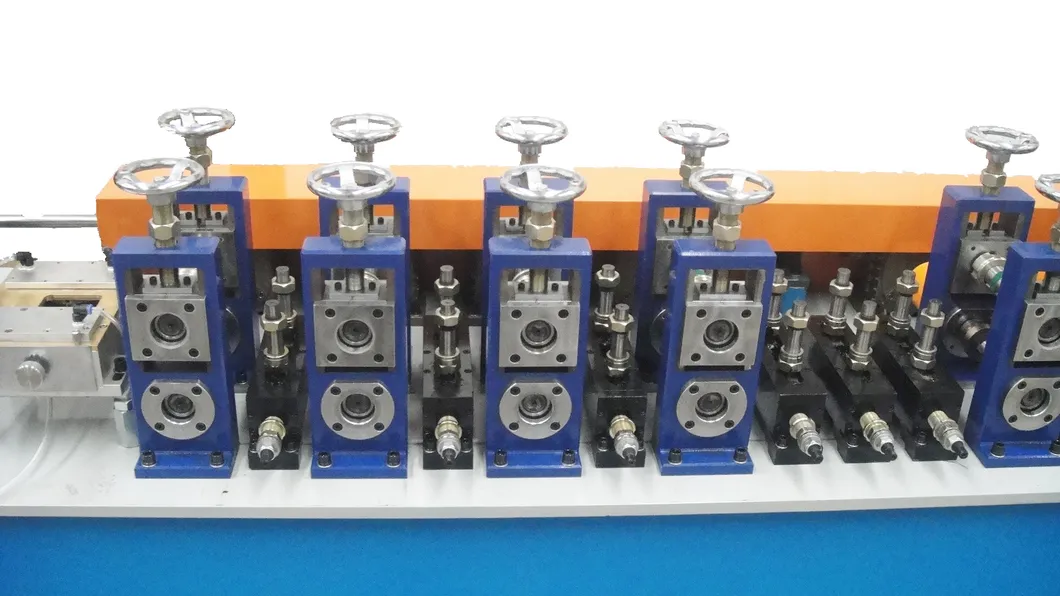

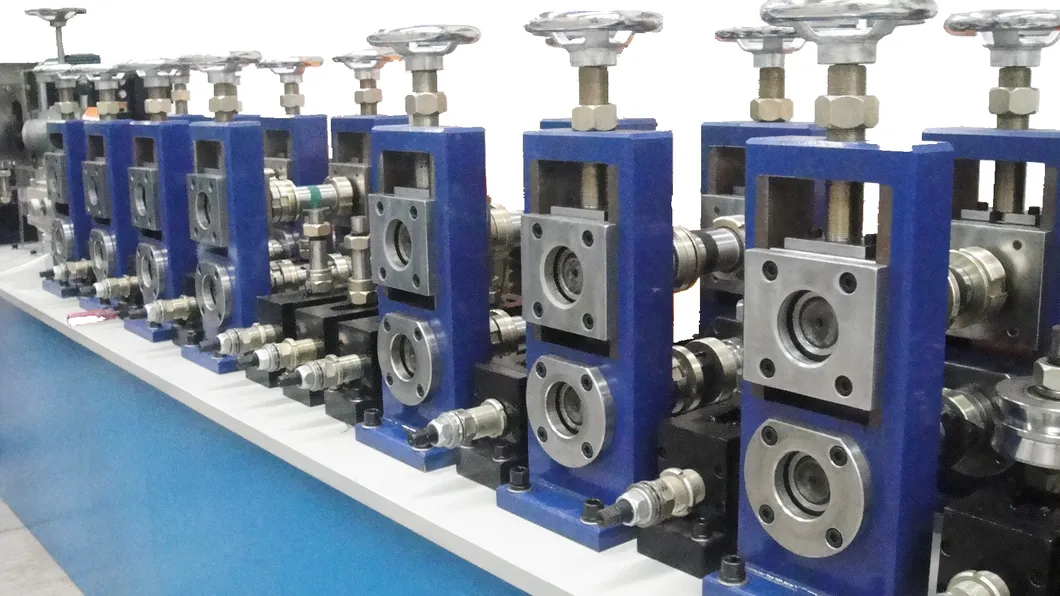

Basic Composition of Forming Section


Welding Section


On-line Bright Annealing Furnace


Final Sizing

Efficiency

  1. Using electromagnetic control system to correct the arc trajectory, improving working speed at least 25% higher and guaranteeing the welding seam quality. The highest speed could reach up to 12 m/min for the TIG welding with excellent welding seam.

  2. It not only speeds up the efficiency, but also save the consumption and factory's room, with continuous, single tube and on-line heat processing. The minimun processed O.D could be 10-12.7mm.

Automation

  Labor costs saving. One person could monitor 2 production lines in the meanwhile. Our self developed PLC control system could cordinate every section automatically. With HMI touching screen, you could use it easily.

Anti-corrossion

   High quality rollers are made of material SKD11, with vacumm gas quenching. Hardness reaches up to 64-66, with CNC high precision processing.

Accuracy

   Precise CNC processing could ensure the smooth surface with less scratch happenning when forming. Accurate size could controle the tolerance at the range of ±0.5-1.0 mm.

   Visible design of micro adjusting device of roller's lifting, making roller replacement higher operability.Usage

SEKO Machinery heat exchanger tubing stainless steel coil pipe production line specializes in industrial usage, like HVAC pipe fittings, sanitary tubes, water pipes, valve pipe fittings, petrochemical pipes, chemical industry, medicine industry, wine-making industry, petroleum industry, food industry, automobile industry, paper making industry, air-condition making industry and so on. Products dealed with our tube mill could reach ASTM, DIN, ISO, GB and JIS standard.Our heat exchanger tubing stainless steel coil pipe production line use IGBT and digital control system. It could control the electricity consumption precisely, in order to lower the costs.
