Cross-Linked Polyethylene Five-Layer Composite Aluminum Pex Pipe for Hot Water with German Quality
Detailed specification for Cross-Linked Polyethylene Five-Layer Composite Aluminum Pex Pipe for Hot Water with German Quality
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | PEX Al PEX Pipe |
| Material | Pex-B |
| Kind | Thermoplastics Pipes |
| Water Absorption | ＜0.01% |
| Contraction Percentage | ＜0.4% |
| Color | White, Customized |
| Crosslink | ≥65° |
| Type of Crosslink | Pex B |
| Grannules Class | ≥PE80 |
| Max. Working Temp | 95℃ |
| Min. Working Temp | -40°c |
| Working Pressure | ≤1, 25 MPa |
| Bursting Strenght for +95°c | ≥45 Bar |
| Resistance to Delamination | ≥ 9 N/mm |
| Tensile Strenght Cone | Acc. Dvgw W 542 |
| Thermal Durability | Acc. ISO 21003-2 |
| Marking | Customized |
| Thermal Conductivity | 0.45W/Mk |
| Thermal Expansivity | 0, 025 mm/Mk |
| Bend Radius | 5xd Ext. |
| Transport Package | Packing in Rolls in Plastic Films, Customized |
| Specification | 16/20/25/32 |
| Trademark | GANT, OEM |
| Origin | China, Anhui |
| HS Code | 3917390000 |
| Production Capacity | 30000000meters |
Product Description

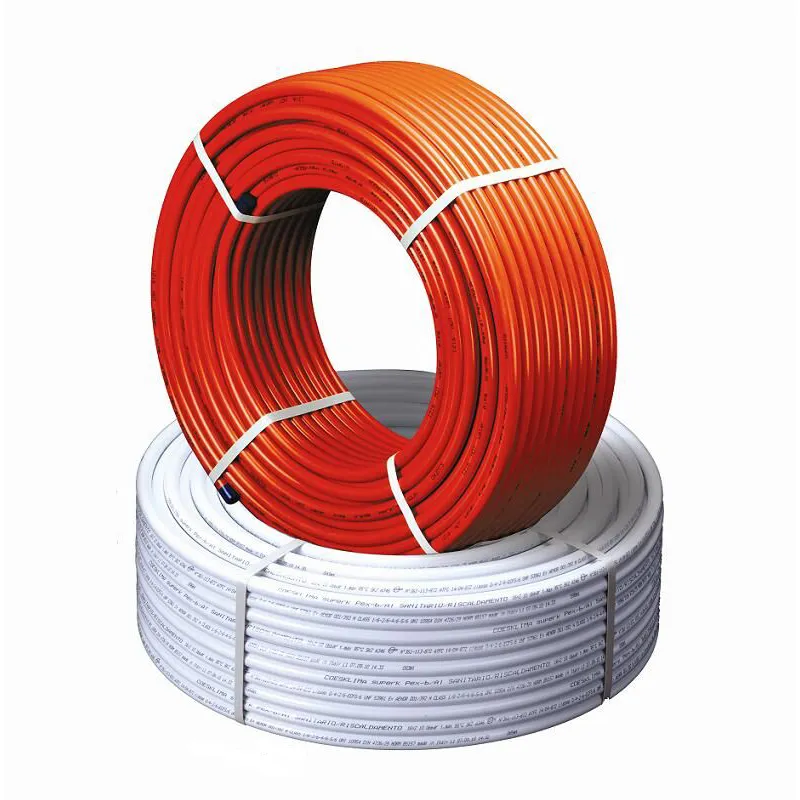

PEX Al PEX Pipe
PEX Al PEX Pipe is a new type of high-quality pipe material, which is composed of two layers of polyethylene (PEX) with aluminum foil sandwiched between them. It is widely used in construction and industrial fields, bringing convenience and comfort to our production and life.
Advantage:
1. Anti-leakage: PEX aluminum-plastic pipe is packed with a layer of aluminum-plastic composite material, which makes it more pressure-resistant, anti-leakage, and longer service life.
2. Both hardness and softness: the outer layer of the PEX aluminum-plastic pipe is made of a layer of aluminum-plastic composite material, which makes the pipe not only have good hardness, but also good flexibility.
3. Strong corrosion resistance: The inner wall of the PEX aluminum-plastic pipe is made of PEX material, which has the characteristics of not easy to age, corrosion resistance, etc., and has a long service life.
4. Not easy to burn: The outer layer of the PEX aluminum-plastic pipe is made of aluminum-plastic composite material, which is easy to decompose, not easy to burn, and has good safety.
5. Strong corrosion resistance: The inner and outer surfaces of PEX aluminum-plastic pipes are made of high-quality materials, which have good corrosion resistance.
6. Simple installation: PEX aluminum-plastic pipe can be installed through simple welding and joints, and it is also very convenient for maintenance and replacement.
Product Name
Pex Al Pex Pipe
Color
Natural / Customized
Working Pressure
0.86mpa-1.25mpa
Size
16-32mm
Material
Pex + Aluminium
Usage
Performance
Good Flexibility, Easy To Bend
Certification
Iso 15875-2-2003, Gb/t 18992.2-2003
Health Guarantee
The Interior Is Smooth, Not Easy To Corrode, And Does Not Form Scale
Work Temperature
-20ºC-120ºC
Feature
Corrosion Resistant
Connection
Brass Fittings
Package
Carton +opp Bag
