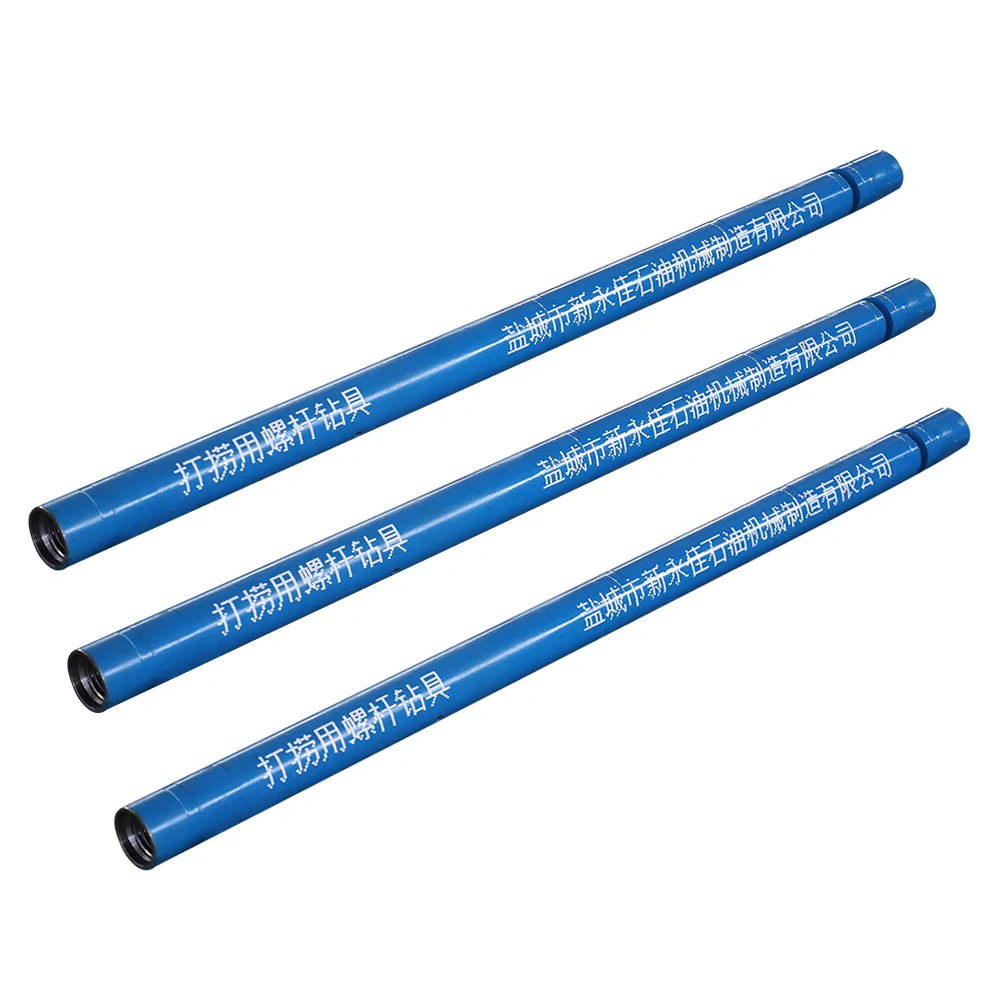

Durable Coiled Tubing Motor for Efficient Salvaging Operations

Downhole motor is a positive displacement downhole power drilling tool that uses drilling fluid as power and converts liquid pressure energy into mechanical energy. When the mud pumped out by the mud pump enters the motor, a pressure drop is formed at the inlet and outlet of the motor, pushing the rotor to rotate around the axis of the stator, and transmits the torque and speed to the drill bit by universal shaft and transmission shaft, thereby realizing drilling operation. Downhole motor is extensively used in drilling and workover for oilfields and coal mines.

ModelODDrill bit sizeConnecting threads at both endsLobeStageFlow RateRotating SpeedWorking pressure dropOutput TorqueMax.  pressure dropMax. TorqueWorking WOBMax.WOBMax.Power OutputLength mmmmtoplpmrpmMPaN.mMPaN.mkNkNkwm ininbottomgpmpsilb-ftpsilb-ftlblbhp DL7LZ79X7.079        3 ¹/₈95-121  3³/₄-4³/₄2³/₈PAC        2³/₈PQC7:81.5240-360   63-9547-70 1.5    218882     651 2.25    435 1415      1041 12      2640 25      5500 10           143.00 DLC9LZ89x7.0 89        3 ¹/₂114-149 4¹/₂-5⁷/₈2³/₈PAC        2³/₈PQC9:101.5240-480  52-12733-671.2     1741238      9131.8    2611856      136922      4400 35      7700 13         173.00 DL5LZ79X7.079        3 ¹/₈95-121  3³/₄-4³/₄2⁷/₈PAC        2⁷/₈PAC5:61.2162-360   43-9540-80 1.0    145287     212 1.5    218 430      317 12      2640 25      5500 4           51.50 DLC9LZ89x7.0 89        3 ¹/₂114-149 4¹/₂-5⁷/₈2⁷/₈PAC        2⁷/₈PAC5:61.52246-486  65-13040-80 1.0    145430      3171.5    218 624      46022      4400 35      7700 5           71.50

Packaging & Shipping

Packaging: wooden box or as per the customer's request.

Delivery period: within 15 days after receiving the advance payment,or  as per both parties' agreement.

Shipping: Qingdao, shanghai or other required Port, by sea or air



Company Profile

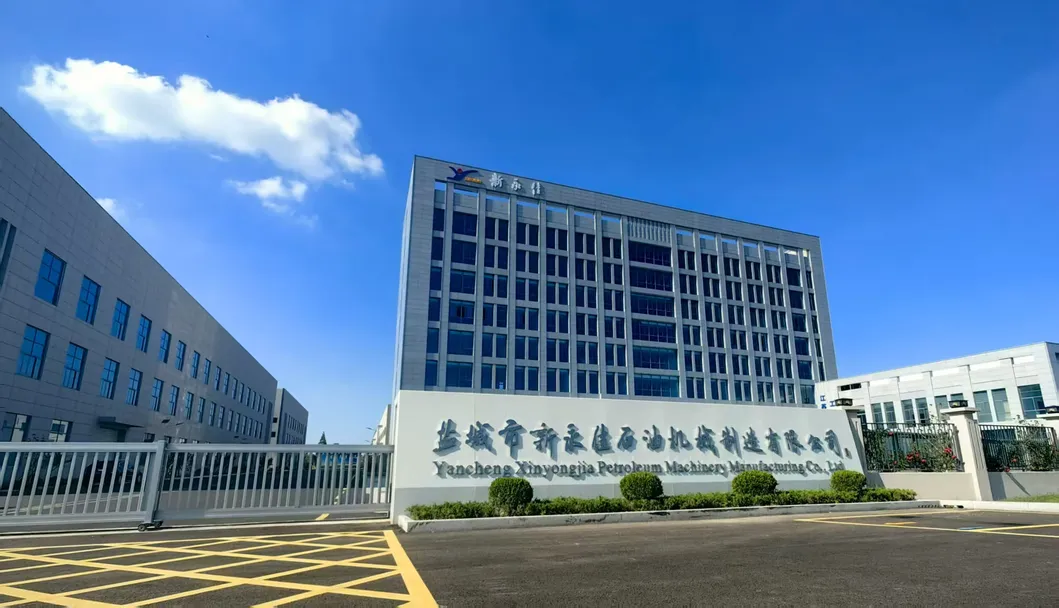

Incorporated in August 2005,Yancheng Xinyongjia Petroleum Machinery Manufacturing Co., Ltd. is a first-class network enterprise of PetroChina &Sinopec and a national high-tech enterprise  in Jiangsu Province,east China. The company has passed API and CE international certification, ISO9001: 2008 quality management system certification, ISO14001: 2004 environmental management system certification and OHSAS18001: 2007 occupational health and safety management system certification.The company has a registered capital of $15 million and covers an area of 80000 square meters.

Xinyongjia Petroleum is a professional manufacturer of downhole motors, screw drilling tools,drill pipe for measurement while drilling(i.e.directional cable drill pipe) and accessories. The downhole motors and other underground power tools that the company has manufactured according to the American API standard and other related standards are not only used in drilling and workover for major Chinese oil fields and coal mine ,but also exported to North America, the Middle East, North Africa, Central Asia, Southeast Asia, Russia,etc. They enjoy good market reputation. In 2020, the annual sales volume exceeded $15 million.

As a comprehensive petroleum machinery manufacturer integrating R&D,production,sales and services,Xinyongjia Petroleum has been deeply engaged in high-end production over 20 years.We can also customize products to meet the customer's requirements.

We are committed to become one of the most professional manufacturer in the industry.We will continue to provide our Chinese and overseas customers with high-quality products, favorable prices and professional services!

All Chinese and overseas customers are sincerely welcome  to come and discuss cooperation with us.Thank you!


Our Advantages
1. Mature R&D team
Our company has formed an industry-university-research consortium with well-known Chinese colleges and universities such as Tongji University, East China University of Science and Technology, and established Jiangsu Enterprise Technology Center and Jiangsu Downhole Motor Engineering Research Center. Now the company has 15 invention patents, more than 30 utility model patents, 10 high-tech products , etc.

In 2021, Xinyongjia Petroleum Machinery Manufacturing Co., Ltd. won the high-tech enterprise certificate jointly issued by Jiangsu Provincial Department of Science and Technology, Jiangsu Provincial Department of Finance and Jiangsu Provincial Tax Bureau of the State Administration of Taxation,china.

2. Wide range of products
We don't only have a wide range of products for our customers to choose but also provide customization service to meet the need of our customers.

3. Perfect QMS certifcation
Our company has passed API and UDEM international certification, ISO9001: 2008 quality management system certification, ISO14001: 2004 environmental management system certification and OHSAS18001: 2007 occupational health and safety management system certification.

4. Advanced production and testing equipment

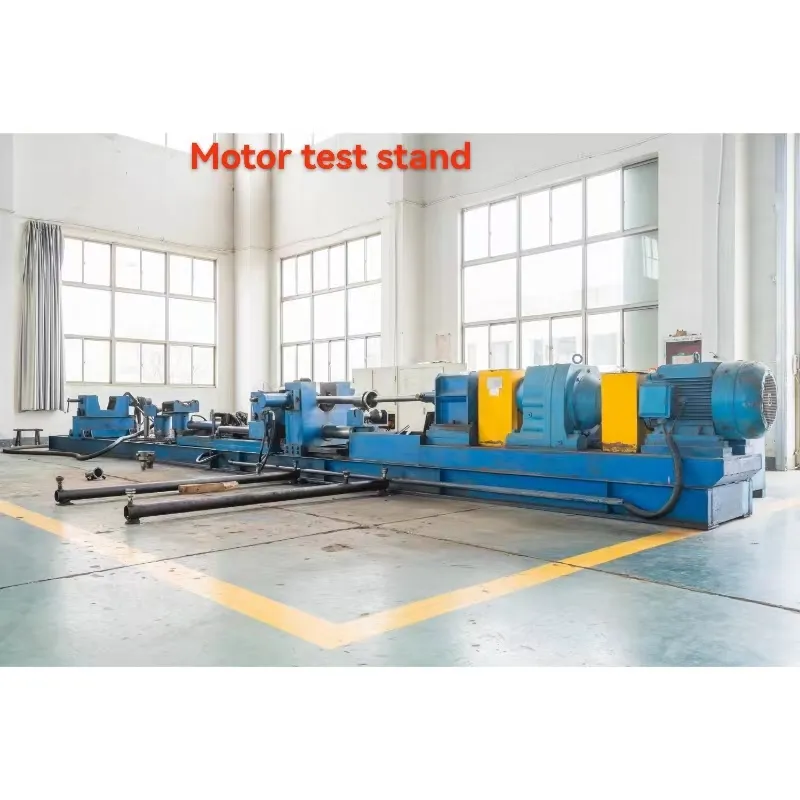

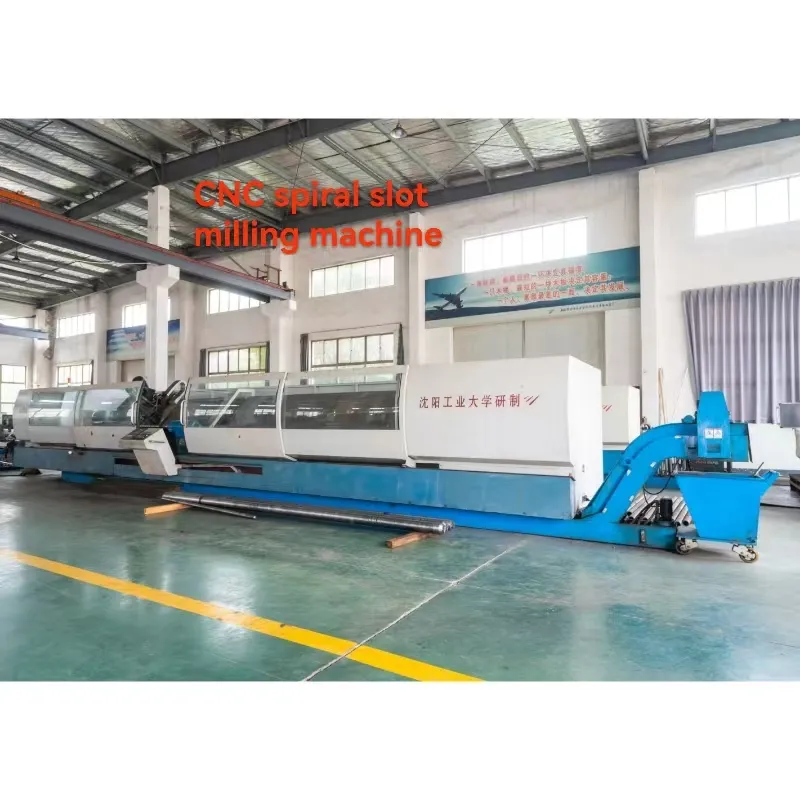

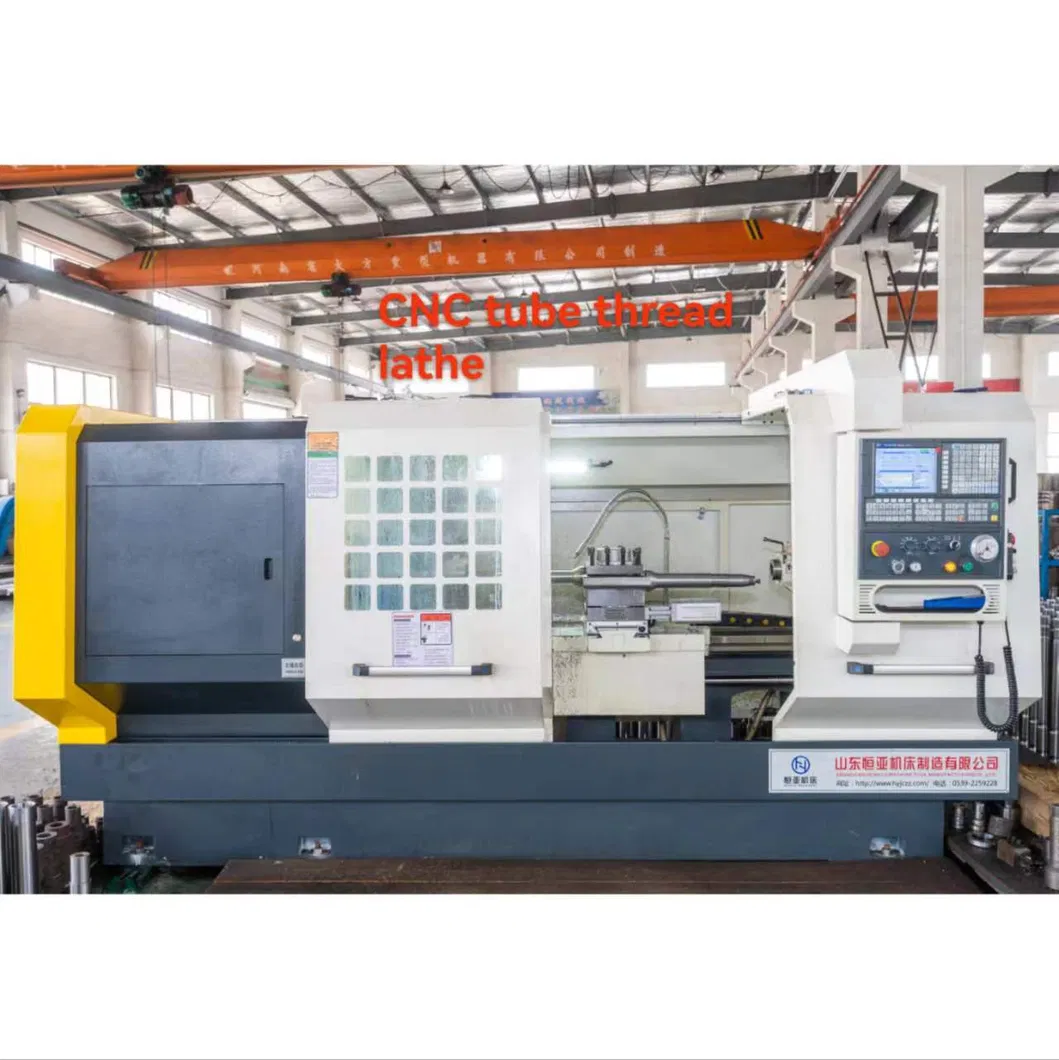

 Production equipment includes CNC spiral slot milling machine, CNC pipe thread lathe, tungsten carbide supersonic flame spraying equipment, CNC deep hole drilling machine, etc.while testing equipment includes motor test stand, no rotor vulkameter, magnetic particle flaw detector, Menni viscosity testing machine. All products must pass strict inspection before they can be delivered.


5.The delivery period is short wothout complicated approval procedures. usually it is  within a week for ordinary order while it is half a month for bulk order.
6.Timely and thoughtful after-sales service. At present, the company has set up nearly 20 after-sales ceneters in Petrochina, Sinopec,China Coal Group ,etc. In order to  keep up with the development of the international market and meet the need of foreign users, the company will also set up after -sales centers abroad.
