Well Control Wireline /Coiled Tubing /Slickline /Blowout Preventer Shaffer Type Double RAM Bop

Model NO.	BOP
Use	Well Drilling
Standard	API
Market	Global
Packaging Details	Wooden Case
Trademark	Sinotai
Origin	China
HS Code	8431431000



Product Description

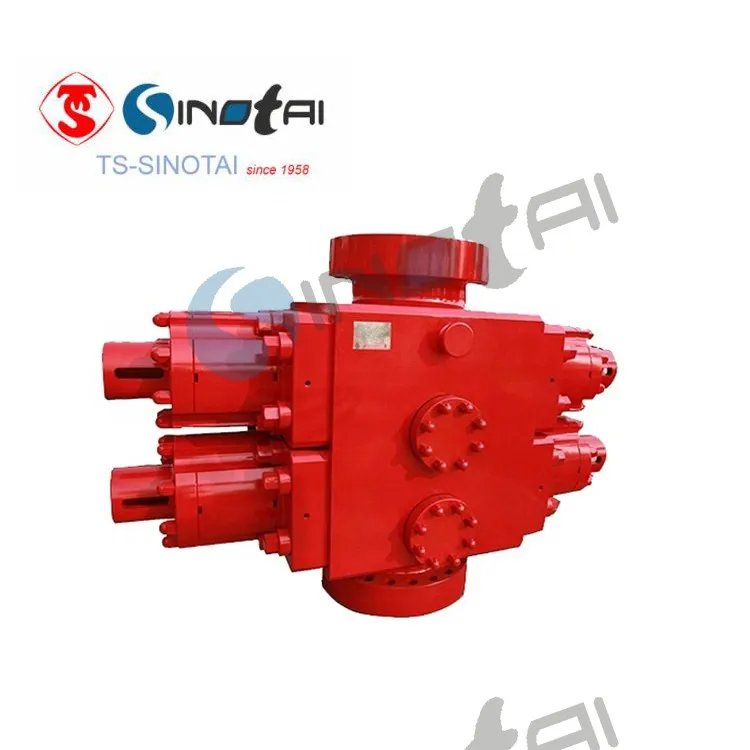

Api Spec 16A TS-C Ram Blowout preventer (bop) for oil well control

1.TS-C means casting structure Ram BOP, TS-CS means casting structure with shear function Ram BOP.

2.The main pressure-containing parts,such as body,bonnet,etc.,are using high-strength and high-toughness alloysteel material.

3.All of the parts are shape casting and followed by proper heat treatment.

4.The bonnetisconnected to the body by hinge which can be opened manually to replace the ram assembly

5.There are several slots at the ram chamber bottom of the body which can remove the mud and sand automatically during ram sopening and closing,reduce the ram movementfriction,and also improve the ram self-sealing

6.The special designed floating ram sealing structure can reduce the resistance during the ram opening and closing,extend the ram durationtimeby reducing the packer wear ,prevent rust between the body and ram,and can be dismantledeasily





Model

FZ18-21/ 2FZ18-21

FZ18-35/ 2FZ18-35

FZ18-70/ 2FZ18-70

FZ23-21/ 2FZ23-21

FZ23-35/ 2FZ23-35

FZ23-70/ 2FZ23-70

7 1/16" 3k psi

7 1/16" 5k psi

7 1/16" 10k psi

9" 3k psi

9" 5k psi

9" 10k psi

Rated working pressure

3k psi 21MPa

5k psi 35MPa

10k psi 70MPa

3k psi 21MPa

5k psi 35MPa

10k psi 70MPa

Hydrostatic Shell test Pressure

6k psi 42MPa

7.5k psi 52.5MPa

15k psi

105 MPa

6k psi

42MPa

7.5k psi 52.5MPa

15k psi

105 MPa

Volume to open (per set)

3.2L

3.2L

5.5L

4L

12L

11.4L

Volume to close ( per set)

4L

4L

5.5L

4.8L

13.2L

13.2L

Model

FZ35-21/ 2FZ35-21

FZ35-35/ 2FZ35-35

FZ35-70/ 2FZ35-70

FZ43-35/ 2FZ43-35

FZ48-35/ 2FZ48-35

FZ53-21/ 2FZ53-21

13 5/8"

3k psi

13 5/8"

5k psi

13 5/8"

10k psi

16 ¾" 5k psi

18 ¾" 5kpsi

20 ¾" 3k psi

Rated working pressure

3k psi 21MPa

5k psi

35MPa

10k psi 70MPa

5k psi 35MPa

5k psi

35MPa

3k psi 21MPa

Hydrostatic Shell test Pressure

6k psi 42MPa

7.5k psi 52.5MPa

15k psi

 105 MPa

7.5k psi 52.5MPa

7.5k psi 52.5MPa

4.5k psi 31.5MPa

Volume to open

(per set)

11.7L

17.2L

30L

44L

53L

24L

Volume to close

( per set)

13.3L

14.4L

33L

51L

60L

27L
