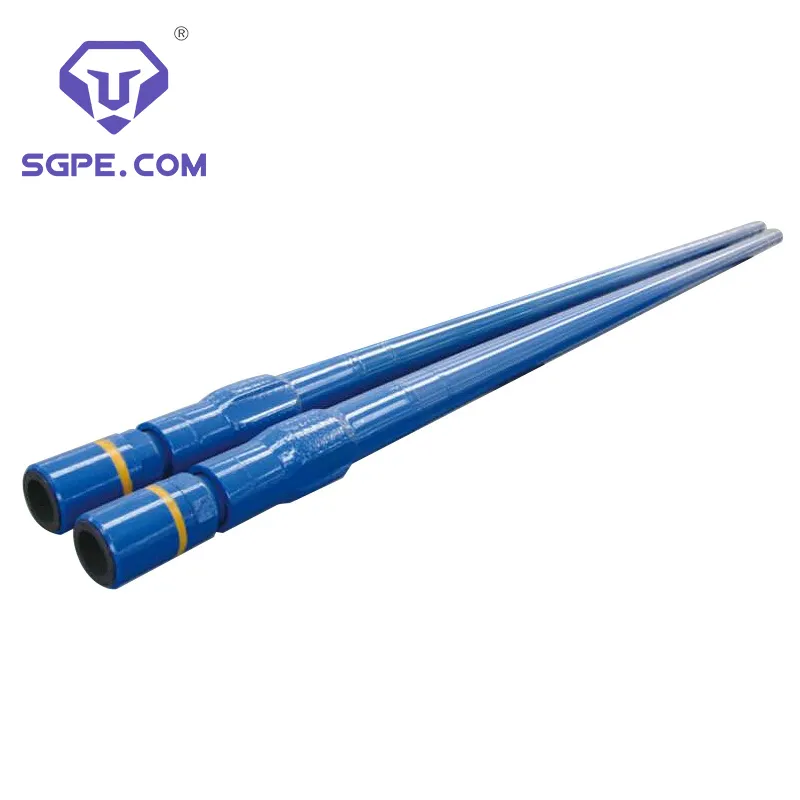

Mud Motor HDD Trenchless Drilling Mud Motor Downhole Drilling Mud Motor for Oil Gas and Coiled Tubin

API drilling downhole motor/mud motor for oil well drilling

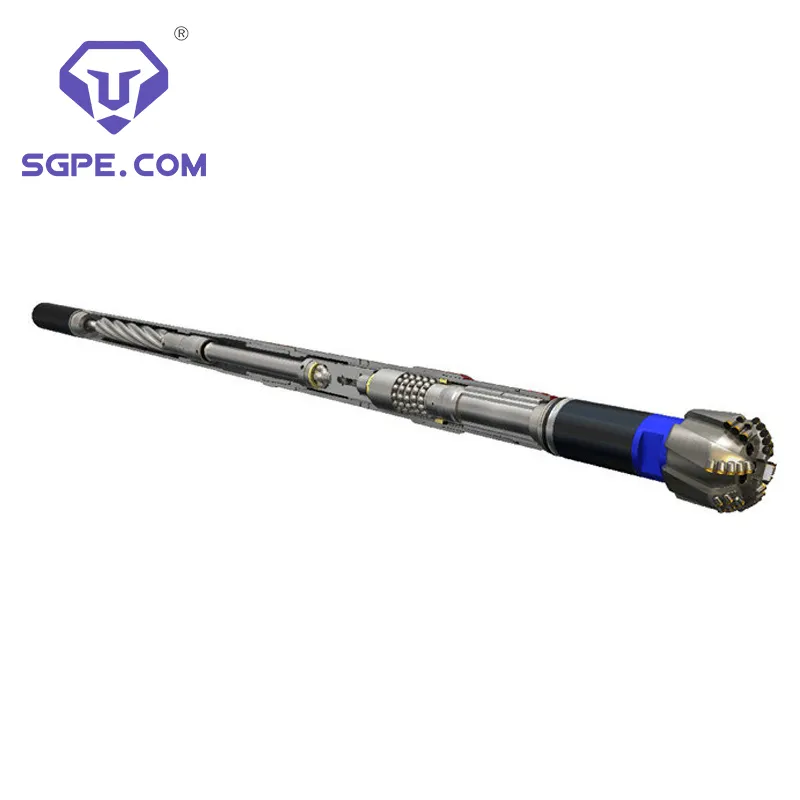

Downhole motor is a kind of drilling tools developed for converting hydraulic energy into mechanical energy through power section which is made up of a stator and a rotor. The motors are usually divided into two kinds, single lobe (1/2) and multi lobes (N/N+1) motors, according to the quantities of the lobes of the stator and rotor. Generally speaking, for motors of the same length of rotor/stator section, the more the lobes are, the higher the output torque is, vice versa. The motors are usually used together
with cone bits, diamond bits and so on in drilling operation, such as directional and vertical drilling, horizontal drilling,
correcting deviation, coring, reaming, sidetracking, etc.
Our downhole motors may also be equipped with extended power section. Comparing with common motors, they are greatly increased in
output torque and power, which help to increase penetration rate markedly. Our downhole motors enjoy high prestige in the North America market because of their prominent performance and more than thousand hours working life.

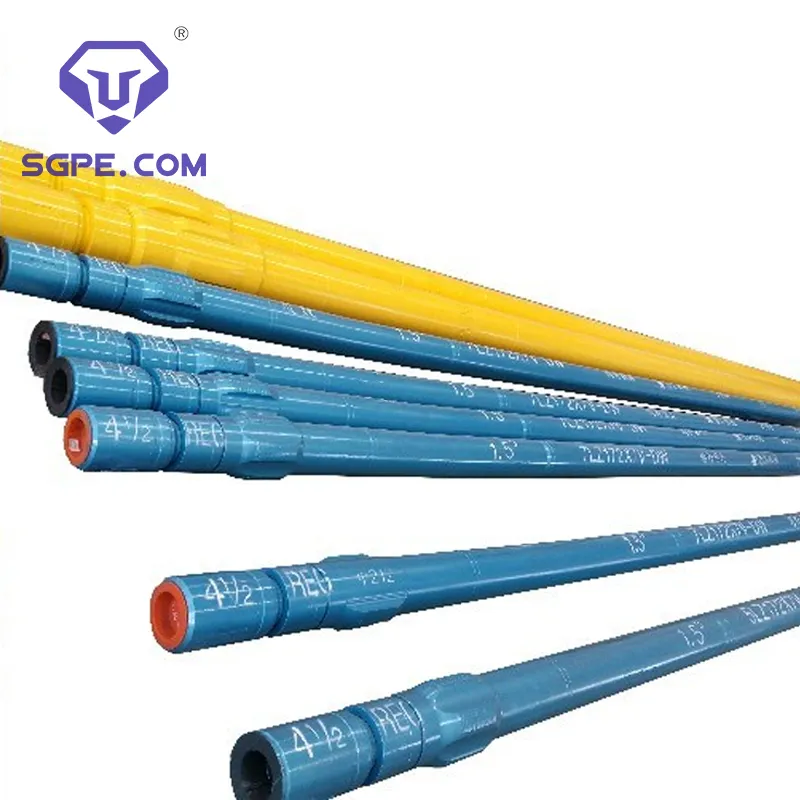

Downhole motor adjustable bent housing is optional. It can easily adjust the bent angle from 0 to 3 degrees (between 0 to 3 degrees) in the rig floor without shim. The angle is directly pointed to the high side of tool face.
Our downhole motor has independent intellectual property rights like anti-friction connecting rod. It obviously improves the
capacity of the motor and also increased the running time.
For more details and more products, please feel free to contact us.

Welcome to consult, we will provide the most comprehensive technical support!

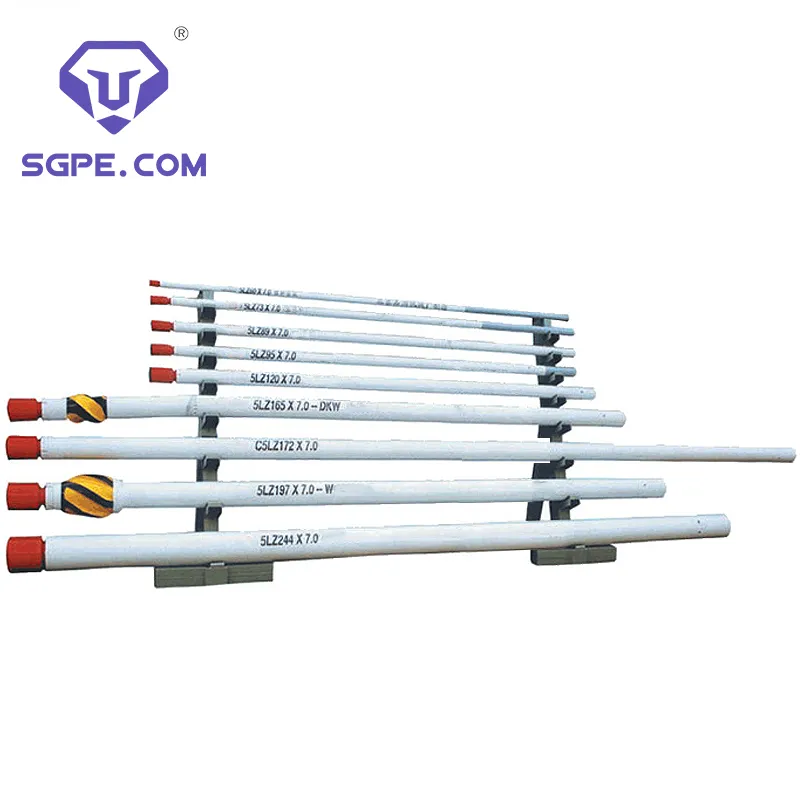

No. Item Flow rate Bit size Range Dia of Rod Range Connection type Remark 1 100 6-12 L/s 118-152mm 73-102mm NC23/26/31/38 Mud Motor can be Customized as order 2 120 10-16 L/s 149-200mm 102-114mm NC38/46 3 165 20-32 L/s 213-251mm 114-127mm NC46/50 4 172 20-36 L/s 213-251mm 114-140mm NC50/ 5-1/2FH 5 Super short drilling tool / / / / 6 High deflecting drilling tool / / / /
