Multilayer Overlap Cross-Linked Polyethylene Pex Pipe for with Al Layer

Product Description

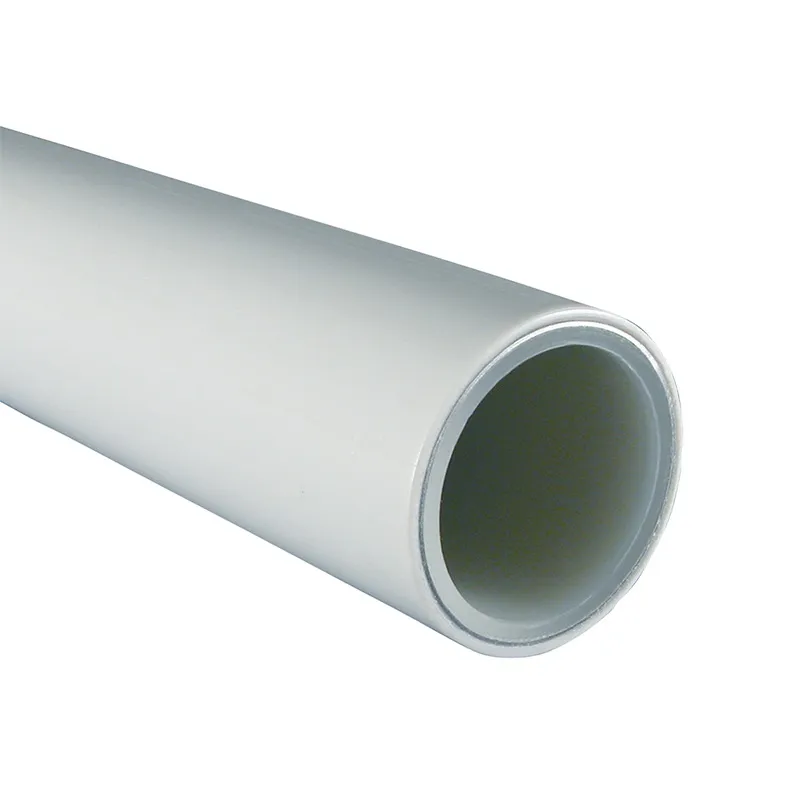

PEX Al PEX Pipe

PEX Al PEX Pipe is a new type of high-quality pipe material, which is composed of two layers of polyethylene (PEX) with aluminum foil sandwiched between them. It is widely used in construction and industrial fields, bringing convenience and comfort to our production and life.

Advantage:
1. Anti-leakage: PEX aluminum-plastic pipe is packed with a layer of aluminum-plastic composite material, which makes it more pressure-resistant, anti-leakage, and longer service life.


2. Both hardness and softness: the outer layer of the PEX aluminum-plastic pipe is made of a layer of aluminum-plastic composite material, which makes the pipe not only have good hardness, but also good flexibility.

3. Strong corrosion resistance: The inner wall of the PEX aluminum-plastic pipe is made of PEX material, which has the characteristics of not easy to age, corrosion resistance, etc., and has a long service life.

4. Not easy to burn: The outer layer of the PEX aluminum-plastic pipe is made of aluminum-plastic composite material, which is easy to decompose, not easy to burn, and has good safety.

5. Strong corrosion resistance: The inner and outer surfaces of PEX aluminum-plastic pipes are made of high-quality materials, which have good corrosion resistance.
6. Simple installation: PEX aluminum-plastic pipe can be installed through simple welding and joints, and it is also very convenient for maintenance and replacement.

Product Name

Pex Al Pex Pipe

Color

Natural / Customized

Working Pressure

0.86mpa-1.25mpa

Size

16-32mm

Material

Pex + Aluminium

Usage

Hot Water Supply And Heating

Performance

Good Flexibility, Easy To Bend

Certification

Iso 15875-2-2003, Gb/t 18992.2-2003

Health Guarantee

The Interior Is Smooth, Not Easy To Corrode, And Does Not Form Scale

Work Temperature

-20ºC-120ºC

Feature

Corrosion Resistant

Connection

Brass Fittings

Package

Carton +opp Bag

Material: PEXPEX  The type of the crosslinking Bb  The degree of crosslinking ≥65%≥65°the recommended level: 75° The granules class≥PE80≥PE80  The max. working temp.95ºC.+95°C  The min. Working temp.'-40ºC.-40°C  Working pressure<1.25≤1,25 Mpa  Bursting Strenght for +95°C5.98 MPA≥45 bar   Resistance to delamination/≥ 9 N/mmacc. DVGW W 542 befor and after conditioning Tensile strenght cone2400-3320Nacc. DVGW W 542  Thermal durability 135ºCacc. ISO 21003-2  Other requirements acc. ISO 21003  Marking /acc. customer requirements, minimum: every 1 meter   Thermal conductivity0.45W/(M.K)0.45W/mK  Thermal Expansivity0.025mm/(M.K)0,025 mm/mK  Bend radius ≥5D5xD ext.   Paking/acc. customer requirements

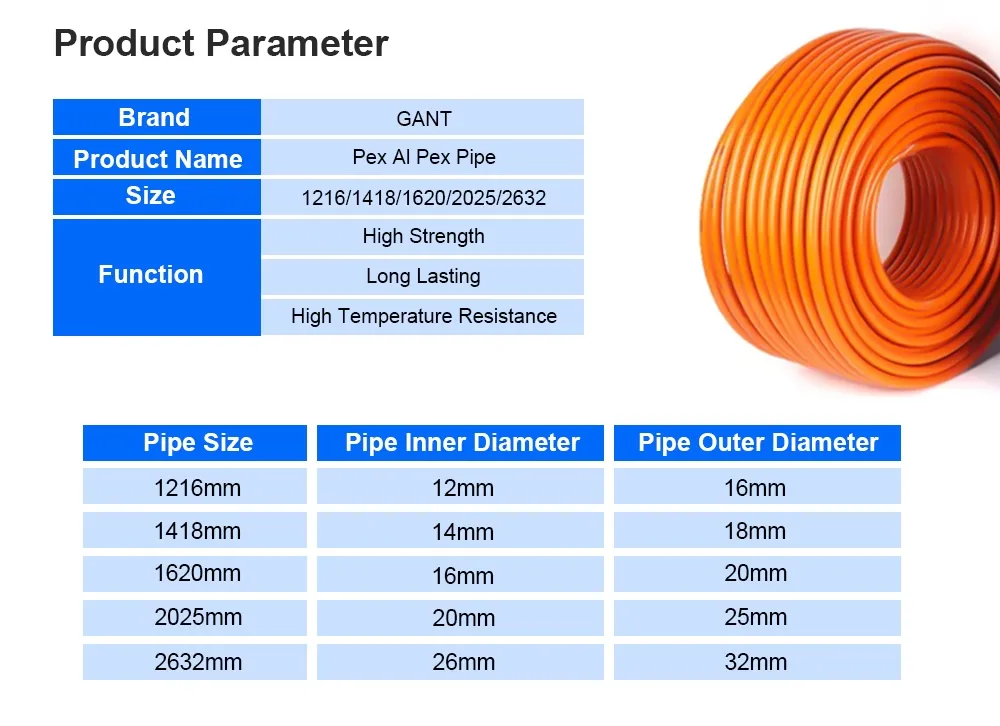

Pipe size Outer diameterwall thicknessaluminium thickness  16x2,016 +0,32,0 +0,13/-0,030,2 +0,01 20x2,020 +0,32,0 +0,13/-0,030,22 + 0,01 25x2,525 +0,32,5 +0,15/-0,030,25 +0,01 32x3,032 +0,33,0 +0,15/-0,030,30 +0,01

Customized products please click send inquiry to contact us
