Traveling Agricultural Irrigation System 150m 200m 300m 450m 500m Customizable PE Pipe Reel Sprinkle

Model NO.	75-400
Power Source	Electricity
Drainage & Irrigation Mode	Sprinkler Irrigation Equipment
Pump Type	Turbine Pump
Material	Metal
Ground Drainage and Irrigation Machinery Type	Pumping Irrigation
Certification	CE
Condition	New
Application Field	Agriculture
Warranty	1year
After-sales Service	Provide
Overall Size	5.4m*2.34m*2.6m
PE Pipe Length	400m
Nozzle Diameter	14-20mm
Water Flow	14-34 (M³/H)
Total Weight	1870kg
Inlet Pressure	3.5-11 (Bar)
Transport Package	Iron Frame
Specification	75-400
Trademark	Xinyi
Origin	China
HS Code	8424810000



Product Description

Yucheng Xinyi Machinery Manufacturing Co., Ltd.

Product Technical Parameter

Name:Traveling Agricultural Irrigation System 150m 200m 300m 450m 500m Customizable PE Pipe Reel Sprinkler Cannon Sprinkler for Water Turbine Drive

Sprinklers are machines that spray water with a certain pressure into the air through special equipment and sprinkle it evenly on the fields to meet the water needs of crops, flowers, seedlings and other plants. The pressurization, water delivery, spraying, and walking devices are conected into a movable whole. The water in the pool or water tank is sucked along the suction pipe under the action of the external atmospheric pressure to fill this space. The sucked water is then thrown out of the volute by the impeller, enters the water pipe, and then pressed into the nozzle to be sprayed on the crops in the field or grassland.It can implement large-area farmland irrigation and can effectively control different amounts of irrigation water. It also has the characteristics of low working pressure, high quality of sprinkler irrigation, good atomization effect, little impact from wind, significant water and energy saving, and strong adaptability. , can effectively control the water required by crops and increase yield.

Product Parameters:


Model75-400 electric Total weight1870Kg Overall size5.4*2.34*2.6m Disassembly size2.5*1.85*2.4m PE pipe diameter75mm PE pipe length400m Water flow14-34(m³/h) Nozzle diameter14-20mm Inlet pressure3.5-11(bar) Main engine tire model10.0/80-12

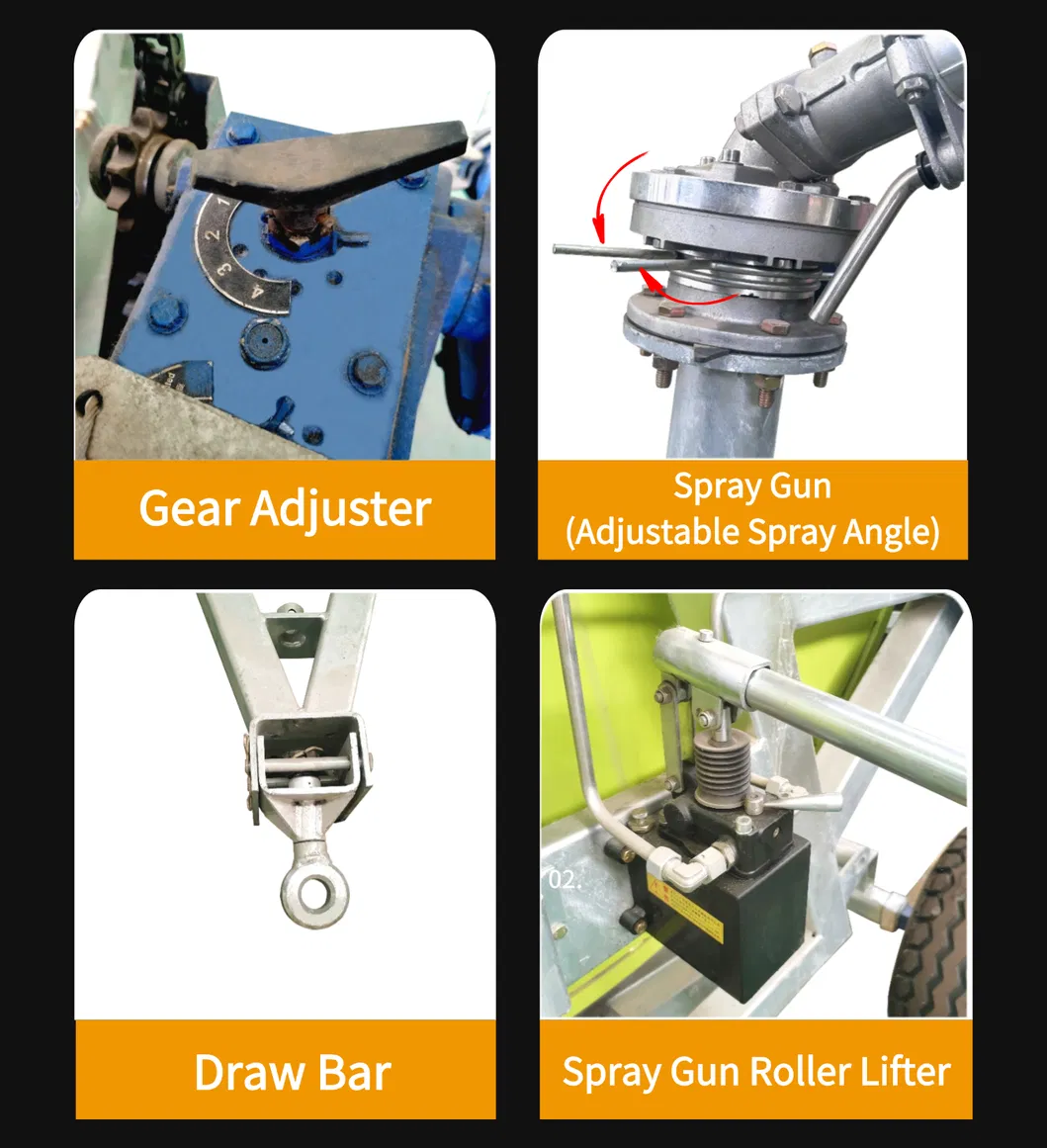

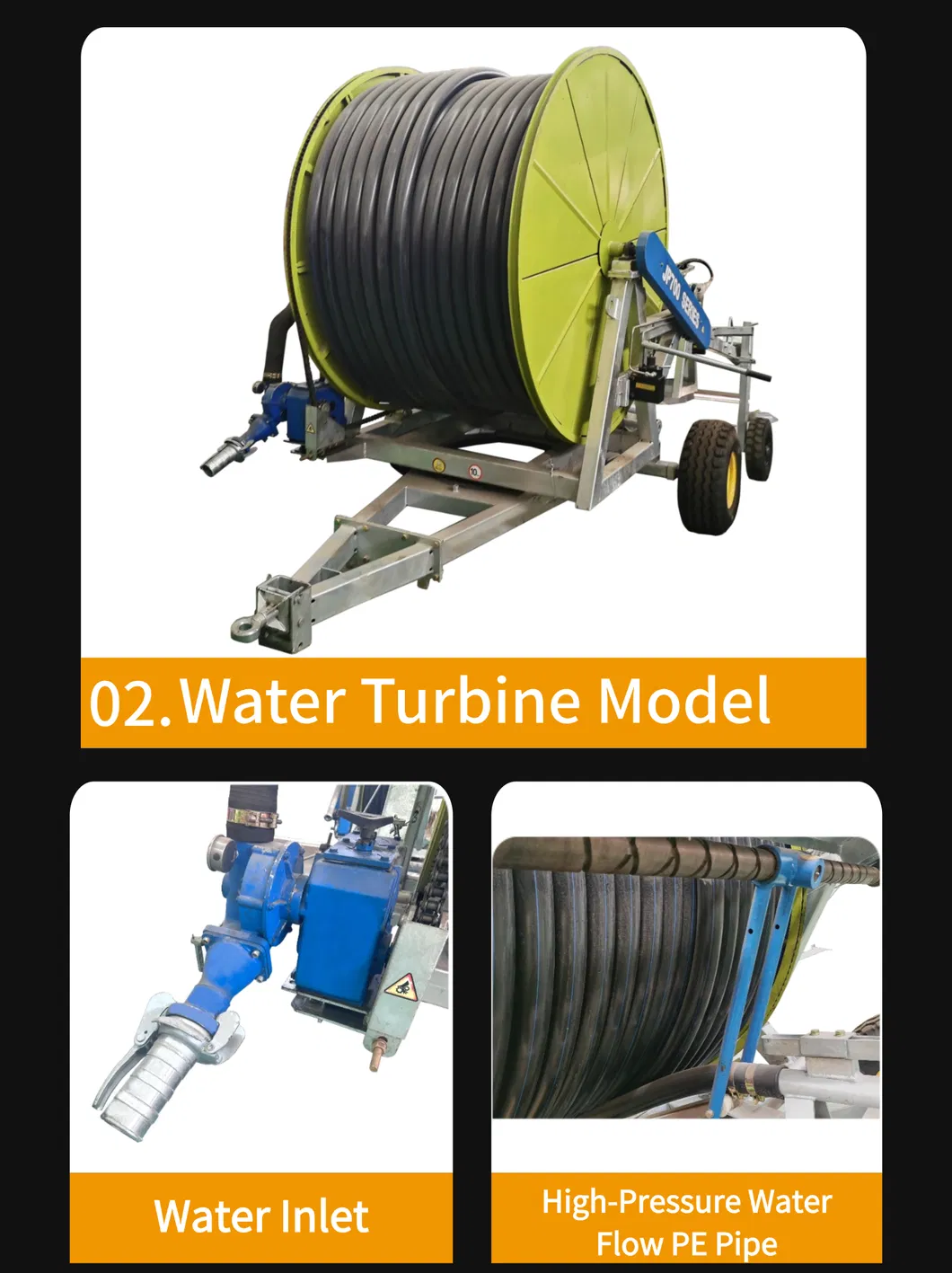

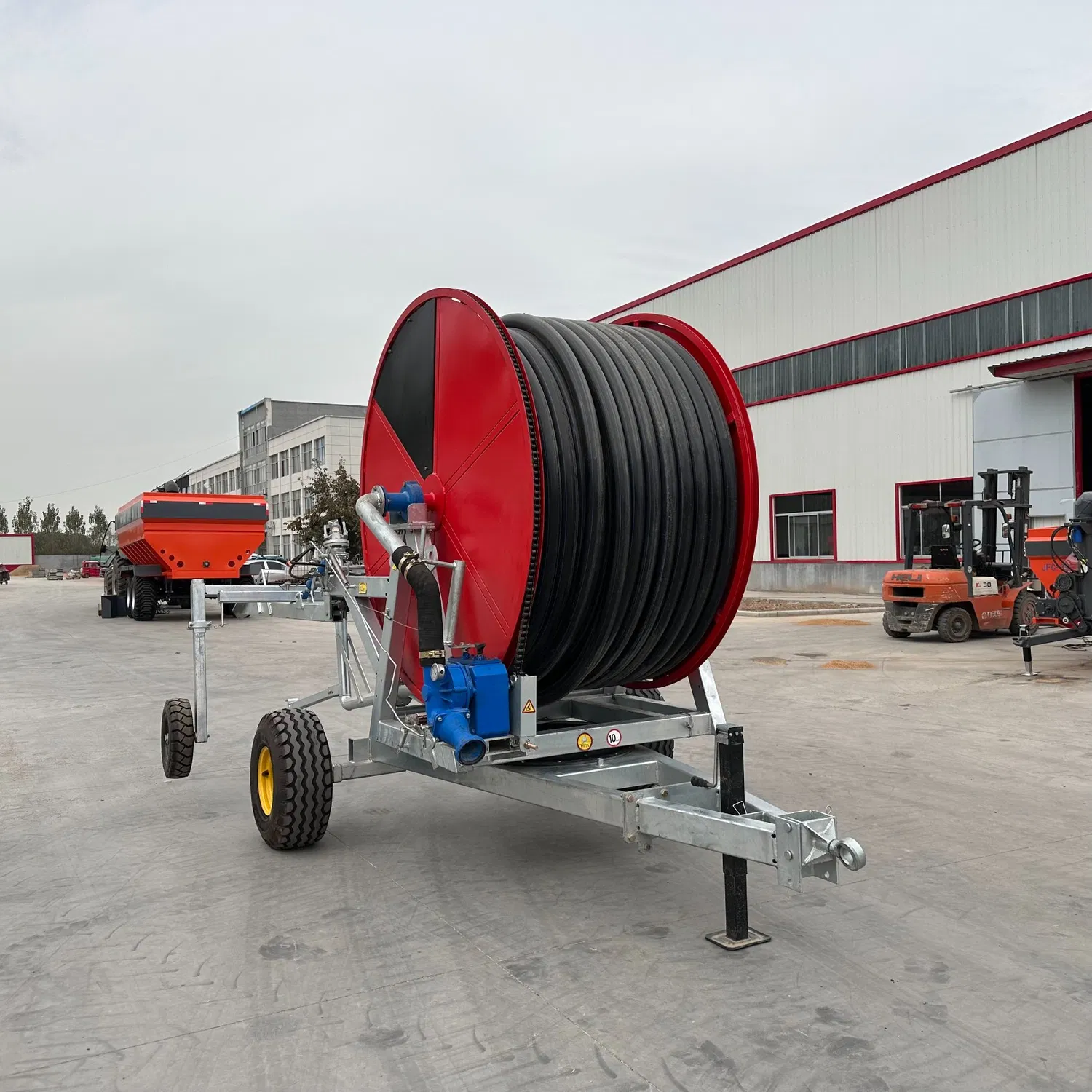

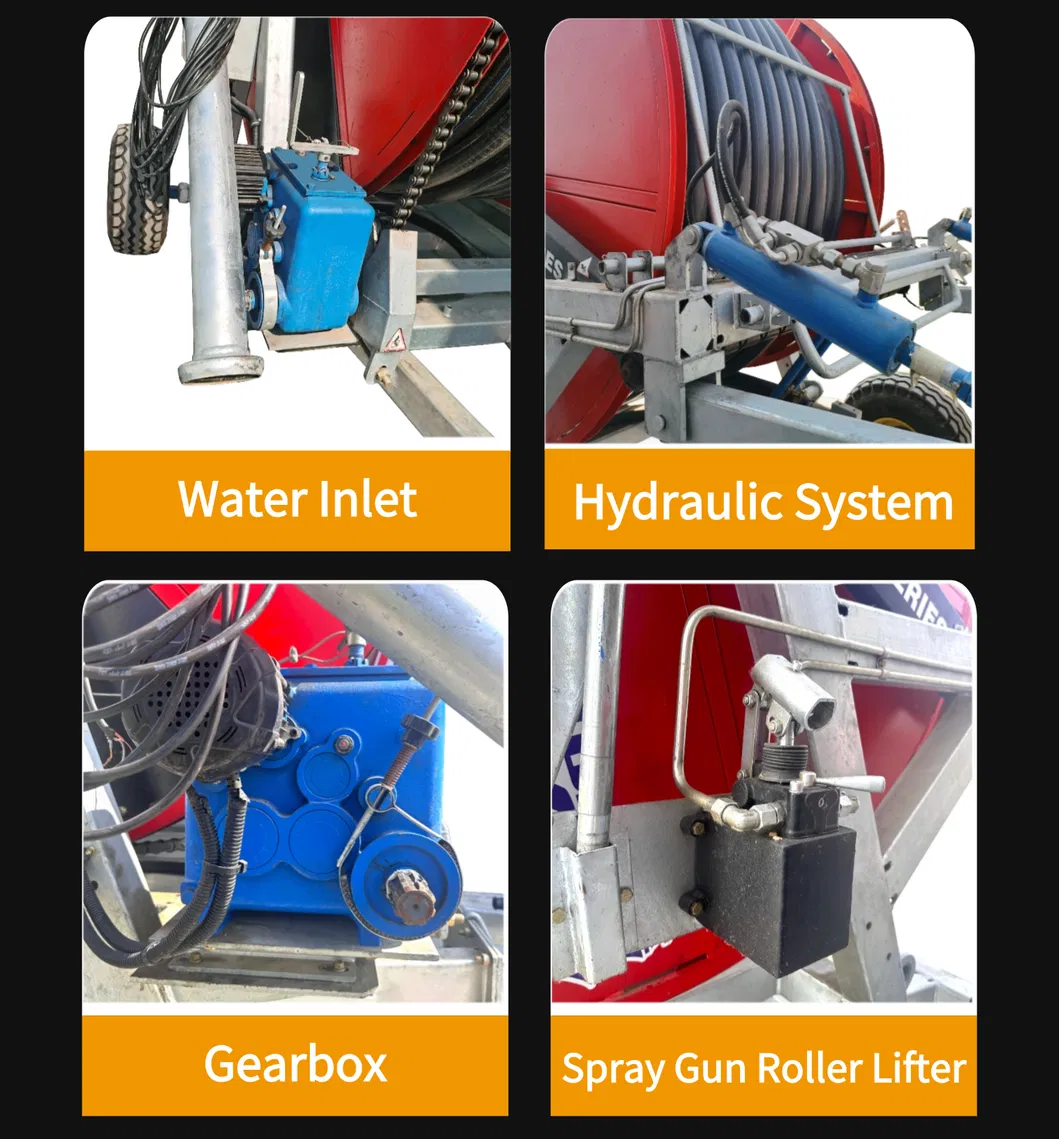

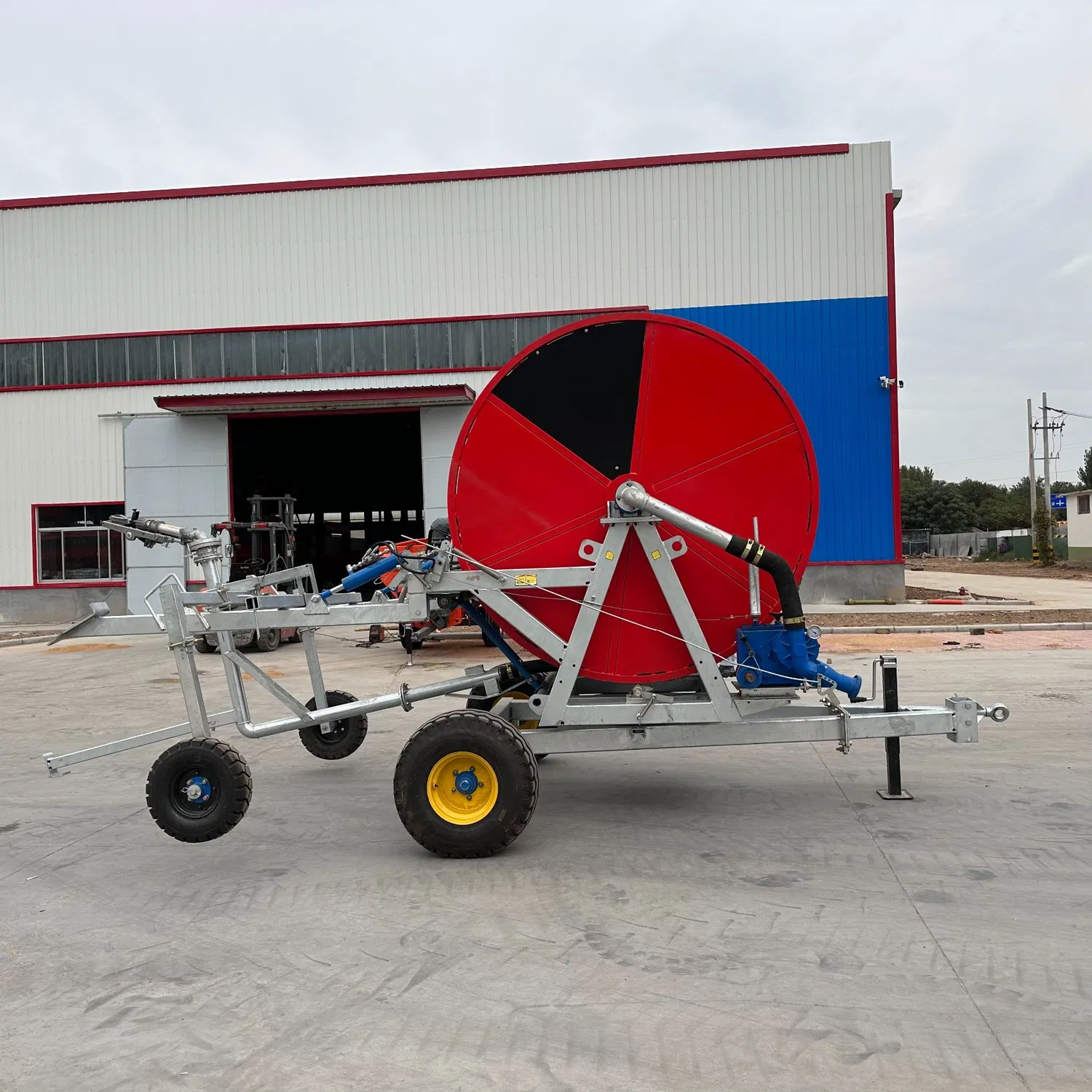

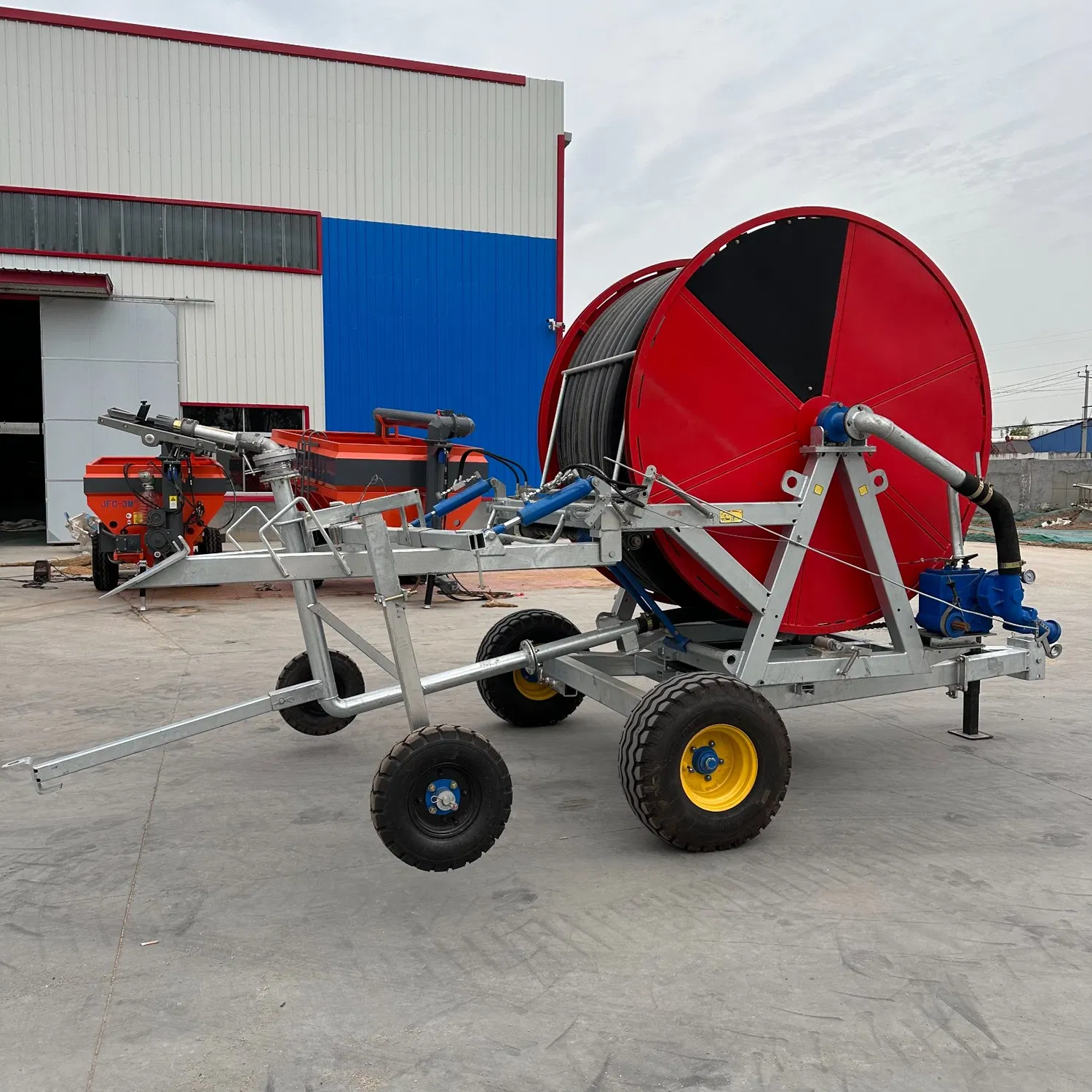

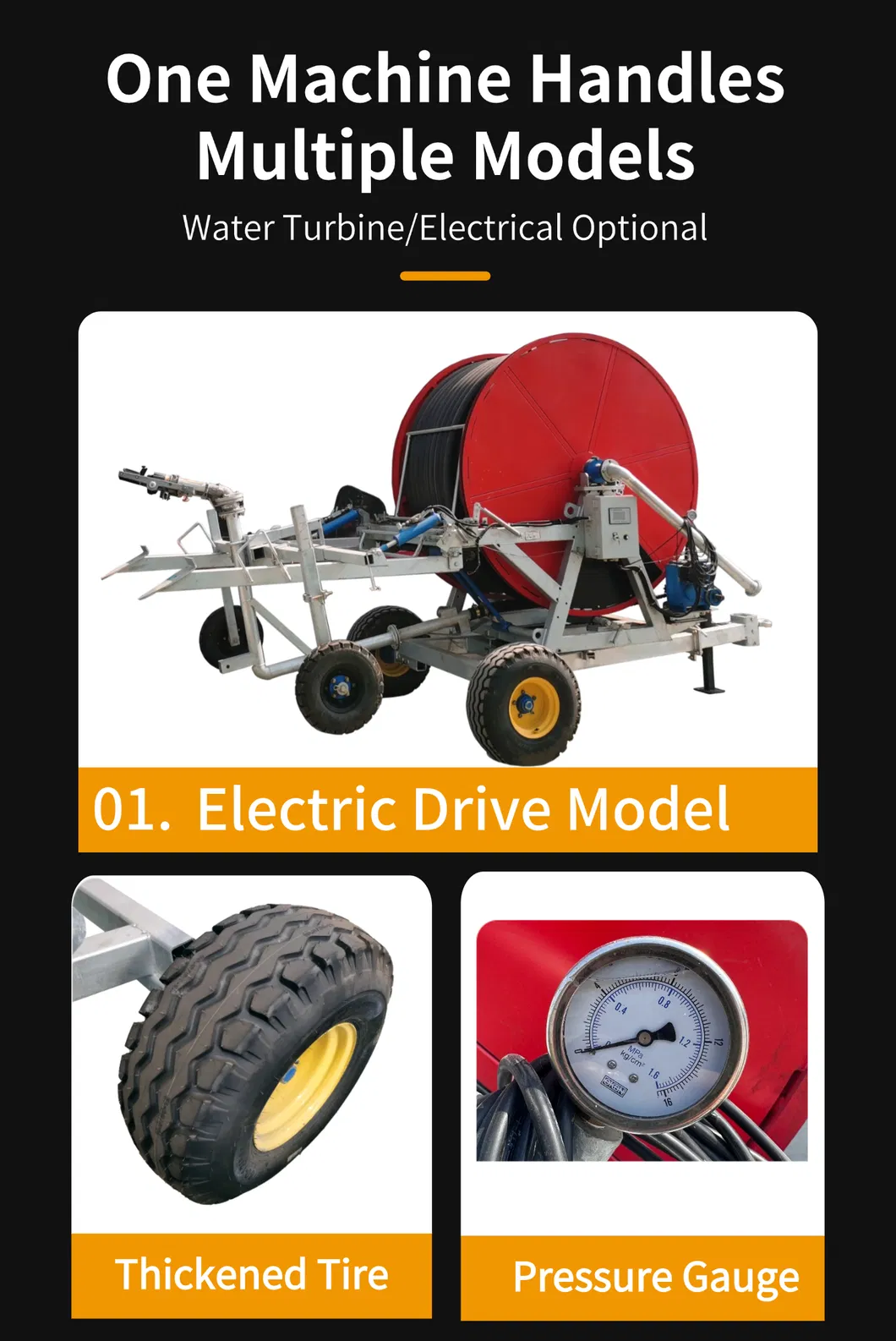

Detailed Photos

Packaging & Shipping



Normal packing or According to your requirement.

Safe, complete and fast delivery of goods to customers.
