Thermal Insulated HDPE Pipe Fittings Extrusion System for HDPE Jacket Pipe Insulation
Detailed specification for Thermal Insulated HDPE Pipe Fittings Extrusion System for HDPE Jacket Pipe Insulation
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | HSD-J |
| Color | Black, Yellow |
| Diameter | 110-2000mm |
| Length | Custom Length |
| Material | PE |
| Calibration Method | Vacuum Calibration and Water Spraying Cooling |
| Quality Guarantee | 6-12months |
| Temperature Classification | High Temperature Piping |
| Cross-Section Shape | Round |
| Connection Type | Welding |
| Plastic Processed | PE |
| Screw | Single Screw |
| Engagement System | Full Intermeshing |
| Screw Channel Structure | Deep Screw |
| Automation | Automatic |
| Computerized | Computerized |
| Transport Package | Standard Package |
| Specification | PE-365/760 PE-500/960 PE-855/1380 PE960/1680 |
| Trademark | Huashida |
| Origin | Qingdao China |
| HS Code | 8477209000 |
Thermal Insulated HDPE Pipe Fittings Extrusion System for HDPE Jacket pipe insulation---Pipe diameter range: 365-760mm 500-960mm 855-1380mm 960-1680mm

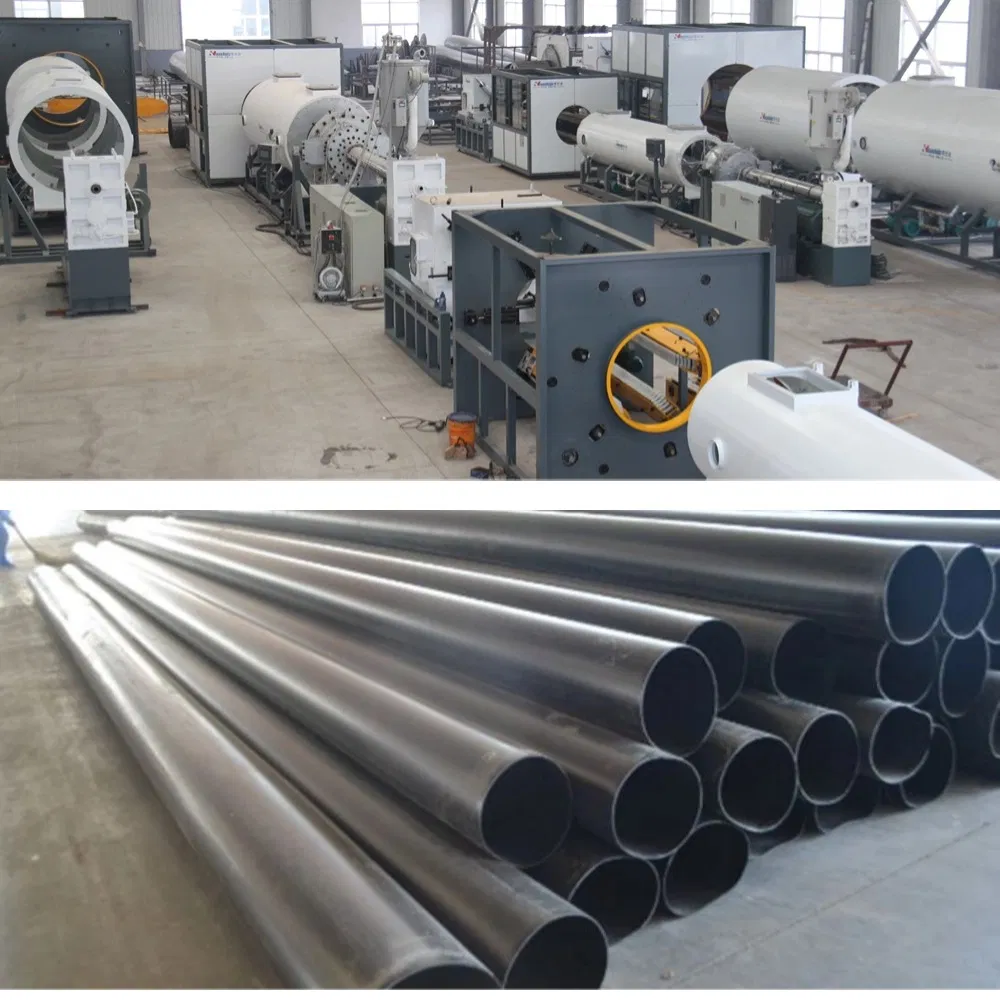

---The extrusion line comprise equipment and devices as below,
1set Vacuum loader
1set Hopper dryer
1set High-efficiency single screw extruder
1set 25/25 single screw extruder for mark line
1set Vacuum calibration table
1set Water spraying tank
1set Hauling machine
1set Cutting machine
1set Stacker
1set PLC (Siemens)
IV. Controlling system
The complete line could be controlled by PLC, with good human-machine interface, all technical parameters could be set and indicated by touching screen. Controlling system is designed according to the customer; S requirement, to be with PLC, or without.
V. Electrical system
---ABB frequency converter or EUROTHERM speed controller
---Japan RKC temperature controller
--- SIEMENS AC contactors
