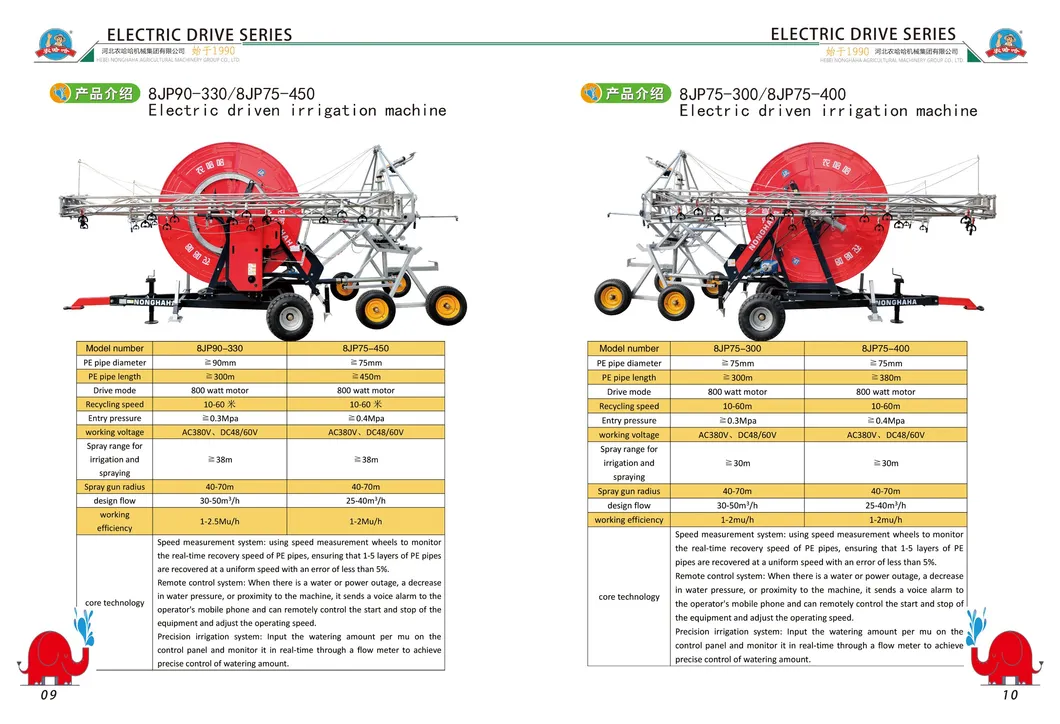

Model NO.	8JP75-300
Power Source	Diesel
Drainage & Irrigation Mode	Sprinkler Irrigation Equipment
Pump Type	Immersible Pump
Material	Metal
Ground Drainage and Irrigation Machinery Type	Pumping Irrigation
Certification	ISO9001:2008, CE
Condition	New
Application Field	Agriculture
Warranty	1 Year
After-sales Service	online Support
PE Pipe Diameter	75mm 90mm 50mm
Pipe Source	imported
OEM	Yes
Hose Length	300m 400m 450m 100m 150m
Transport Package	Container&Truck
Specification	5190*2100*2620mm
Trademark	Nonghaha
Origin	China
HS Code	8424820000
Production Capacity	10000

Product application:

Discover the excellence of our electric winch-type sprinkler irrigation system, crafted with precision and manufactured under the most stringent quality controls. This premium system boasts essential components including a robust frame, durable PE tubing, efficient winch, versatile sprinkler cart, sophisticated motor control system, and advanced drive and transmission mechanisms. Additionally, it features innovative pipe-laying mechanisms to ensure seamless operation.
Working Principle
Experience the sophisticated functionality of our system, which ingeniously winds the traction PE tubing onto an advanced winch. Powered by a reliable motor, the gearbox mechanism expertly rotates the winch, facilitating the automatic movement and precise spraying of the sprinkler cart. This system is designed to offer unparalleled benefits, such as:

• Unmatched portability and user-friendly operation
• Remarkable efficiency in labor and time management
• Exceptional irrigation accuracy coupled with superior water conservation & impressive adaptability to various terrain types

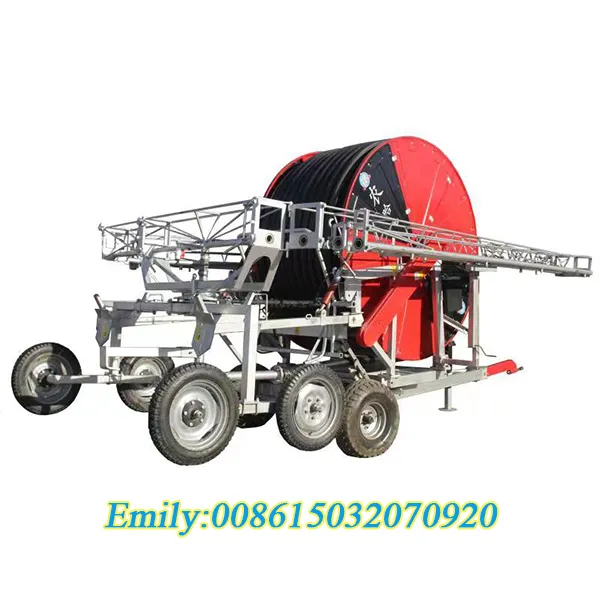

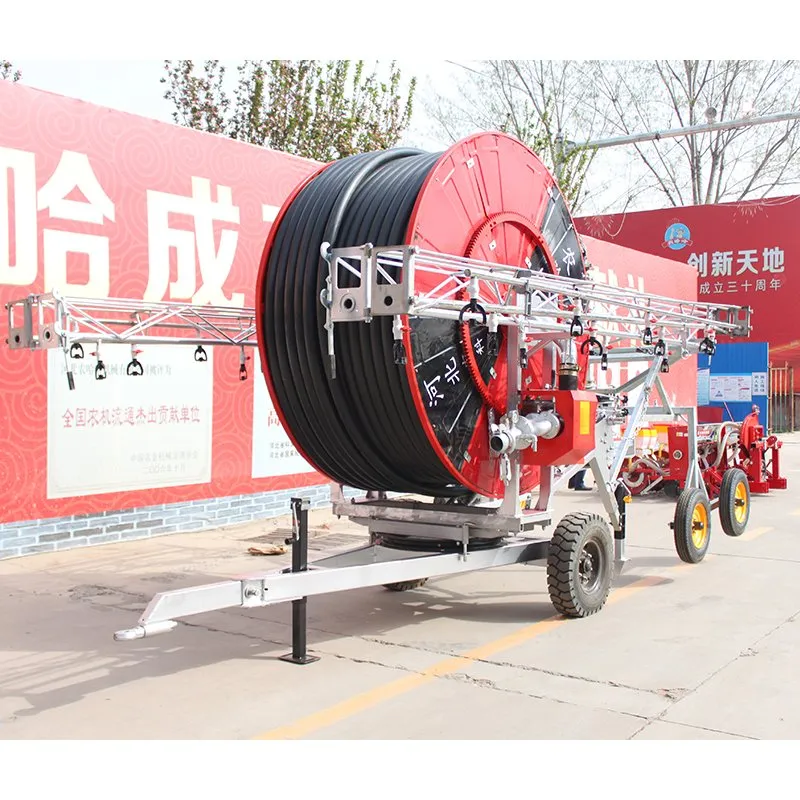

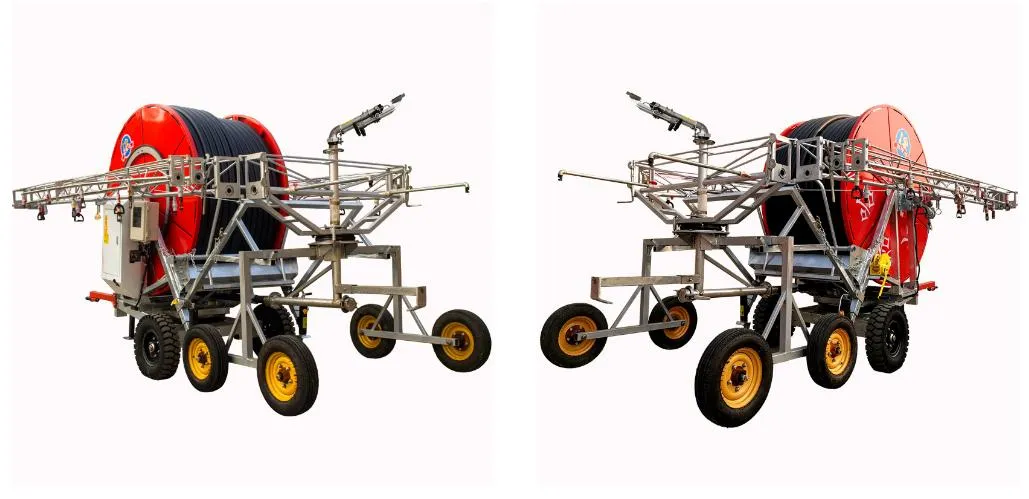

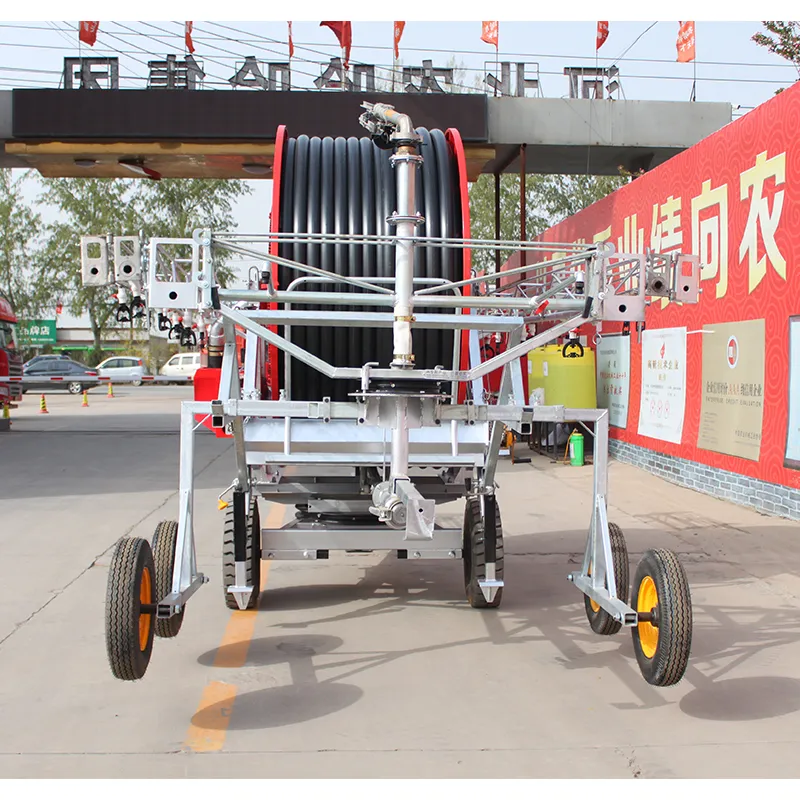

Product pictures:

Main Parts

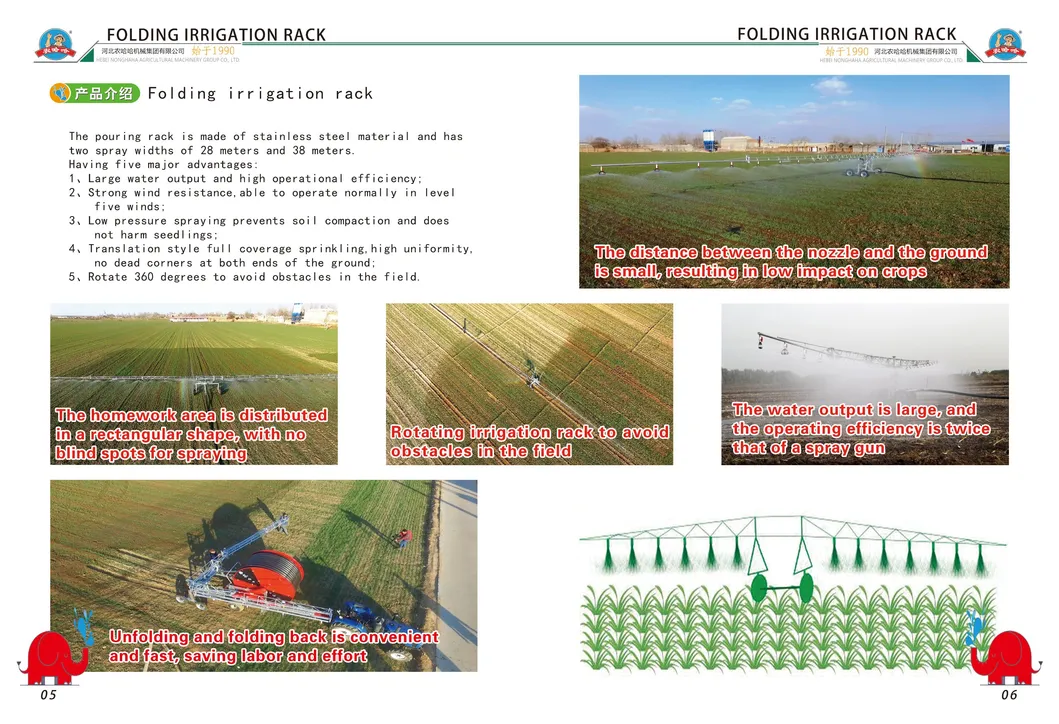

1. Winch 2. Big Tooth Ring 3. Transmission Chain 4. Multi-Level Irrigation Rack

5. Spray Gun 6. Main Engine Traction Frame 7. Front Leg 8. Chassis A Frame 9. Turntable
10. Host Shield 11. Support Bracket 12. Right Support 13. Electric Control Box
14. Form Switch Protection Cover 15. Sprinkler Car Lifting Device 16. Sprinkler Car Inlet Pipe
17. Drip Irrigation Frame 18. Nozzle Car Traction Rod 19. Nozzle Car Tire 20. Left and Right Leg
21. Hand Winch 22. Main Wheel Device 23. Single Water Inlet 24. Front Leg 25. PE Pipe

Details & parts picuters:

Name: Sprinkler wagon lifting equipment

The innovative sprinkler wagon design allows it to smoothly retract into the main unit. The lifting equipment efficiently elevates the sprinkler wagon, increasing the ground clearance of the wheels for seamless movement. This versatility ensures easy transportation over uneven terrain, preventing wheel drag on slopes and ditches, creating an effortless irrigation experience.

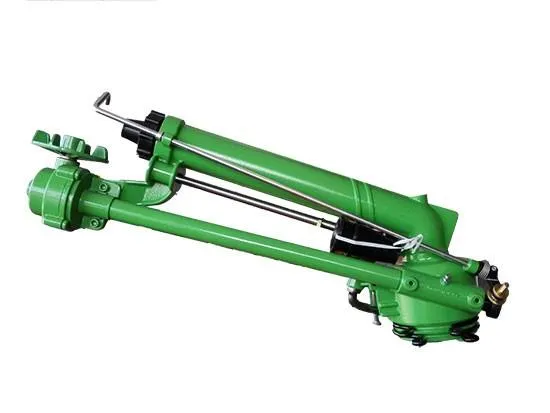

Name: Domestic vertical swing arm spraying guns

Experience powerful jet distance and exceptional wind resistance during spraying. Even under challenging weather conditions, users can reliably irrigate fields, ensuring every drop reaches its destination.

Name: Transmission mode

The reduction gearbox utilizes advanced gear transmission to drive the winch, delivering remarkable stability. Unlike traditional chain methods, this gear system eliminates issues like chain slips or breaks, providing uninterrupted, robust performance..

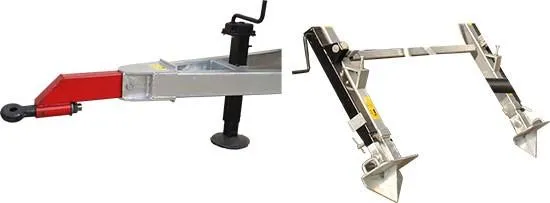

Name: Left and right supported feet

Featuring a spiral vice-landing leg combined with an extended pipe design, this system ensures effortless operation. Its robust support stabilizes the main body when maneuvering the sprinkler wagon, making the process fast, efficient, and straightforward.

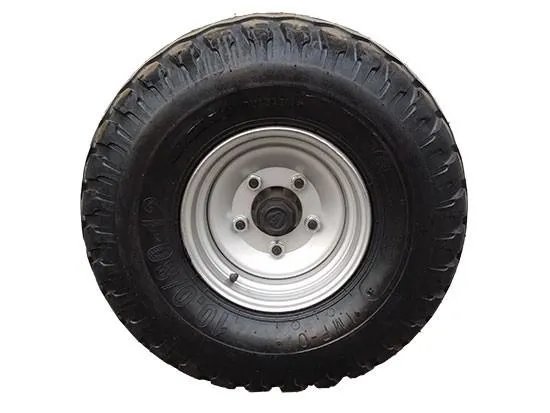

Name: Host walking tire

Equipped with large 10-12 tires, this irrigation system boasts exceptional carrying capacity and mobility. Its durable design and reliable quality ensure long-term use, delivering outstanding performance on the field.



Name: PE water pipe

Crafted with premium Korea-imported materials, capable of withstanding 1.6Mpa water pressure, this high-quality, weather-resistant system promises a lifespan exceeding 15 years, offering unmatched durability.



Name: Host water entry

Ingeniously designed with left and right side configurations, it seamlessly connects with the water delivery soft belt. This prevents bending, ensuring optimal high-pressure water passage, enhancing irrigation efficiency.

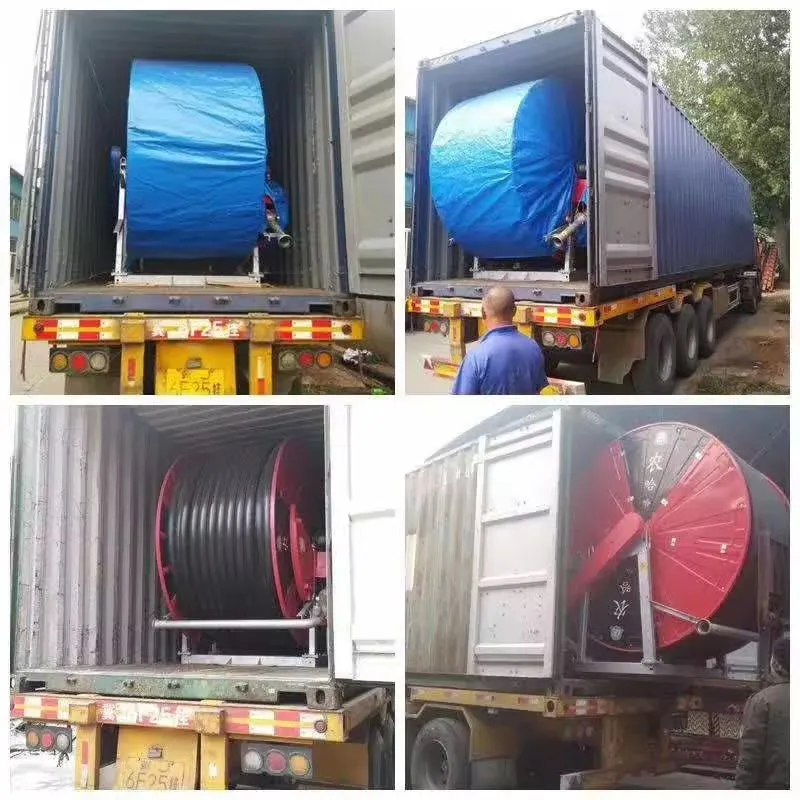

Packing & Delivery:

Size

40'HQ ( 2 units)

Weight

4,690.00KGS

Packaging Details

PACKAGES/4,690.00KGS/52.000CBM

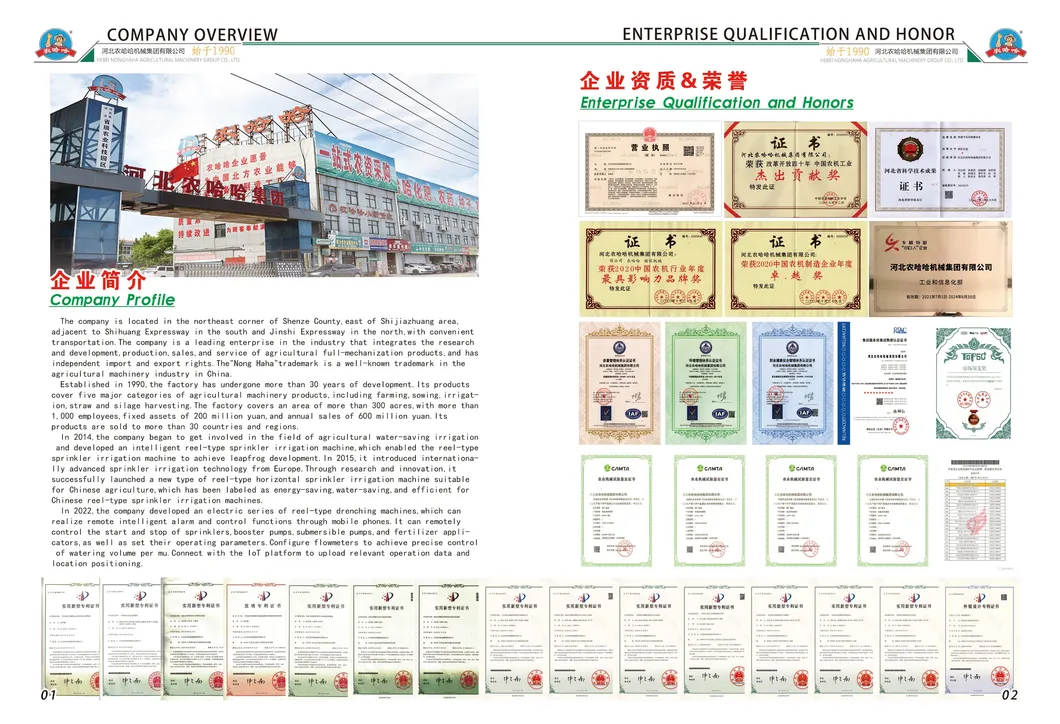

Company Info:
