Power Supply 380V 50Hz Plastic Tube Caterpillar Cable Pulling Machine

Model NO.	Automatic Pulling Machine
Type	Pipe Extruder
Plastic Processed	PVC
Product Type	Extrusion Molding Machine
Feeding Mode	One Feed
Assembly Structure	Integral Type Extruder
Automation	Automatic
Computerized	Computerized
Nome	Cable Haul-off Machine
Max. Traction Force(Kg)	300/500/800/1250
Cable Through The Outer Diameter(mm)	≤ φ15 ≤ φ30 ≤φ 40 ≤φ60
Transport Package	Wooden Package
Specification	300/500/800/1000/1250
Trademark	QIPANG

power supply 380V 50HZ plastic tube  caterpillar cable pulling machine

Product Description

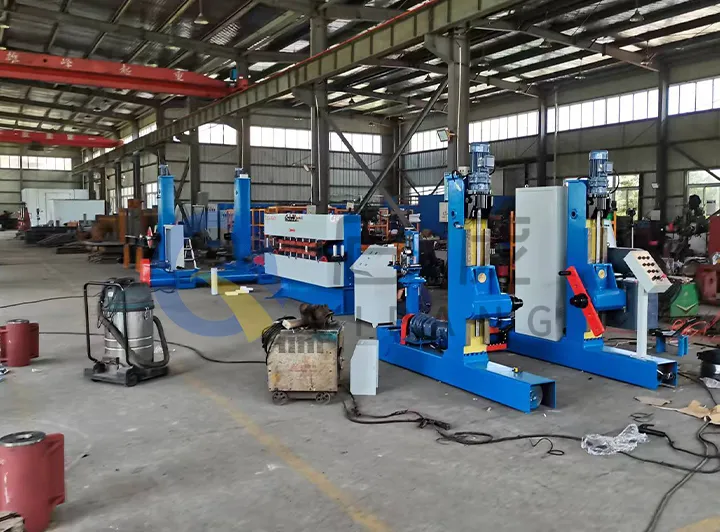

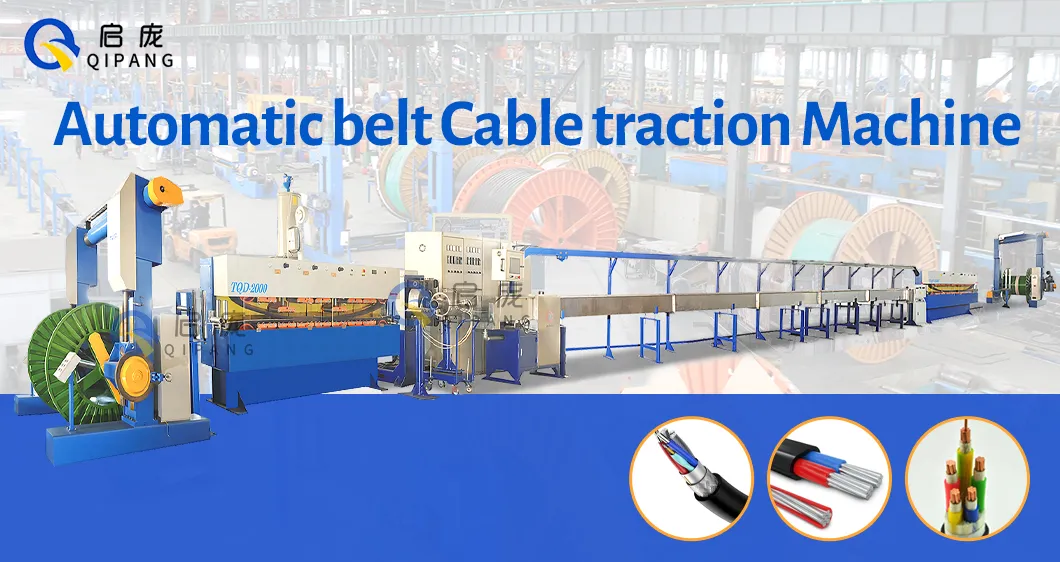

QIPANG  Automatic Coaxial Cable belt traction Equipment for extruder production line
Introducing an exceptional machine tailored for high-demand environments such as power supply cable factories and optical cable factories. Engineered for excellence in extrusion, flag installation, cable forming, and various production lines, it efficiently pulls a wide range of cables. With its innovative flat belt traction and pneumatic clamping mechanism, it stands as a pioneering traction device. The power source offers flexibility with options for a DC motor or variable frequency speed regulation, ensuring unmatched performance and adaptability.

Product Parameters



Type
Max. traction force(kg)
Cable through the outer diameter(mm)
Track contact length(mm)
Track width
Number of cylinder(pair)
Traction speed TQD 300300≤Ø 15390603200 TQD 500500≤Ø 30850803150 TQD 800800≤Ø 401150804120 TQD 12501250≤Ø 6016001205100 TQD 16001600≤Ø 801900120680 TQD 20002000≤Ø 1002300120780 TQD 25002500≤Ø 1202500140860 TQD 32003200≤Ø 1502800140960 TQD 40004000≤Ø 18035001601030 TQD 50005000≤Ø 20040001801130

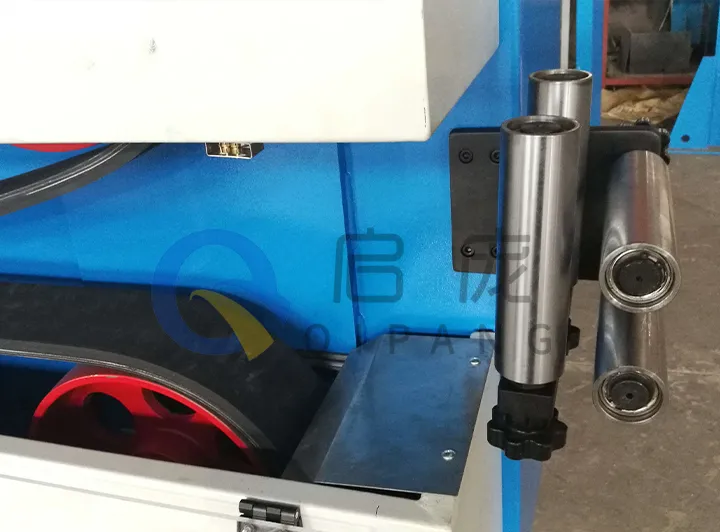

Detailed Photos

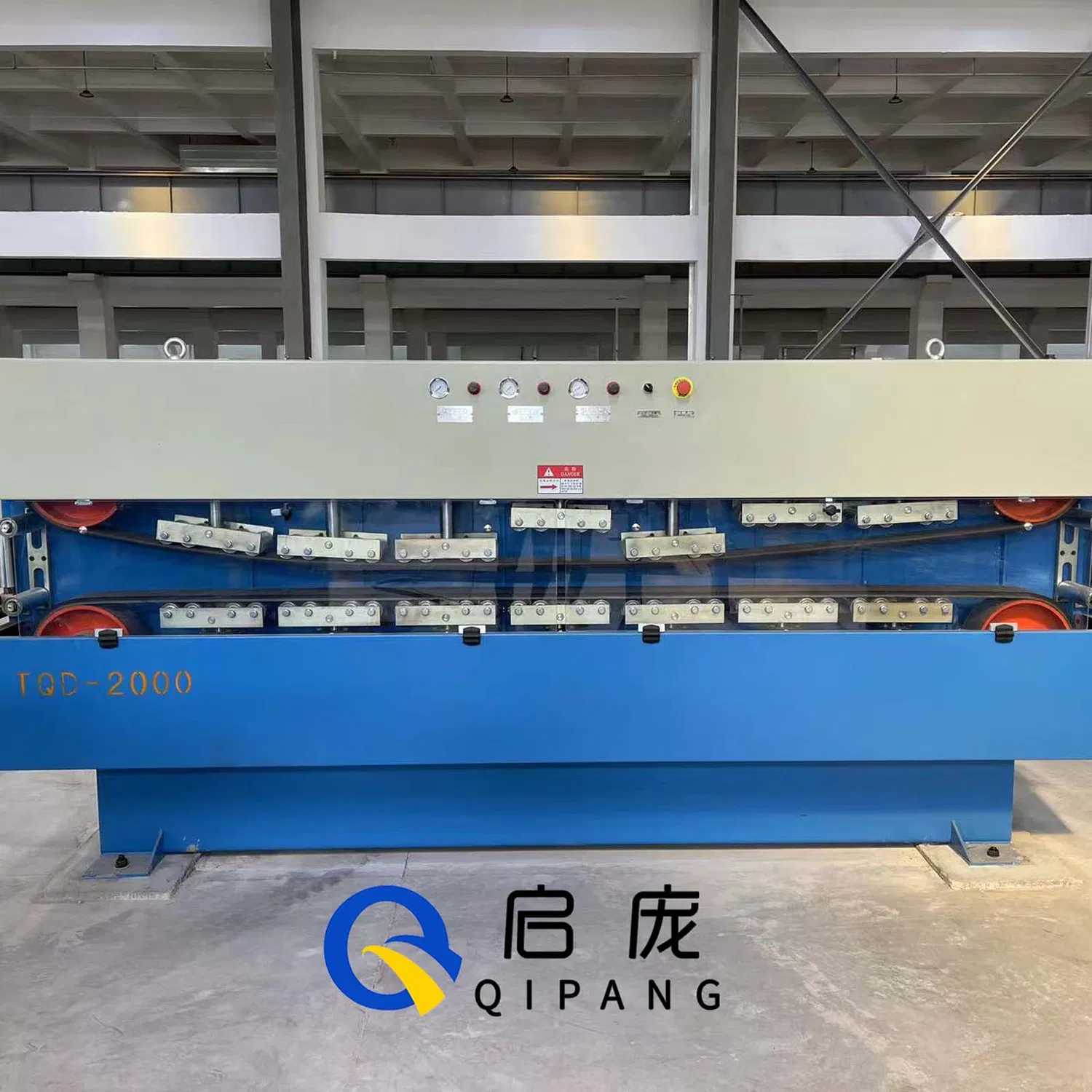

Pneumatic Capstan Wire & Cable Haul-off machine, Haul Off Machine/ CCV LINE FOR XLPE CABLE*
I.Equipment Application:
Primarily engineered for diverse cable production lines, this equipment excels in both single machine operations and front-to-rear dual traction applications.

II.Application:
1. Crafted from high-quality steel plate, the entire frame showcases modern design through bending and splicing techniques, delivering an innovative and striking appearance.

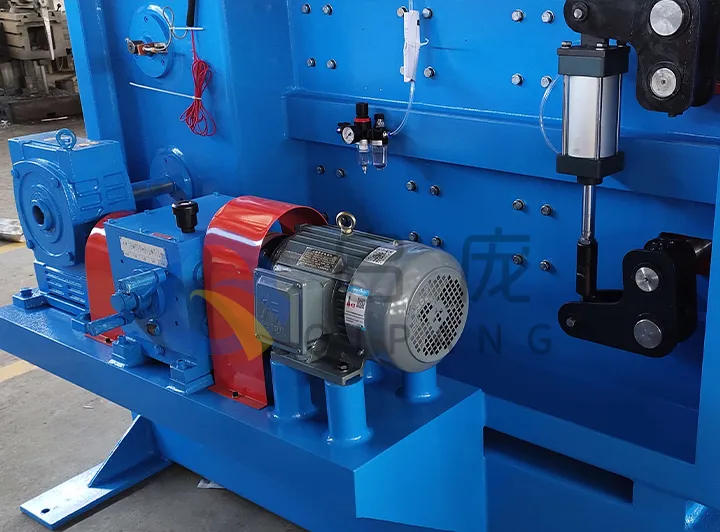

2. The equipment integrates a sophisticated motor-transmission gearbox, reduction gearbox, and an advanced hard drive system with upper and lower helical gears, ensuring smooth transmission, substantial load capacity, and effortless maintenance.
3. Offering over ten specifications ranging from 200kg to 15000kg, the series provides two speed regulation options: Z4 DC motor or variable-frequency motor, catering to diverse user needs.
4. Equipped with a state-of-the-art electronic meter, it provides real-time display of line speed and meter length, enhancing operational precision.
5. Featuring a ground shaft transmission structure, it is ideal for cable, armor, copper tape shielding, and winding production lines, enhancing operational flexibility.
6. Utilizing magnetic powder tension control, the tension tractor is perfect for insulation and sheath extrusion lines. It offers instantaneous tension adjustments, mitigating cable abrasion in sinks post-extrusion, and effectively addressing synchronization issues and wire diameter consistency.
7. The small tractor boasts a versatile moving structure, either overall or upper frame, facilitating user-specific processes and significantly prolonging track service life.



Expertly designed for power supply and optical cable factories, this machine excels in extrusion, flag installation, cable forming, and other intricate production lines. Its sophisticated flat belt traction system combined with pneumatic clamping ensures seamless cable pulling. As a cutting-edge traction device, it offers a choice between a DC motor or variable frequency speed regulation to optimize operational efficiency.



Application

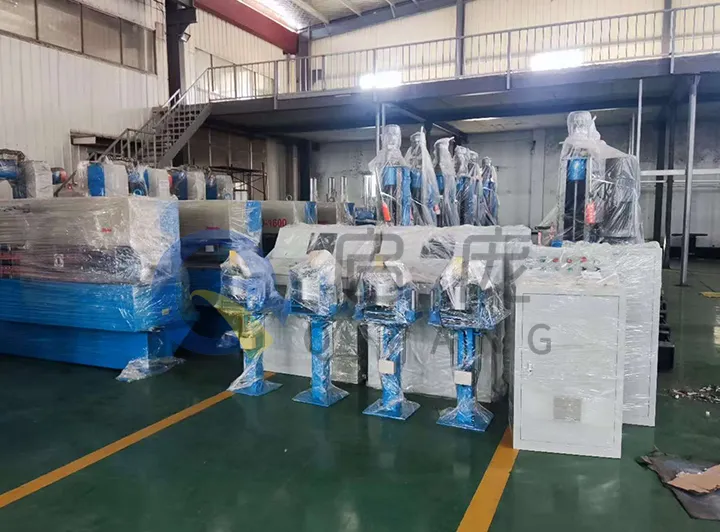

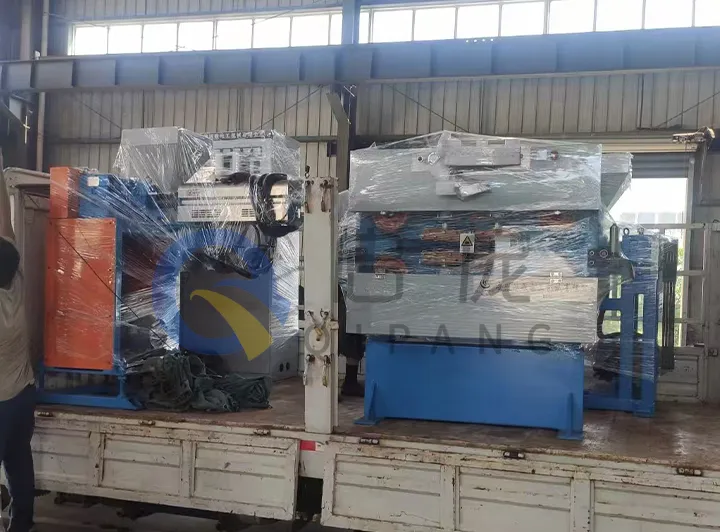

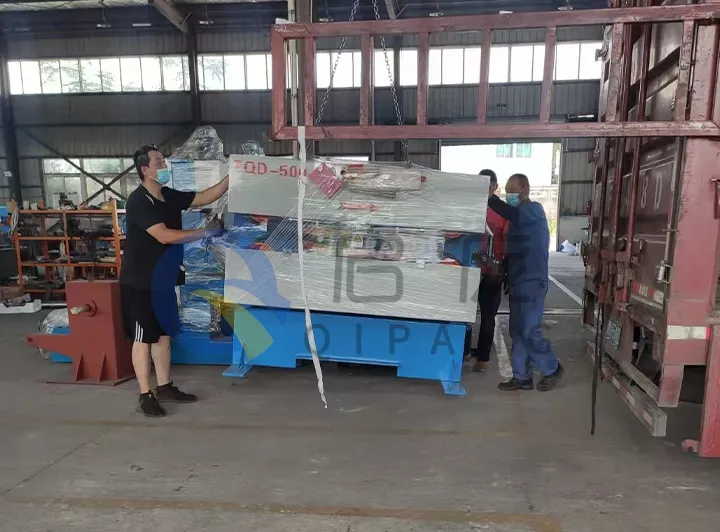

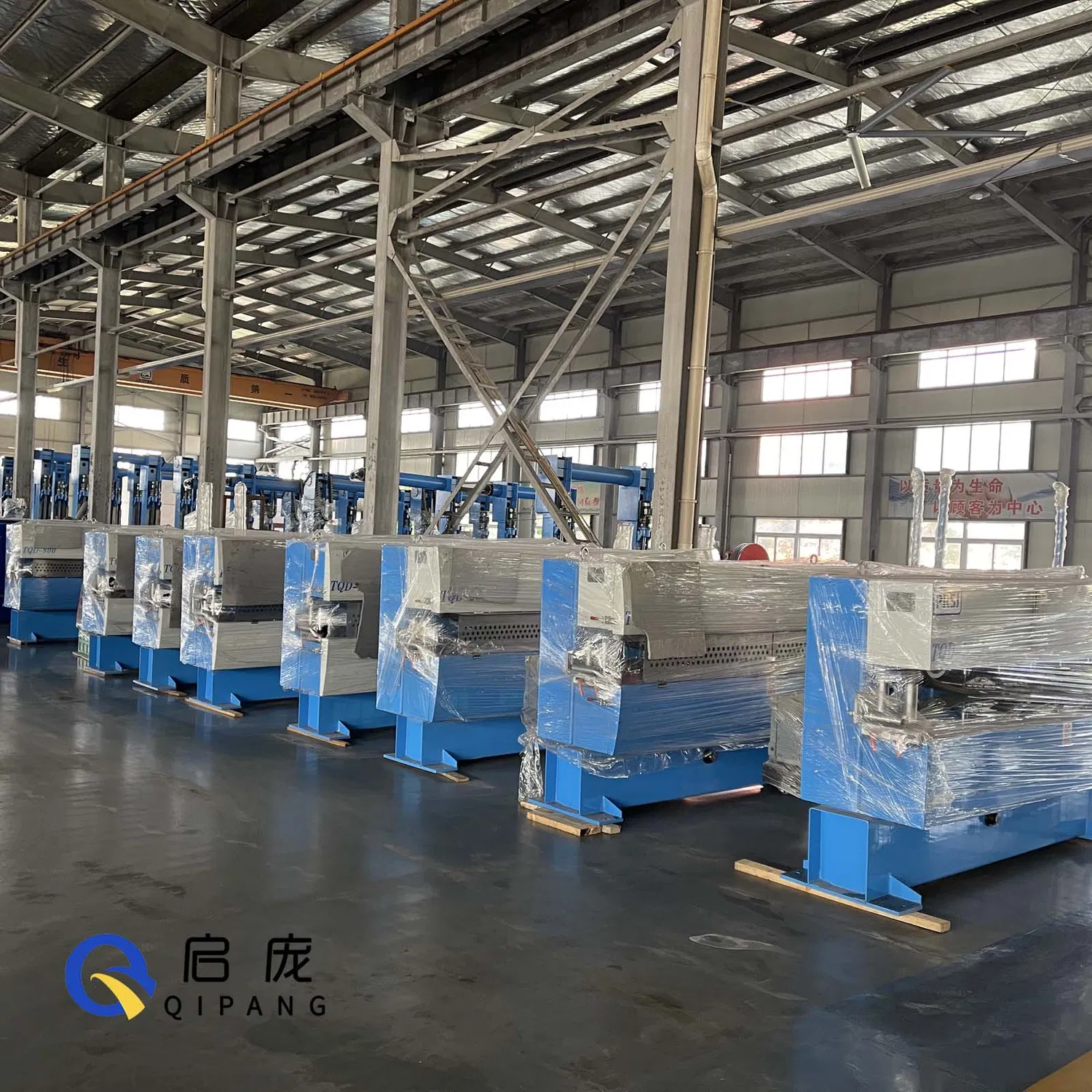

Packaging & Shipping
