Gyfxtby FTTH 1-24 Core Flat Single-Tube Dielectric Aerial Cable

Model NO.	GYFXTBY
Insulation Material	XLPE
Sheath Material	PE or Lzsh
Material Shape	Round Wire
Wire Core Material	Bare Copper Wire
Certification	ISO, CCC, CE, RoHS
Connection Structure	FTTX Flat
Allowed Lateral Pressure	>1000(N/100mm)
Allowed Tensile Strength	1000n<10000n
Core	Double Core
Sample	Free Sample, Freight Charged Only
MOQ	100 Meters
Inspection	Accept Third Party Inspection
Conductor	Fiber
Insulation	XLPE PE PVC
OEM ODM	as Per Customer Request
Material	PVC+Copper
Product Name	Copper Conductor PVC/XLPE Insulation Swa Armoured
Transport Package	Wooden Drum
Specification	4x50mm2
Origin	China
HS Code	8544492100
Production Capacity	8000000meters/Month



Product Description

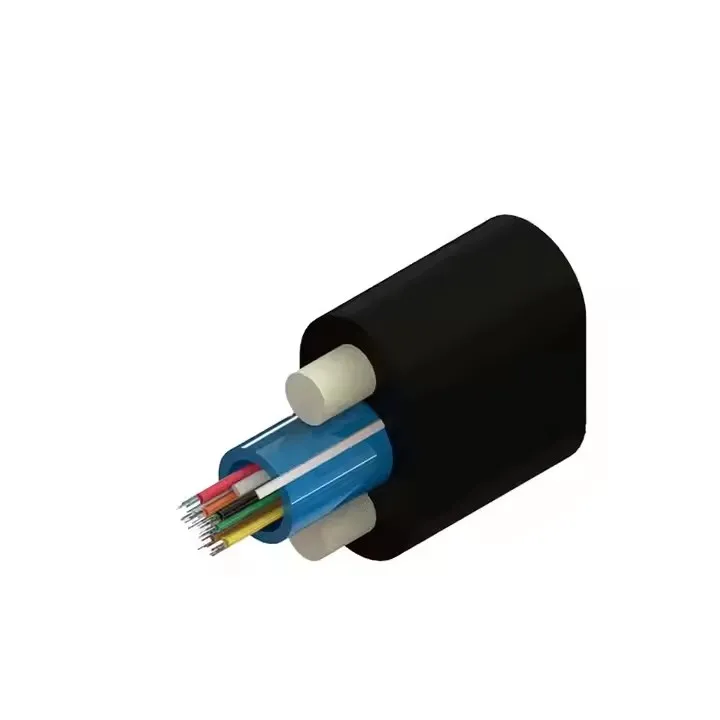

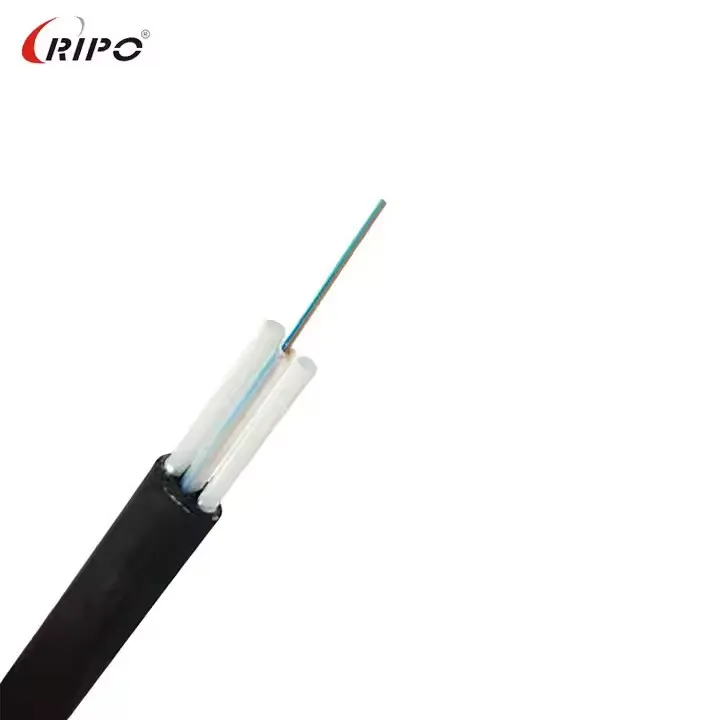

GYFXTBY fiber optic cable is an arc runway fiber cable, which is made of multiple( 1-24 cores ) 250um
colored fibers embedded in the internally filled waterproof compound loose tube made of high-modulus plastic, a non-metallic tensile element ( FRP ) is placed on both sides of the loose tube, and a rip cord is placed on its outer layer, and then the high-density polyethylene is extruded to form an HDPE sheath.

Feature:

1. Accurately controlling the residual length of optical fiber ensures good tensile properties and temperature characteristics of optical cable
2. PBT loose tube material has good resistance to hydrolysis, filled with special ointment to protect the optical fiber
3. Fiber optic cable is non-metallic structure. light weight, easy laving,. ant-electromagnetic, lightning protection effect is better
4. Larger number of core than ordinary butterfly-shaped optical cable products, suitable for access to more densely populated villages
5. Compared with butterfly. shaped optical cable. runway structure products have stable optical transmission performance with no risk of water accumulation, icing and egg cocoon
6. improve the construction efficiency
7. Easy to peel, reduce the time of pulling out the outer
8. It has the advantages of corrosion resistance.UV protection and environmental protection

Structure

Items

Descriptions

Optical fiber

Category

SM / MM

Color

Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Violet,Pink,Aqua

Loose tube

Material

PBT

Color

Natural

Tube filling

Fiber jelly

Strength member

FRP

Water-blocking material

Water-blocking yarn

Ripcord

1Pcs

Outer sheath

Material

PE

Color

Black

Optical fiber characteristics:

Single mode

Category

G652D

(1310nm/1550nm)

G657A1

(1310nm/1550nm)

G657A2

(1310nm/1550nm)

Attenuation

Typical

0.36dB/km/0.22dB/km

0.36dB/km/0.22dB/km

0.36dB/km/0.22dB/km

Max

0.4dB/km/0.3dB/km

0.4dB/km/0.3dB/km

0.4dB/km/0.3dB/km

Zero dispersion slope

≤0.091ps/km·nm²

≤0.092ps/km·nm²

≤0.092ps/km·nm²

Chromatic dispersion(1285-1340nm)

-3.5-3.5ps/(nm·km)

-3.5-3.5ps/(nm·km)

-3.5-3.5ps/(nm·km)

MFD(@1310nm)

9.2±0.4μm

8.8±0.4μm

8.8±0.4μm

Cut-off wavelength

≤1260nm

≤1260nm

≤1260nm

Min bending Radius

16mm

10mm

7.5mm

Cladding diameter

125±1.0μm

125±1.0μm

125±1.0μm

Multi mode

Category

62.5/125μm

(850nm/1300nm)

50/125μm

(850nm/1300nm)

BIOM3

(850nm/1300nm)

BIOM4

(850nm/1300nm)

Attenuation

Typical

3.0dB/km/1.0dB/km

3.0dB/km/1.0dB/km

3.0dB/km/1.0dB/km

3.0dB/km/1.0dB/km

Max

3.5dB/km/1.5dB/km

3.5dB/km/1.5dB/km

3.5dB/km/1.5dB/km

3.5dB/km/1.5dB/km

Bandwidth(MHz·km)

≥200/≥500

≥500/≥500

≥1500/≥500

≥3500/≥500

Effective mode bandwidth(MHz·km)

--/--

--/--

≥2000/--

≥4700/--

Min bending Radius(mm)

30

30

7.5

7.5

Cladding diameter

125±1.0μm

125±1.0μm

125±1.0μm

125±1.0μm

Mechanical and Environmental performance:

NO.

Items

Short-term

Long-term

1

Tensile performance

1250N

600N

2

Crush resistance

1000N/100mm

300N/100mm

3

Min bending radius("H" is the height of the cable)

Static:10H

Dynamic:20H

4

Installation temperature

-20ºC~+60ºC

5

Operation temperature

-40ºC~+70ºC

The mechanical properties of other optical fibers and optical cables shall meet the international standard of IEC60793 or IEC60794
