HDPE Silicon Core Pipe Extrusion Line
Detailed specification for HDPE Silicon Core Pipe Extrusion Line
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | SJ65x30 |
| Extruder Model | Sj-90/30 |
| Extruder Type | Single Screw Extruder |
| Control System | PLC Control System |
| Inverter | ABB |
| Intelligent Temperature Controller | Omron |
| Motor Power | 45kw, AC |
| After Sale Service | Life Long with Professional After Sale Team |
| Machine Color | as Request |
| Transport Package | as Export Standard for Plastics Machine |
| Specification | ISO9001 CE |
| Trademark | SUKE |
| Origin | Qingdao, China |
| HS Code | 84775900 |
| Production Capacity | 50sets/Year |

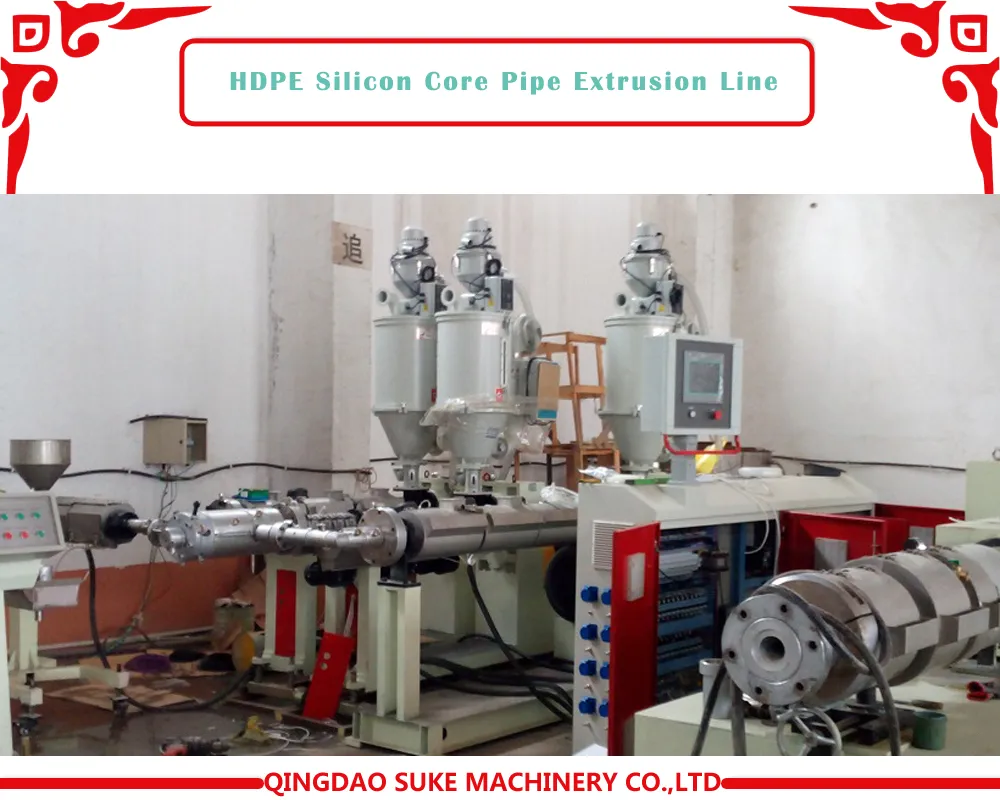

HDPE Silicon Core Pipe Extrusion Line
EQUIPMENT LIST:
1. Main Single Screw Extruder
2. Co-Extrusion Single Screw Extruder
3. Marking Line Small Extruder
4. Mould
5. Vacuum Shapping Tank
6. Haul-off Machine
7. CUtting Machine
8. WInder.
MACHINE FEATURES:
1. The first extruder is for HDPE pipe extrusion, the second one is for inner silicon layer and the third one is for mark line.
2. Die heads of helical type and basket type are perfect for polyolefin, and can help to produce sound melting pressure, and improve the plasticization capacity. Meanwhile, stable material-flow and pressure grade can be guaranteed.
3. Advanced vacuum calibrating method improves the cleanliness and hardness of surface. Reasonable high-speed sprinkling cooling water tank guarantees the pipe quality and high speed stable extruding.
4. Caterpiller of the hauling machine adopts anti abrasion alloy material, which realizes stable traction, wide frequency adjustment range and long lifespan.MACHINE DETAILS:
1. Output: 100-250kg/h
2. Production Speed: 3-12m/min
3. Pipe specification: OD/ID 32/26, 34/28, 40/33, 46/38.50/42, 63/54mm(according to you condition).
