Mine Tube HDPE Pipe Conveying Water System

Product Description

HDPE PIPE FOR WATER SUPPLY PE100 TUBE DN20-DN1600MM PN4-PN20 SDR41-SDR9 JINGTONG polyethylene(PE)pipes are manufactured in high-density polyethylene(HDPE) raw materials,premium PE100 pipe grades,intended for the conveyance of water for human consumption,including raw water prior to treatment and water for general purpose.

ProductHPDE pipe for water supply Size(DN)dn20~dn1600 mm Pressure(PN)PN4 PN6 PN8 PN10 PN12.5 PN16 PN20 Legnth6m,9m,12m or as per customers ColourBlack with blue stripes Standard

GB/T13663.2-2018, ISO4427-2:2007,

EN12201-2"2003, AS/NZS4130-2018

Advantages of HDPE Pipe

> Good hygiene and environmental

performance;

> Good flexibility and good seismic

performance;

> Connection is reliable,many construction

methods;

> Light weight,easy to handle and install;

> Resistance to chemical media corrosion;

> Long service life,up to 50 years;

> Excellent hydraulic performance,Manning's

coefficient is 0.009;

> Better wear-resistance performance,4 time

than steel pipe

Application of HDPE Pipe

> Urban area water-supply work system;

> Fire-fighting water transmission pipe;

> Mine dewatering ;

> Industrial materials transmission pipe;

> Landscaping water supply network;

> Vaccum,pressure and gravity sewer systems;

> Slag,slurry transfer pipe;

> Aggricultural irrigation pipe;

> Compressed air services;

> Electricity and telecommunication cable conduits.

The uinque properties of PE pipe make it ideal for use when trenchless technoloy is being used to install or rehbilitate pipe systems.Trenchless technology is a common technique uesd to avoid the need for open trenches and reduce the disturbance to the public and the environment.

Size Information

JINGTONG HDPE pipes diameters range from DN20 to DN1600,which pressure classes of up to 2.0MPa.

PE pressure pipes are designated by their outside diameter or DN. For water and other general pressure applications,the maximum allowable operating pressure(MAOP)with a minimum service coefficient is designated by the pressure rating or PN.The SDR of a PE pipe refres to its"Standard Dimension Ratio"which describes the geometry of the pipe and is the ratios of the outside diameter and the minimum wall thickness.

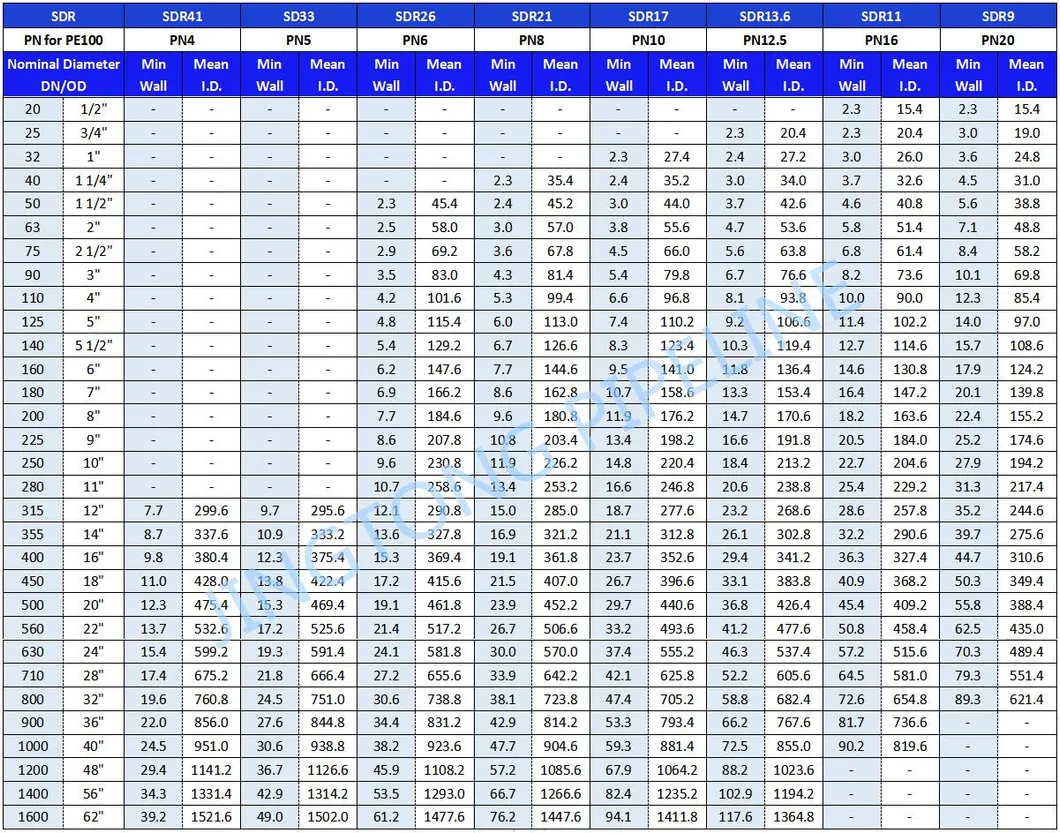

                                                                                             PE100 Pipe Standard Dimensions

Detailed Images

JINGTONG has a commitment to using only the highest standard of raw materials and the latest manufacturing technologies to produce HDPE pipes.This has established JINGTONG with a reputation as a quality supplier of polyethylene pipes in sizes ranging from 20mm to 1600m in diameter.

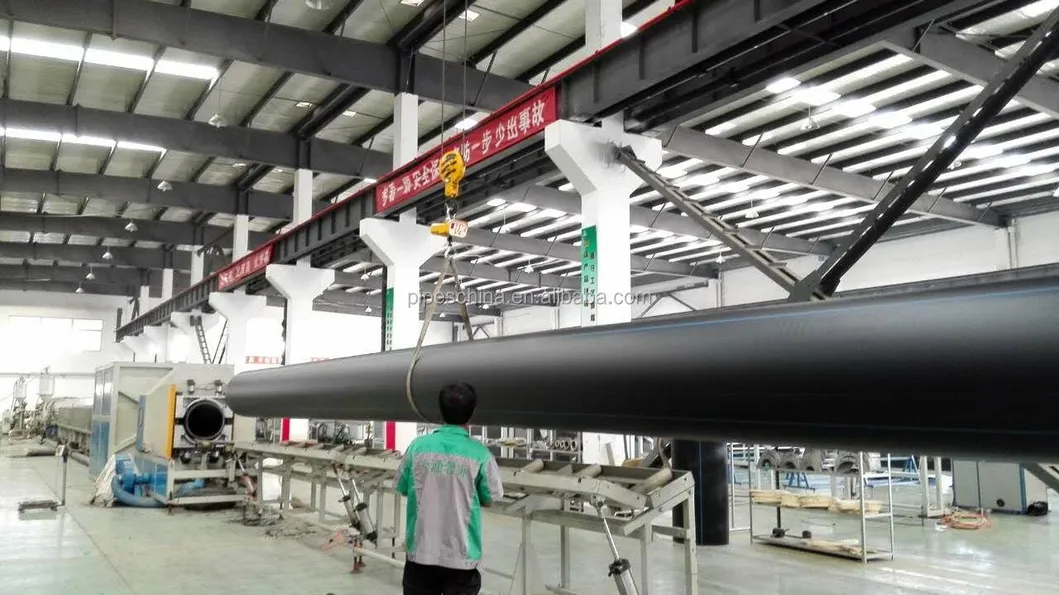

Production Line

Materials & Checking

JINGTONG HDPE pipes are manufactured from PE100 polyethylene resin,with a 50-year minimum required strength of 10MPa.The PE pipes are produced according to GB/T13663.2-2018 which are equal to or equivalent to other standards.
JINGTONG plastic pipes have been exported to many countries with the help of highest quality,integrated solutions and innovations.We work with our materials suppliers to ensure our products are made with the input of continuous research and development to ensure high quality,durability,performance and safety.The reliability and quality of our products is assured as all our manufacturing is audited according to ISO 9001:2015,also operating an environmental management system according to ISO 14001:2015,health and safety management system according to OHSAS 18001:2007.

Connection methods

JINGTONG HDPE pipe may be joined economically using thermal spigot-socket fusion and butt-fusion or electro-fusion
equipment;altemately diameters up to DN110 are commonly joined using compression fittings which make connection quick and easy.

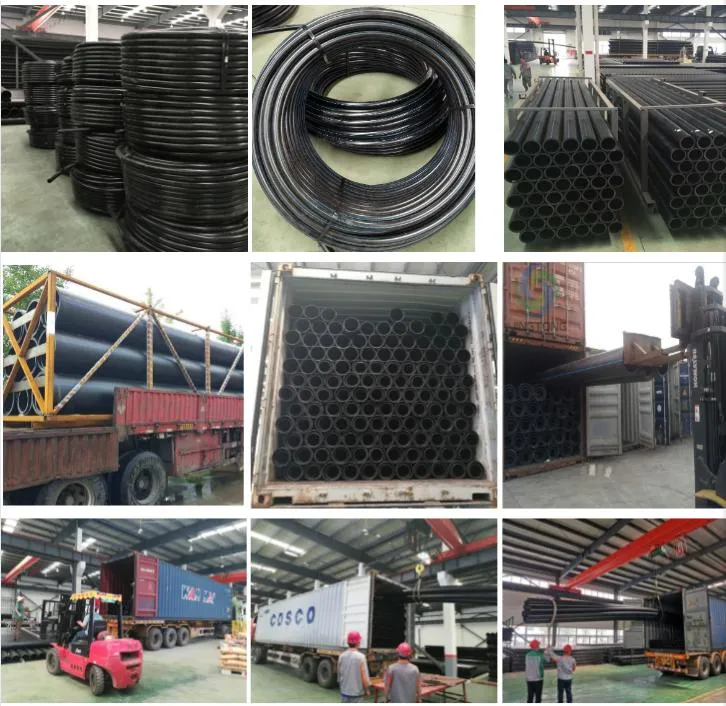

Packing&Shipping

Pipe sizes up to DN90 can be supplied in coil lengths of up to 300 meters in some diameters.Larger diameters length are typically 6m or 12m in stock,other lenghts can be made between purchaser and manufacturer for loading container easily.

After Sales Service

Our Serivice Values

* We base the relationships we have on Trust & Integrity.

* We believe good Communication is essential to a successful business,with our team,our suppliers and ,most of all,with our customers.

* We focus on providing quality in all aspects of our business.

* We believe in adopting a caring appr0ach to people and to our environment.

* We take pride in everything we do,and the way we do it.

* We will always put safety first.

PROJECT

INGTONG plastic pipe systmes are used popularly in domestic and overseas markets,such as USA,EU,ASEAN,middle east, Africa and Lartin America.China Beijing Daxing Internatioal New Airport,China National Stadium (Birds nest),Ecuador Posolha multipurpose terminal.
