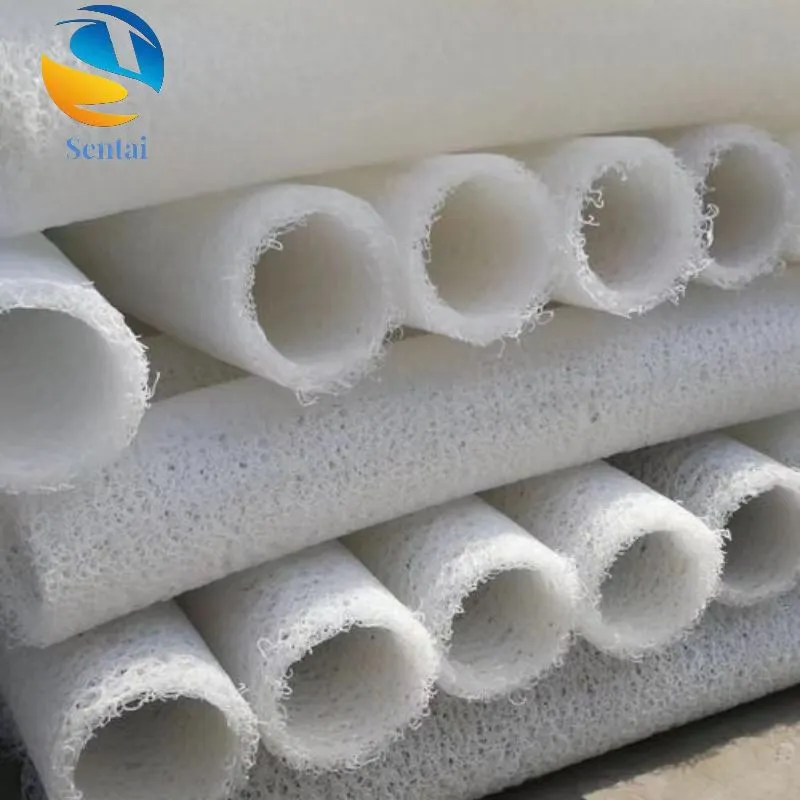

Plastic Blind Ditch Permeable Blind Pipe Permeable Drainage Pipe Wrapped with Polypropylene Circular

1. The surface porosity and porosity are over 85%, and the collection and drainage performance is excellent.

2. The compressive strength can reach tens of tons per square meter, and the pressure resistance is good.
3. Good flexibility and strong adaptability to soil deformation

4. It is resistant to acid and alkali corrosion, UV rays, aging, and has good durability.
5. Lightweight and easy to construct.

6. Diverse shapes and adaptability to construction requirements in complex environments.
7. The filter membrane is optional, more targeted, and cost-effective.

keep a large stock of goods

ItemRectangular SectionCircular Section ModelRH0735RH1435RH1550RH1235RH60RH80RH100RH150RH200 Outer size
(W×T mm)70x35140x35150x50120x356080100150200 Cannula size
(W×T mm)40x1040x10x225455580120 weight≥(g/m)350650750600400750100018002000 Porosity≥(%)828285828282848585 Flat rate 5%≥608050708085804050 Flat rate 10%≥110120701101601701407570 Flat rate 15%≥15016012513020022018010090 Flat rate 20%≥190190160180250280220125120

1. Construction preparation: After the site leveling is completed, lay out and measure on site.
2. Excavation of blind ditch trenches: Excavate blind ditch trenches on the site, with a width and depth that can meet the needs of placing plastic blind ditch materials, and have a certain longitudinal slope. No measured
After the mistake, backfill with medium to fine sand at the bottom of the ditch.
3. Laying plastic blind ditch: After leveling the sand cushion layer at the bottom of the ditch with your feet, lay a non-woven geotextile (with a width of 50cm) flat on the bottom of the ditch. Then, place plastic blind ditch material and wrap it with non-woven geotextile from both sides. And tie it firmly with plastic strips and ropes. When the plastic blind ditch material is extended. You can use U-shaped nails or iron wire to connect it at the joint; The lap length at the overlap of non-woven geotextile should not be less than 10cm; To prevent the blind ditch from being squeezed and moving, plastic blind ditch materials can be nailed with iron nails every 5 meters to fix them at the bottom of the ditch.
4. Backfilling: After the laid plastic blind ditch material passes the acceptance inspection, it can be backfilled with medium coarse sand or plain soil.

Sentai Environmental Protection's main products include geotextiles, HDPE films, composite geotextiles, drainage nets, short filament geotextiles, etc. All products are non-toxic and environmentally friendly materials, which can be widely used in: 1. Environmental remediation engineering (soil improvement in grain bases, industrial sites, mining, water bodies, vegetable greenhouse breeding, planting, etc.); 2. Water conservancy engineering (anti-seepage reinforcement of rivers and reservoirs, embankments, water channels, slope protection, etc.) and municipal anti-seepage (anti-seepage of subways, underground engineering of buildings, planting roofs, roof gardens, sewage pipeline lining, etc.). 3. Ecological and environmental engineering (including landfill sites, sewage treatment plants, power plant regulation ponds, industrial, hospital, solid waste, gardens, artificial lakes, river reservoirs, golf course pond substrates, slope protection, waterproofing of green lawns, petrochemicals; anti-seepage of bottom linings for washing pools, overflow pools, ash yards, dissolution pools, sedimentation tanks, storage yards, and tailings). 4. Transportation (foundation reinforcement of high-speed railways and highways, anti-seepage of culverts). Sentai Environmental Protection has established cooperative relationships with excellent research institutes and environmental protection enterprises at home and abroad, and has a team dedicated to technology research and development, production and manufacturing, and engineering services in water conservancy, environmental protection, and ecological restoration. The company advocates the business philosophy of "people-oriented, honest operation, and development through quality", adhering to the corporate purpose of "technological innovation, industry serving the country, and serving the people". It focuses on ecological water conservancy, environment, and restoration, striving to create environmental friendliness, create a beautiful China, and create safety and health for humani
