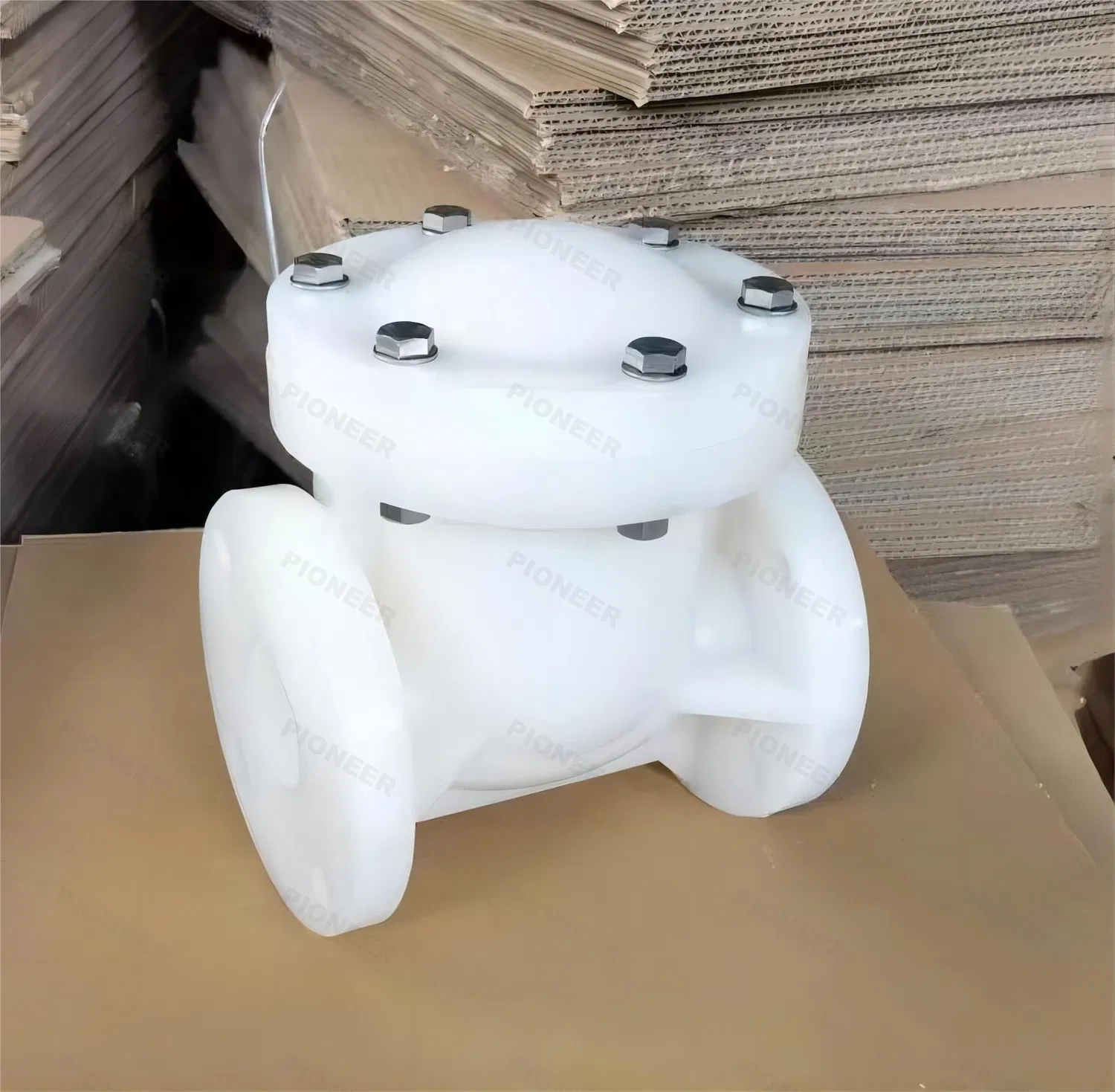

Swing Check Valve Plastic PVDF/Pph Flange Type
Detailed specification for Swing Check Valve Plastic PVDF/Pph Flange Type
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | H44F-10F2 |
| Seal Form | Force Sealed |
| Valve Stem | Normal |
| Work Pressure | Low Pressure (Pn<1.6mpa) |
| Working Temperature | Normal Temperature (-40°C<T<120°C) |
| Material of Seal Surface | Soft Sealed |
| Application | General |
| Warranty | 1year |
| Product Name | Check Valve |
| Port Size | 2" |
| Temperature of Media | High Temperature, Medium Temperature |
| Power | Manual |
| Customized Support | OEM, ODM, Obm |
| Transport Package | Plywood Case |
| Specification | DN32 |
| Trademark | Pioneer |
| Origin | Shanghai, China |
| Production Capacity | 10000 |
* Plastic valve body with light weight, strong corrosion resistance, compact and beautiful appearance, lightweight body easy to install, a wide range of applications, material hygiene without DU, wear-resistant, easy to disassemble, easy maintenance, suitable for fluid: water , air, oils, corrosive chemical liquids, etc.
*Temperature:
PVDF: -20~120ºC,
CPVC 0ºC~90ºC ,
UPVC:0~60ºC ,
PE:-20~80ºC ,
FPP/PPH -20ºC~120ºC
* Valve body light weight, strong corrosion resistance
* Compact and beautiful appearance
* The body is light and easy to install
* High corrosion resistance, wide application range
* SGS, GMC, CNAS ,EN BS1213:2003 Certificates for our products
*Connecting : flanged,wafer
Standard Followed:
Manufacturing: GB/T 12238(center line)/API609
Testing:GB/T 13927 / API598
Flange dimensions:HG/T20592 / ASME B16.5
Face to Face:GB/T 12221/API609
Note: We can supply all kinds of products as per GB, ANSI ,DIN& JIS standard.
Plywood case
