Screw No.	Single-screw
Automation	Automatic
Computerized	Computerized
Certification	CE, ISO9001:2008
Customized	Customized
Condition	New
After-sales Service	Life Long Service
Application	PP PVC PE Pipes
Electrical Control System	PLC, HMI Control
Main Motor	Siemens Beide, Weg
Inverter	ABB, Customized
Transport Package	Wooden Package
Specification	180MM 240MM
Trademark	JWELL
Origin	Zhejiang, China



Jwell PE HDPE LDPE PPR Plastic Water Gas Oil Supply Pipe Tube Extrusion Production Line Single Screw Extruder Pipe Making Machine/ PPR Water Pipe Making Machine



Outer Diameter 20mm Up to 3000mm (customized) Model No. JWPEG, JWGXPE (customized) Power Range Up to 1550 (kW) (customized) Production Capacity Up to 2500 kg/h (customized) Layers Single layer or multi-layer HDPE pipes (customized) Extruders JWS65/33, JWS75/33,JWS90/33,JWS120/38,JWS150/38 (customized) Material  HDPE MDPE High density Polyethylene PE  (customized) Guarantee Time   1 year (customized) Certification CE, TUV, SGS



Product Description

Product  Name HDPE  MDPE PP  pipe extrusion line, pipe machine Energy Saving Ratio Up to 35% Properties Fully Automatic, stable production, large output Speed Range Normal speed and high speed optional Standard  European Loading Type Automatic dryer and loader Vacuum suction Brand for Extruder Jwell Brand for Screw&Barrel China famous brand JINHAILUO since 1978 Electrical parts, gearbox, vacuum pump, auxiliary part SIEMENS PLC, ABB, Roxroth, WEG, Scneider, OMRON (customized)

Product Description

Product
The extruder is equipped with AC variable frequency or DC speed drive, imported temperature controller. The calibration unit's pump and haul off unit's reducer are famous brand products. After simple changing of the die and screw and barrel, it also can produce the foam profiles,the effect can be better than single screw extruder.

Descriptions
This line features stable plasticization, high output,low sheering force,long life service and other advantages. The production line consists of control system, conical twin screw extruder or parallel twin screw extruder,extrusion die, calibration unit,haul off unit, film covering machine and stacker.

This pipe production line adopts advanced technology of Europe,it is a new research achievement of energy-saving production line,which is suitable for high speed extrusion of HDPE,PP and other polyolefin pipe.compared with common production line,the energy-saving effect reach on 35%, and the product efficiency increase more than 1 times, thus it is not only saving the cost of site and manpower,but also improving efficiency.
This production line has nice appearance,higher automatic degree ,production reliable and stable.

Specification  Model: Classic Type Extrusion Line for HDPE pipe, PP/MPP pipe TypeDiameter mmExtruderCapacity
(kg/h)Power(kW) JWPEG-63∅20- 63JWS65/33100-150100 JWPEG-110∅20-110JWS65/33150-200130 JWPEG-160∅63-160JWS65/33200-250145 JWPEG-250∅75-250JWS75/33250-350210 JWPEG-315∅90-315JWS75/33250-350260 JWPEG-450∅160-450JWS90/33450-550380 JWPEG-630∅315-630JWS120/33700-900530 Model: High Speed Extrusion Line for HDPE water pipe, gas pipe TypeDiameter mmExtruderCapacity(kg/h)Power(kW) JWGXPE-75∅20-75JWS60×40360150 JWGXPE-250∅50-250JWS75×38600230 JWGXPE-450∅160-450JWE90×38900450 JWGXPE-630∅315-630JWS120×381300630 JWGXPE-800∅450-800JWS120×381200680 JWGXPE-1000∅500-1000JWS120×381400815 JWGXPE-1200∅710-1200JWS120×381400930 JWGXPE-1600∅900-1600JWS150×3819001200 Large Diameter HDPE Water Supply and Gas Supply pipe Extrusion Line TypeDiameter mmExtruderCapacity
(kg/h)Power(kW) JWPEG-800∅450-800JWS120/381000-1300600 JWPEG-1000∅630-1000JWS120/381000-1300650 JWPEG-1200∅800-1200JWS90/38 JWS120/381000-1500960 JWPEG-1600∅1000-1600JWS120/381000-17001300 JWPEG-2500∅1400-2500JWS150/381500-20001400 JWPEG-3000∅2000-3000JWS150/382000-35001550 Note: Contact us for customized sizes, specification, functions.



Automatic dryer and loader


Automatic dryer and loader

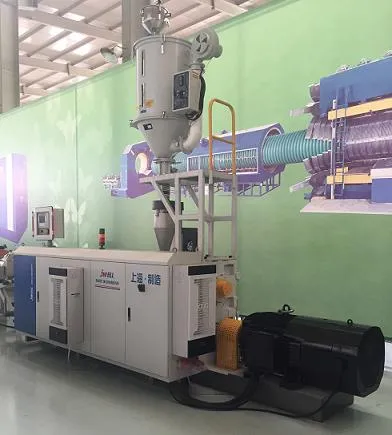

 Single Screw Extruder





Color stripe extruder





Extusion mould

Vacuum Cooling tanks

Cooling tanks

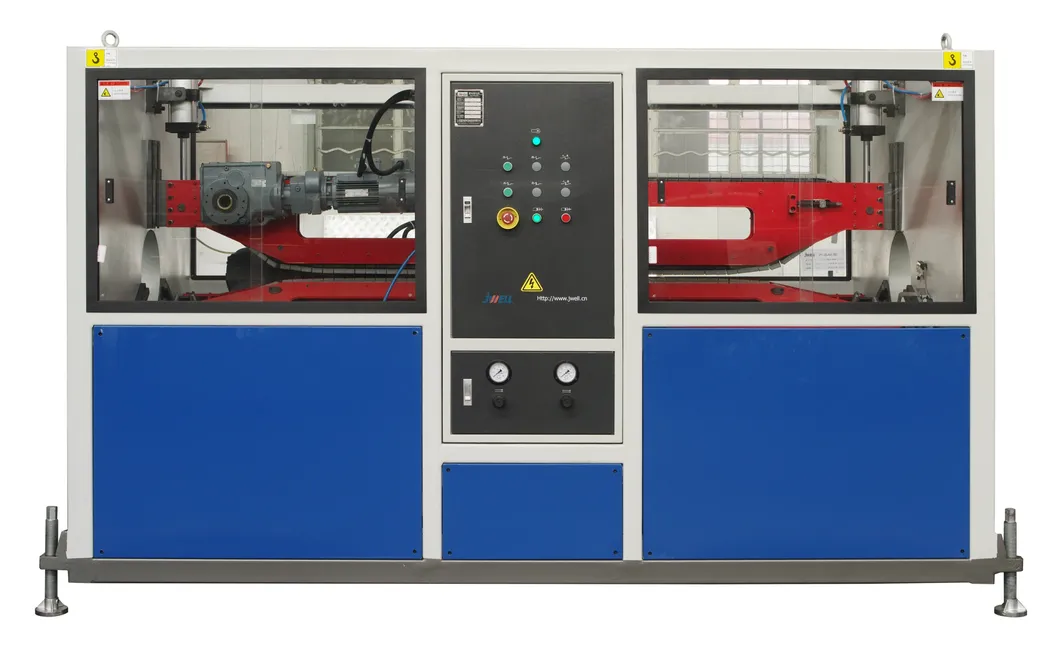

Haul off machine

Cutting machine No dust

Pipe stacker

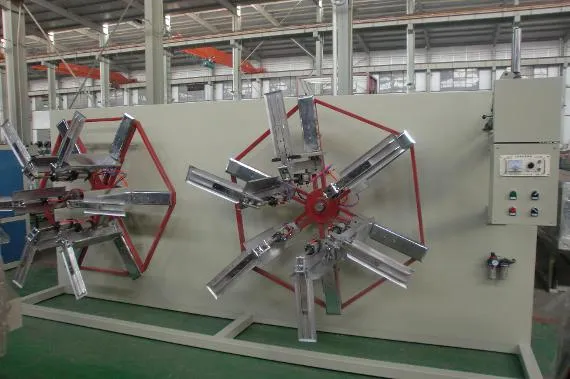

Double position coiler
