High Productivity 50~110 HDPE Pipe Extrusion Line HDPE Pipe Making Machine/Machine Extruder PE Tube
Detailed specification for High Productivity 50~110 HDPE Pipe Extrusion Line HDPE Pipe Making Machine/Machine Extruder PE Tube
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | SJ65/30 |
| Screw No. | Single-screw |
| Automation | Automatic |
| Computerized | Computerized |
| Certification | CE, ISO9001:2008 |
| Customized | Customized |
| Condition | New |
| After-sales Service | 18 Months |
| Raw Material | PE Granule |
| Name | HDPE Pipe Manufacturing Machine |
| Inverter Brand | ABB |
| Motor Brand | Siemens |
| Temperature Controller | Omorn |
| Capacity | 400kg/H |
| Suitable Material | PE HDPE LDPE LLDPE |
| Heating Way | Cast Aluminum Heating |
| Power Supply | 380V 3phase 50Hz or as Your Demand |
| Total Installed Power | About 80kw |
| Service | Rovided: Video Technical Support, Free Spare Parts |
| Machine Condition | New Machine |
| Machine Size | 20m*3m*2.5m |
| Machine Weight | 5500kgs |
| Screw Channel Structure | Deep Screw |
| Transport Package | Wood Block Fixed Steel Wire Reinforcement |
| Specification | Vertical High Torque Gearbox, Bimetalic screw |
| Trademark | QIANGSHENG |
| Origin | China |
| HS Code | 84772090 |
Product Description
The various thickness of the pipes produced can make them suitable for applications range from urban water supply to gas transportation.
This line also excels in the production of anti-flammable and anti-static electricity pipes using a two- or three-layer spiral mold for use in mining industries. Pipes produced feature even wall-thickness and perfect roundness.
Through switching or adding certain part of machine unit, this line can also be customized to extrude pipes of various other kinds.2.hdpe pipe manufacturing machine Making Machine is consisted of single-screw extruder , vacuum calibrator , hauling machine ,cutter and tipping rack. 3. hdpe pipe manufacturing machine:.DN(mm):16mm-110mm Thickness: 2.0-10.2mm Standard: ISO9001,GB,DIN Working pressure: 0.6mpa-1.6mpa. 4.application:Agricultural Irrigation Pipe is widely using in many fields such as smoking shisha pipe area auto wire, electric threadpassing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes if air condutioner and washing machine,etc
Detailed Photos
Flow chart of PE pipe extrusion line
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder→ color band extruder → mould and calibrator → vacuum calibration machine → cooling tank→ haul-off machine → cutting machine → stacker
Plastic extruder
1.World famous brand electrical component such as Siemens, ABB etc .
2.High torque gearbox with adopts NSK bearing;
3.Bimetallic screw and barrel;
4.Intelligent PLC controlling system with human-friendly interface.

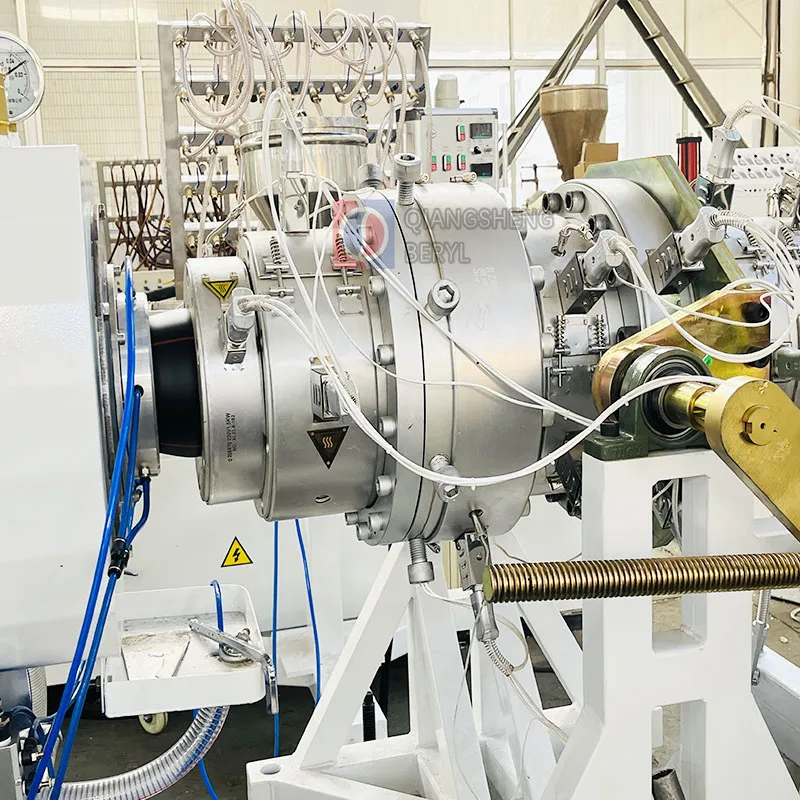

Mould
1.Material of mold body is Steel 45# ,harden treated and polished.
2.Material of inner mould parts is 40Cr.
3.The material of calibration bushing is Stannum bronze.
4.The diameter can be customized.
Vaccum calibration water tank:
1.Calibrating the pipe outer diameter and cooling pipe.
2.The material of water tank is stainless steel 304.
Hauling off machine
1.Function :haul off PE pipe stably and synchronal with extruder speed.
2.Clamping mode is pneumatically.
3.speed adjusting mode is frequency conversion.

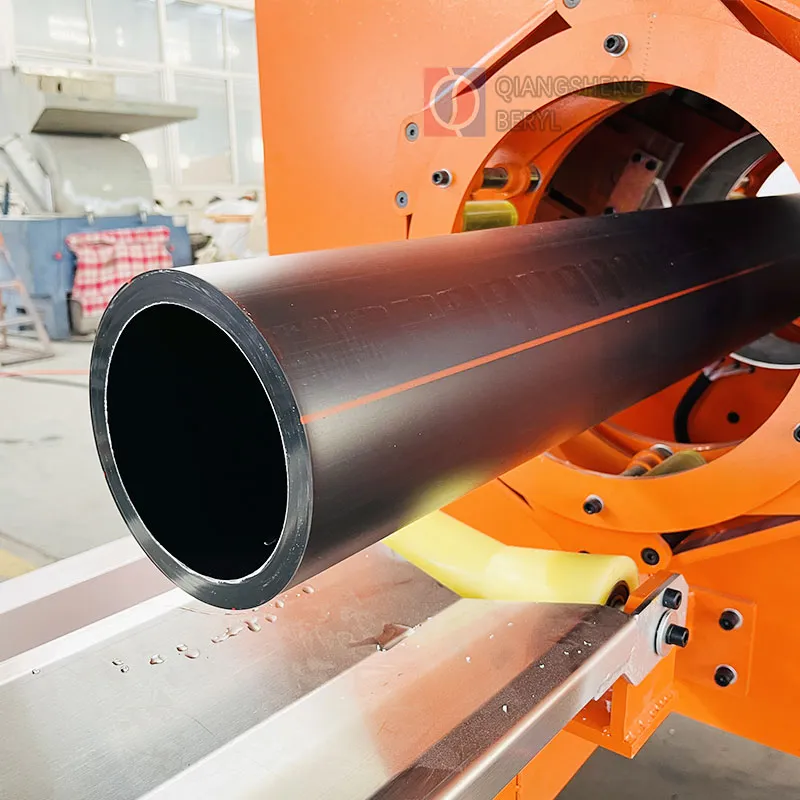

Cuttert machine and stacker
The main electric elements are:
Siemens motor
Siemens PLC touch screen control
Omron temperature control
ABB/DELTA frequency inverter
domestic famous brand screw and gearbox
Product Parameters
Model
Pipe range
(mm)
Capacity
(kg/h)
Haulling speed
(max.a/min)
Total power
(kw)
Line length(m)
PE63B
16-63
100-150
10
35
35
PE125B
40-125
200-250
6
145
38
PE250B
90-250
300-350
3.5
195
42
PE315B
110-315
300-350
3
220
44
PE450B
100-450
400-500
1.2
300
56
PE500B
200-500
400-500
1.1
330
56
PE630B
250-630
700-800
0.9
440
64
Application
Packaging & Shipping
After Sales Service
Our company always attaches importance to the interests of customers and believes that only the success of customers can we go further. Therefore, we always adhere to the idea of innovation and providing customers with better experience to ensure that our machines are more stable, efficient, energy-saving, and provide customers with more professional and ideal services.Pre-sale service:
To provide information and market research,to provide consultation,to provide many kinds of conveniences and market service,etc.
The main purpose of pre-sales service is to help customers make the project planning and system requirements analysis. Make our products maximum to meet clients' requirements. Also play the greatest overall economic benefits of customers' investment.
After-sale service:
To install products and test products freely for customers.
To provide the formulas and technologies of relevant products and the information of chemical materials manufactories.
To direct technology aspect of relevant use according to customers' requirements
To provide technical training for clients' employees.
To be responsible for maintenance service, door-to-door service under the necessary circumstance.
Technology support:
To provide installation and test for the machine.
To provide formulas and technology of relevant products.
To provide information of chemical material manufactories.
To provide technical training for clients' employees.
