Asb High Standard Heat Resistance 95 Degree 16mm Korean LG Material Pressure Pn25 Floor Heating Pex

Model NO.	PERT PEX
Certification	EAC, TUV, GOST, ISO9001, ROHS, CE
Heating Type	Water Heating Systems
Size	16, 20, 25, 26, 32, 40, 50, 63
Colour	White, Red, Orange, OEM
Standard	En ISO 21003
Life	50 Years
Packing Methord	Wrap/ PP Bags

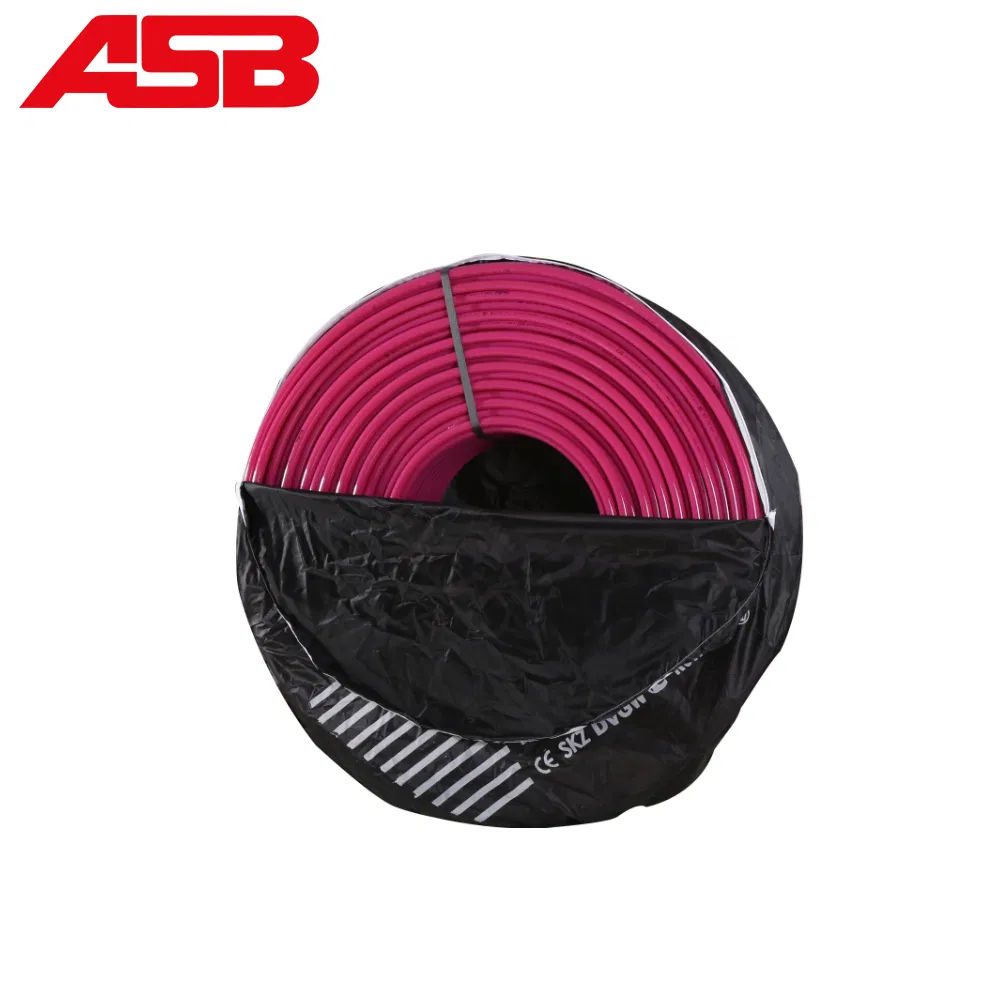

Transport Package	Coils
Specification	16mm-63mm
Trademark	ASB/OEM
Origin	China
HS Code	39172100
Production Capacity	60 Million Meters/ Year

Product Description

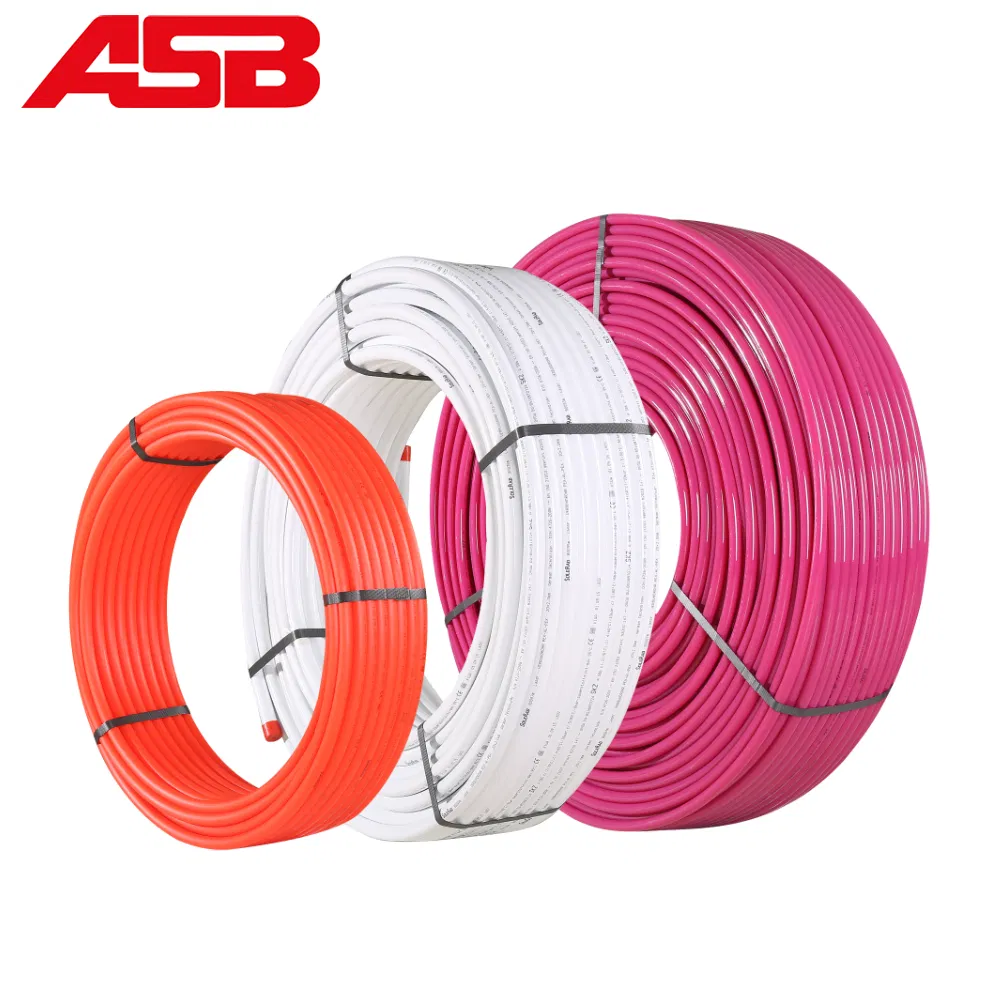

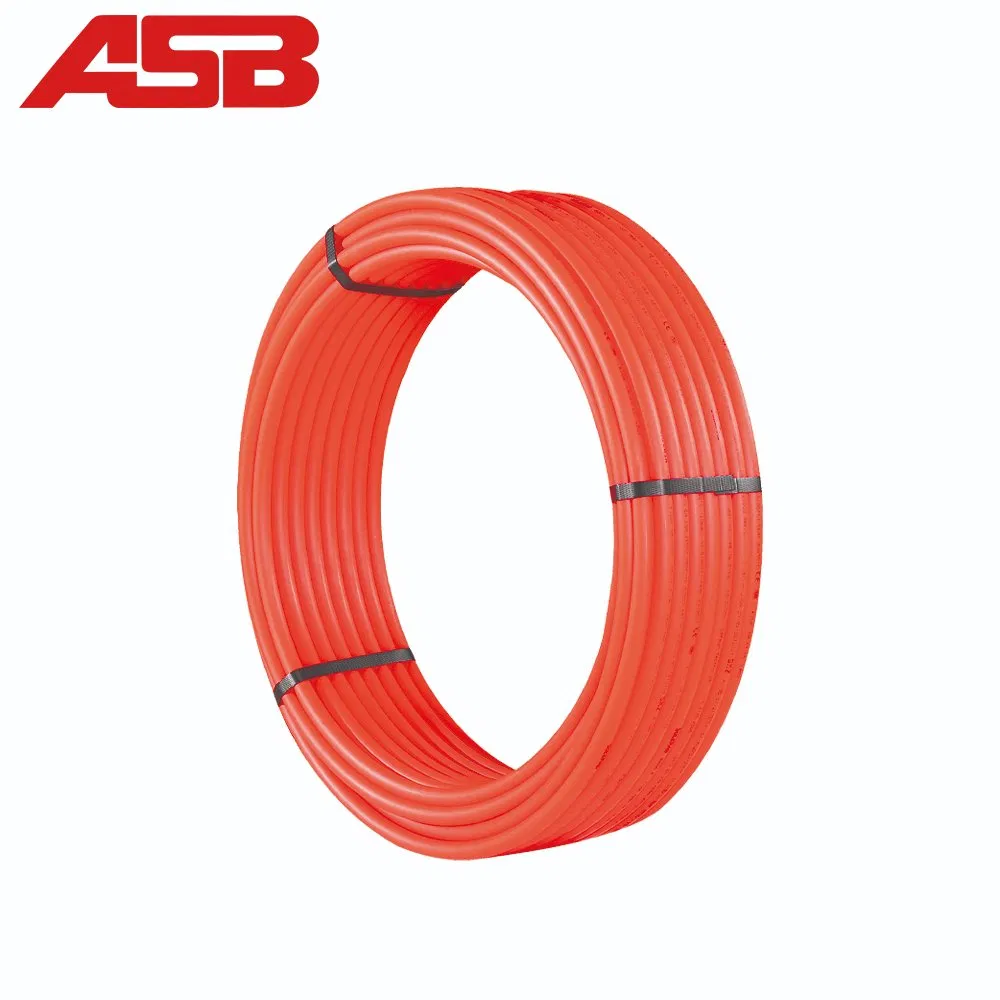

Pex Al Pex tubing/ Multilayer pipe
ASB Pex Al Pex tubing is a five-layer composite pipe that combines the advantages of a metal and plastic pipe and eliminates the disadvantages of both materials at the same time. The aluminum core is absolutely diffusion tight; it reliably prevents oxygen/gases from permeating into the pipe.  It compensates and reduces snap-back forces and heat expansion with changes in temperature.

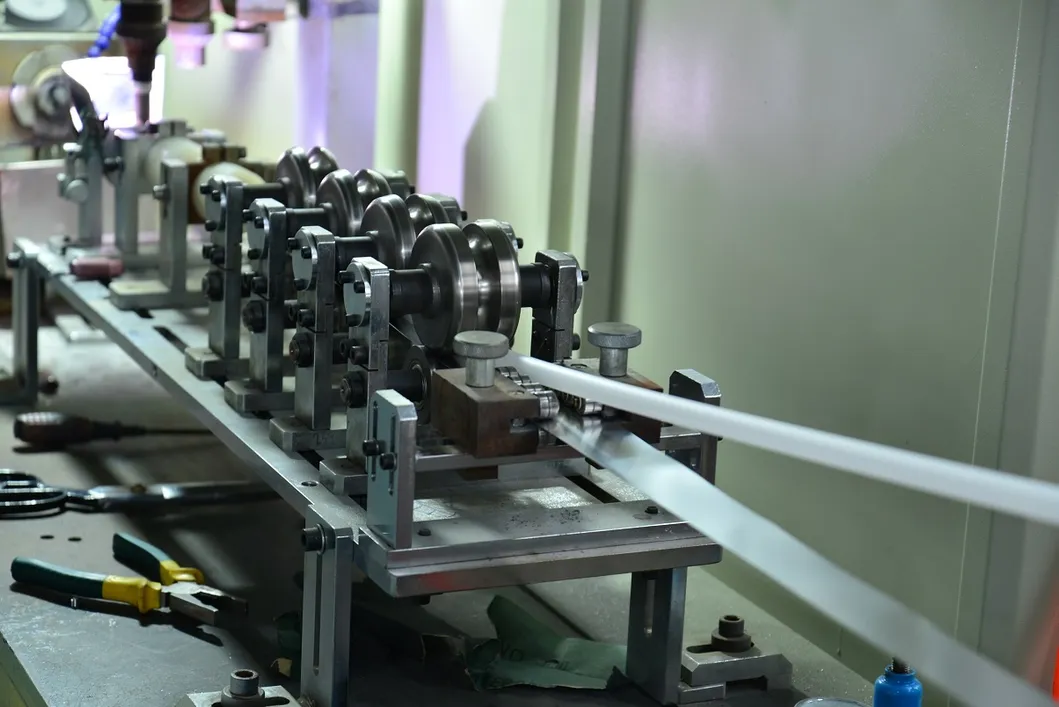

ASB Pex Al Pex tubing including two types of design: Overlapped welded pipe is co-extruded with one step with perfect adhesive between the inner layer and aluminum, high and stable pressure resistance, of which welding style is ultrasonic; Butt-welded pipe is molding with several steps that are argon-arc welding style.


Products Specifications:
ASB can provide the below size of Pex Al Pex tubing:

SpecificationWall ThickOuter Dia.Inner Dia.Alu.ThickCoil lengthColor (mm)(mm)(mm)(mm)(mm)(m/coil)

According to customers requirement 09121.512090.16-0.20100/200/300 12162.016120.18-0.2550/100/200/300/400/500 14182.018140.18-0.2550/100/200/300 16202.020160.20-0.2550/100/200 20252.525200.25-0.3550/100 20263.026200.25-0.3550/100 26323.032260.30-0.4025/50/100 ASB accept the OEM production

Technical Index
ASB pex al pex tubing with following technical index

SpecificationTechnical data Product namePex al pex tubing Max. Working temperature95ºC Working pressurePN 10 Bar Pex materialConstab Pex material Standards follow toISO21003, ASTMF 1281, AS4176.8, GB/T18997

Blasting Strength12mmpipe≥70bar                                              16mm pipe≥60bar                                                  20mm pipe≥50bar                                                                   25/26/32mm pipe≥40bar

Pipe Rings Strength  12mmpipe≥2100N                                       16mm pipe≥2300N                                      20mm/25mm/26mm pipe≥2500N                                                                  32mm pipe≥2650N Sustained PressureAt 82ºC temperature & 27.2Bar testing pressure for 10 hours, no break Thermal conductivity0.45 W/(mk) Coeffcient of thermal expansion0.025 mm/(mk) Bending radius≥5D(D=pipe outer Dia.)

Shipment & Delivery
ASB, through more than 30 years development, is now know as one of the leading manufactures and providers of pex al pex tubing in China. Till now, ASB has 17 pex al pex tubing production lines, and our pipe has been exporting to more than 50 countries, with major of our clients are from Europe such as Germany, UK, Poland, and also the USA. Strong production capacity & competitive price & good service, help us to win more and more clients, and all of them are satisfied with us. We will be your best choice.

DetailsSpecification Samples availableYes Pipe markingOEM or as per request MOQNegotiable Price termEXW, FOB, CIF Payment termT/T or LC at sight Loading portNingbo or Shanghai China Place of originZhejiang, China Lead timeWithin 3 weeks after payment confirmation or LC copy Other details
