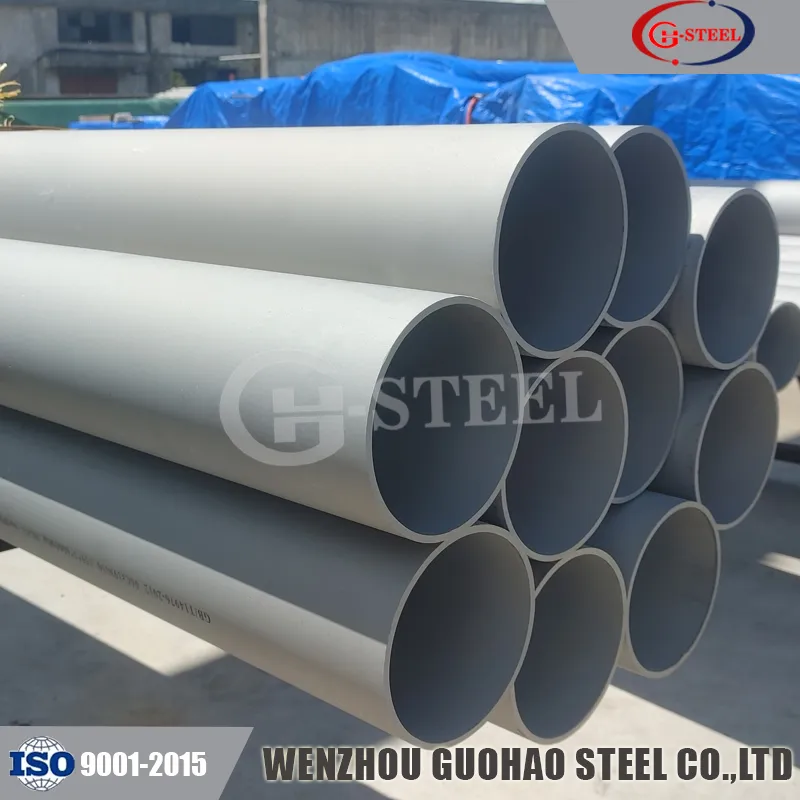

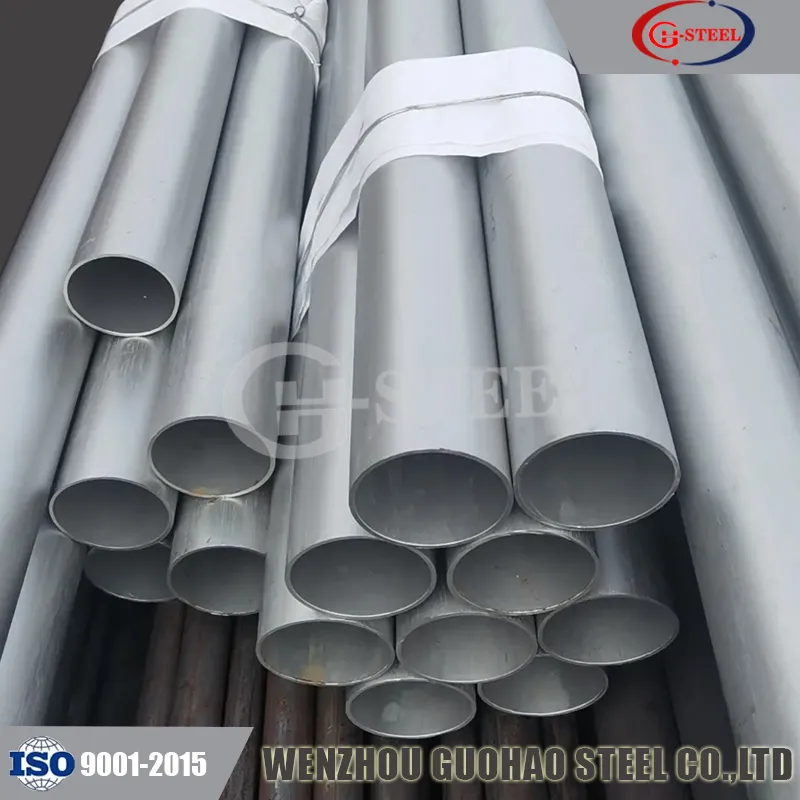

High Corrosion-resistance Stainless Steel Seamless Pipe AISI 904L (UNS N08904) 159×8 mm

Product Name

High Corrosion-resistance Stainless Steel Seamless Pipe AISI 904L (UNS N08904) 159×8 mm

Company

WENZHOU GUOHAO STEEL., LTD(Manufacturer & Exporter)

Grade of Stainless Steel Seamless Pipe

AISI 904L UNS S8904

Standard of Stainless Steel Seamles Pipe

ASTM A312,ASTM A213,ASTM A269,ASTM A511;
EN 10216-5,DIN 17456;
GB/T 14976,GB13296,GB/T 15011;
GOST 9940-81,GOST 9941-2022

Specification

Outer Diameter:6 mm-630 mm(1/8 inch-24 inch)

Wall Thickness: 0.89mm-80mm (SCH 10S, SCH 40S, SCH 80S, SCH 160, SCH XXS)

Length:Random length 5~7m;Fixed length 6m /6.096m /6.1m/12m;As customer's actual request

Pipe End

Plain End (PE) ;Beveled End (BE)

Surface

Acid Pickling; Polishing; Bright Annealing; Sand Blasting; Shot Blasting / Shot Peening

Testing

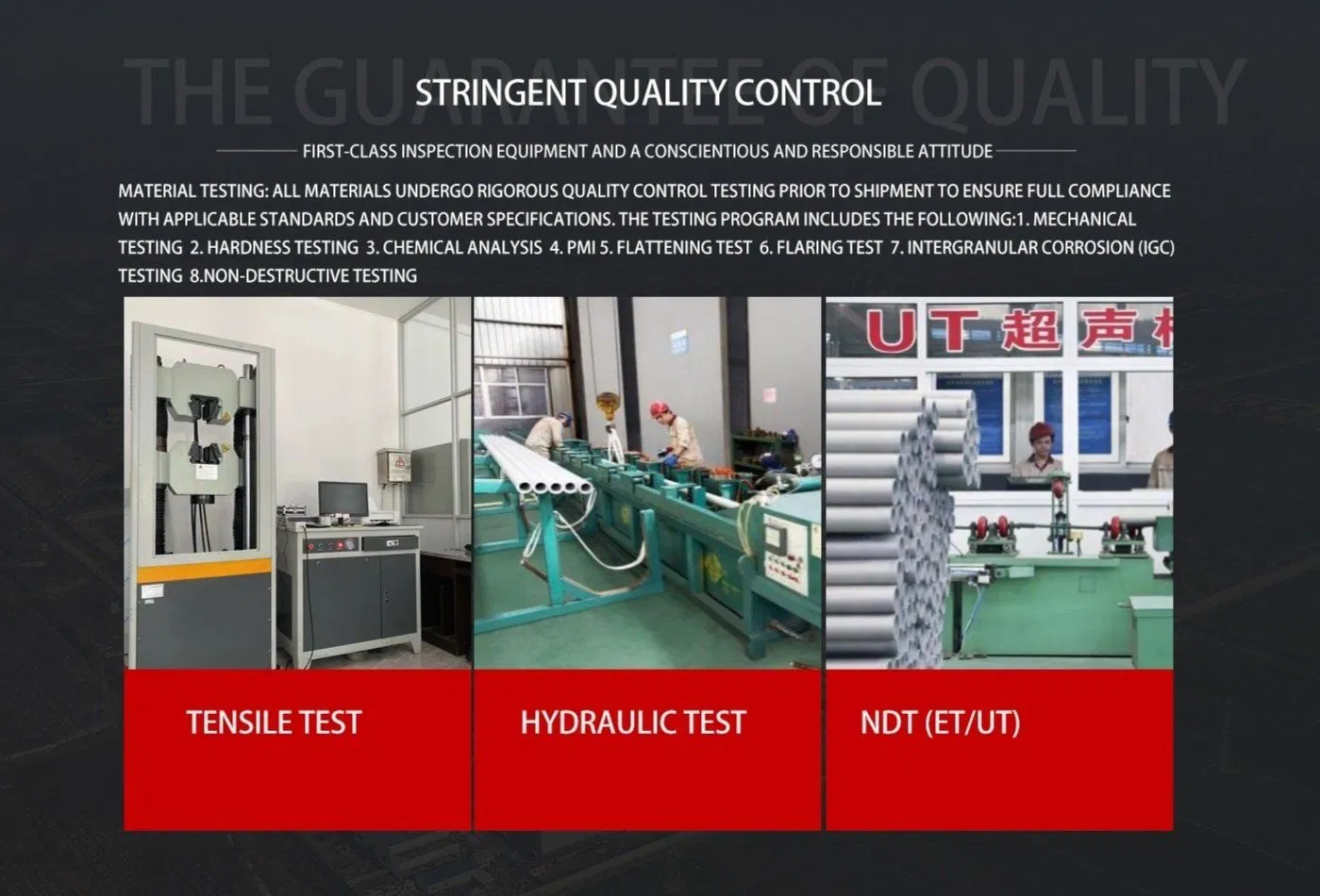

Tensile Strength;Reverse bending test;Flattening test;Flare test;Flange test;Dimensional;Hydrostatic Test;Pneumatic Test;Hardness;Eddy Current test;Intergranular Corrosion

Pipe's Markings

GH-STEEL SML ASTM A312 AISI 904L 159×8 MM HEAT/LOT NO:

Value Added Services

Customize Length  Cutting; Bending; Polishing (180#,240#,320#,400#,600#); Shot Blasting / Shot Peening; Drilling/Punching; Oil Degreasing; Print Colour Code

Delivery Time

For ready stock :7 days ;For MTO: 30 days

Alloy 904L (N08904) stainless steel is a high alloy austenitic product intended for use under severely corrosive conditions. It offers good resistance to:
Pitting and crevice corrosion;Intergranular corrosion;Stress corrosion cracking;General corrosion

AISI 904L stainless steel is an unstabilized austenitic stainless steel characterized by a low carbon content. This high - alloy stainless steel incorporates copper to enhance its resistance to potent reducing acids, such as sulfuric acid. The steel also demonstrates resistance to stress corrosion cracking and crevice corrosion. AISI 904L stainless steel is non - magnetic and exhibits excellent formability, toughness, and weldability. AISI 904L contains substantial quantities of costly elements, such as molybdenum and nickel.

Presently, the majority of applications utilizing AISI 904L have been substituted with the low - cost duplex stainless steel 2205.
AISI 904L stainless steels have excellent resistance to warm seawater and chloride attack. The high resistance of AISI 904L against stress corrosion cracking is due to the presence of high amounts of nickel in its composition. Moreover, the addition of copper to these grades develops resistance to sulphuric acid and other reducing agents in both aggressive and mild conditions.

The corrosion resistance of AISI 904L is intermediate between super austenitic grades, with 6% molybdenum content, and standard 316L austenitic grades.This steel grade needs to be solution treated following cold working, to achieve maximum stress corrosion cracking resistance under critical environments.

Chemical Composition of AISI 904L Stainless Steel Seamless Tube Pipe:

Grade

C (max)

Mn (max)

P (max)

S (max)

Si (max)

Cr

Ni

Mo

Others

AISI 904L
N08904

0.020

2

0.040

0.03

1.00

19~23

23~28

6~7

N ≤0.1
Cu:1.0~2.0

Mechanical Properties of AISI 904L Stainless Steel Seamless Tube Pipe:

Grade

Tensile Strength, Min

Yield Strength, Min

Elognation

Hardness

AISI 904L /N08904

490 Mpa

215 Mpa

35%

90 HRB Max

Equivalent Grade of AISI 904L:

USA
-

EU
EN

France
AFNOR

JIS

England
BS

KS

AFNOR

Poland
PN

Sweden
SS

China

904L
N08904

X1NiCrMoCu25-20-5 (1.4539)

Z2NCDU25-20

SUS 890L

904S13

STS 317J5L

Z2 NCDU 25-20

00H22N24M4TCu

2562

015Cr21Ni26Mo5Cu2 (S39042)
