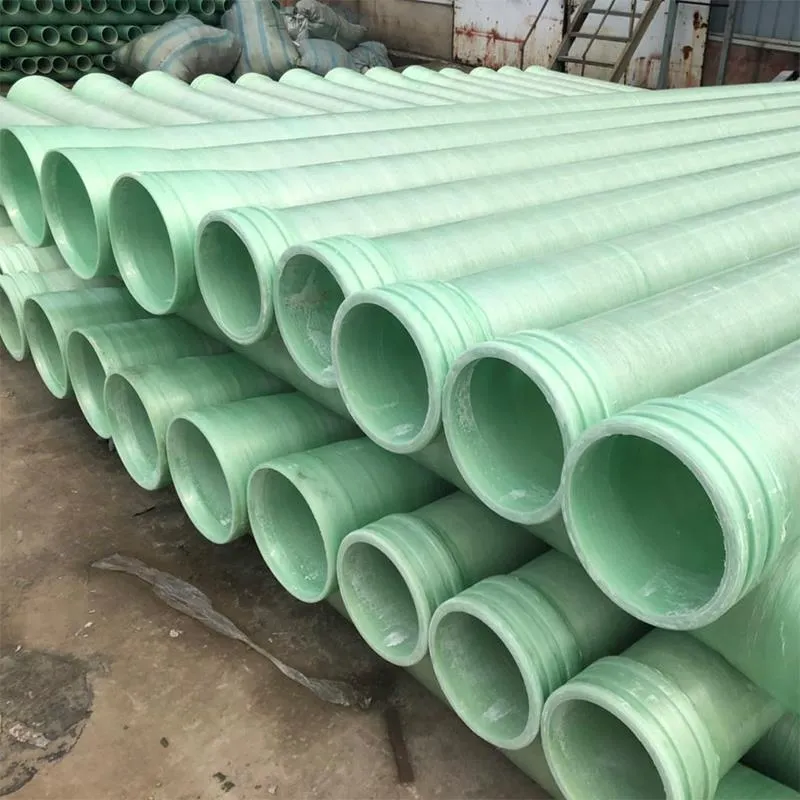

Filament Wound FRP Pipes with High Pressure Resistance
Detailed specification for Filament Wound FRP Pipes with High Pressure Resistance
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | FRP Pipe |
| Thickness | Customizable |
| Usage | Environmental Protection, Industral |
| Product Categories | FRP Pipe |
| Molding Method | Resin Transfer Molding |
| Material | FRP |
| Fiber Type | GFRP |
| Type | Epoxy FRP |
| Tensile Strength | ≥320 MPa |
| Impact Resistance | 1.5kg Drop Hammer at 1600mm Height Without Damage |
| Operating Temperature | -40°C to 70°C |
| Density | 1/4 to 1/5 of Steel or Cast Iron |
| Transport Package | Frame/Wooden Box |
| Specification | DN15mm-DN4000mm |
| Trademark | zhenwang |
Product Overview
Fiberglass Reinforced Plastic (FRP) pipes are engineered composite pipes designed to outperform traditional materials like steel, ductile iron, concrete, and plastic. Combining exceptional corrosion resistance, high strength-to-weight ratio, and long-term durability, FRP pipes are ideal for a wide range of industrial and municipal applications.
Key Features
• Excellent corrosion resistance for water, chemicals and aggressive media
• High strength-to-weight ratio (3× stronger than steel by weight)
• Wide temperature range: -40°C to 70°C (120°C with special resin)
• Lightweight design (1/4 weight of steel pipes)
• 50-year design lifespan
• Food-grade material compliant with drinking water standards
Manufacturing Process
FRP pipes are produced using computer-controlled filament winding technology. The process involves winding high-strength, non-alkali glass fibers saturated with premium unsaturated polyester resin onto a mandrel. This ensures consistent wall thickness, high structural integrity, and repeatable quality.
Typical Applications
- Water transmission & distribution systems
- Sewage & wastewater treatment plants
- Seawater desalination & cooling water systems
- Industrial & chemical processing pipelines
- Agricultural irrigation & drainage
- Power plant cooling circuits
- Oilfield water injection & produced water lines
- Mining and leachate systems
Why Choose Our FRP Pipes?
-Proven Durability: Long service life with minimal maintenance.
- Cost-Effective: Lower installation and lifecycle costs.
- Technical Support: Custom engineering and project support.
- Global Compliance: Meets major international standards.
- Sustainable Solution: Corrosion-resistant, reusable, and energy-efficient.
For project-specific solutions or technical data sheets, please contact our engineering team.
Diameter
DN100 to DN4000 mm
Pressure Rating
0.1 MPa, 0.25 MPa, 0.4 MPa, 0.6 MPa, 0.8 MPa, 1.0 MPa, 1.2 MPa, 1.4 MPa, 1.6 MPa, 2.0 MPa, 2.5 MPa
Stiffness Grade
SN1250, SN2500, SN5000, SN10000 N/m²
Standard Length
6 m, 12 m
Customization
Available for non-standard pressure, stiffness, and length
Certifications
