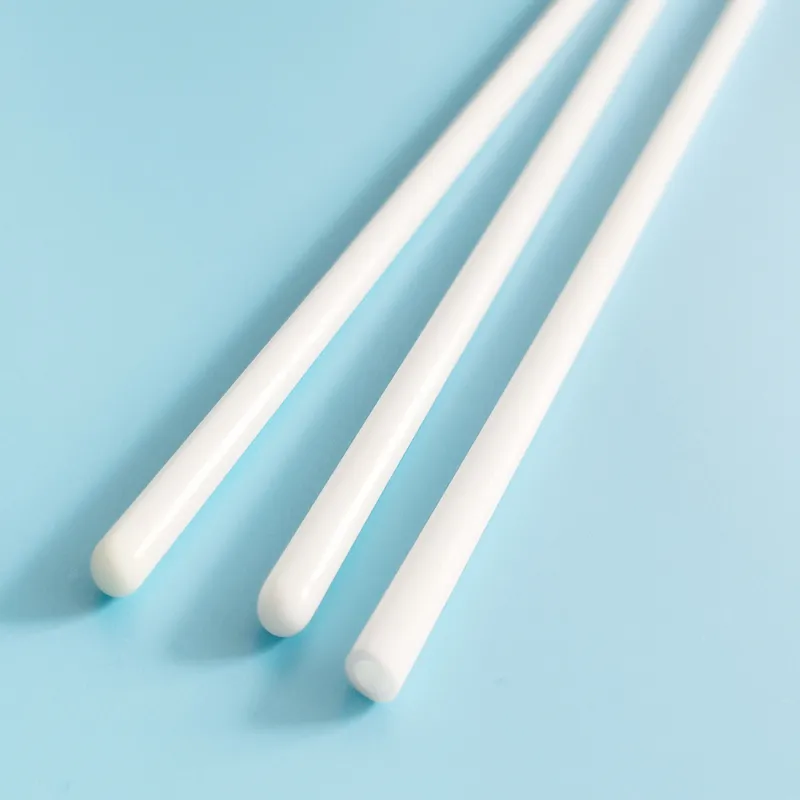

Ysz Zirconia Zro2 Zirconium Oxide Ceramic Protection Pipe for Oxygen Sensor Sheath
Detailed specification for Ysz Zirconia Zro2 Zirconium Oxide Ceramic Protection Pipe for Oxygen Sensor Sheath
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | YNZ002 |
| Purity | Zro2 + Hfo2 86.0% Y2o3 13.5% |
| Type | Ceramic Tubes |
| Shape | Tubular, Pipe, Tubing, Sleeve, Bush |
| Use | Thermocouples or Polycrystalline Furnace, Ingot F |
| Temperature | 1000c |
| Application 2 | Precision Shafts and Axles in High Wear, |
| Synonyms | Zirconia Yttrium-Stabilized;Ysz-8;Ysz-3 |
| Material | Zirconia Ceramic |

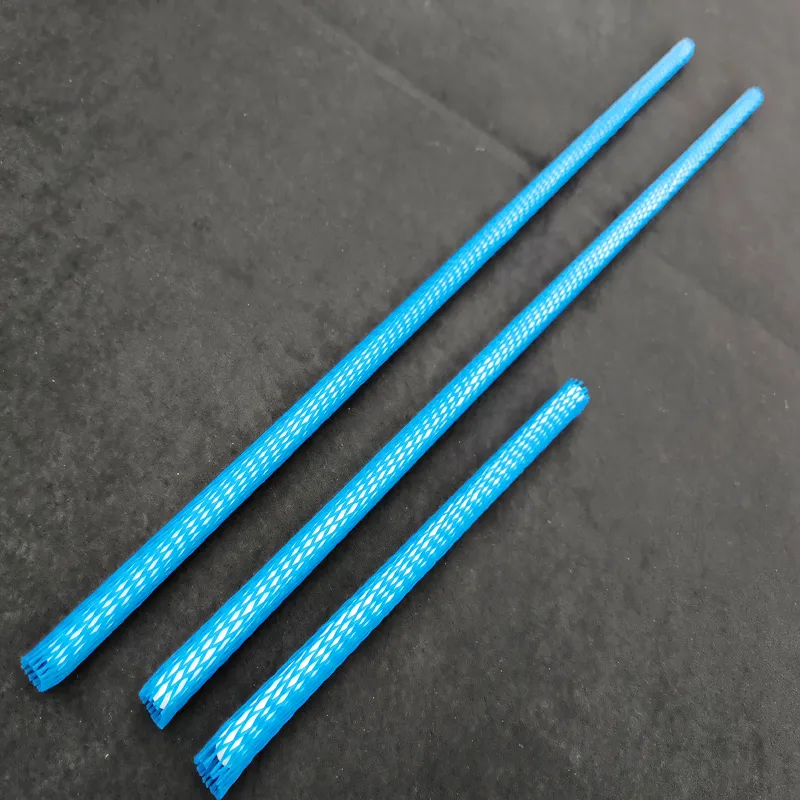

| Transport Package | Plywood Case or Carton |
| Specification | CUSTOMIZED |
| Trademark | Yunnuo |
| Origin | China |
| HS Code | 8547100000 |

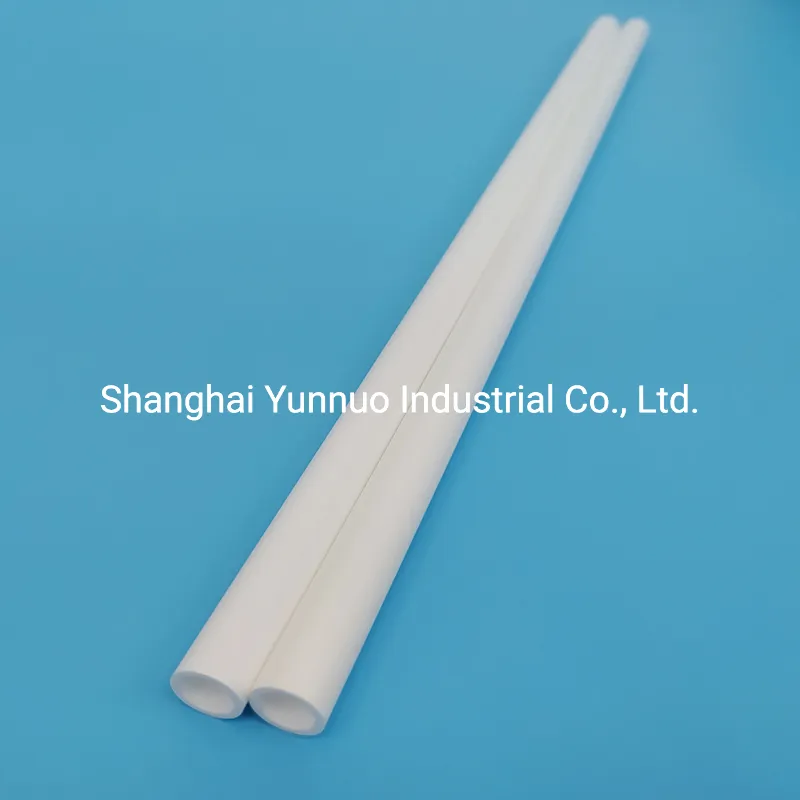

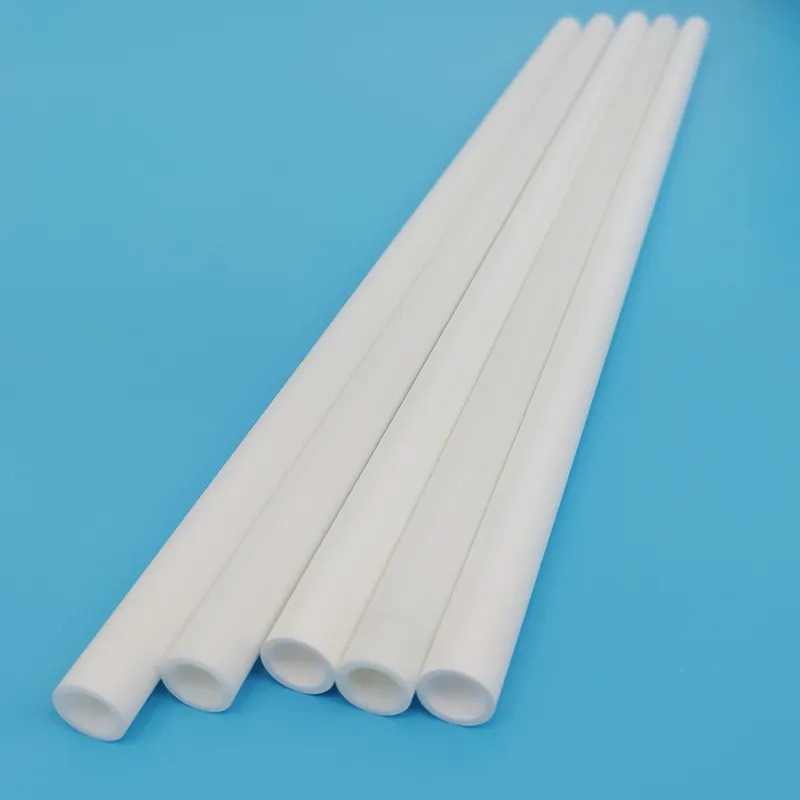

YSZ Zirconia ceramic protection tube
The product is processed by hot die casting molding, dry pressure powder molding, isostatic pressure molding, injection molding
and other processes.
Application in electronic appliances, mechanical sealing, petrochemical, automobile zero price, to the sample can be customized,
according to the product data quotation.
Corrosion resistance, electrical insulation, antimagnetism
Material data:
Material
14.5wt%Y2O3+85.5wt%Zro2
Density g/cm3
6.04
Bending strength(Mpa)20C
200-300
Fracture toughness KIC 20C(Mpa m1/2)
2.3
Hardness(HV)20C
1000
Chemical component:95%ZrO2,5%Y2O3
Density
g/cm3
6.02
Water absorption
%
0
Sintering temperature
C
1540
Hardness
HV
1360
Flexural strength
Mpa
1400
Compressive strength
Mpa
2500
Fracture toughness
Mpa.m3/2
7
Thermal expansion coefficient
/C
10.2*10-6
Thermal shock resistance
T(C)
360
Thermal conductivity
W/m.k(25-300C)
2
Item no

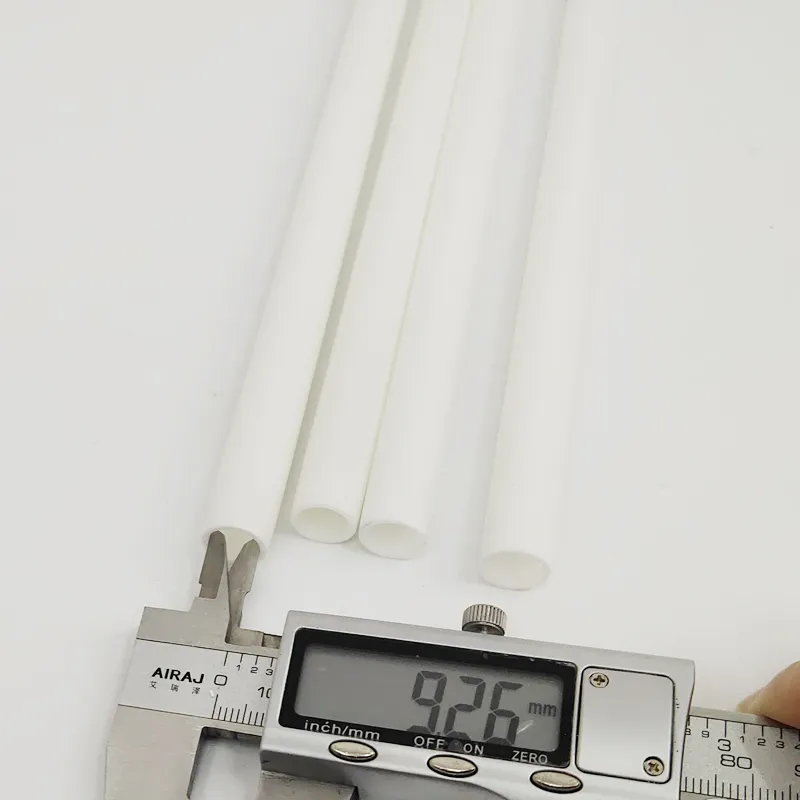

Size in OD x ID x Length in mm
stock
ZT-001
6×4×120
in stock
ZT-002
8×6×260
in stock
ZT-003
10×4.2×428
in stock
ZT-004
12×8×230
in stock
ZT-005
12.7×9.5×330
in stock
ZT-006
12.7×9.5×365
in stock
ZT-007
12.7×9.5×375
in stock
ZT-008
12.7×9.5×385
in stock
ZT-009
12.7×9.5×400
in stock
ZT-010
12.7×9.5×430
in stock
ZT-011
13×9.5×500
in stock
ZT-012
13×9.5×720
in stock
ZT-013
16×13×182
in stock
ZT-014
17.5×11.1×220
in stock
ZT-015
17.5×11.1×261
in stock
ZT-016
17.5×11.1×280
in stock
ZT-017
17.5×11.1×340
in stock
ZT-018
17.5×11.1×390
in stock
ZT-019
17.5×11.1×460
in stock
ZT-020
18×12×150
in stock
ZT-021
18×12×175
in stock
ZT-022
18×12×240
in stock
ZT-023
21.7×17.5×250
in stock
ZT-024
21.7×17.5×450
in stock
ZT-025
21.7×17.5×500
in stock
ZT-026
24×18×320
in stock
