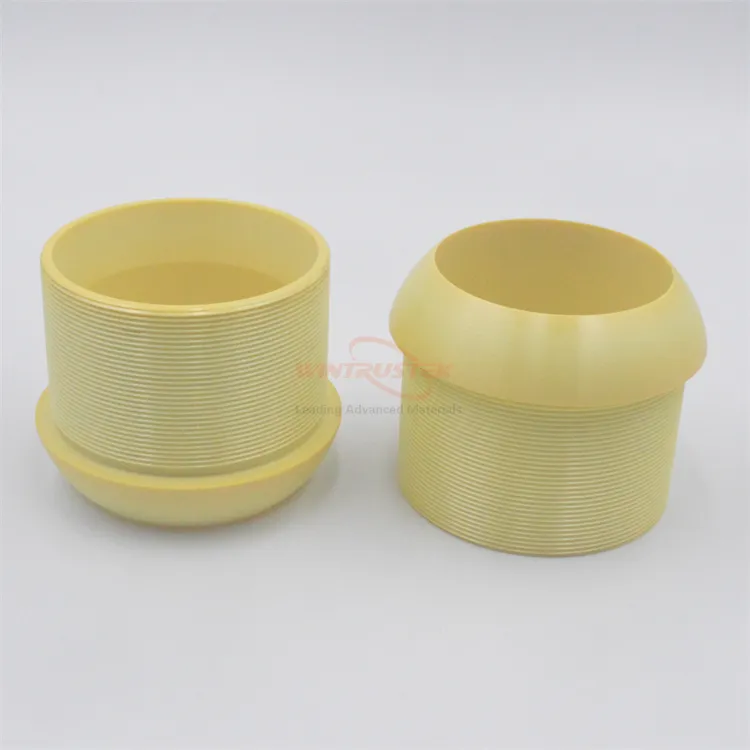

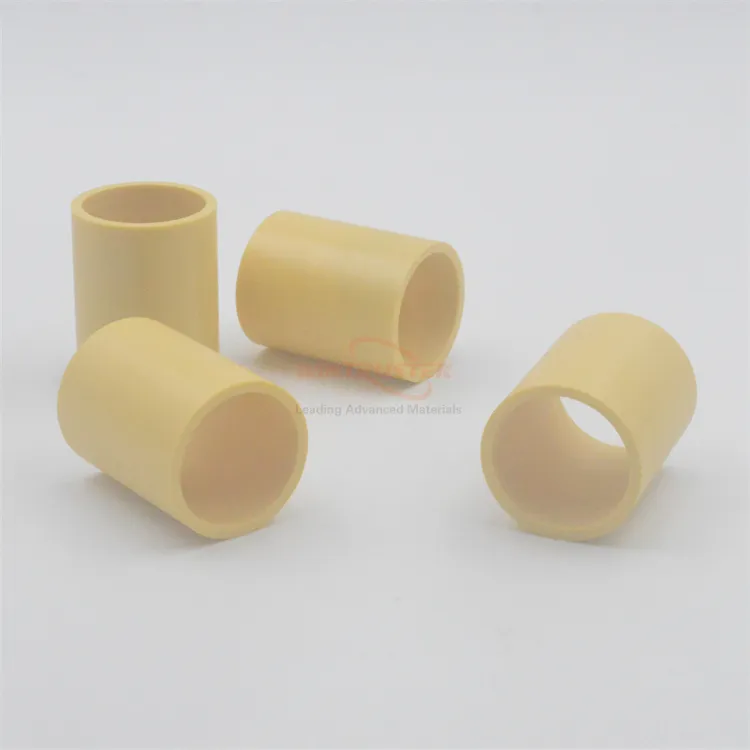

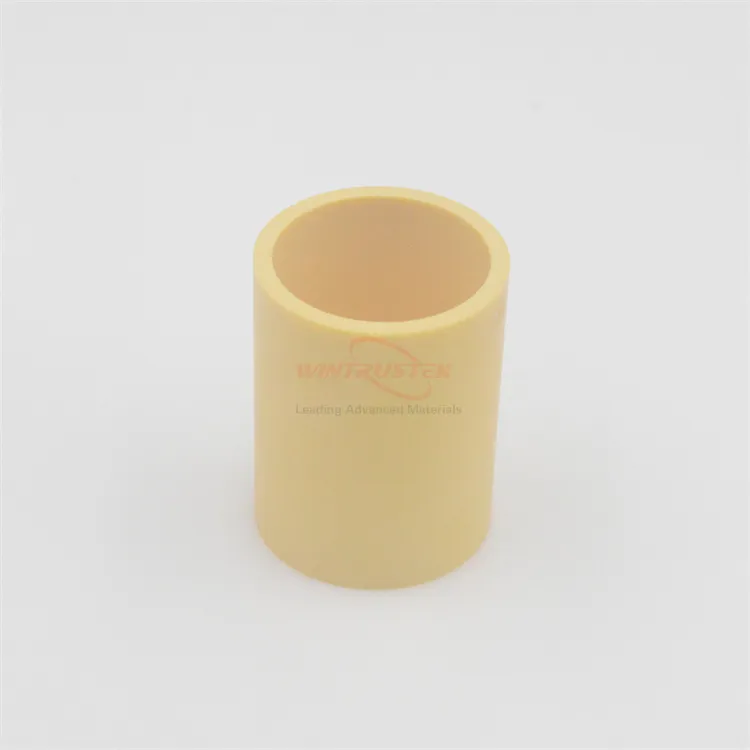

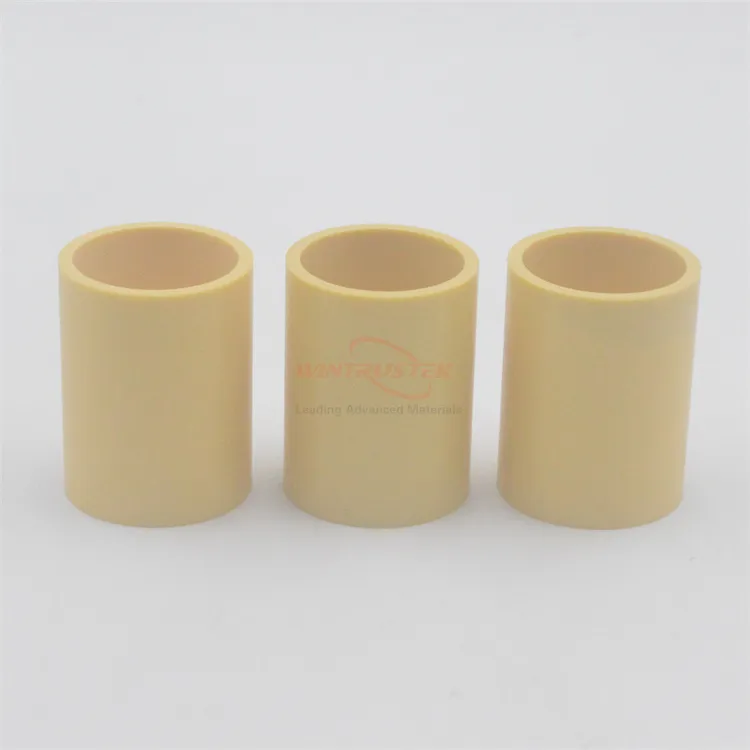

Long-Lasting Yellow MGO Stabilized Zirconia Ceramic Pipe
Detailed specification for Long-Lasting Yellow MGO Stabilized Zirconia Ceramic Pipe
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | WTK-ZrO2 |
| Density | 5.7-6.0 g/cm3 |
| Color | White, Yellow, Blue, Black |
| Vicker's Hardness | 1100-1200 MPa |
| Compressive Strength | 2200-2500 MPa |
| Modulus of Elasticity | 205-250 Gpa |
| Thermal Conductivity | 2.5-3.0 W/M.K |
| Flexural Strength | >1000 MPa |
| Purity | 95% |
| Type | Ceramic Tube |
| Transport Package | Carton, Wooden Box, Pallet |
| Specification | Customized |
| Trademark | WINTRUSTEK |
| Origin | Fujian, China |
| HS Code | 8547100000 |
| Production Capacity | 5000 Pieces/Month |
Product Description
Zirconia ceramic (Zirconium Oxide, or ZrO2), also known as "ceramic steel", combines high hardness, wear and corrosion resistance, and one of the highest fracture toughness values among all ceramic materials.
Magnesia Partially Stabilized Zirconia (Mg-PSZ)
Yttria Partially Stabilized Zirconia (Y-PSZ)
High density
High flexural strength
Very high fracture toughness
Good wear resistance
Low thermal conductivity
Good resistance to thermal shocks
Resistance to chemical attacks
Electrical conductivity at high temperature
Fine surface finish is easily achievable
Grinding media
Ball valve and ball seats
Milling pot
Metal extrusion dies
Pump plungers and shafts
Mechanical seals
Oxygen sensor
Welding pins

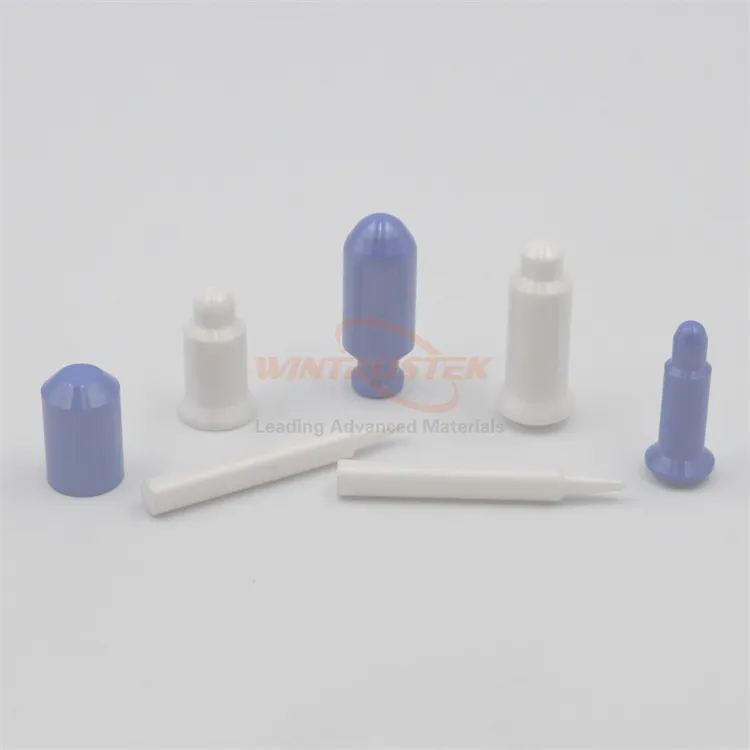

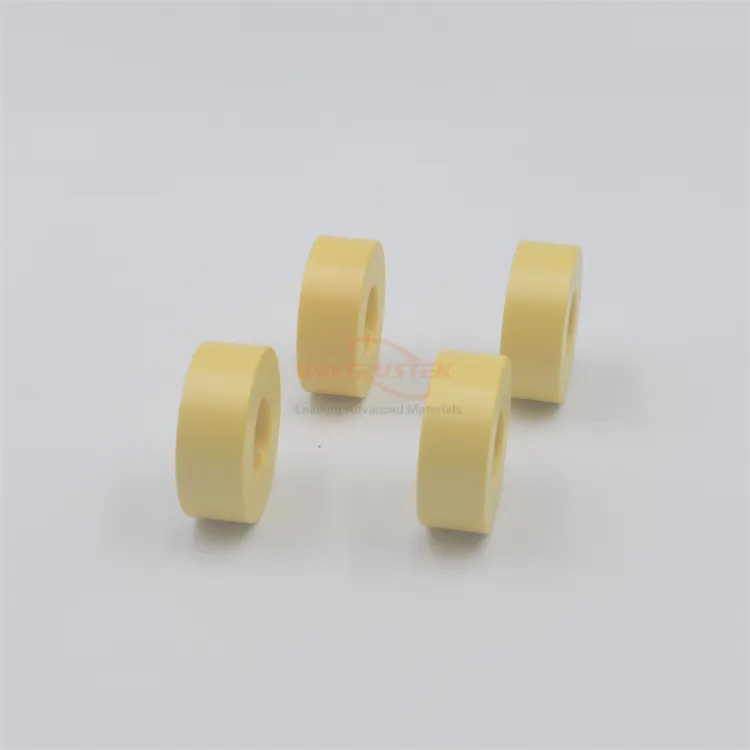

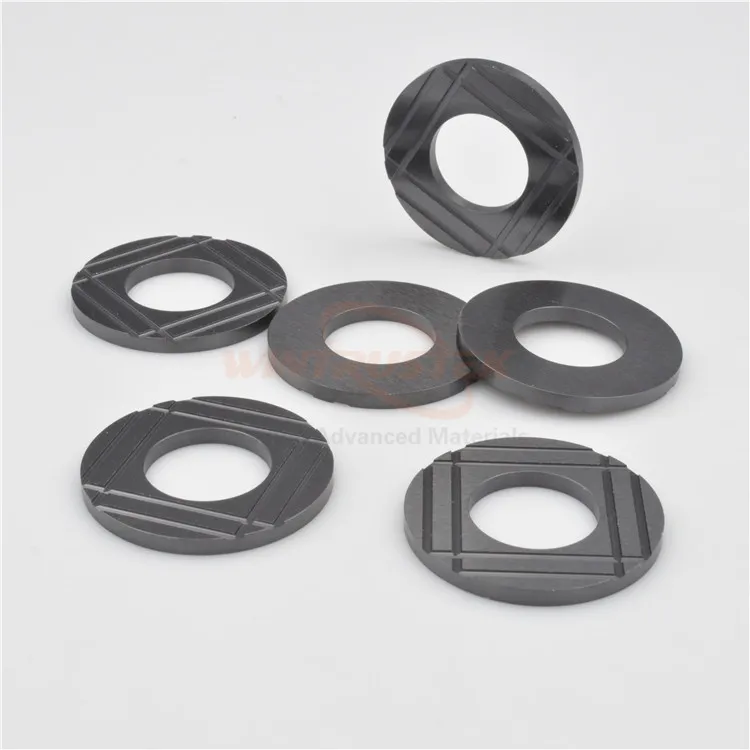

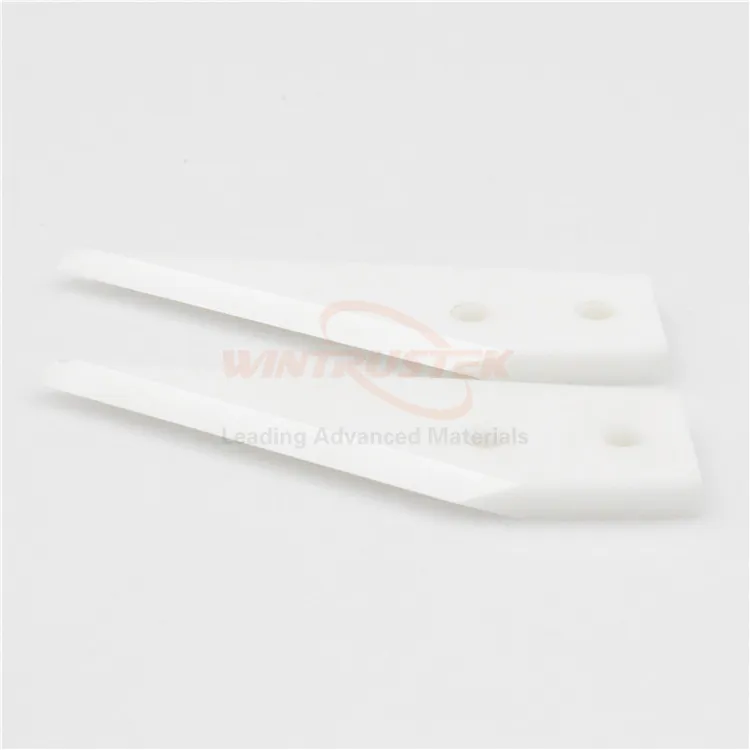

Product Gallery
Technical Data Sheet
Properties / Material Grades
Y-PSZ
Color
White
Density (g/cm3)
Compressive Strength (MPa)
Flexural Strength (MPa)
Vicker's Hardness(Kg/mm2)
1200
Modulus Of Elasticity(GPa)
Thermal Conductivity (W/m·K)
Thermal Expansion Coefficient (10-6/K)
DISCLAIMER: The given data are not binding but are typical values based on sample testing. It should be taken into consideration that a spread of results can arise due to variations in material, shape, size and production.

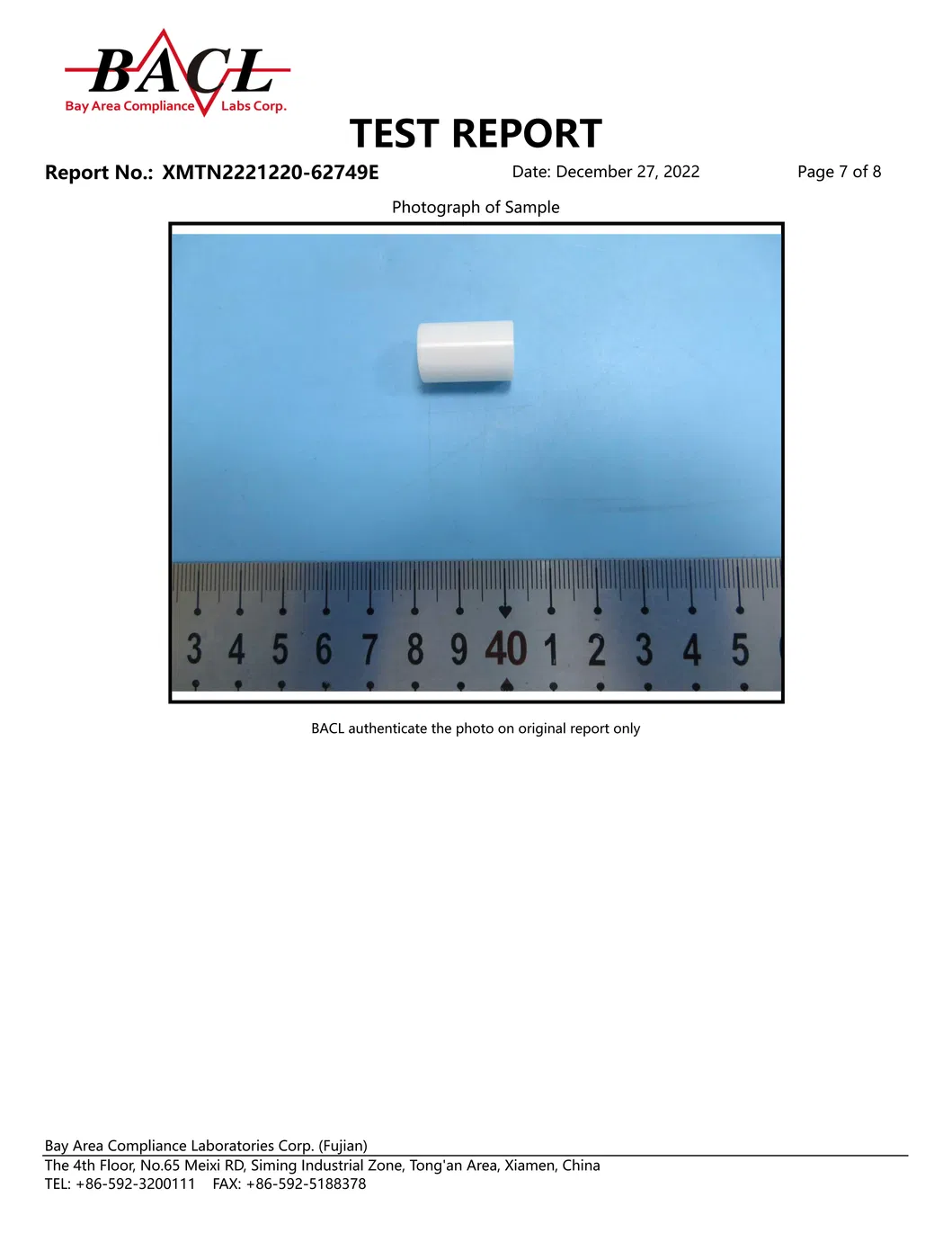

Certifications
Production & Advantages
1. Many grades of ceramic materials to choose from for your applications.
2. Technical support on consultation, design, and prototypes.
3. Fast delivery from prototype to production quantities.

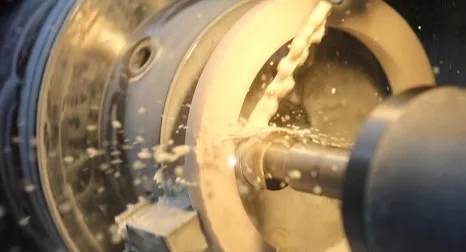

4. In-house capabilities in forming, sintering, machining, glazing, metalizing, brazing, and assembly.
5. Our highly trained team of quality assurance staff uses advanced measuring devices to ensure that our products always meet the customers' requirements.
Packaging & Shipping
Our Reputable Customers
"It has been over 6 years since your company became our trusted supplier. During all years' requisitions, we were happy with your good quality products and reliable service. Appreciated your previous service with all efforts: patience, reliability, and responsible quality." --- by CoorsTek, Nov. 2023
