Durable PVC Layflat Hose Pipe for Efficient Agricultural Irrigation

Model NO.	PVC Layflat Hose Pipe for Agriculture Irrigation
Type	Thermoplastic Pipe
Color	Blue, Yellow, Black, Red, etc.
Hollow	Hollow
Shape	Round
Usage	Water Supply Pipe, Agricultural Irrigation Pipe
Reinforcement	High Strength Polyester Filament
W.P	2bar to 10bar
Length	50m, 100m
Thickness	1-4.12mm
Transport Package	Weaving Belt by Rolls or as Your Reques
Specification	3/4'' to 16''
Trademark	OEM/KINGDAFLEX
Origin	China
HS Code	39173900
Production Capacity	800, 000m/Month

Products Description

Produact Name :

PVC Lay Flat

Material:

PVC,New PVC

Color:

OEM/ODM

Tube:

PVC

Reinforcement:

High tensile polyester braiding

Cover:

Abrasion resistant polyurethane

Working Temperature:

-5ºC~65ºC

Feature

Light weight,Good flexibility,Corrosion resistant,anti-aging etc

Application

For agricultural,water pump,pool&spa, construction, mines and marine.

Light Duty PVC Layflat Hose ( 4 Bar ) Inch SizeI.D
(mm)O.D
(mm)Thickness
(mm)W.P.
(bar)B. P.
(bar)Length
(m/roll)Weight
(kg/m)Volume
(CBM/roll) 1"2628.61.30 4.0 12.0 1000.15 0.022 1-1/4"3335.41.20 4.0 12.0 1000.17 0.025 1-1/2"4143.51.25 5.0 15.0 1000.21 0.028 2"5355.01.00 4.0 12.0 1000.23 0.032 2-1/2"6668.31.15 4.0 12.0 1000.32 0.049 3"7880.11.05 4.0 12.0 1000.36 0.057 4"104106.41.20 4.0 12.0 1000.55 0.090 5"128130.71.35 4.0 12.0 1000.75 0.102 6"155157.71.35 4.0 12.0 1000.90 0.120 8"207211.42.20 3.0 9.0 1001.79 0.212 8"207212.32.65 4.0 12.0 1002.02 0.234 10"257262.32.65 2.5 7.5 502.65 0.180 12"308313.12.55 2.0 6.0 502.910.210 Standard Duty PVC Layflat Hose ( 6 Bar ) Inch SizeI.D
(mm)O.D
(mm)Thickness
(mm)W.P.
(bar)B. P.
(bar)Length
(m/roll)Weight
(kg/m)Volume
(CBM/roll) 3/4"2022.71.35 7.0 21.0 1000.11 0.016 1"2629.01.50 7.0 21.0 1000.17 0.023 1-1/4"3335.61.30 7.0 21.0 1000.19 0.028 1-1/2"4143.91.45 7.0 21.0 1000.23 0.031 1-3/4"4548.21.60 8.0 24.0 500.32 0.021 2"5355.61.30 6.0 18.0 1000.30 0.039 2"5356.01.50 8.0 24.0 500.35 0.026 2-1/2"6669.41.70 7.0 21.0 1000.43 0.057 3"7880.91.45 6.0 18.0 1000.50 0.069 4"104108.62.30 6.0 18.0 1000.87 0.107 5"128132.62.30 6.0 18.0 1001.08 0.134 6"155159.82.40 6.0 18.0 1001.60 0.183 8"207212.92.95 5.0 15.0 502.20 0.135 Heavy Duty PVC Layflat Hose ( 10 Bar ) Inch SizeI.D
(mm)O.D
(mm)Thickness
(mm)W.P.
(bar)B. P.
(bar)Length
(m/roll)Weight
(kg/m)Volume
(CBM/roll) 3/4"2023.11.55 10.5 31.5 500.14 0.010 1"2629.41.70 10.5 31.5 500.20 0.014 1-1/4"3335.91.45 10.5 31.5 500.21 0.014 1-1/2"4144.81.90 10.5 31.5 500.29 0.020 1-3/4"4549.02.00 10.5 31.5 500.35 0.022 2"5357.12.05 10.5 31.5 500.42 0.029 2-1/2"6670.32.15 10.5 31.5 500.54 0.043 3"7882.52.25 9.0 27.0 500.66 0.050 3"7883.02.50 10.0 30.0 500.85 0.054 4"104109.12.55 9.0 27.0 501.00 0.071 6"155161.03.00 6.0 18.0 502.00 0.120 8"207213.33.15 6.0 18.0 502.80 0.172

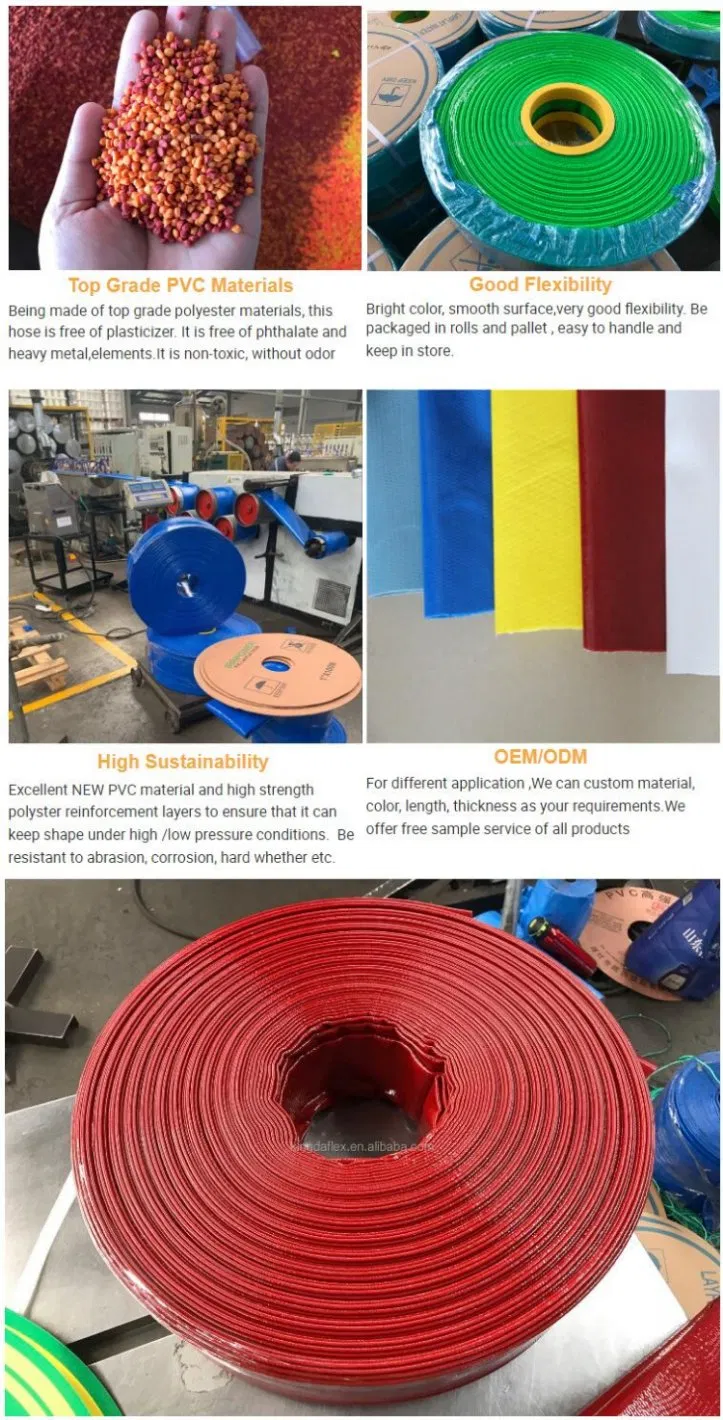

Product Process
Factory Show

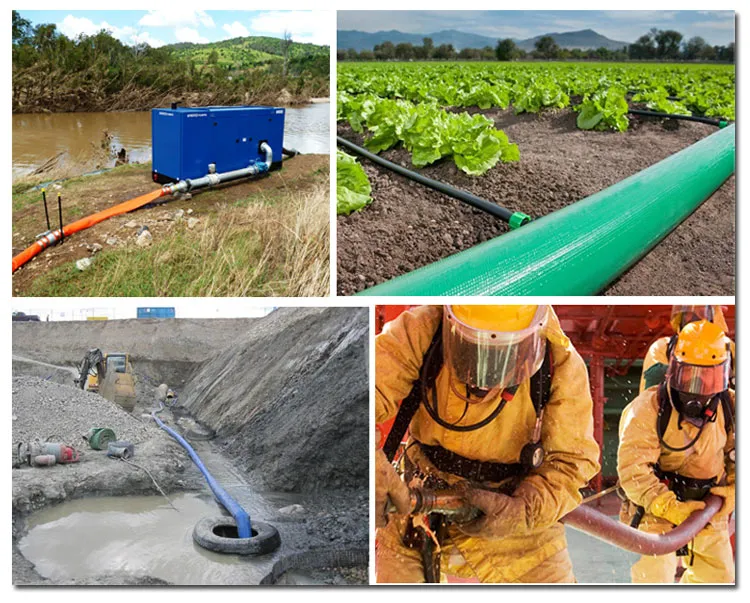

Application
PVC Layflat Hose is designed for suck or dicharge large flow air, water, dust, mud, or chemical solvent for agriculture irrigation, industrial water, construction, hardware, garden tools, etc.
Company Profile
Qingdao Kingdaflex Industrial Co., Ltd is a reliable manufacturer and exporter of hydraulic hose and industrial hose in
China for more than 15 years. Since the establishment, we have controlled and inspected raw materials strictly to ensure
the quality. Meanwhile, we are continuing to refine our manufacturing and processing systems to achieve customers'
requirements. Our all the products are produced according to SAE standard, DIN standard, Gost standard.
Hydraulic Hose including:
R1AT/1SN, R2AT/2SN, 4SP/4SH/R12, R3/R6, R7/R8, R13/R15 etc.
Industrial Hose including:
Air/Water Hose, Oil/Fuel Hose, Welding Hose, EPDM Hose, Suction & Discharge Hose, Sandblast Hose, A/C Hose, Layflat
Hose, Fire Sleeve, Concrete Hose, Slurry Hose etc.

We provide OEM and ODM service. Quality is our culture, our mission is making the transmission more powerful.
Hope we can become one of your supplier in China. With us your money is in safe, your business is in safe!
Welcome customers to visit us!
