Plastic PPR Pipe Extrusion Machine/Production Line /Making Machine
Detailed specification for Plastic PPR Pipe Extrusion Machine/Production Line /Making Machine
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | pipe making machine |
| Screw No. | Single-screw |
| Automation | Automatic |
| Computerized | Computerized |
| Certification | CE, ISO9001:2008, QS |
| Customized | Customized |
| Condition | New |
| After-sales Service | 12 Months |
| Temperature Controller | Omron or Rkc |
| Raw Material | PE Granules |
| Pipe Application | Water Supply and Drainage, Gas S |
| DC Speed Controller | Eurothem |
| Main Electrics | Siemens or Schneider |
| Pipe Diameter | 20-90mm |
| Screw Design | Single-Screw |
| Keywords | PE Pipe Extrusion Machine |
| Transport Package | Film Package or Wood Case Package |
| Specification | 16-315mm |
| Trademark | XINTING |
| Origin | Zhangjiagang China |
| HS Code | 84772090 |
Plastic PPR Pipe Extrusion Machine/production line /making machine
Features of product:
1. Equipped with polyolefin purposed single-screw extruder; it has the characters of quick plasticizing, high efficiency and so on.

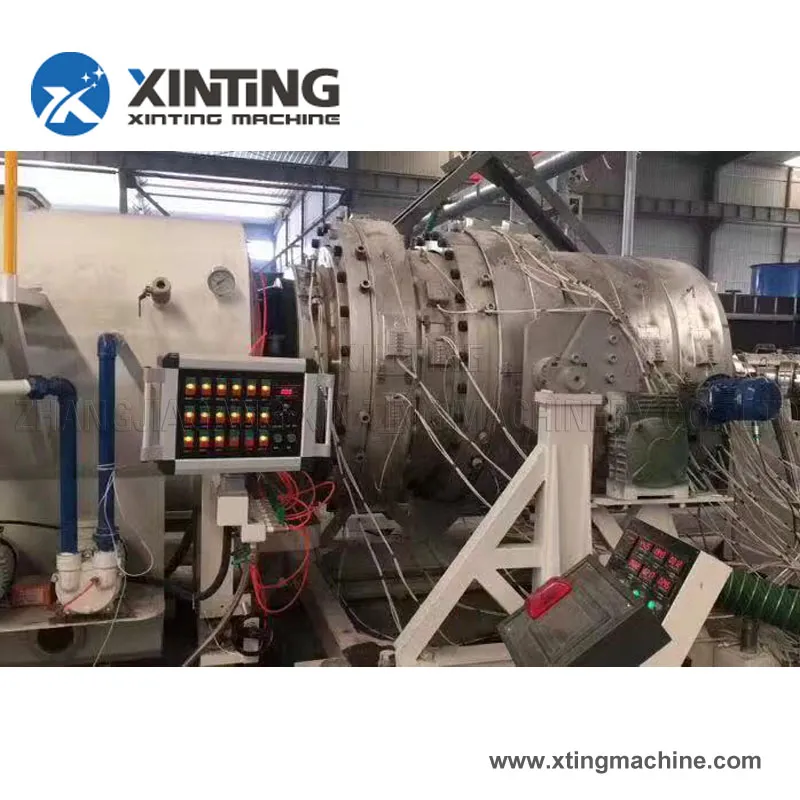

2. The specially designed co-extrusion die head is reasonable in flow channel, smooth in both internal and external walls, and small in internal stress.
3. Pipe diameter is among 20-160mm and production speed reaches to 18m/min.
4. One unit serves several purposes. It can produce common PP-R, Nanometer anti-bacteria pipe, PE-RT and PE-X.
5. If added one co-extrusion engine and die on original base, it can produce PP-R fiberglass reinforced composite pipe

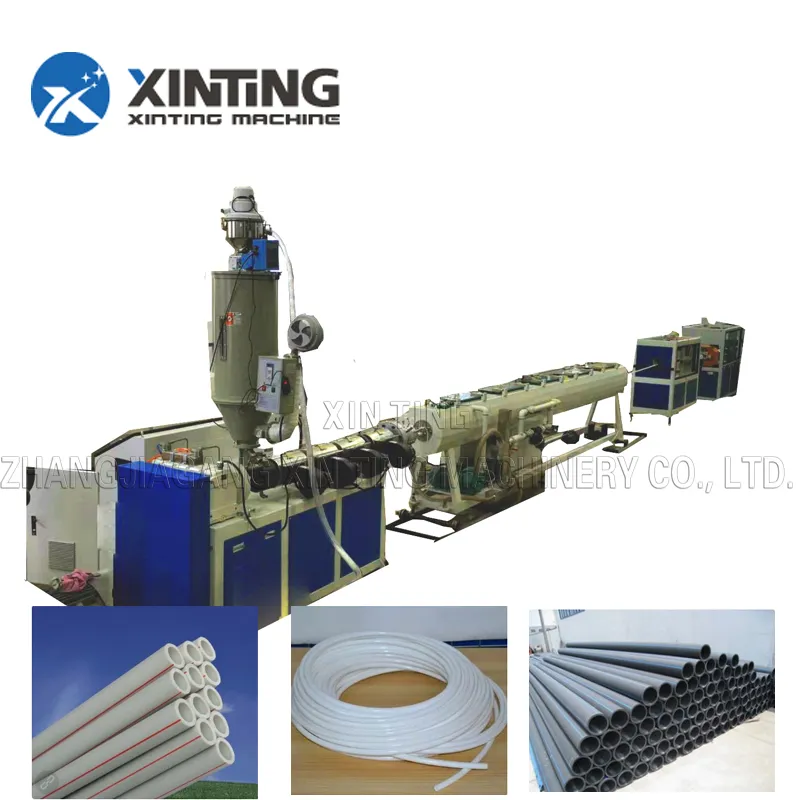

Process line for Plastic Pipe Extrusion Machine:
Raw material +master batches → mixing→vacuum feeding → material dryness → single screw extruder → single screw extruder → singlescrew extruder → color Line extruder → co-extrusion mould → calibrator → spray vacuum calibration tank → spray coolingwater tank → word printer → haul-off → no-dust cutter → pipe rack→finished product
Model
Screw diameter
L/D
Extruder Qty
(set)
Pipe range
(mm)
Capacity (kg/h)
Total power
(kw)
Line length
PPR pipe 16-63mm
65mm
28:1 or 30:1
1
16-63
100-150
52
18
PPR pipe 63-160mm
65mm or 75mm
28:1 or 30:1
1
63-160
120-180
67
22
PPR glass fiber pipe 20-63mm
65mm+ 50mm or 65mm
28:1 or 30:1
2 or 3
20-63
120-220
95
20
Technical parameters:
Model
Pipe diameter
Extruder.
Max. output (kg/h)
Total installed power (KW)
Lenght of production line(m)
PE-32
Φ4-32
SJ-45/30 SJ-25/25
30-120
45
28
PE-63
Φ20-63
SJ-60/33 SJ-25/25
120-220
100
36
PE-110
Φ20-110
SJ-65/33 SJ-30/25
150-250
120
39
PE-160
Φ63-160
SJ-65/33 SJ-30/25
120-270
150
43
PE-250
Φ75-250
SJ-75/33 SJ-30/25
280-400
230
45
PE-450
Φ110-450
SJ-90/33 SJ-30/25
450-600
350
65
PE-630
Φ315-630
SJ-120/33 SJ-30/25
700-950
550
75
PE-800
Φ400-800
SJ-90/33 SJ-105/33
800-1200
700
75
Our HDPE / PE PPR Pipe Production Line has the features as below:
1. Good components: Siemens Beide main motor, ABB inverter, Eurotherm DC regulator, Siemens & Schneider low voltage electrics, Omron temperature controller
2. Good design and good outlook: We design the machine for easier operation and stable performance. The haul off machine and cutter is fully closed for safety purpose. Planetary socket is using in some machines for wire connection.
3. Our engineers and technicians have more than 10 years experince, they know pipe machine well and make good pipe machine.
