Product Description

Product Name

Shipping Container Swimming Pool

Basic Configuration(Mandatory)

Size

20ft Model: Length: 5.8m; Width: 2.2m; Height: 1.8m;
40ft Model: Length: 11.8m; Width: 2.2m; Height: 1.8m

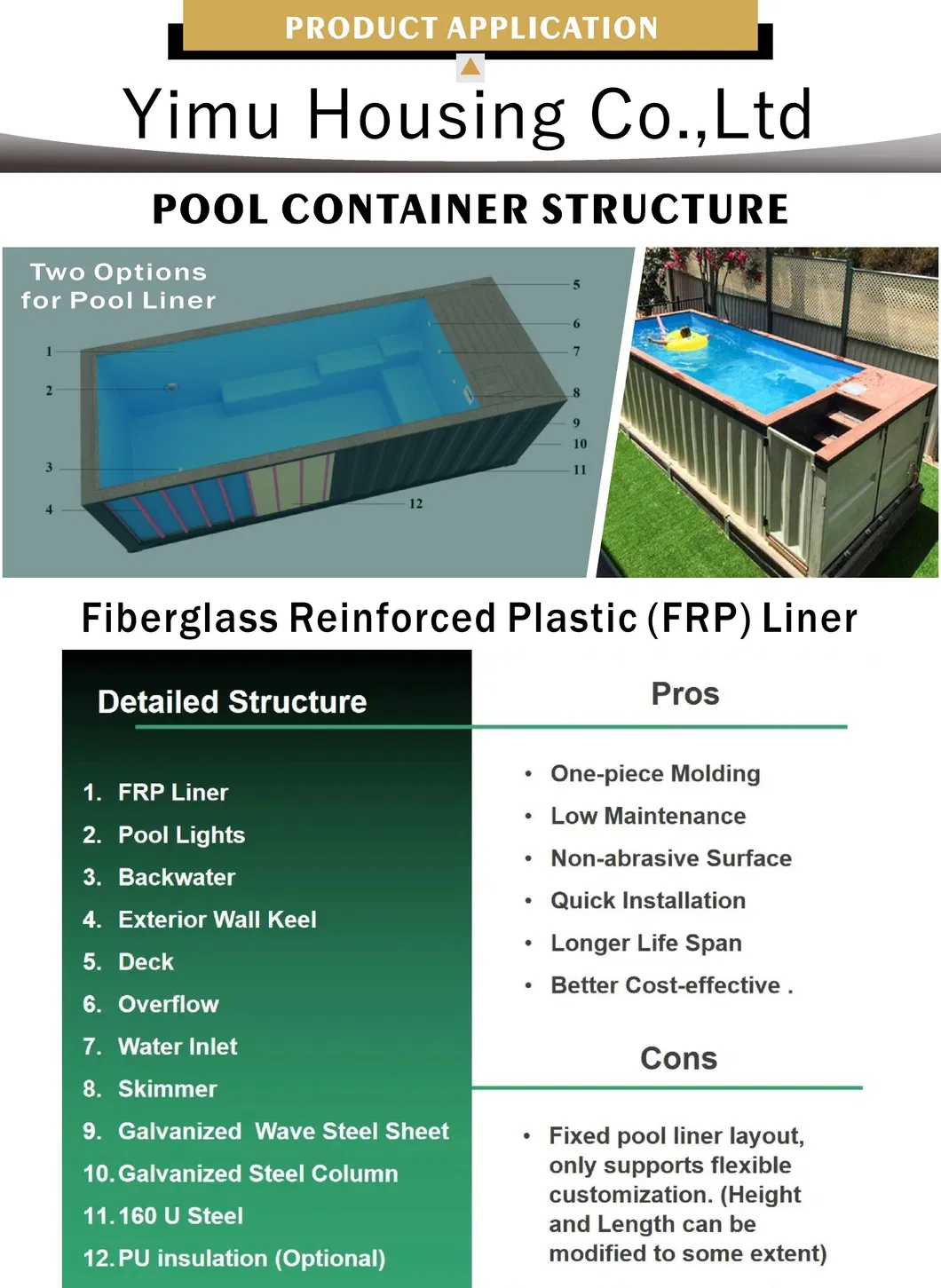

Liner

Fiberglass Reinforced Plastic (FRP) Liner

Structure

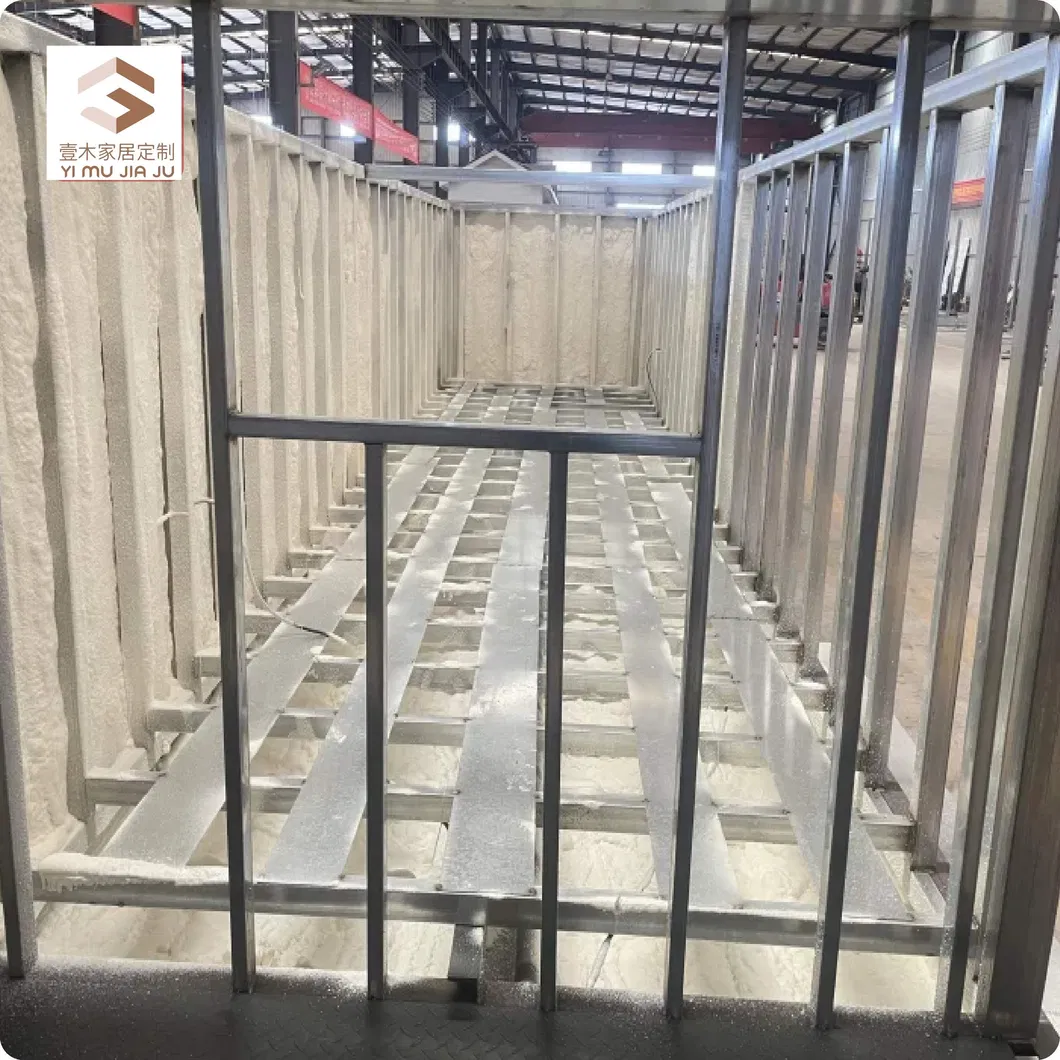

Galvanized steel structure welding (keel + column + square tube + steel shim + exterior waves steel sheet,) + painting; Sports Rubber Mat

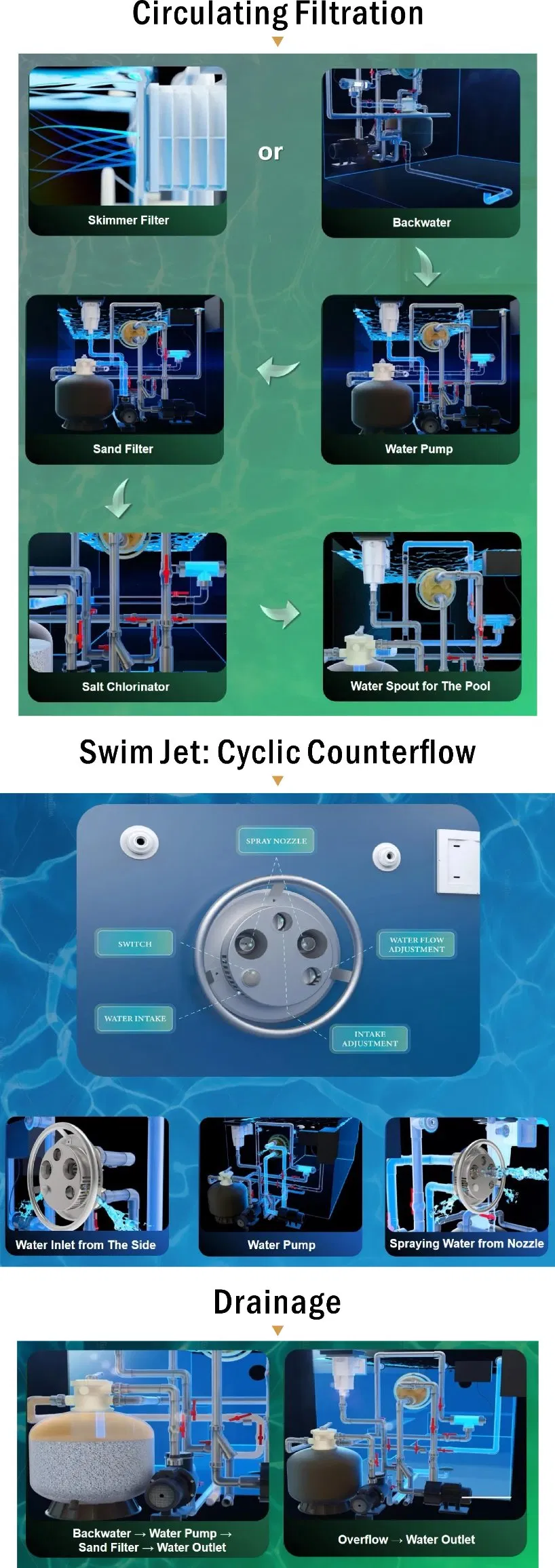

Circulating Water Treatment System

Ultra-silent Circulating Pump

1. Power: 1.1KW/1.5 HP 2. Voltage: 220V, 50hz(110V,60hz for NA) /Single phase

3. Flow: 21 m³/H

4. Port Size (inch/mm):1.5"/50mm

Polymer Filter

1. Diameter: 650mm 2. Flow: 17 m³/h

3. Port Size: DN 50mm

4. Filter Material: Quartz Sand

5. Grain diameter: 16-26mm (50KG/bag) - Fine filter

Circuit Control System

Electrical distribution box,leakage protection , wire and other electrical control

Water Inlet and Outlet

100%Made by ABS, uv protection, high corrosion resistance. Including: Inlet 1 batch / outlet 1 batch / drainage 1 batch/skimmer 1pc

Pipeline system

PVC pipe, PPR pipe

Optional Pack Exterior Upgrade Pack

Pool Ladder

1. Stainless steel anti-slip step pool ladder;2. Material: SS304;
3. Step:5 ;
4. Thickness:1.2mm;

Glass Window

40mm thickness arcylic window

Stairs

Build-in Staircase,WPC Flooring

External Staircase Galvanized steel tube+WPC Flooring

Guardrail

Galvanized steel tube

Patio & Deck

WPC Flooring / Bamboo Flooring

Paint Job

Sand the bottom paint and apply new required paint.

Pool Cover and Reel

1. Input Voltage : 24V Input;2. Power : 300W/50Hz;
3. Torgue : 250N.M.
4. IP Grade : IP68;
5. Voltage Supply : 220V with transformer ;
6. Material Stand: Stainless Steel Pool;
7. Slat Material : polycarbonate

Cleaning Pack

Dosing Pumps Chlorine Feeder

Weight 2.95kg , Max pressure 4 bar

Salt Chlorinator

Emaux salt chlorinator Standard version Cell output:15g/h

Ultraviolet Disinfection System

1. Power supply: AC220V/60HZ.
2. Germicidal ultraviolet lamps: 3pcs, 80w/pc,
3. Total Power: 240W
4. Rated Flowrate:20m3/hr.
5. Max. Compression Resistance: 8Kgs/cm26. Inlet and Outlet water pipe connector: DN65/2.5"
7. Equipment Dimension:
Reactor: #304 stainless steel , size: 920mm(length) X 159mm(width) X380mm(height)

Manuel Cleaning Tools

1. 2HP water pump,220v,50hz,2. Flow rate:25m3/hr
3. 14inch vacuum head
4. 5m Telescopic pole
5. 1.5inch check valve Stainless steel handcart
6. 15m vacuum hose 10m electric cable
7. 2m soft drain pipe
8. Vacuum suction pipe fitting

Robot Pool Cleaner

Auto cleaing robot Model:HJ-2042 Input:220v Power:450w Wire length:18m

Heat System

Water Heater

1. Size: L550*W330*H470mm, 2. Power: 380V voltage, 24KW

Pool Heat Pump

5HPB , L1100*W440*H700mm,3KW

Accessories

Wall Mounted Pool Light

1. Power:12*1W 2. Voltage:AC12V
3. Color:RGB+Small controller

Swim Jet

SS304,2.2KW pump, 220V,50hz(110V,60hz for NA)

Jacuzzi

1. Product Dimension: 1770*1570*750mm; 2. For 4 people: 4 seats;
3. 1x2KW heater;
4. Ozone;
5. 1*2HP double speed pump;
6. Total 32 water jet;
7. Capacity: 900L;

Our Advantages

Note: Customization is available

1. Size, logo, luminous characters, color, light plate, etc. can be customized

2. The interior kitchen equipment can be selected according to your needs

3. Free 2D/3D floor plan drawing

A Wide Variety Options of Pool Equipment and Accessories

We have our own pool equipment supply chain in China.

1. In the product design stage, we can provide customers with a variety of materials and equipment, and also be able to customize liner layout for customers.


2. In the production stage, we will install all the materials and equipment for customers, and make video communication and confirmation with customers before the pool leave the factory.


3. At the shipping stage, we will disassemble the fragile equipment (such as guardrails) , pack it up again, and finally install it at the destination by the customers themselves.

If you have own design, we'll make your dream come true.

Send me inquiry, get more design you want !!


Eco-Friendly

We contribute to sustainable practices and reduce waste. Additionally, the Container Swimming Pool can be equipped with eco-friendly heating and filtration systems, minimizing environmental impact.

Quick Installation

No need to wait for weeks or months for your pool to be built. The Container Swimming Pool can be installed within a short period,saving you time and minimizing disruption to your daily routine.

Premium Surface Finish

FRP liner is carefully designed with smooth surfaces, providing a comfortable and enjoyable swimming environment. Its non-porous nature makes cleaning and maintenance a breeze, promoting hygienic conditions and optimal water quality.

Heat Insulation

We apply a comprehensive layer of PU foam to insulate all five sides of the pool, including the walls and the base of the container. By providing superior heat retention and insulation, our container pool ensures an energy-efficient and comfortable swimming experience, regardless of external temperatures.
