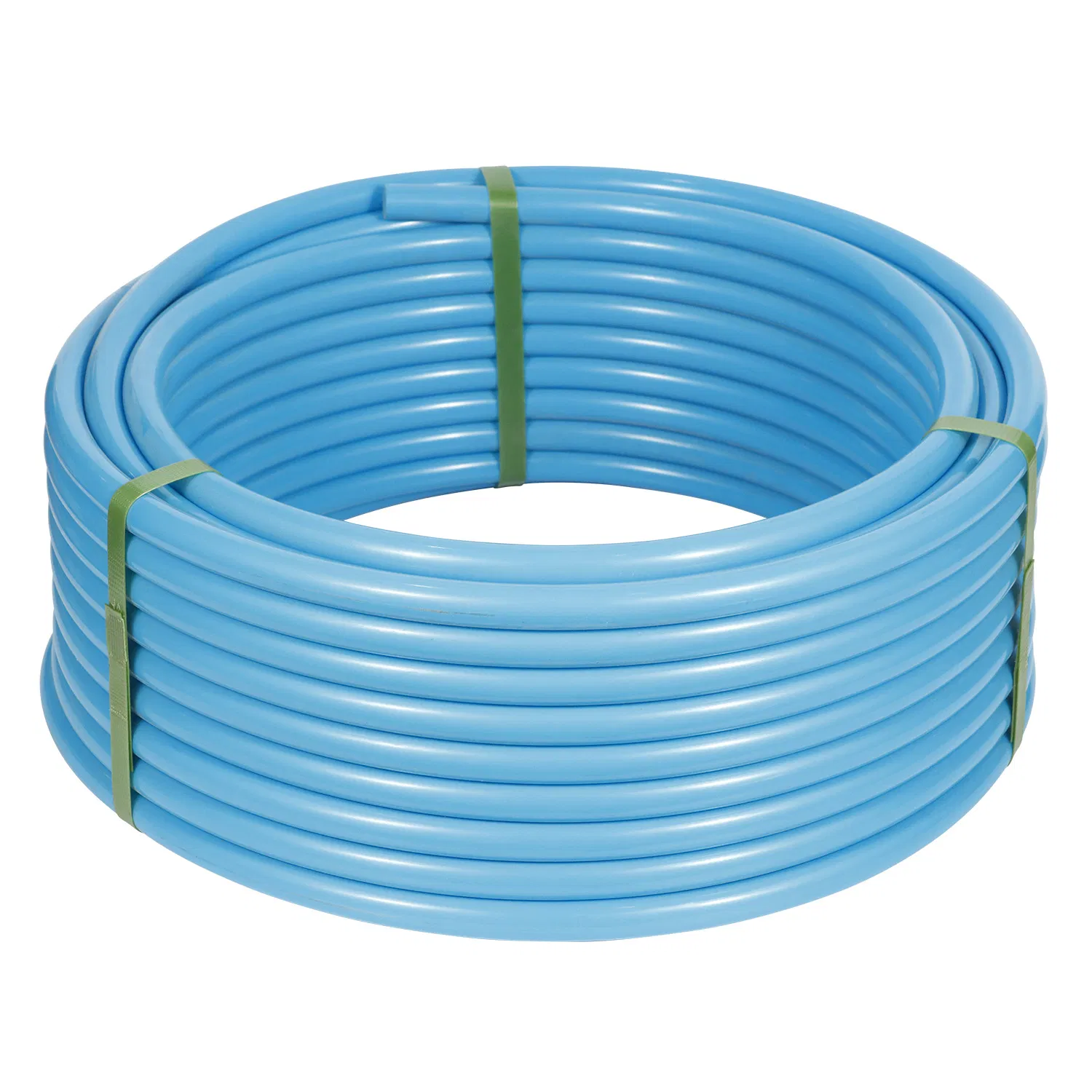

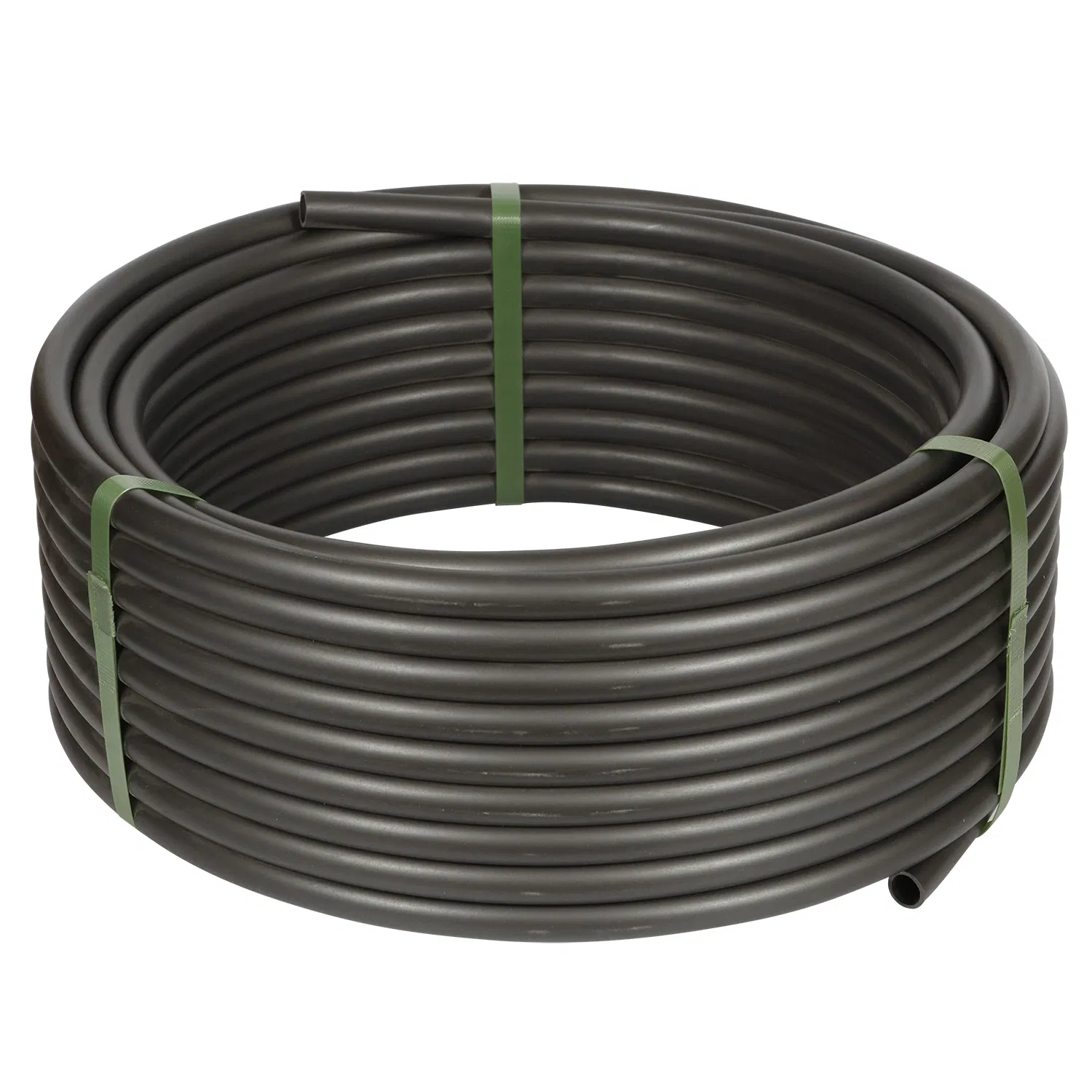

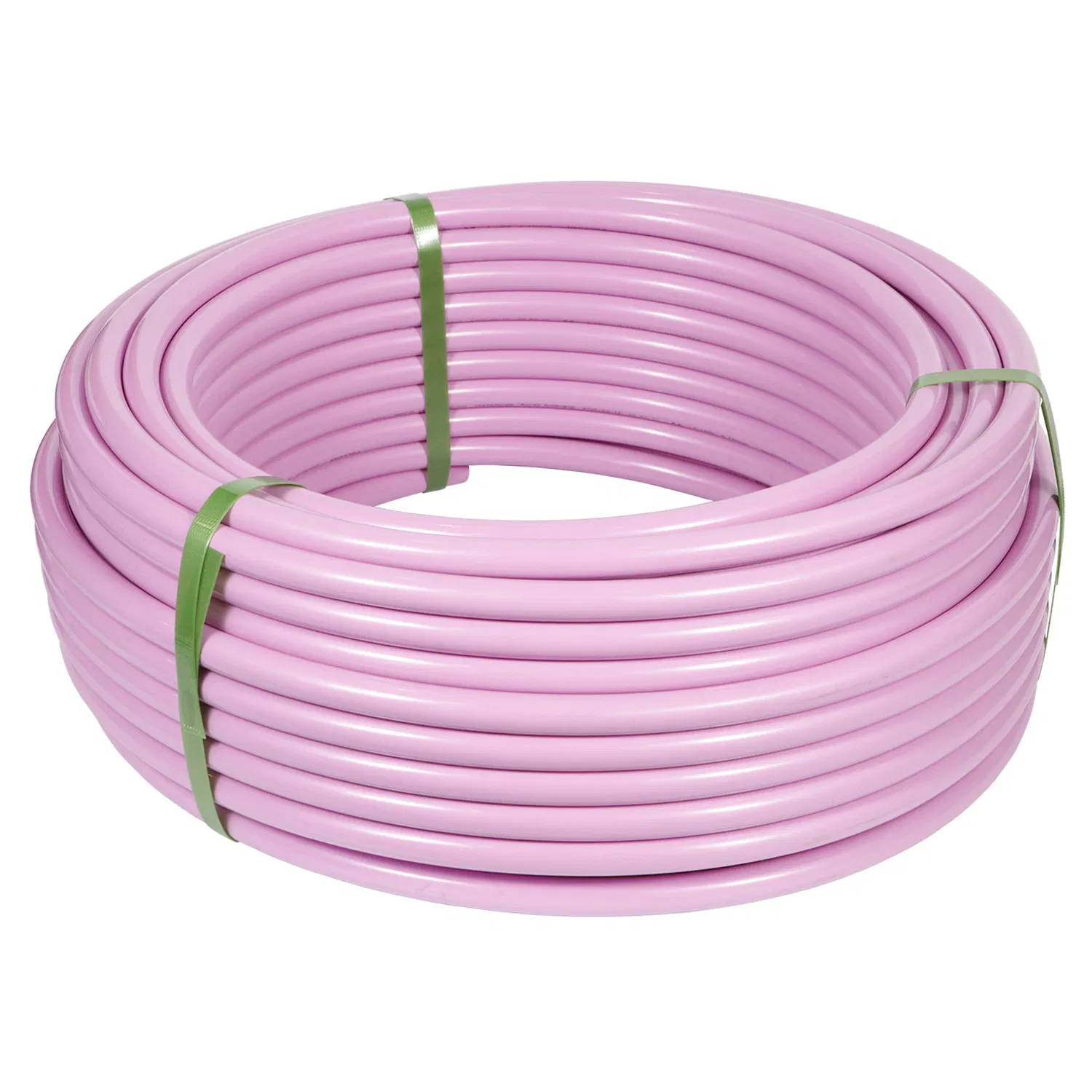

Detailed specification for High Quality Water Pexa Pipe/PE-Rt Pipe for Underfloor Heating System
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | 02 |
| Forming Way | Blow Molding |
| Application | Decoration Parts, Structural Components, Functional Components |
| Material Properties | Antimicrobial |
| Markets Served | Building & Construction |
| Customized | Customized |
| Usage | Internal |
| Color | Multi Color |
| Surface Finishing | Finished |
| Package | 100m-400m |
| Std | ISO |
| Temperature | -20℃-95℃ |
| OEM | We Are Factory,OEM Is Ok. |
| Connection | Axial Ftting Q&E Fitting |
| Fitting Type | Elbow,Tee,Coupling |
| Fitting Material | Copper Plastic |
| Working Life | 50 Years Under Normal Conditions |
| Transport Package | PP Bag |
| Specification | 8mm-63mm |
| Trademark | Ritable |
| Origin | China |
| HS Code | 39172100 |
| Production Capacity | 1000000 |
Product Description

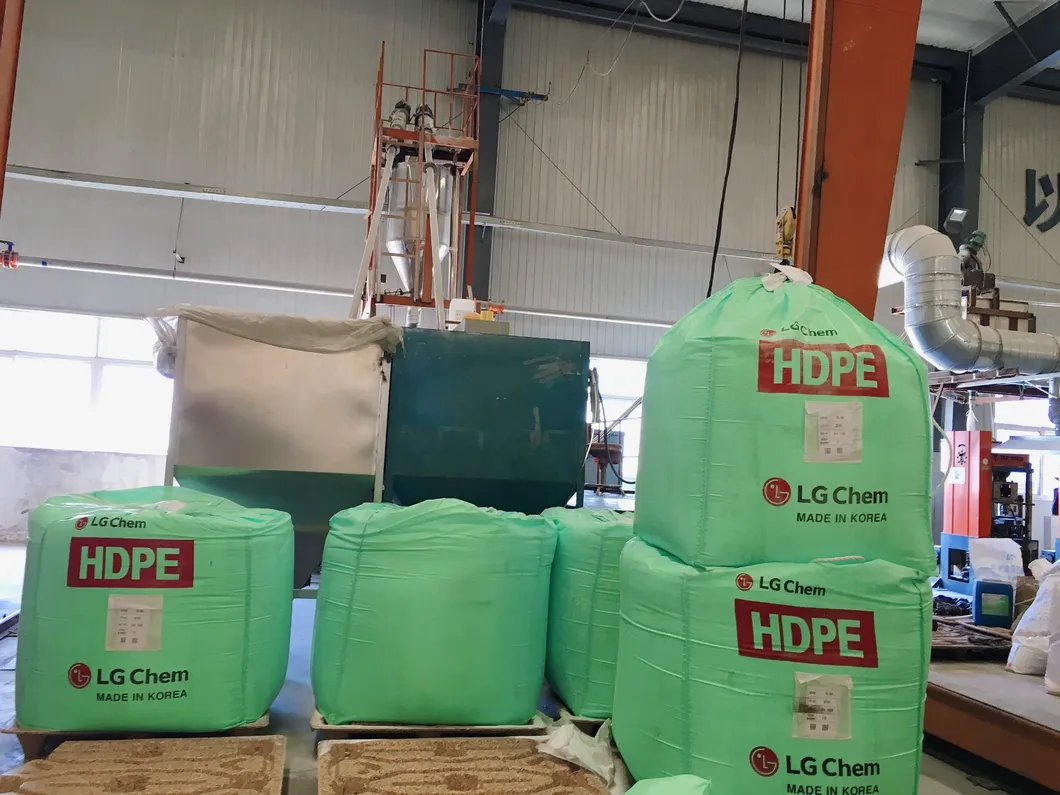

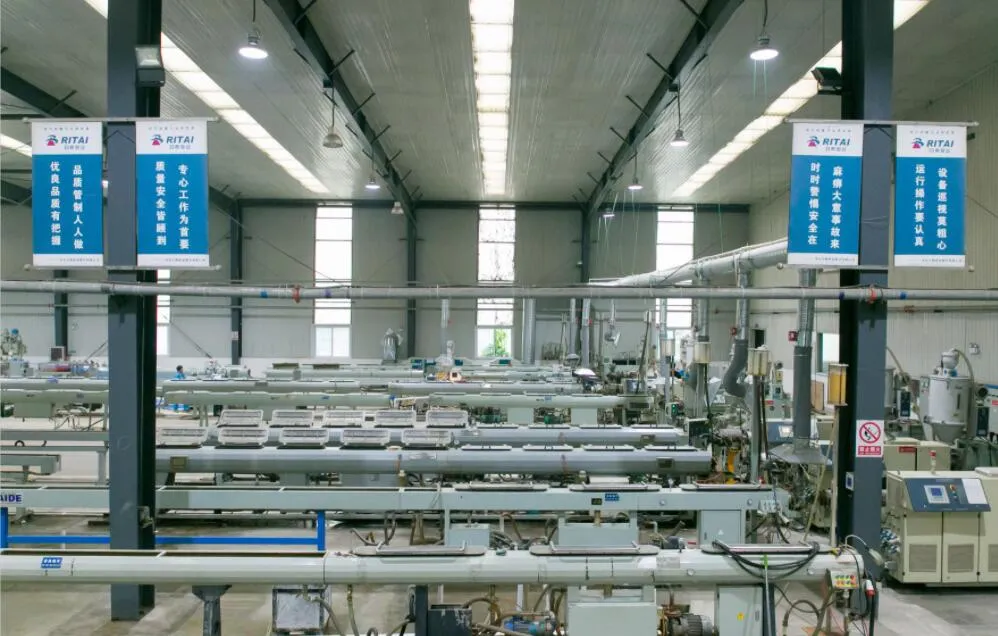

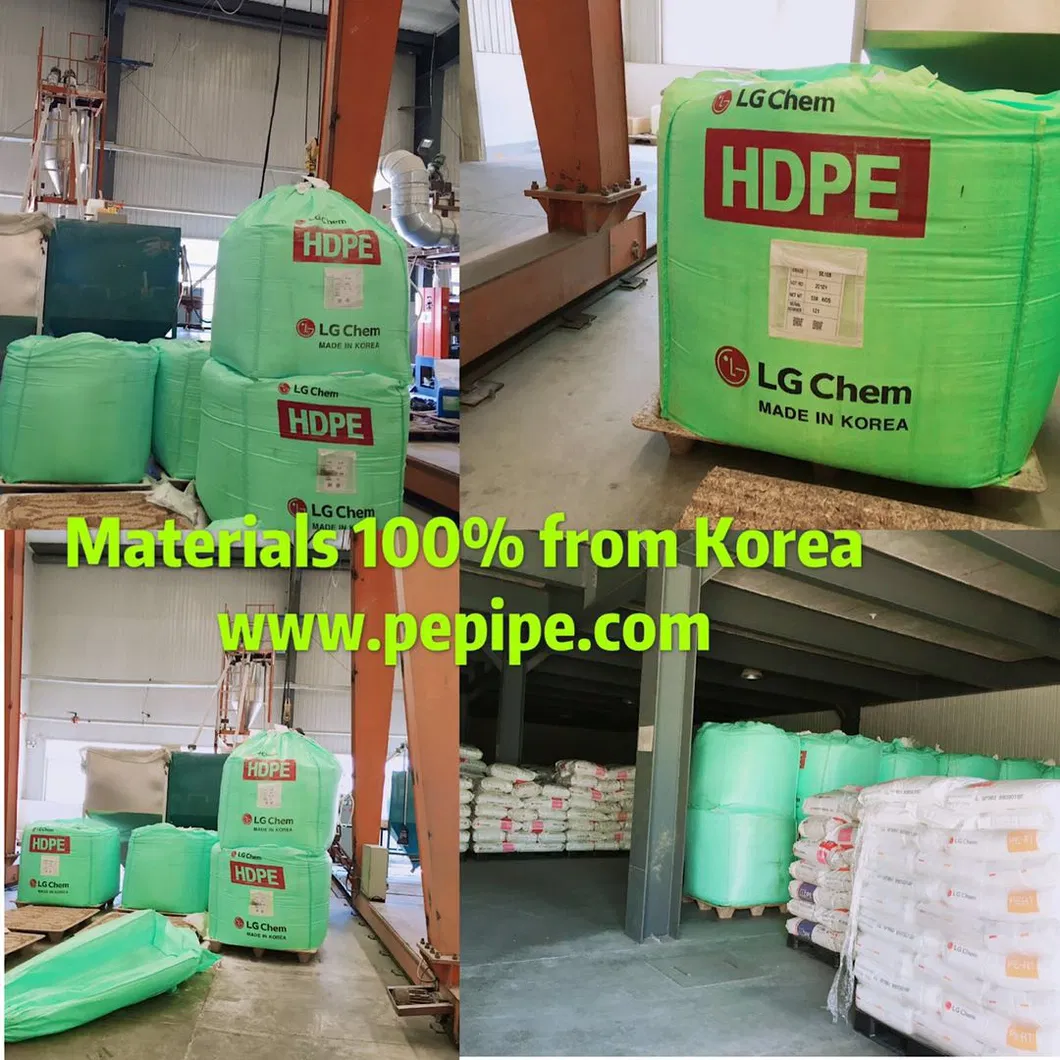

Ritable uses the advanced production line with the imported high-quality material which are Korea chemical SK-800 and Korea LG chemical SP980 to make the high-quality pipes.The PE-RT pipes are used in drinking water project and floor/underfloor heating system.At prsent,we have 3 top-advanced production lines for PE-RT pipe,the capacity will be 30,000,000 meter per year.Not only provided to many big domestic projects,but also exported to a lot of foreign contries.With 20 years experiences,we could guarantee the PE-RT pipes we provide is high quality and best price,it can satisfy all the requirments from the clients.Certify your wise,select Ritable pipes.
Detailed Photos
PE-RT pipes specification;
| Nominal Diametri(mm) | Wall Thickness(mm) |
| S5 | S4 | S3.2 | S2.5 |
| 16 | - | 2.0 | 2.2 | 2.7 |
| 20 | 2.0 | 2.3 | 2.8 | 3.4 |
| 25 | 2.3 | 2.8 | 3.5 | 4.2 |
| 32 | 2.9 | 3.6 | 4.4 | 5.4 |
| 40 | 3.7 | 4.5 | 5.5 | 6.7 |
| 50 | 4.6 | 5.6 | 6.9 | 8.3 |
Chemical and Physical features of PE-RT materials:
| Item | Testing methods | Unit | Index |
| Melting Index 190ºC,2.16kg | ISO 1133 | g/10min | 0.6-0.631 |
| Density | ISO1183 | g/cc | 0.933-0.937 |
| Vicat Softening Point | ISO 306-A | ºC | 119.5-123 |
| Tensile Yield Strenghth | ISO 527 | kg/cm | 154-190 |
| Tensile Strength at Break | ISO 527 | kg/cm2 | 350-419 |
| Break Elongation Ratio | ISO 527 | % | 730 |
| Shore Hardness | ISO 868 | ShoreD | 53-56 |
| Oxidation induced period(210ºC) | ISO 11357-6 | min | 108 |
| Meting Point | ISO 11357 | ºC | 124.4 |
| ESCR | ASTMD 1693-B | hr | >12000 |
PE-RT pipe Phycical characters:
| Item | Testing Parameter | Index |
| Testing Temperature ºC | Static Hydro-Pressure MPa | Testing time H |
| Longitudinal recovery ratio | 110 ºC | | en≤8mm 1 | <3% |
| | | 8mm≤en≤16mm 2 |
| | | en>16mm 3 |

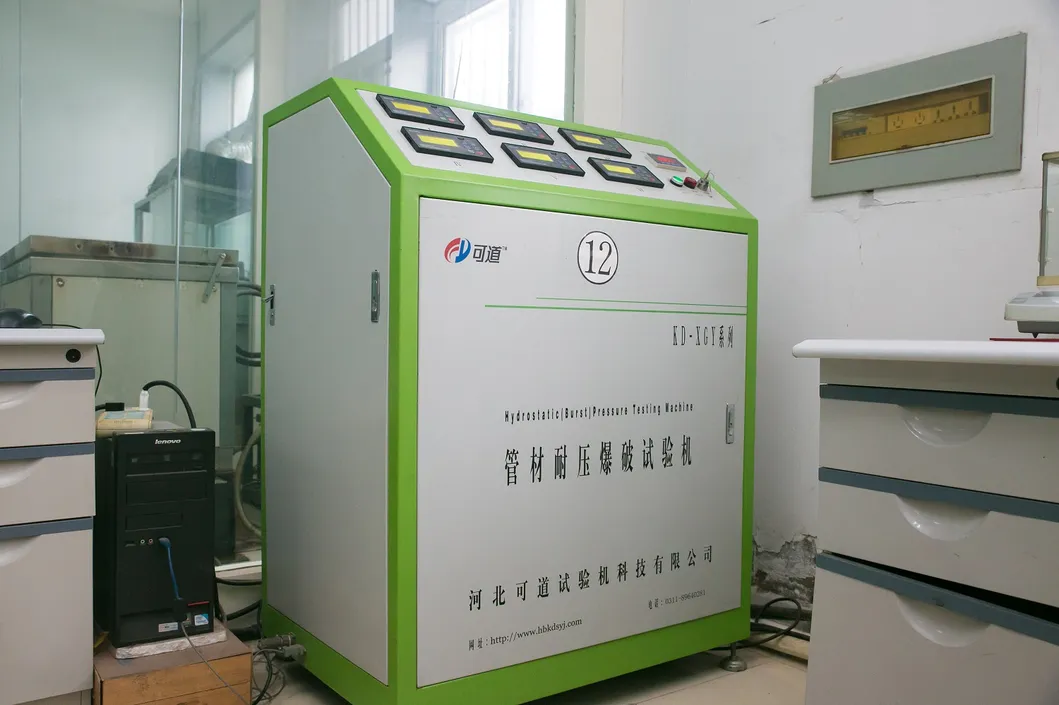

| StaticHydro-Pressure test | 20 | 10 | 1 | No cracks,No leakage |
| 95 | 3.55 | 165 |
| 95 | 3.50 | 1000 |
| Heat Stability Test | 110 | 1.9 | 8760 |
| MFR(190,2.16KG) g/10min | The rate of change≤30 of the raw material |
