Specification

item

value

Application

PIPE

Plastic Processed

PVC

Condition

New

Output (kg/h)

100kg/h - 800kg/h

Screw Design

Double-screw

Screw Material

38CrMoALA

Screw diameter (mm)

65

Screw L/D Ratio

132:65

Screw Speed (rpm)

200rpm

Showroom Location

United States, France, Brazil

Place of Origin

China

Jiangsu

Brand Name

SEVENSTARS

Voltage

Country Voltage

Dimension(L*W*H)

8900*1550*1150

Power (kW)

85

Weight

4500KG-20500KG

Certification

ISO9001:2008/CE/SGS

Warranty

1 Year

After-sales Service Provided

Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, online support

Key Selling Points

Energy saving

After Warranty Service

Video technical support, online support, Spare parts, Field maintenance and repair service

Local Service Location

United States, France, Morocco, Kenya, Argentina, Chile

Applicable Industries

Manufacturing Plant, Construction works , Energy & Mining

Marketing Type

New Product 2020

Video outgoing-inspection

Provided

Machinery Test Report

Provided

Warranty of core components

1 Year

Core Components

Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, Screw

General description

PVC single cavity production line :

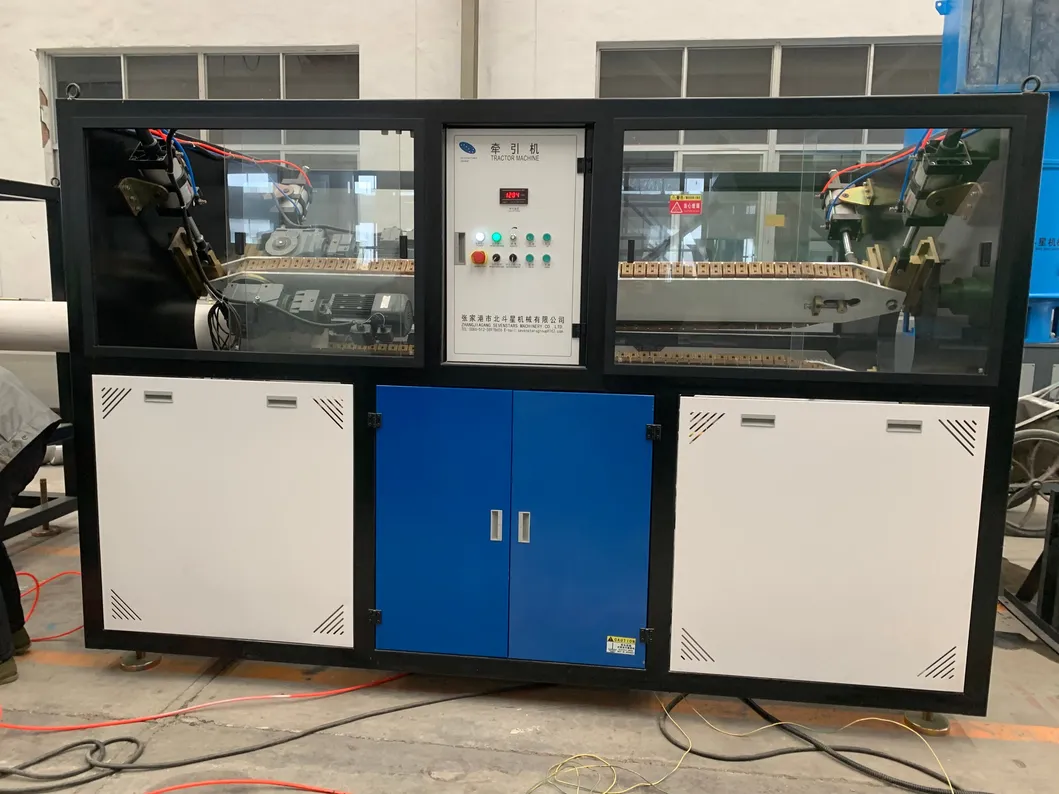

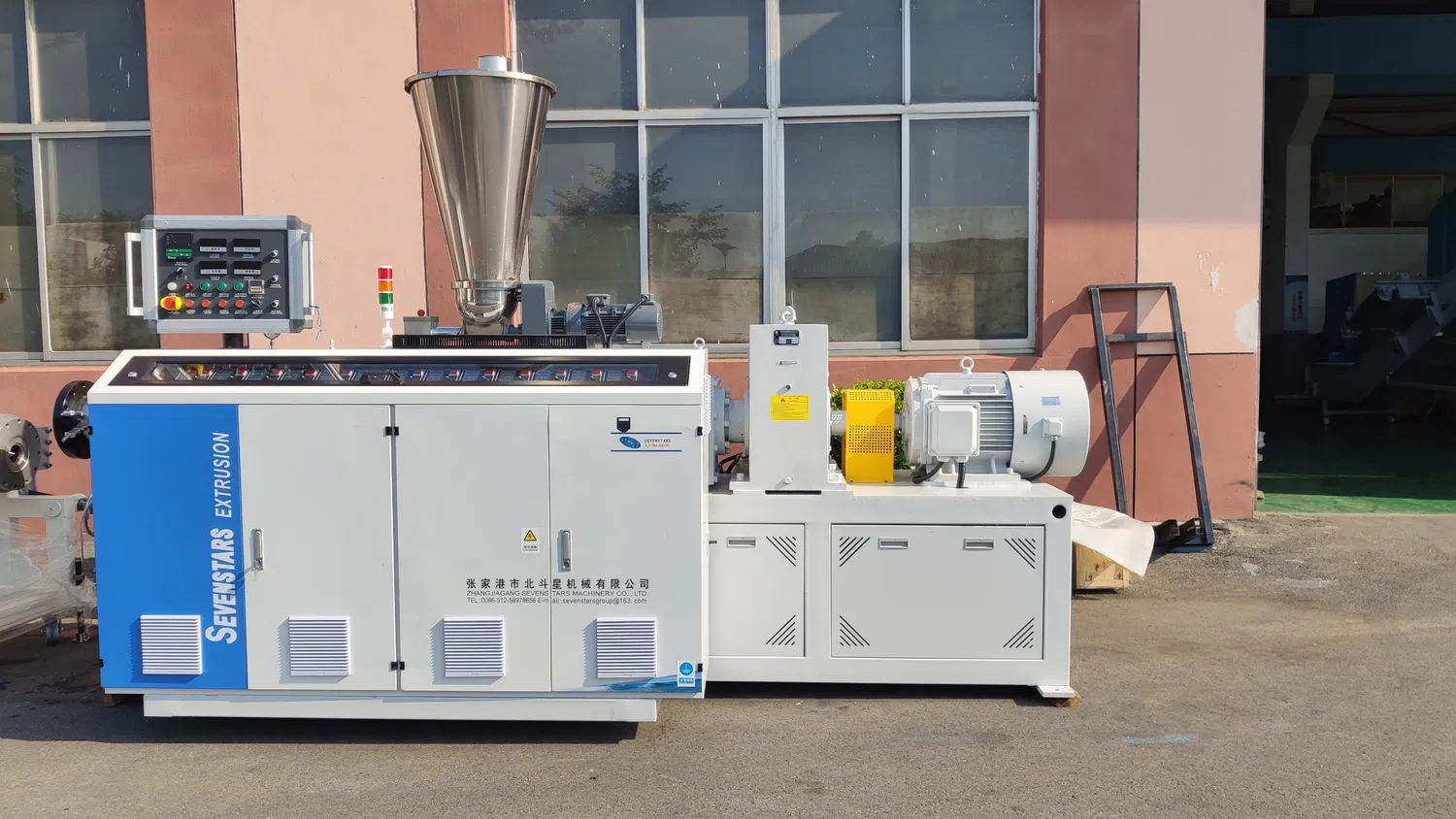

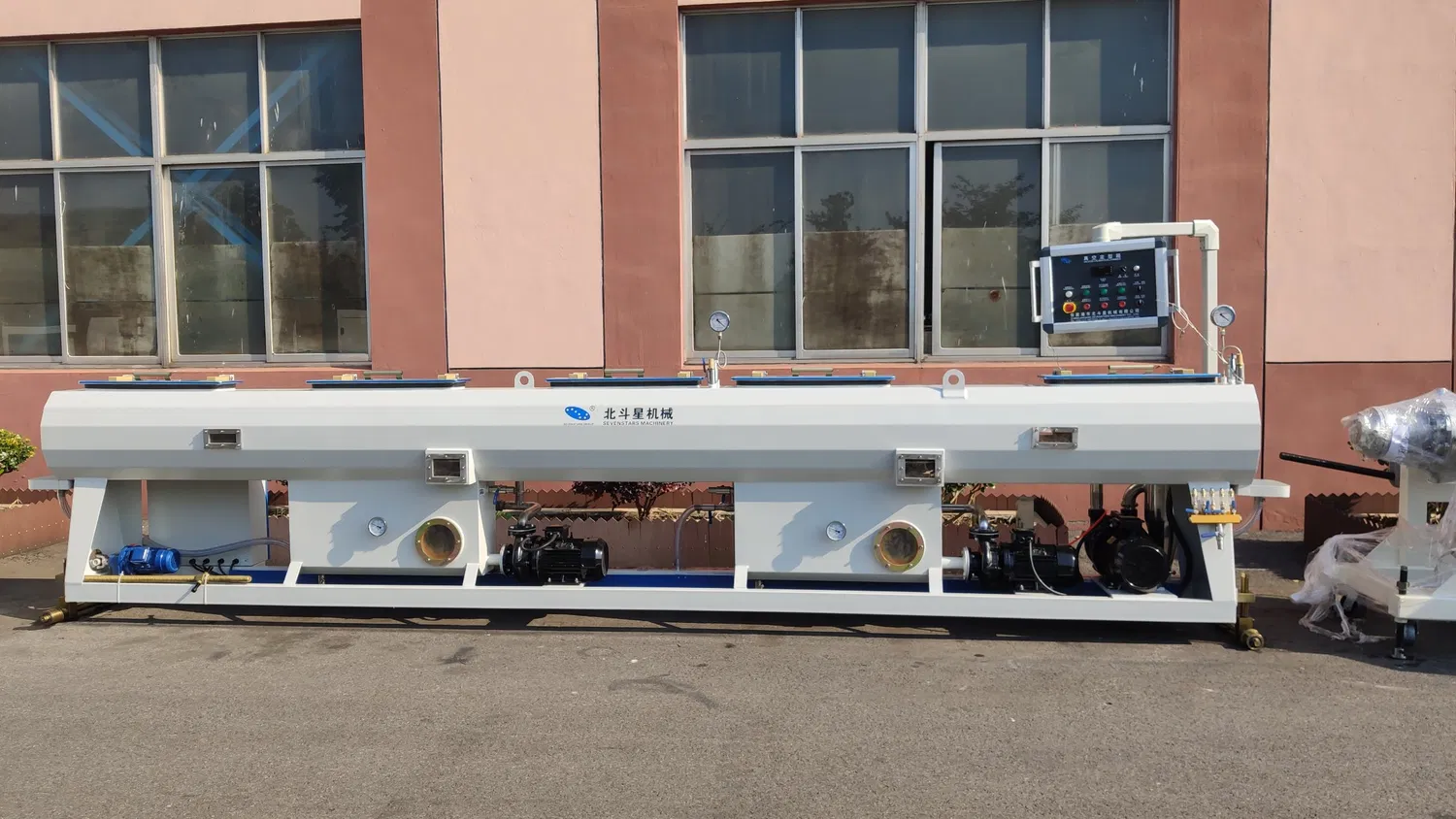

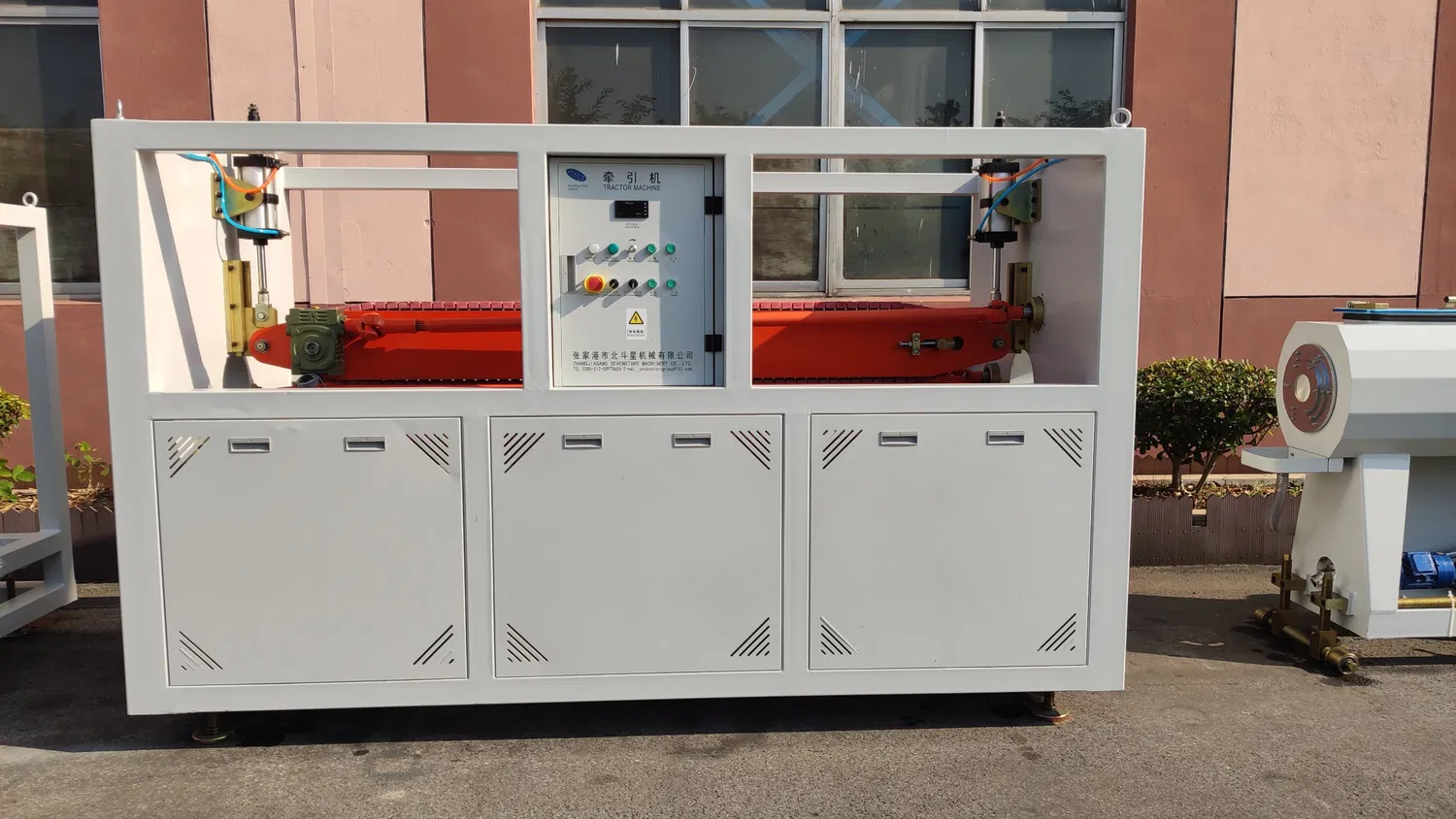

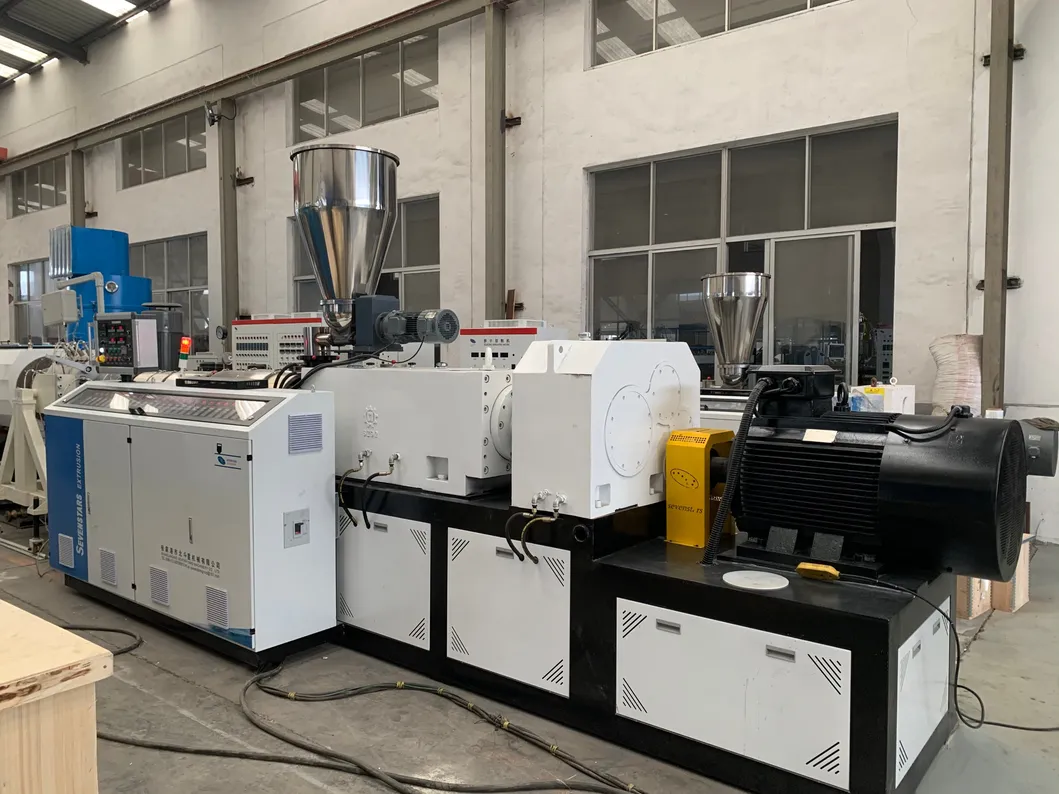

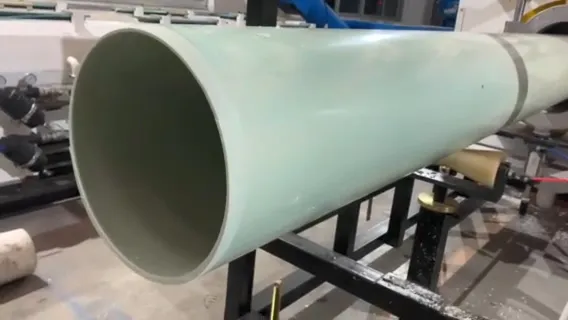

Φ20-Φ630 series PVC pipe extrusion machine line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used in the industries such as agricultural and constructional plumbing,cable laying etc. This line is composed of conical twin screw extruder,Vacuum calibration tank,haul off,motors,cutter and stacker etc. The extruder and haul off methods are two-claw,three-claw four-claw,six-claw,eight-claw,ten-claw,twelve claw etc. You may choose saw blade cutting type or planetary cutting type. It is aditionaly attached with length counter and intensifying device. This line with reliable performance and high production eficiency. Our company can also manufacture special pipe production lines,e.g. spiral silencing pipe and core foaming pipe according to your requirements.

PVC double-pipe production line:

The production line is developed with the advanced technology of west Europe by our company. The main machine is SJSZ55/110 or SJSZ65/132 conical twin screw extruder is equipped with double-tubesingle control stainless steel spraying calibration,it avoids waste condition when one tube is adjusted and the other one is affected. The auto single-control double drawing machine and cuting machine arecombined with the front double calibration technology to make operation more flexible let you enjoy economic benefit which is brought by separate-control double tube extruding.

PVC four cavities production line:

Four cavities PVC electrical tube,water supply pipeextrusion line can extruder four pipes at same time onone machine.This line can save investment cost in factory buiding and production,which increase the capacity a lot and reduce production time.SJSZ65 conical twin-screw extruder can easily reach 5.5-6.5 ton/per day,the production speed take 16mm as example can get more than 8-10m/min.The whole line is composed of conical twin-screw extruder 65mm, 4 cavity mould,4 cavity coling calibration tank,4 station haul off,4 station cutter and 4 station tipping table.
