Competitive Price Abrasion Resistance Ceramic Pipe Lining for Mining Industry

Model NO.	Abrasion Resistance Ceramic Pipe
Material	Alumina, Alumina Ceramics
Type	Wear Resistant Pipe
Standard	ISO
Place of Origin	Pingxiang Chemshun Plant, China
Materials	Alumina Ceramics
Alumina Conent	92% Al2O3 or 95% Al2O3
Density	3.60-3.70 g/cm3
Featurer	High Hardness, Smooth Surface, Lighter Weight
Application Method	Rubber Backed Ceramic, Lining Ceramic, Vulcanized C
Application Equipment	Bend Pipe, Pipe, Clone, Cylinder
Application Industry	Mining Industry, Power Plant, Steel Plant, Cement P
Sample & Store	Available
Transport Package	Box+Pallet
Specification	As per customer's requirement
Trademark	CHEMSHUN CERAMICS
Origin	Pingxiang, China
HS Code	69091200
Production Capacity	5000 Ton/Year

Competitive Price Abrasion Resistance Ceramic Pipe Lining for Mining Industry

Product Description

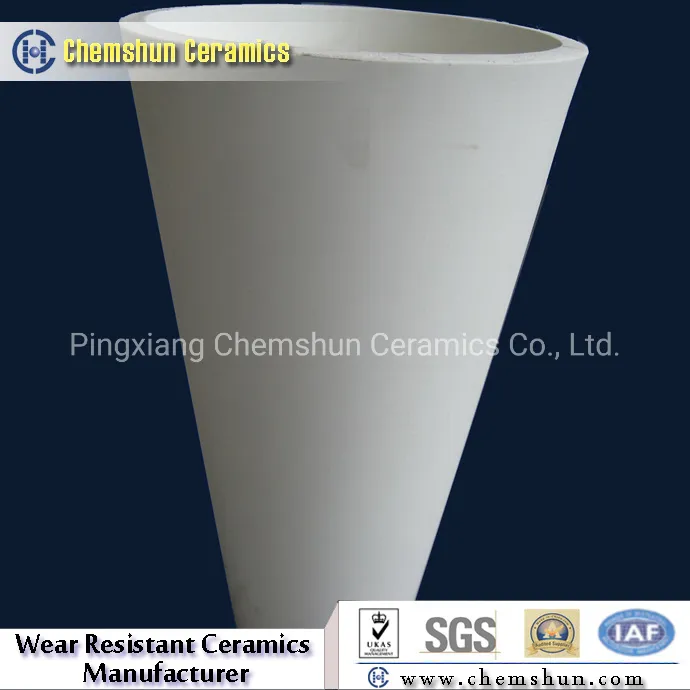

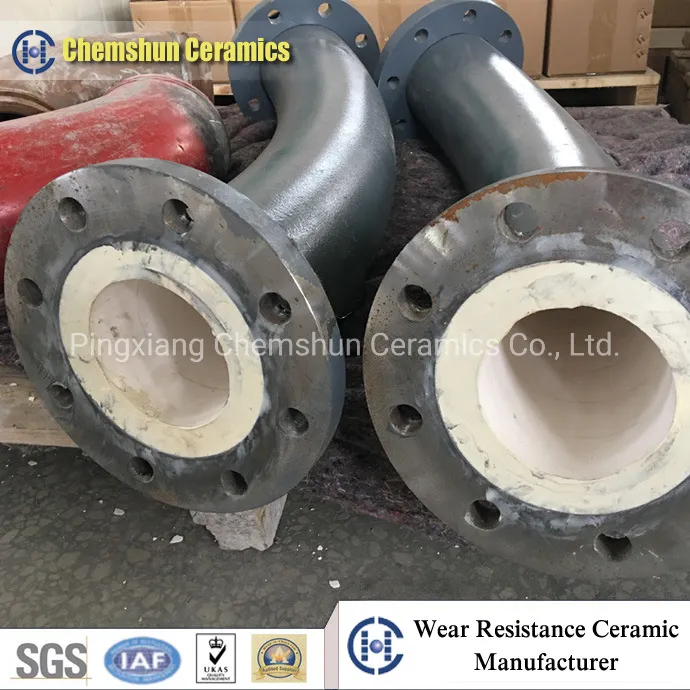

 Alumina ceramic tube , bend and elbow have exceptional hardness and strength, resistance to wear and chemical attack , It is especially used as the ceramic pipe liner of the pipeline and can protect the steel pipe for excessive wear and extend the use life . This kind of ceramic tube is easy for installation and diameter can be varied from 10mm to 500mm .Shape can be straight tube ,bend tube or Y-piece .with the properties of smooth surface , no gap and good abrasion and impact resistant ability . The ceramic pipe bending are widely used in the pipework of conveying ore fines. Cement , coal and other big hard materials in cement , steel , chemical , mining milling , smelting , port, thermal power plant, Its easy installation could reduce the cost much and meanwhile prolong the use life of the delivery system.

Pingxiang Chemshun Ceramics Co.,Ltd is 18 year's experience in the wear protection field, Chemshun produce the most effective cost performace wear resistance alumina ceramics and supply wear solutions for customers, to solve the customer's problem of: wear in bulk materials handling and help customers reduce the maintenance costs and downtime to prolong the equipment usage life and increase the factory performance..

Feature
· Wear resistant
· Impact resistance
· Easy installation
· Short installation time
· High hardness
· Superior abrasion
· Corrosion and chemical resistance
· Light weight
· Low maintenance cost: Super wear-resistance reduce the maintenance frequency and also the maintenance cost.
· Good fluidity : Smooth surface ensure the free flow of material without  blocking

 Application
· As alumina ceramic wear-resisting lining of coal-electing equipment on coal industry
· Cements industries;
· As wear resistant alumina ceramic lining of fall funnel, lining of wear-resisting pipe and bender,
· As wear resistant alumina ceramic liner of material tranfer pipe and chute, etc, on steel industry.
· As wear ceramic liner for l thansfer equipment;
· As Alumina ceramic wear plates Inside and outside surface of powder separating equipment on iron and steel works;
· Ceramics, mines and other grinding equipment lining;
· Parts of equipment hermal and power plants;
· Grinding systems Mixer Application areas
· Separator systems chain conveyor
· Cyclones diffusor
· sinter slurry ducts
· Hooper High temperature cyclones
· Ventilator housing salt plants

Chemshun Ceramic Pipe Advantages
· Long lifetime and maintenance free operation
· No operation interruption or production losses
· No contamination of the conveyed materials due to abrasion, mixture or oxidation
· Physiologically harmless, suitable for food products
· Smooth surface to achieve good flowability and to avoid plugs
· No spilled material to clean up
· Low wear loss and long working life.
· Good impact resistance.
· Good corrosion resistant
· Good thermal shock resistance.
· Smooth surface and good adherence resistance.
· Quick installation and good service after sale.
· Complicated shape and various size designed according to customers' demands.

Dimensions

ProductID(mm)OD(mm)Thickness(mm)Length(mm)R(mm)Degree Straight Tube7610615150-250// Straight Tube10014020305// Straight Tube15018517.5150-250// Straight Tube15218215150-250// Straight Tube20024020305// Bend7610615/4007.5 Bend10113115/5005 Bend15018517.5/15003 Bend15118115/7507.5 Chemshun Ceramic pipe sizes range : 10~500 mm

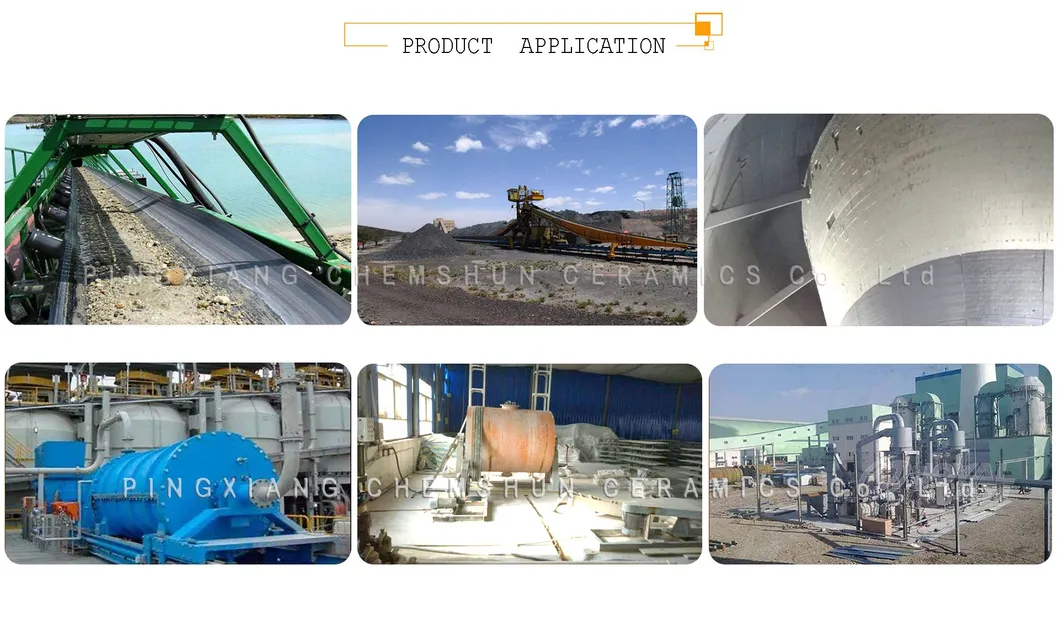

Application in Industries

IndustryEquipment systemEquipment parts CementPre-blending system for crashing limestone and crude fuelChute, bunker, pulley lagging, discharge cone Raw mill systemFeed chute, retaining ring, scraper plate, seal ring, pipeline, bucket guard, cyclone, powder concentrator body, bunker Cement mill systemChute, bunker, fan vane wheel, fan casing, cyclone, circular duct, conveyer Ball mill systemPulverizer exhauster's body and vane wheel, powder concentrator's body, pulverized coal's pipeline, hot air duct Sintering systemInlet/outlet bend, wind value plate, cyclone, chute, dust collector's pipe Afterheat systemSeparator's pipeline and wall SteelRaw material feeding systemHopper, silo Batching systemMixing bunker, mixing barrel, mixing disk, disk pelletizer Sintered material transport systemHopper, silo Dedusting and Ash discharge systemDedusting pipeline, bend, y-piece Coking systemCoke hopper Medium-speed millCone, separation buffles, outlet pipe, pulverized coal's pipeline, burner cone Ball millClassifier, cyclone separator, bend, powder concentrator's inner shell Thermal powerCoal handling systemBucket wheel machine, coal hopper, coal feeder, orifice Ball mill systemSeparator's pipe, elbow and cone, coal mill's elbow and straight tube Medium-speed millcoal mill body, separation buffles, cone, pipeline, elbow Fall millPulverized coal's pipeline and elbow Dedusting systemDedusting's pipeline and elbow Ash discharge systemFan duster's shell, pipeline PortTransporting material systemBucket wheel machine's disk and hopper, transfer point's hopper, unloader's hopper, SmeltingTransporting material systemMeasuring hopper, coke hopper, vibrating screen's chute, head valve, Intermediate bin, tail bin Batching systembatch hopper, mixing machine Burning systemAsh bucket, pump calcine tube, hopper Dedusting systemDedusting's pipeline and elbow ChemicalTransporting material systemHopper, silo Dedusting systemDedusting's pipeline and elbow Processing equipmentVibromill liner CoalCoal handling systemBucket wheel machine, coal hopper, coal feeder Coal washing systemHydrocyclone MiningTransporting material systemHopper, silo

Technical Data Sheet

S.No.AttributesUnitCHEMSHUN 92 ICHEMSHUN92 IICHEMSHUN 95 1Alumina Content%929295 2Densityg/cc≥3.60≥3.60>3.65 3Color-WhiteWhiteWhite 4Water Absorption%<0.01<0.010 5Flexural StrengthMpa270300320 6Moh's DensityGrade999 7Rock Well HardnessHRA808587 8Vickers Hardness(HV5)Kg/mm2100011501200 9Fracture Toughness (Min)MPa.m1/23-43-43-4 10Compressive strengthMpa850850870 11Thermal Expansion Coefficient
(25-1000ºC)1x10-6/ºC87.68.1 12Maximum operation temperatureºC145014501500
