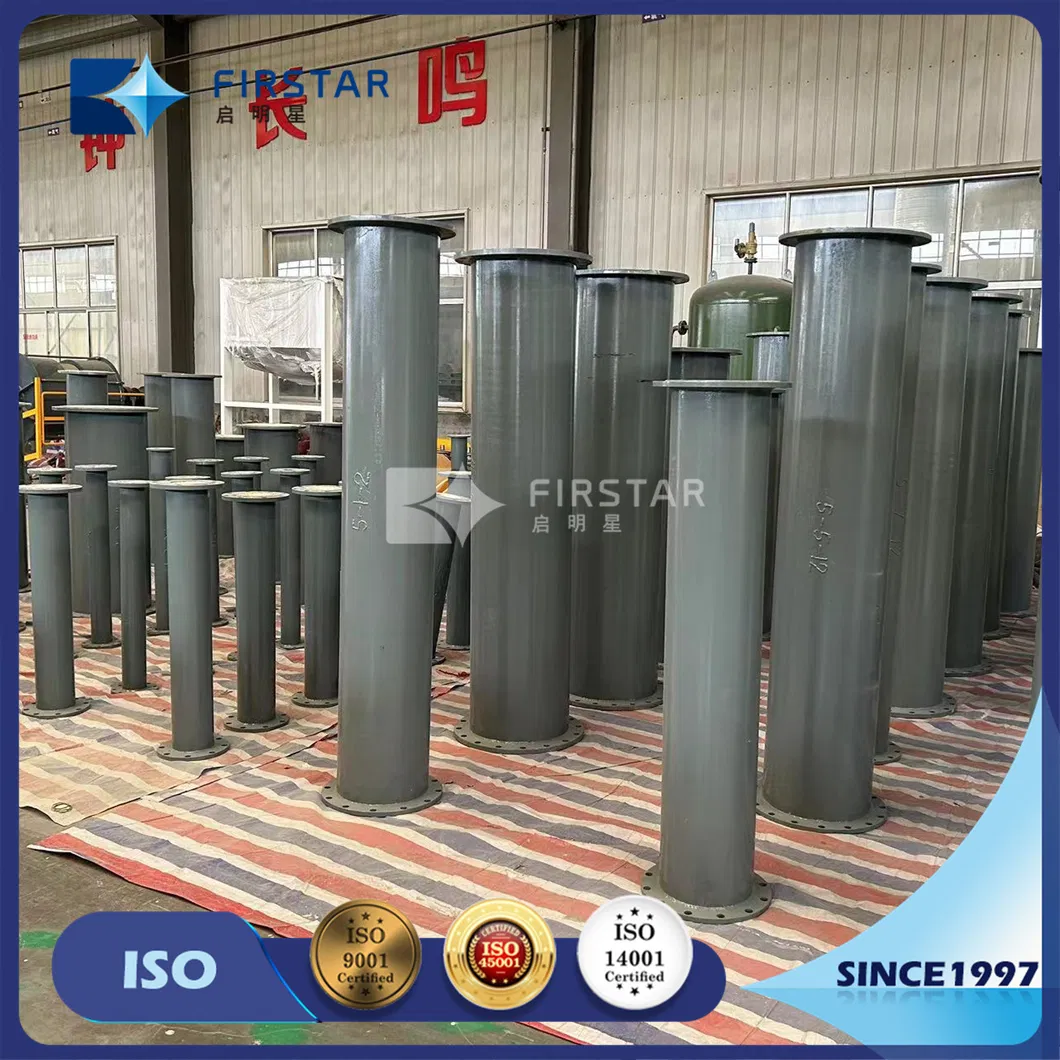

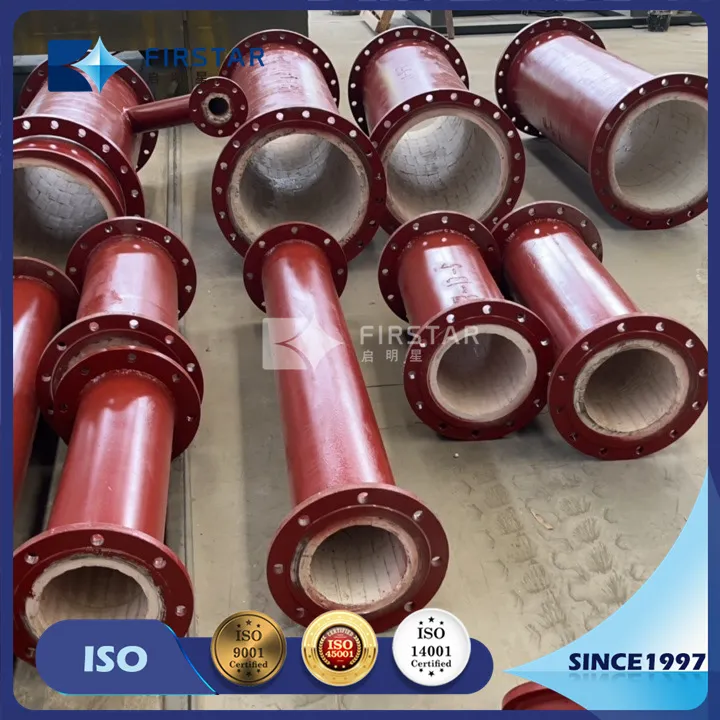

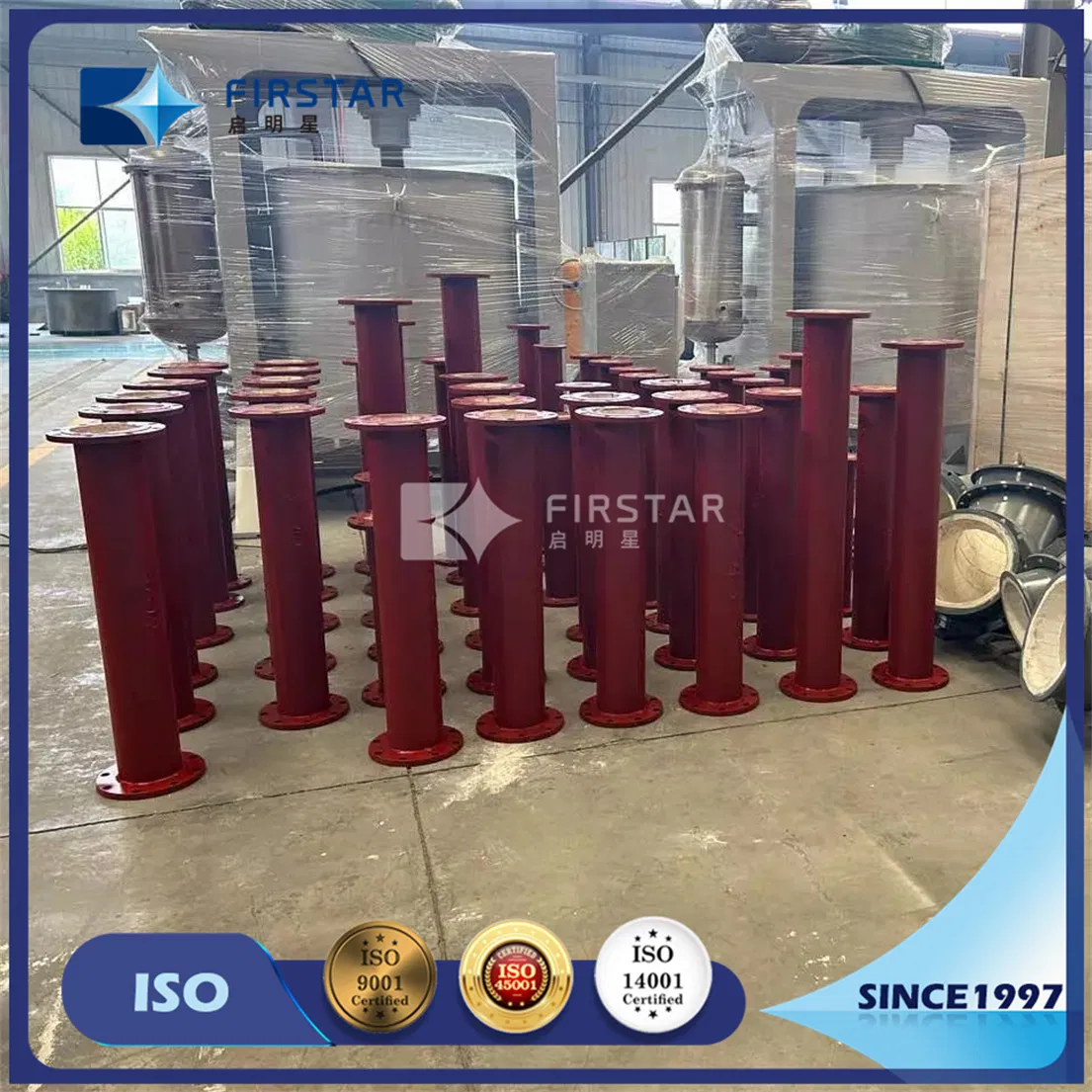

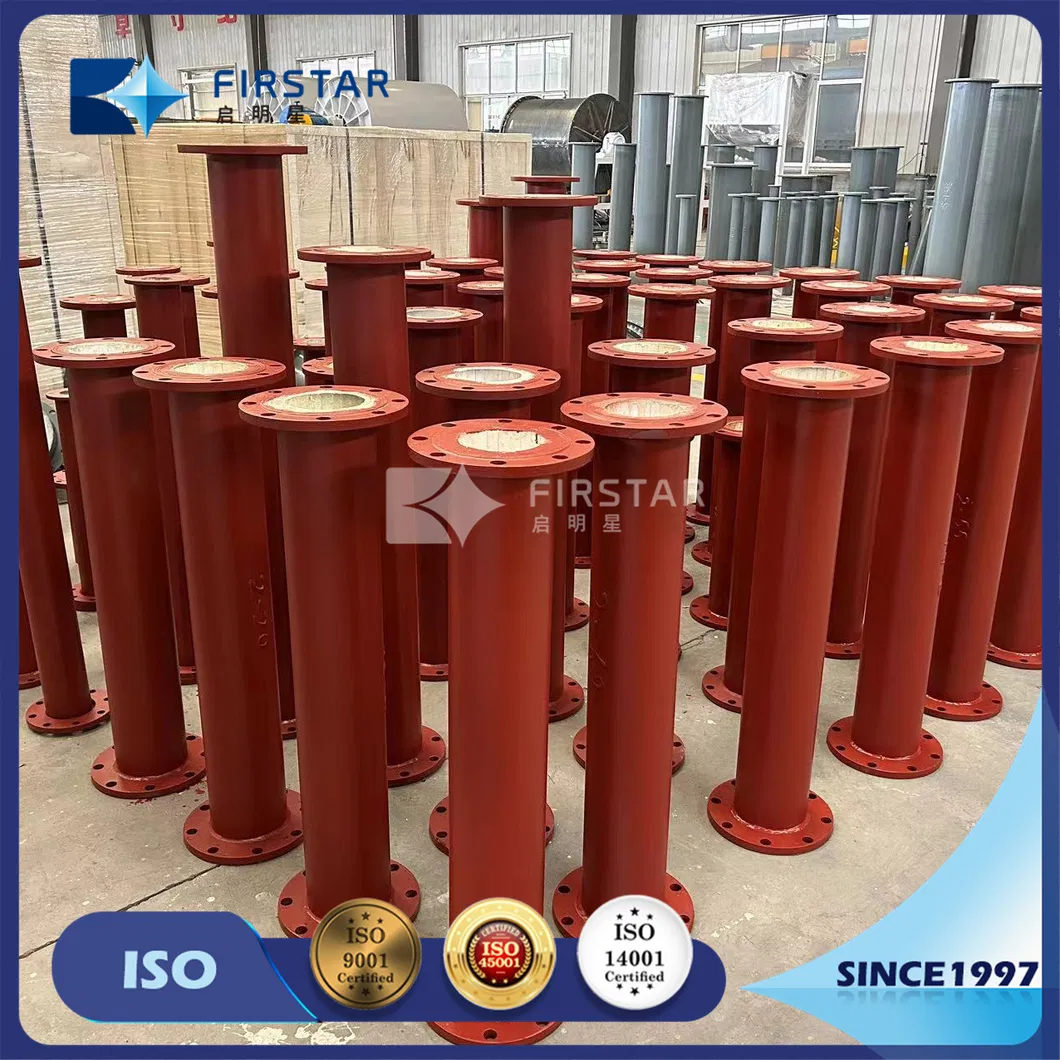

92% and 95% Alumina Ceramic Tube Lined Spools and Bends and Pipes

           Anti-Wear Alumina Ceramic Lining Tiles Used for Short Radius Bend Applications

alumina ceramic pipe brick
The Ceramic pipe brick is a high-performance abrasion and impact resisting linings for high-impact, high-pressure applications in which ceramic tile may not have sufficient structural resistance, and high-performance rubber may not offer the required wear life. In extreme applications, the Cube liners can be installed in a matrix or abrasion resistant steel plate to provide structural support for the ceramic/rubber matrix and provide exceptional wear life where competing products cannot.Used in heavy industry for years as a cost-effective, wear-resistant solution, these lightweight materials offer high durability, strength, and excellent abrasion and corrosion resistance. Alumina wear resistant compositions include:

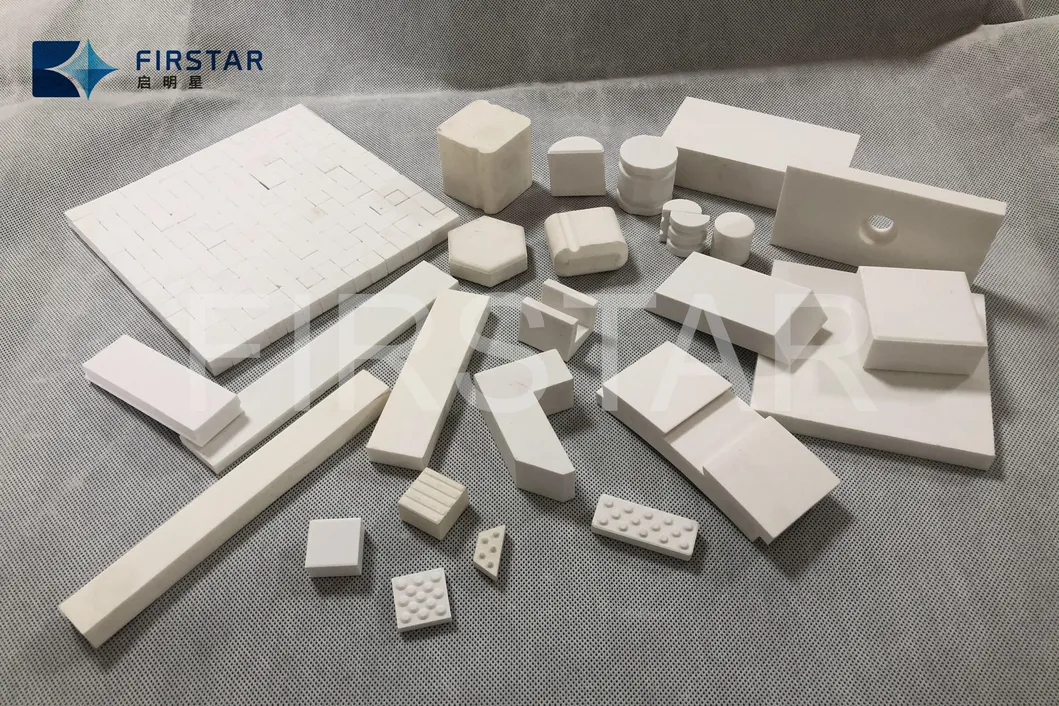

l Alumina 92: most common wear product with great wear resistance
l Alumina 95: increased wear performance
l Alumina T95: premium alumina for best wear resistance
l Zirconium toughened alumina(ZTA):  increased strength and impact resistance


CategoryHC90HC92HC95HCT95HC99HC-ZTAZrO2 Al₂O₃≥90%≥92%≥95%≥ 95%≥ 99%≥75%/ ZrO2/////≥21%≥95% Density>3.50g/ cm³>3.60g/cm³>3.65g/cm³>3.70g/cm³>3.83g/cm³>4.10g/cm³>5.90g/cm³ HV 20≥900≥950≥1000≥1100≥1200≥1350≥1100 Rock Hardness HRA≥80≥82≥85≥88≥90≥90≥88 Bending Strength MPa≥180≥220≥250≥300≥330≥400≥800 Compression strength MPa≥970≥1050≥1300≥1600≥1800≥2000/ Fracture Toughness KIc MPam 1/2≥3.5≥3.7≥3.8≥4.0≥4.2≥4.5≥7.0 Wear Volume≤0.28 cm³≤0.25cm³≤0.20cm³≤0.15cm³≤0.10 cm³≤0.05cm³≤0.02cm³

Qimingxing offer quality wear and Ant- impact ceramics, in combination with our experienced and competent staff, ensure the increased efficiency and service life of all equipments and materials to which they are applied. - Established Ultrafine Energy Efficiency Technology Research Institute - Increase lifespan of wearable parts - New improved technology and products - Minimal downtime to minimize delays in production - Variety of wear combating options available as a one stop solution - Strong focus on product innovation supported by Chinese Academy of Sciences. - Customized application techniques to suite any wear problem
