Wear-Resistant Ceramic Pipe for High-Abrasion Applications

This wear-resistant ceramic-lined pipe is engineered for long-term use in extremely abrasive working conditions. The inner alumina layer provides exceptional hardness (up to 9 on Mohs scale) and outstanding resistance to particle erosion. It is widely used in pneumatic conveying, dust extraction systems, and powder transport lines where steel pipes fail quickly. The smooth ceramic surface minimizes pressure loss and reduces material buildup, ensuring stable airflow and reliable operation. Ideal for cement plants, power stations, mining, metallurgy, and bulk material handling industries.

wear-resistant ceramic pipeWidely used in metallurgy, mining, electricity, coal, petrochemical and other industries, gas solid, liquid solid conveyor system, especially for serious damage occurs on the elbow, three links.



Product Features:
1. Life expectancy of up to 10 years or more
Under the same conditions, it is more than 20 times more wear-resistant than ordinary pipelines ;


2.Temperature resistance and aging resistance
The suitable material is selected, which can be used for a long time at 700 °C, and the ceramic does not peel off.


3.low weight
The weight of WTP-P wear-resistant ceramic pipe is just arriving at half of casting stone pipe and approximately 50% of alloy pipe. With advantages of wear and corrosion resistance, the lifetime of WTP-P pipe is outstandingly longer than other wear resistant pipes hereby the cost of assembly and running is largely reduced.


4.Smooth inner wall
The medium frequency pipe bending machine is bent as a whole, does not produce eddy current, and the material transportation is smooth ;

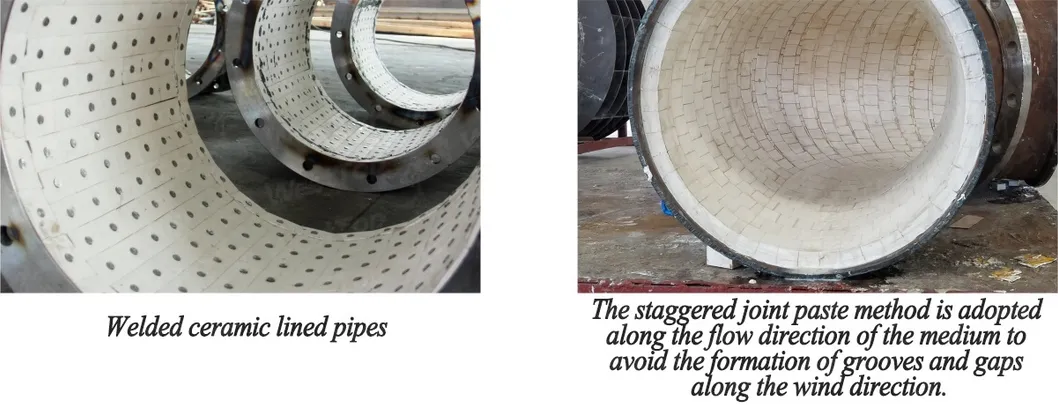

5.Ceramic staggered installation
The vertical arrangement of ceramics along the wind direction avoids grooves.;


6.convenient installation
It is easy to carry, save manpower and install more easily and quickly by welding, flange, flexible quick joint and other connection methods.

Hydraulic conveying case Pneumatic conveying case IndustryMaterials IndustryMaterials Steel PlantSlag Steel PlantSintering materials, lime, coal powder, carbon Thermal Power PlantSlag Thermal Power PlantPulverized coal, coke, furnace ash Waste IncinerationSlag Waste IncinerationIndustrial or domestic waste mineIron powder, mineral powder, coal powder, backfill tailings Aluminum PlantSintered alumina, bauxite Chemical PlantChemical Plant Cement PlantLimestone, clinker, cement Coal MineRaw coal, coal slime Breweries, malthousesHops, malt, rice Phosphate PlantPhosphate rock Asbestos FactorySawdust, perlite, stone powder Wastewater treatment plantssludge SmelterFurnace ash, coal powder Steel rolling mills, continuous casting plantsSintered materials, mill scale Silicone PlantQuartz powder, coal

production technology

itemComposite ceramic pipeWear-resistant ceramic pipeIntegral ceramic pipeCeramic rubber hose codeWTP-CWTP-PWTP-MWTP-CR structural featuresSelf-propagating centrifugal castingCeramics are installed in the pipeline by pasting, welding, swallowtail and so on.The ceramic pipe is installed in the steel pipe after sintering.Ceramics are embedded in rubber pipes by vulcanization process. PeculiarityFor straight pipe conveying, the cost performance is very high.It is used for elbows and tees, and the cost performance is very high.It is very good for conveying corrosive slurry.It has good flexibility and wear resistance. Applicable mediumPowder / SlurryPowder / SlurryPowder / SlurryPowder / Slurry Outer tube material20#20#/30420#/304rubber material of inner pipeReaction sintering aluminaSTC/ZTA/STASTC/ZTA/STASTC/ZTA/STA diameter630mmnot limited300mm300mm weightmilderVery lightlightweightultralight Wear resistance ( compared to steel pipe )5 times20 times20 times15 times corrosion resistancegoodgoodVery goodgood Heat resistance700ºC800ºC1000ºC100ºC Pressure resistance15MPa15MPa15MPa2.5MPa

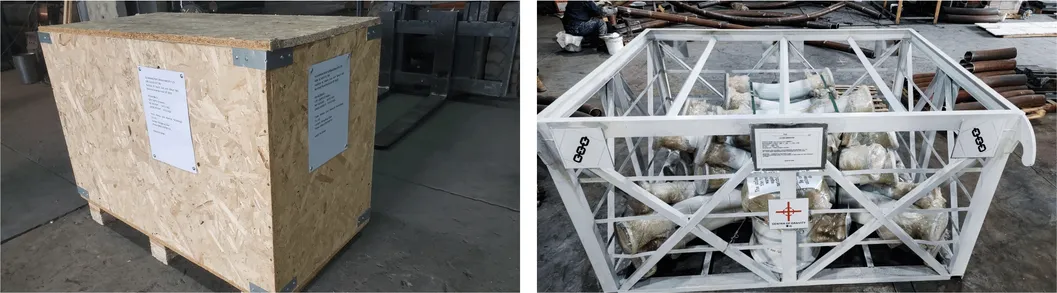

Normally, we pack cargoes according to customised products and it's size.
We usually provide wooden case packaging and iron frame packaging.

WestTop^®: High-Performance Anti-Wear & Energy-Saving Solutions

WestTop^® New Material Technology Co., Ltd. is a leading Chinese provider of advanced anti-wear and energy-saving technologies, dedicated to one mission: helping industrial clients worldwide cut costs, reduce downtime, and improve reliability. based in the Changsha Area of the Hunan Free Trade Zone, we leverage decades of expertise to deliver innovative materials, engineered solutions, and customized services.

We serve critical industries including steel, thermal power, cement, coal, ports, petrochemicals, mining, and machinery. Our comprehensive approach-covering technical consulting, tailored design, and precision manufacturing-ensures practical solutions for the most demanding operational challenges.

At WestTop^®, our core strength lies in a broad portfolio of high-performance materials, from metallic to non-metallic, engineered for extreme conditions. Whether the requirement is low-temperature resilience, high-temperature endurance, exceptional hardness, or superior toughness, our materials provide long-lasting performance and maximum reliability.

More than a supplier, WestTop^® is your partner in productivity. By integrating innovative material science with deep industry expertise, we deliver proven technologies that enhance reliability, lower energy consumption, and support your sustainability goals. Our pursuit of excellence drives us to continually innovate-ensuring our clients receive solutions that not only meet but exceed expectations.




We have gained ISO9001 Certificate, ISO14001 Certificate & ISO45001 Certificate.
