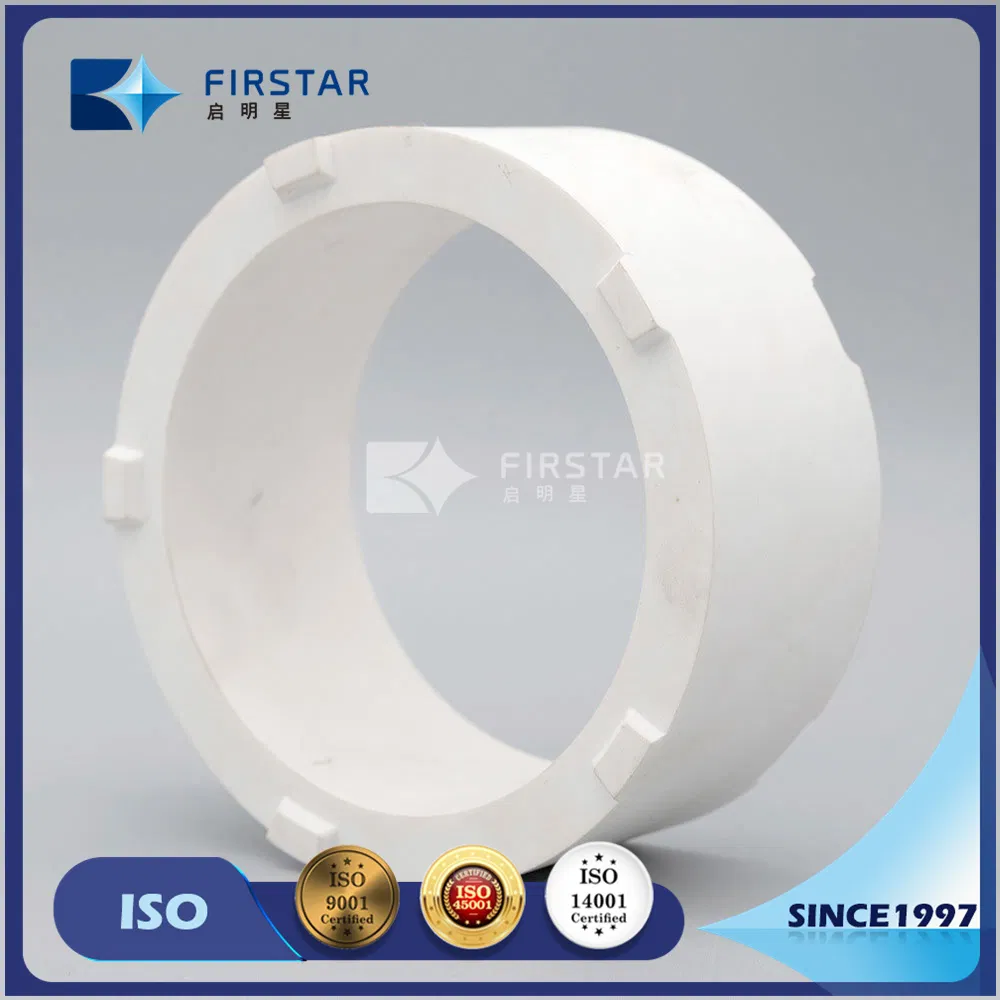

Ceramic Pipe in Thermal Power Plant for Wear Resistance

Model NO.	Cheap Ceramic Lined Pipe
Material	Aluminum
Type	Wear Resistant Plate
Color	White
Al2O3	>92%
Usage	Lining of Equipment and Pipe
Wear Rate ‰	<0.1
Ceramic Mohs Hard Ness	9
Shipping Way	Fob, CIF, DDP, DDU etc
Size	Customzied
Shape	Square
Export Markets	Global
Certification	ISO
Function	Grinding
Sample Time	3-15 Days
Bulk Order Time	15-30 Days
Customized	Accept
Shipping Mark	Accept
Transport Package	Carton Package, Then on Pallet
Specification	Al2O3 over 92%
Trademark	ZIBO QIMINGXING NEW MATERIAL
Origin	China Shandong Zibo
Production Capacity	17000 Tons Per Year

Cheap Ceramic Lined Pipe in Thermal Power Plant

Product Introduction :


CategoryHC90HC92HC95HCT95HC99HC-ZTAZrO2 Al2O3≥90%≥92%≥95%≥ 95%≥ 99%≥75%/ ZrO2/////≥21%≥95% Density>3.50g/ cm3>3.60g/cm3>3.65g/cm3>3.70g/cm3>3.83g/cm3>4.10g/cm3>5.90g/cm3 HV 20≥900≥950≥1000≥1100≥1200≥1350≥1100 Rock Hardness HRA≥80≥82≥85≥88≥90≥90≥88 Bending Strength MPa≥180≥220≥250≥300≥330≥400≥800 Compression strength MPa≥970≥1050≥1300≥1600≥1800≥2000/ Fracture Toughness KIc MPam 1/2≥3.5≥3.7≥3.8≥4.0≥4.2≥4.5≥7.0 Wear Volume≤0.28 cm3≤0.25cm3≤0.20cm3≤0.15cm3≤0.10 cm3≤0.05cm3≤0.02cm3

1.Alumina cubes
The Ceramic Cube is a high-performance abrasion and impact resisting linings for high-impact, high-pressure applications in which ceramic tile may not have sufficient structural resistance, and high-performance rubber may not offer the required wear life. In extreme applications, the Cube liners can be installed in a matrix or abrasion resistant steel plate to provide structural support for the ceramic/rubber matrix and provide exceptional wear life where competing products cannot.Used in heavy industry for years as a cost-effective, wear-resistant solution, these lightweight materials offer high durability, strength, and excellent abrasion and corrosion resistance. Alumina wear resistant compositions include:
l Alumina 92: most common wear product with great wear resistance
l Alumina 95: increased wear performance
l Alumina 96: premium alumina for best wear resistance
l Zirconium toughened alumina(ZTA):  increased strength and impact resistance

2.Product features:
> High hardness
> Superior abrasion and impact resistance
> Corrosion and chemical resistance
> Light weight
> Easy installation by epoxy resin or bolt
> Improve your working environment-noise, vibration and safetyOur Company :


1.Established in 1997,20 years experience in wear solutions products.
2.Factory is under expanding, the total construction area is 50,000 sqm.
3.ISO9001:2000 certified,over 260 staffs.
4.Three Own-designed production lines, the ball mils are own produced.


The company specializes in the production of HC series wear-resistant ceramic liners(alumina ball, zirconium silicate ball, zirconia toughed alumina ball, zirconium ball), agate ball, polyurethane ball, 92/T95/ZTA wear-resistant ceramic liner (alumina liner, zirconium toughed aluminum composite liner, zirconia plate), three-in-one,Two-in-one vulcanized ceramic runner sheet,ceramic mending compound, ceramic lining cyclone, ceramic lining pipe.
