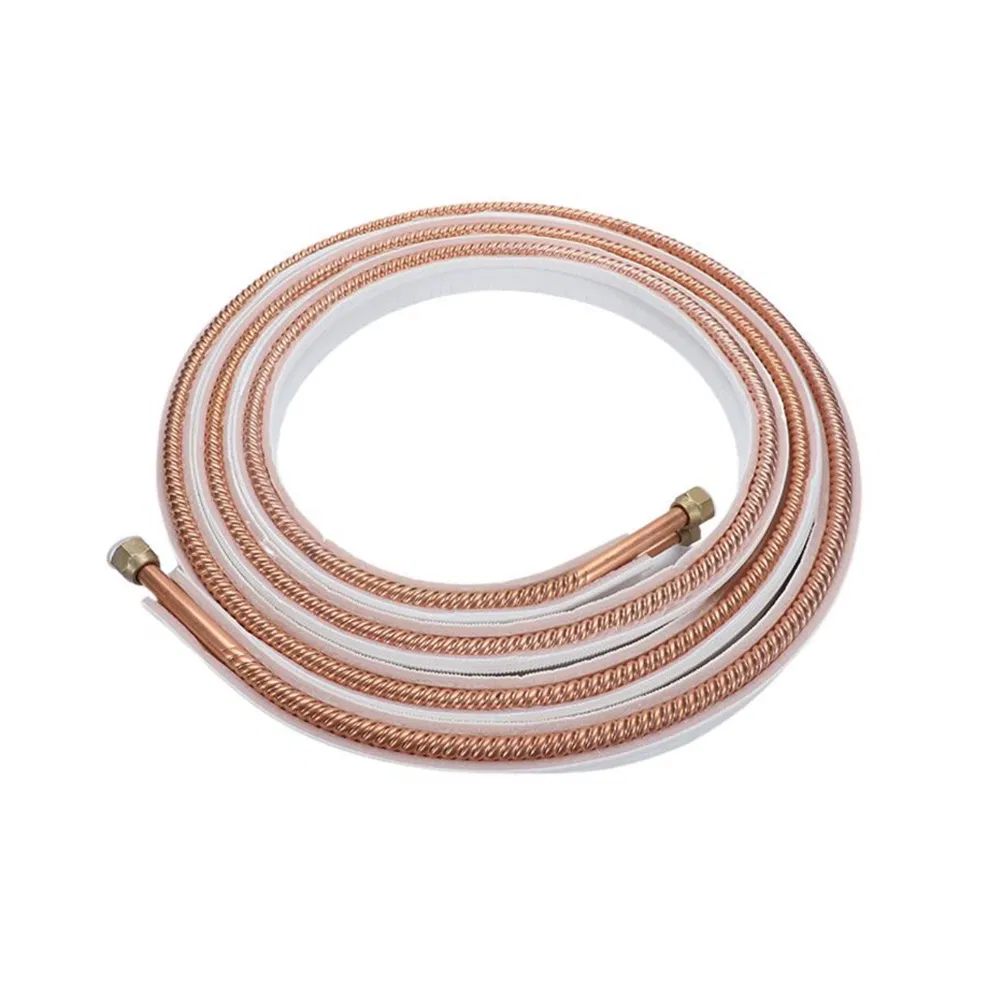

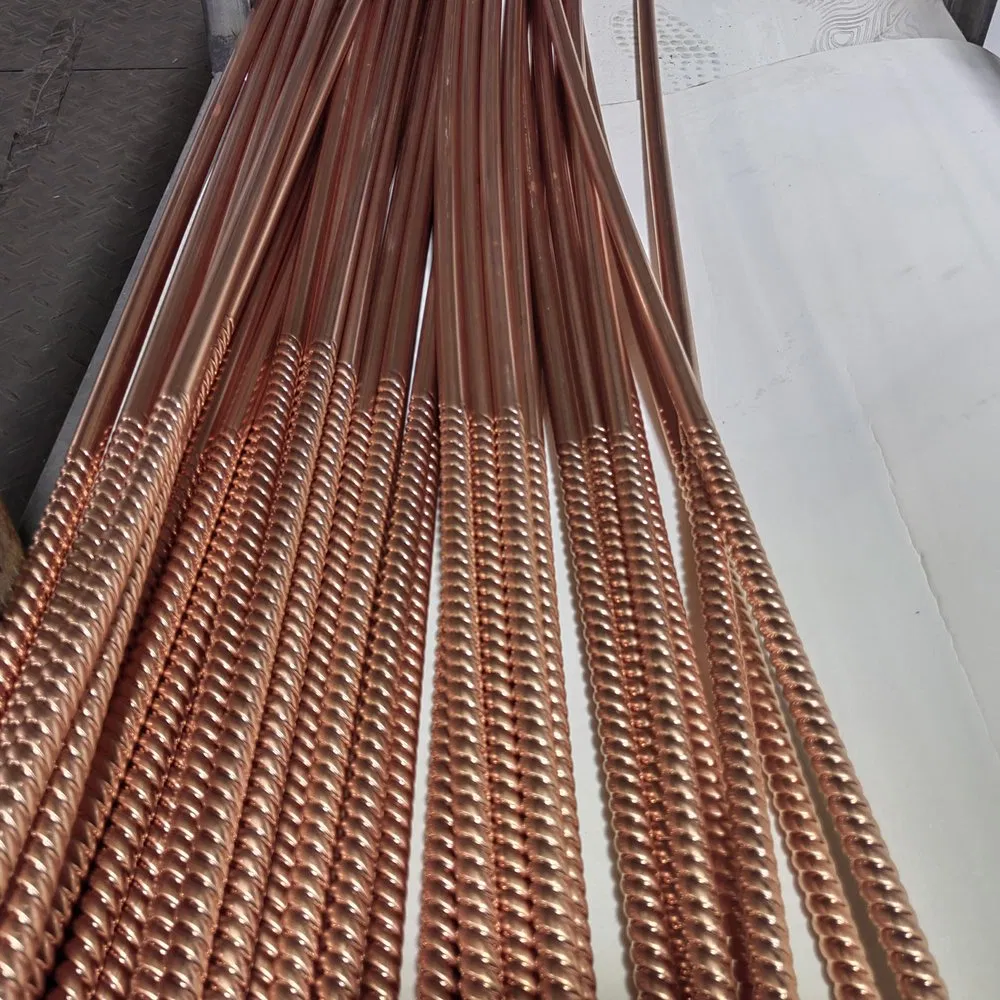

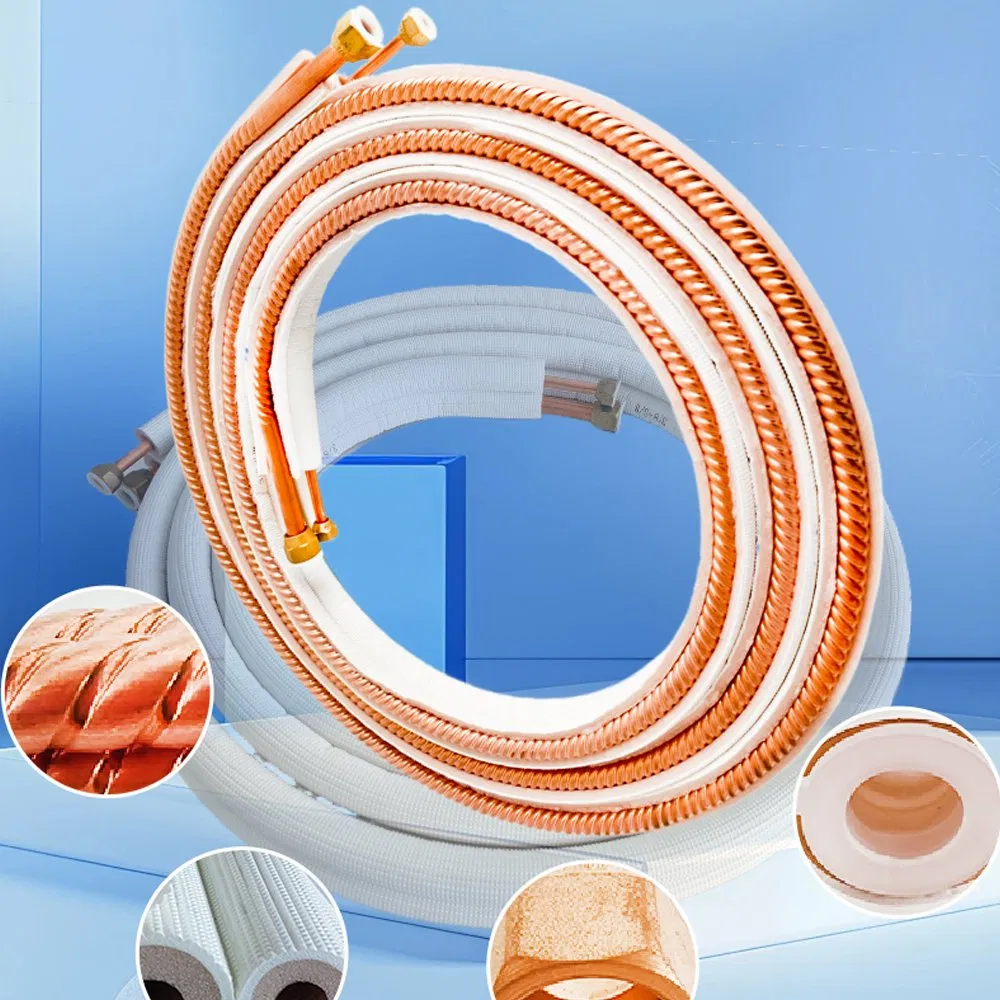

Double-Wall Corrugated PE Pipe Copper Tubing Flexible PVC Corrugated Pipe PE Corrugated Copper Pipe

• High quality insulation pipe:

- Several types: PE /XPE/Titan/Rubber, two layers / single layer, etc.
- Thickness 8mm~20mm.
- Anti-UV, Low water absorption, Low thermal conductivity
- Surface can be printed with words.
- Standards comply with EN13501, M1.ASTM E84.AS1530.RoHS, etc.

• All sizes and thicknes of high quality copper tubes, as your requirements. Standards comply with EN12735,IS H3300,ASTM B280, AS1571.RoHs, etc.

• Type: single or pair types.

• With or without fared nuts

• Length: 1~50 meters.

• Suitable for any gas: R22, R407C, R410A, R404A, R507C, etc.

• Light weight, good thermal conductivity

• Easy and quick installation, saving time and money, easy transport

• Seamlessness prevents from moisture entry or dripping.

• Can be with accessories: Nut, Drain pipe Tape, PVC wall-fix tape, Joint insuation pipe PC wallhole sleeve and cap, Electrical tape, Seal plaster, etc.


SPECIFICATION

SIZE OF COPPER TUBE

COPPER TUBE THINKNESS

1/4" WHITE PE

6.35MM

0.37/0.38/0.55/0.62/0.65/0.7/0.72/0.8MM

3/8" WHITE PE

9.52MM

0.37/0.38/0.55/0.65/0.68/0.72/0.75MM

1/2" WHITE PE

12.7MM

0.72/0.74/0.75MM

5/8" WHITE PE

15.88MM

0.85/0.9/1MM

3/4" WHITE PE

19.05MM

0.85/0.93MM

7/8" WHITE PE

22.22MM

1.1/0.95MM

SIZE OF INSULATION TUBE(INNER DIAMETER)

WALL THINKNESS OF INSULATION TUBE

LENGTH (M)

8MM

8MM/9MM/10MM/13MM/19MM/25.4MM

3/4/5/6/7.6/8/10/15/25/30/50

10MM

8MM/9MM/10MM/13MM/19MM/25.4MM

3/4/5/6/7.6/8/10/15/25/30/50

13MM

8MM/9MM/10MM/13MM/19MM/25.4MM

3/4/5/6/7.6/8/10/15/25/30/50

16-17MM

8MM/9MM/10MM/13MM/19MM/25.4MM

3/4/5/6/7.6/8/10/15/25/30/50

20-22MM

8MM/9MM/10MM/13MM/19MM/25.4MM

10/15/25/50

Changzhou Jiahao Refrigeration Equipment Co., Ltd.

Company founded in 2013, is located in Changzhou City, Jiangsu Province, which is only one hour to Shanghai or Nanjing by train. It is a diversified manufacturing enterprise integrating professional design, research, development, manufacturing and sales service of refrigeration.

With an area spanning over 20,000 square meters and a workforce of over 200 employees, the company's annual output value has exceeded 400 million yuan. The main business includes a wide range of products such as copper connection pipes, copper-aluminum connection pipes, insulated copper pipes, filters, mufflers, plastic bases for air conditioners and more.
