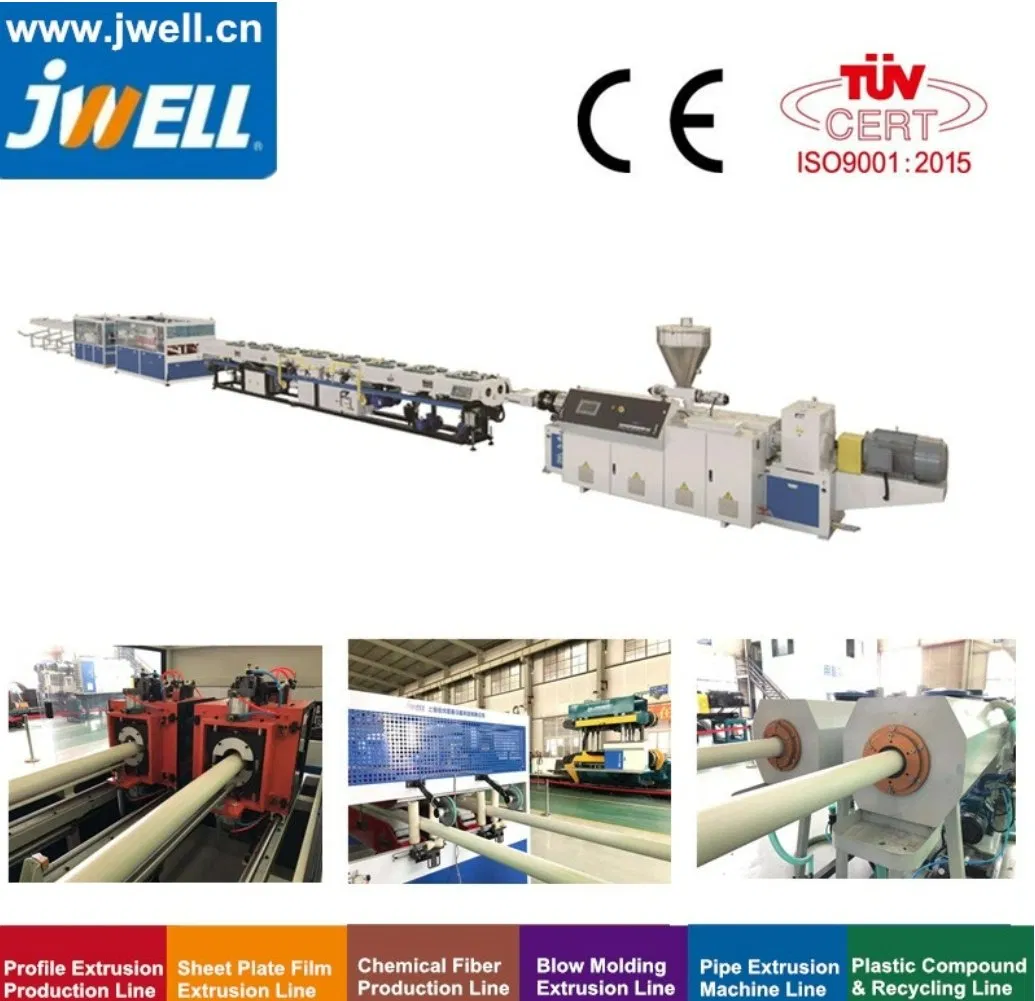

UPVC PPR HDPE LDPE PE Agriculture Irrigation Pipe Making Machine PVC Conduit Electrical Tube Hose Ex

Screw No.	Single-screw
Automation	Automatic
Computerized	Computerized
Certification	CE, ISO9001:2008
Customized	Customized
Condition	New
After-sales Service	Guaranteed for One Year
Extruder	90/33 Extruder
Output Capacity	250 Kg/H
Driving Motor	Servo Drive Motor
Gearbox Driving Motor	AC Motor
Converter	ABB
Barrel Material	38crmoala
Calibrator Sleeve Material	Wearing Resistant Brass
Cutting Style	No-Dust Cutter
Clamping Method	by Pneumatic
Moving Method of Platform	Drive by Servo Motor
Guarantee Period	1 Year and Service Is Available Lifelong
Max Haul-off Speed	20m/Min
Temperature Controller	Rkc or Omron
Controlling System	Siemens PLC Controlling System
Single-Screw Extruder	High- Efficiency Single-Screw Extruder
Transport Package	Pallet
Trademark	JWELL
Origin	China
HS Code	84778000
Production Capacity	Output Capacity Reaches 250 Kg/H

 PPR63 three-layer co-extruded ultra-thick pipe production line Multi-layer PPR/PE Composite Pipe Extrusion line

Properties:
PPR/Glassfiber/PPR pipe is widely used in solar energy, thermal energy circulation system, heating system and water supply, because of its higher pressure and temperature resistance, long service life, high strength and impact resistance, and the prevention of pipe line sagging.
The high-efficiency PPR/HDPE pipe extrusion line, is specially designed by JWELL company, to match PPR/HDPE material characteristics. The lines equipped with self-designed JWS series high- efficiency single-screw extruders, with SIEMENS PLC controlling system, then achieve automatic control of the entire production line from the extruder to the auxiliary machine with high output capacity and reliable extrusion.
The pipes produced by this production line are small -diameter HDPE water supply pipe, gas pipe, PPR, PE-RT, PE-X, PB, etc., which are widely used in the production of pipes of water supply and radiant floor heating for residential buildings, shopping malls, hospitals, stadiums and rural areas.

APPLICATION:

Performance characteristics:
Replacing or adding some units can also produce three or five layers of oxygen-resistant pipes, which can achieve the oxygen-resistant performance of pipes by using the barrier characteristics of EVOH. The production line is independently developed by JWELL Company, which has absorbed the advanced European technology. It has a unique structure, advanced configuration, high degree of automation and simple operation. The extruder screw adopts BM high-efficiency type, with high output, good plasticization, stability and reliability.

Main technical parameter:

JWS Series High Efficiency Single Screw Extruder:

Technical parameters:

Track Hall-off Unit:

Properties: For different pipe diameter and extruder speed requirements, we designed all kinds of the Hall-off unit, have two tracks, three tracks, four tracks, six tracks until up to 16 tracks. The wide adjustable range for the Hall-off unit, running is stable and reliable, and small noise. Each track by a separate asynchronous or servo motor drive, via digital controller keeps the accuracy of the track speed synchronization. The large capacity compression air cylinder, and very long contact lengths between pipe and tracks, can ensure a high friction tractive force. based on the switchable control for the 1/2 tracks, can switch to each other between the big pipe diameter and small pipe diameter, large scope of working for the Hall-off unit.

Technical parameters:

High-speed No-dust cutter/ Automatic Pipe Cutter:

Properties: Mainly used for cutting the HDPE, PP, PPR, PE-RT pipe. No-dust cutter can protect the environment because there is Chipless during the cutting and there is no noise. The cutting surface of the pipe is smooth and elegant. It is suitable for cutting the pipes made of different materials and in different diameters.


High-speed No-dust cutter Technical parameters:

Company's Introduction:
JWELL Machinery was founded in 1997, the vice president of China Plastics Machinery Industry Association, plastic extrusion machinery and the chemical fiber spinning equipment professional manufacturer, the existing Shanghai, Suzhou, Changzhou, Guangdong, Zhoushan 5 production bases, a total area of more than 1,000 acres. Headquartered in Jiading, Shanghai, the company has more than 2300 employees, including more than 480 technical management personnel, and the company has a high-quality R & D team and experienced mechanical, electrical debugging engineers team, as well as an advanced machining base and standardized assembly workshop, the annual production of more than 3000 sets of high-grade plastic extrusion production lines and other equipment.




Zhejiang JWELL Pipe Equipment Co., Ltd. is another important development strategy center and manufacturing base of JWELL Machinery, located in Xieqiao Industrial zone of Haining City, Zhejiang Province. The first phase of the land is 115 acres, and the factory is equipped with advanced parts Computer Numerical Control machining base and standardized assembly workshop, with an annual output of 800 sets of plastic extrusion intelligent equipment. The company focuses on the manufacture of plastic pipe extrusion equipment and a full range of professional technical services, and aims at manufacturing plastic extrusion equipment that meets the needs of middle and high-end users around the world. Strict design, strict standardized manufacturing process, perfect after-sales service guarantee system, to provide users with high efficiency, energy saving, high-quality production line equipment and intimate service.
