Plastic PVC/MPVC/UPVC/CPVC Pipe/Irrigation/Drainage Pipeline

Model NO.	DH-PVC-UH
Water Absorption	1.5%~3.5%
Contraction Percentage	1.5%~5.0%
Tensile Strength	41~50MPa
Product Category	PVC-U Water Supply Pipe
Nominal Pressure	0.63MPa -2.5MPa
Nominal Diameter (DN)	20mm-1000mm
Pipe Length	Pipe Length
Application	Municipal Water Supply/Aquaculture/Reclaim
Density	1350 -1550
Longitudinal Retraction Rate	≤5.0 %
Tensile Yield Strength	≥40 MPa
Elongation at Break	≥80 %
Transport Package	by Truck, by Train, by Sea
Trademark	DHPI
Origin	China
HS Code	3917390000
Production Capacity	500000 Kilometers /Year



Hot Selling Pipes Steel Wire Reinforced PE Composite PipeFiberglass Steel Wire Reinforced Composite PipeHDPE PipePVC Pipe Antistaic Flame Redartant Composite Pipe for MiningAnti-corrosion Composite PipeThermal Insulated PipeBig Carliber Composite Steel Pipe

Product Description

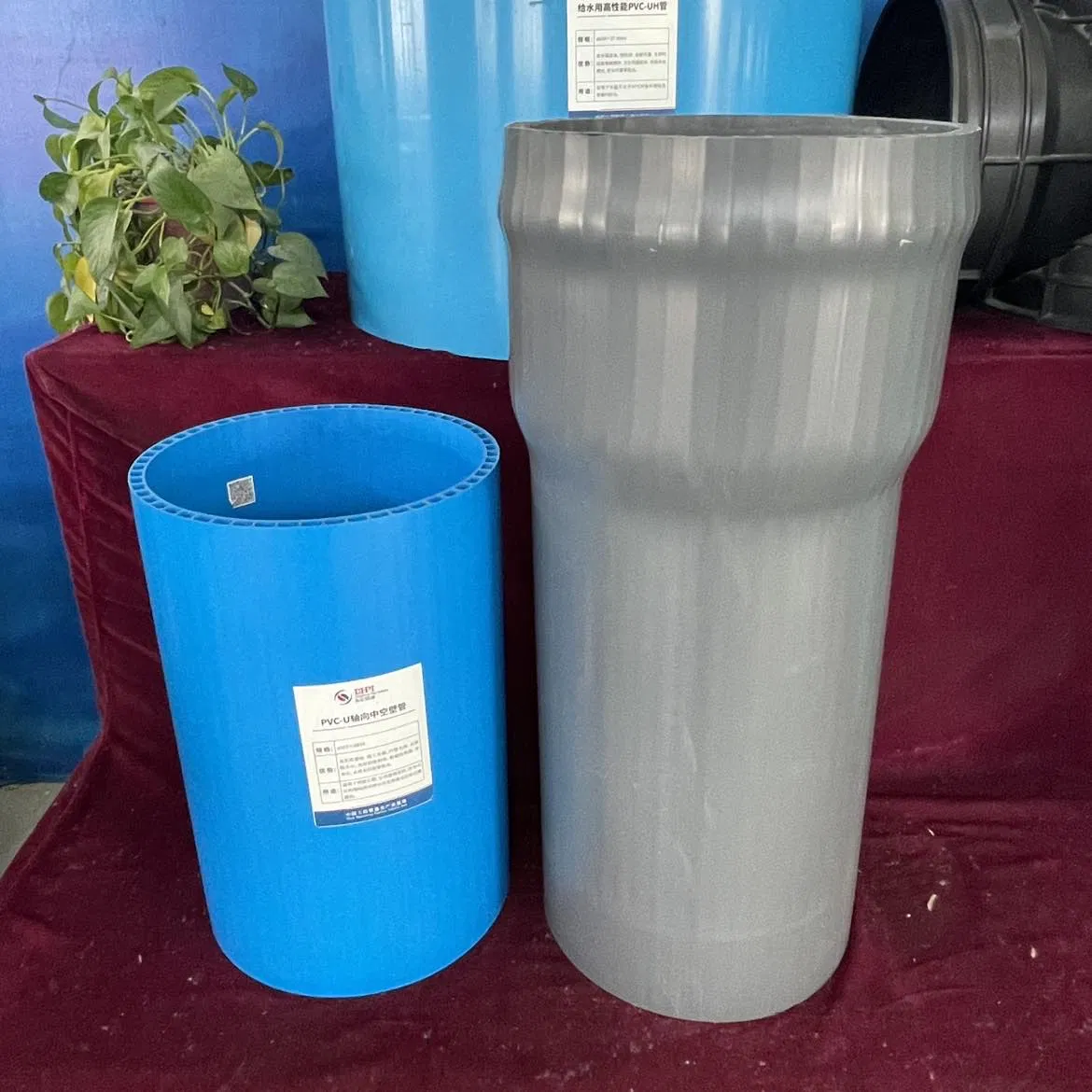

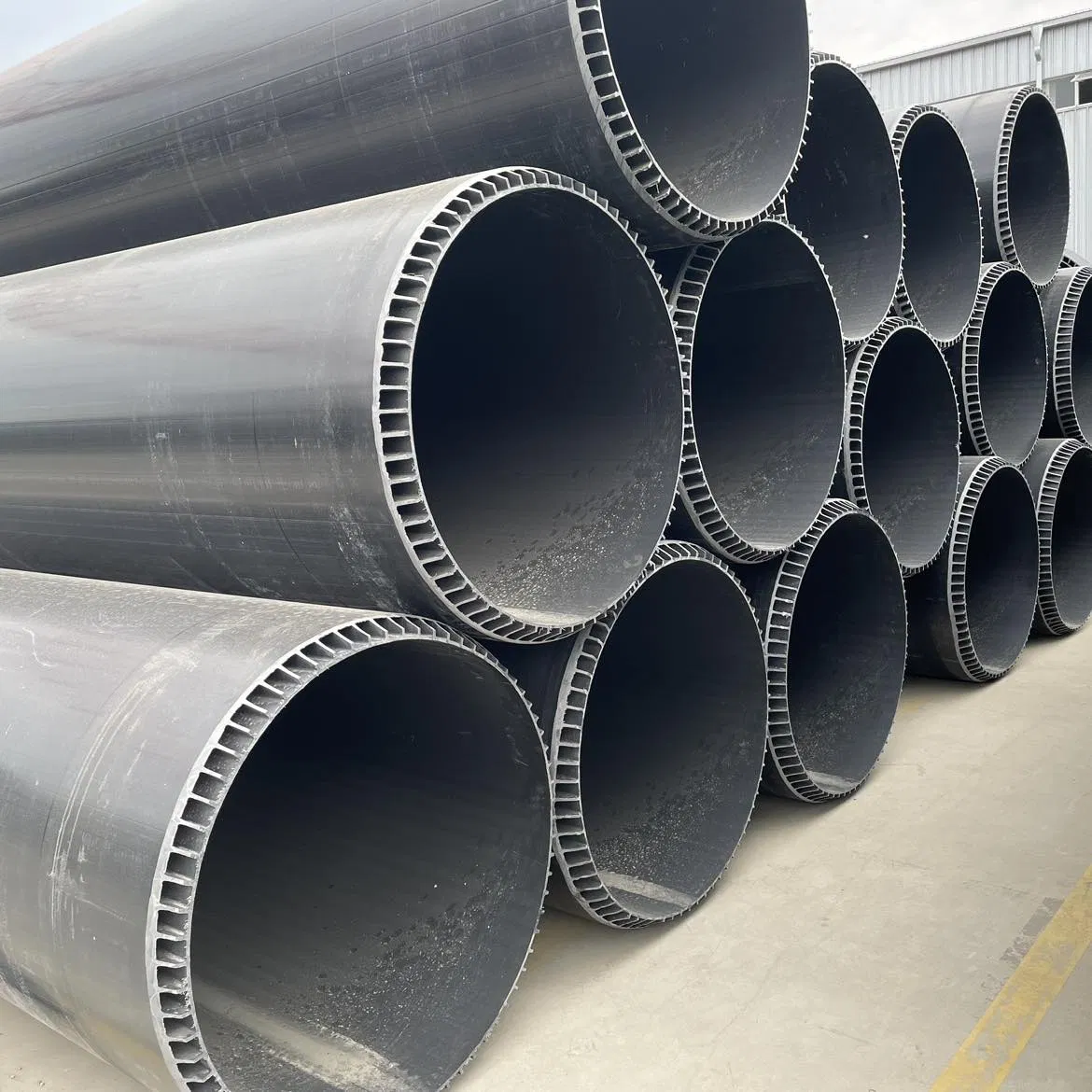

The Double Layer Axial Hollow Pipe, also referred to as double layer axial direction hollow wall pipe, is an innovative piping solution featuring two layers of material with a hollow space in between. This design provides enhanced strength and durability while maintaining a lightweight and flexible construction. The hollow space within the pipe allows for efficient transport of fluids or gases, making it suitable for various applications such as drainage, sewage systems, and cable protection. The double layer design also offers improved resistance to pressure, impact, and environmental factors, ensuring long-term performance and reliability.
The advantsges:
In the case of the same ring stiffness,the hollow wall pipe with optimized structure can save much more raw materials than the slid wall pipe.The product is light in weight,convenient in connection and low in project cost.

Connection Method



The connection method for Double Layer Axial Hollow Pipes typically involves joining the sections of pipe using compatible fittings or couplings specifically designed for this type of piping system. These fittings are often designed to provide a secure and watertight seal between pipe sections, ensuring efficient fluid or gas transfer. Common connection methods include solvent cement welding, mechanical couplings, or compression fittings, depending on the specific requirements of the application and the pipe material. Additionally, some manufacturers may offer proprietary connection systems tailored to their double layer axial hollow pipe products.


Product Advantages

PVC-U is the most common PVC type for pipes and fittings including transportation of drinking water, soil and waste, sewage and underground drainage and industrial applications.

Pipes and fittings made of PVC-U have many benefits. They are a safe choice for transportation of drinking water, light and easy to handle and affordable. Technical properties include high mechanical performance, high durability (at least 100 years for underground pipes), high chemical resistance and resistance to UV exposure. Moreover, PVC-U pipes have favorable environmental profiles and are 100% recyclable.
1.Double-Layer Structure: The pipe consists of two layers - an inner layer and an outer layer - with a hollow space between them, enhancing its structural integrity and durability.
2. Axial Hollow Wall: The axial hollow wall design reduces the overall weight of the pipe while maintaining its strength, making it easier to handle and install.
3. High Strength: Despite its lightweight design, the pipe offers high strength and resistance to external loads, ensuring long-term reliability in underground applications.
4. Corrosion Resistance: Made from high-quality PVC materials, the pipe is resistant to corrosion, rust, and chemical degradation, prolonging its service life even in harsh underground environments.
5. Easy Installation: The lightweight construction and smooth interior surface of the pipe facilitate easy handling, transportation, and installation, reducing labor and installation costs.
6. Versatile Applications: The pipe is suitable for various applications, including stormwater drainage, sewer systems, culverts, and underground utilities, providing versatile solutions for infrastructure projects.



Product Specification

Nomina diameter dn/mmNominal Pressure PN/Mpa                            0.25  0.320.40.50.63 Nominal wall thickness en/mm 75//1.92.32.9 90/1.82.22.83.5 1101.82.22.73.44.2 1252.02.53.13.94.8 1402.22.83.54.35.4 1602.53.24.04.96.2 1802.83.64.45.56.9 2003.23.94.96.27.7 2253.54.45.56.98.6 2503.94.96.27.79.6 2804.45.56.98.610.7 3154.96.27.79.712.1 3555.67.08.710.913.6 4006.37.99.812.315.3 4507.08.811.013.817.2 5007.89.812.315.319.1 5608.811.013.717.221.4 6309.912.315.419.324.1

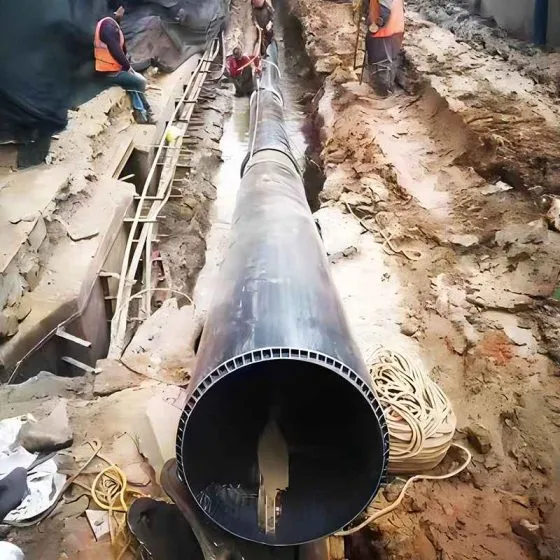

Appliation Cases
