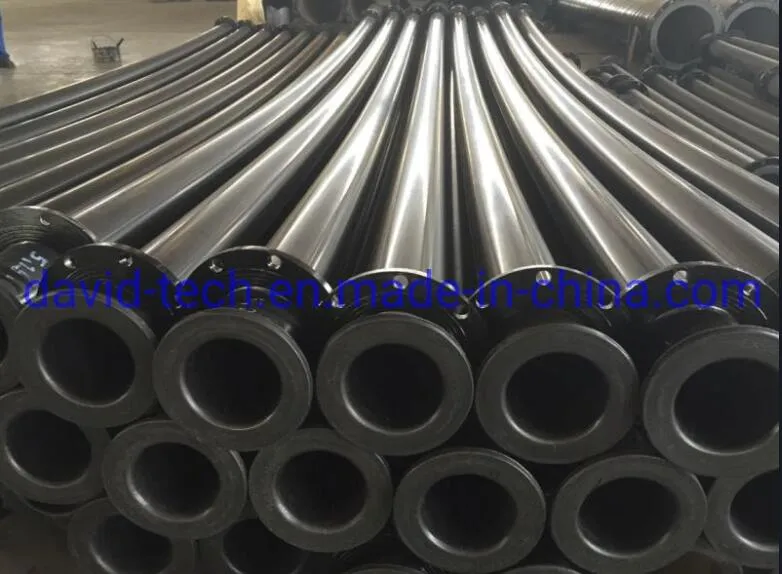

Marine and Dredging Industry UHMWPE/HDPE Sand Mud Oil Floater Pipeline
Detailed specification for Marine and Dredging Industry UHMWPE/HDPE Sand Mud Oil Floater Pipeline
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | DN65-DN800MM |
| MPa Classfication | Ultra High Pressure Piping |
| Standard | API, DIN |
| Medium | Liquid |
| Cross-Section Shape | Round |
| Connection Type | Flange |
| Diameter | 65-800mm |
| Transport Package | Packing |
| Specification | W. P. 6BAR--20BAR |
| Trademark | david-technology |
| Origin | Shandong |
| HS Code | 3917210000 |
| Production Capacity | 300000ton/Year |

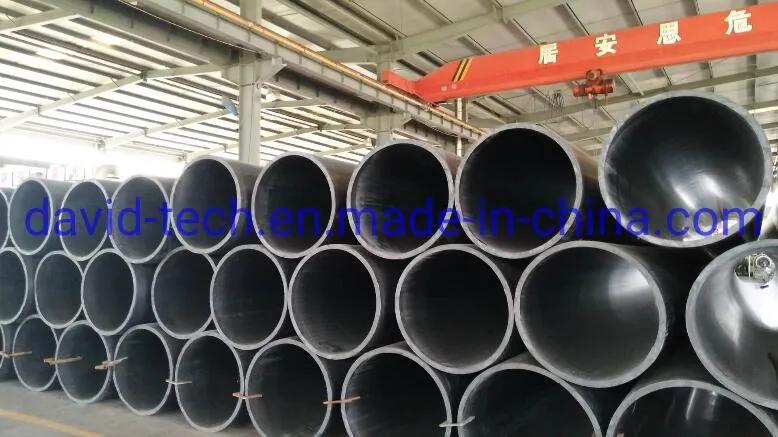

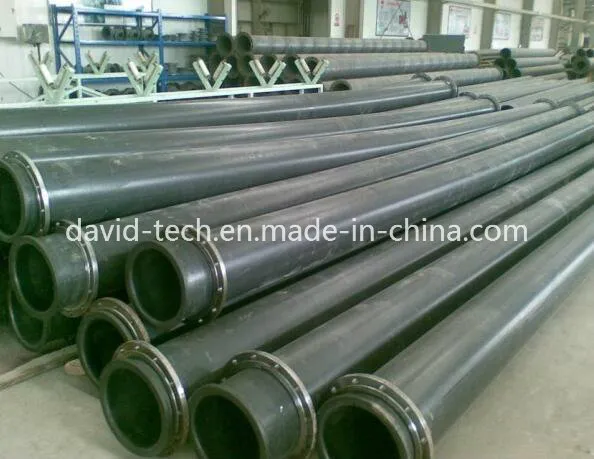

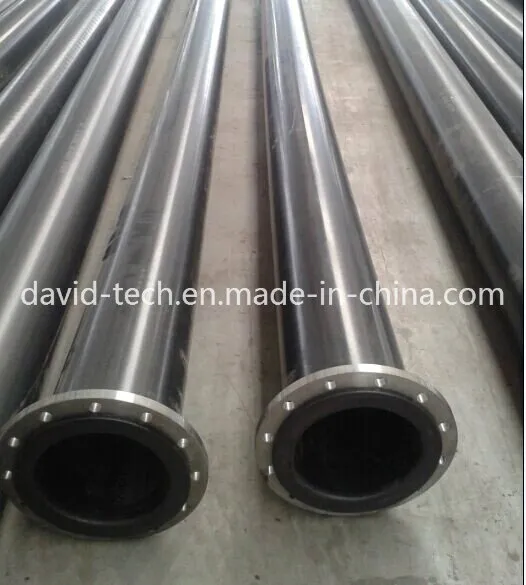

Marine and Dredging Industry UHMWPE/HDPE Sand Mud Oil Floater Pipeline
UHMWPE Pipe
(Ultra High Molecular Weight Polyethylene Pipe)
As a newly-high-tech UHMWPE Pipes ,it almost has all kinds of merits of plastic,and is also an ideal wear-resistant materials, having been widely used in metallurgical works,chemical industry,electric power and many others field both in and broad.
The characteristic of UHMWPE pipes
Anti-abrasion: Under thesame instance, the bulk lost is only the 1/7 of steel piper .
Anti High-pressuer:Its applicableunder the press 0.2Mpa-4.0Mpa.
Anti-corrosion:Because thesolid structure,it can anti-corrosion very well.
From Lubrication:Theabrasionis the least among all the pipes materials .Under the samestance,the presslost is only the steel pipes 1/10,and is only the nylon1/7.
Non-scaling:The internal wall is soslippery that the medium cant deposit on it..
Light Weight:The density is the 1/8 of thesteel.it's easy to convey and install.

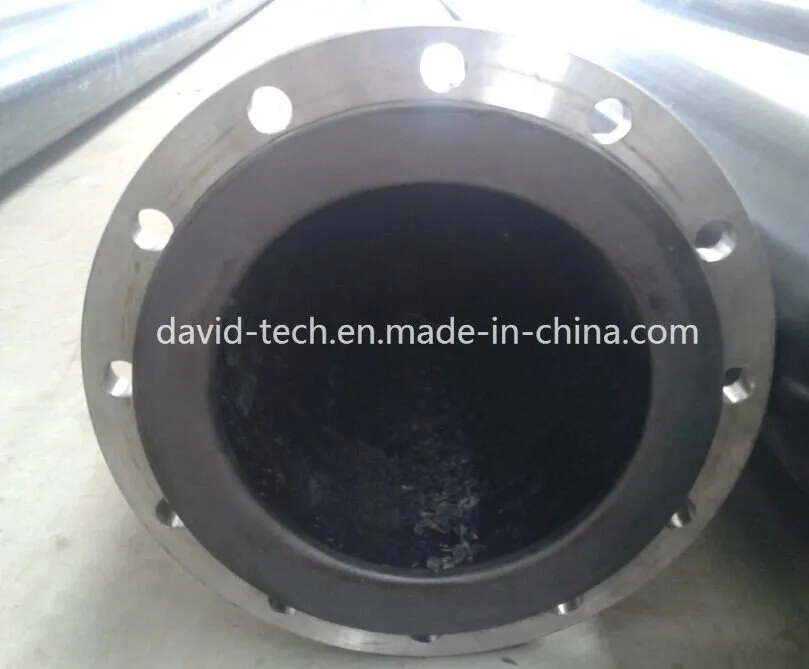

Available to connection: It's weldedby flange or hoop. And it's convey and install.
Anti-aging: There id anti-ultravioletradiation material in the pipes, May use above for 50 years under the burninghot sunlight.
Health&Safety:This kind ofpipe is innocuity.
Temperature-resistance:The pipe canbe used between -70oC--85oC.
Long life: Under the same instance, theused life is the steel pipes 7 times.
1.Performance comparison of UHMW-PE with other materials
Item
Experimental methods
Units
UHMWPE
PA66
PVC
PE
Steel Pipe
Average molecular weight
GB1841
1.5×106
5×105
Density
GB1033
G/Cm3
0.935
1.13-1.15
1.4
0.945
7.8
Water absorption
ASTMD-570
%
0.01
3.8
0.07-0.4
0.01
Melting Point
ISO11357.3
136
255
160
129
Heat distortion temperature0.46MPa
GB1634
85
182-224
54-73
71
Linear expansion coefficient
ASTMD-696
10-4/
1.5
0.8
1.2
Tensile strength
GB/T1040
MPa
39.2
61
40
25
Tensile yield stress
GB/T1040
MPa
22
20
Tensile elongation at break
GB/T1040
%
≥350
60-300
60-120
≥350
The impact on the Gap of simply supported beam
GB/T1043
KJ/m
Continuously
5.9-10.8
10
27
Rockwell hardness
GB/T9342
40
85-120
33
Friction coefficient
Three petrochemical Law
0.05-0.11
0.37
0.4-0.6
0.4
0.58
Wear rate
Three petrochemical Law
%
21
100
210
210
140
Scaling
Non- scaling
Scaling
Corrosion-resistant
Merit
Average
Average
Average
Average
Applications:
1. Dredging Industry: Floating dredge pipe for river channel/sea shore/lake/pond, sand sunction/slurry dredge,
2. Mining industry: mine powder, mine slurry, mine tailings, mine waste rock delivery,
3. Food industry: Grain/Flour/Rice/Beans/Corns transport,
4. Water Drainage: Sewage pipe,
5. Sea engineering: Sea water desalinization, bunder dredging,
6. Chemical industry: mud and corrosive medium with slag delivery,
7. Gase & Oil Industry: Crud oil,petroleum and natural gas transport,
Specifications:

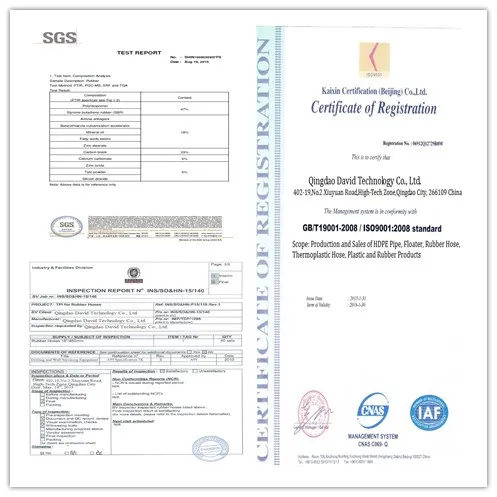

Our Certification:
Some of our oversea clients:
Qingdao David Technology Co., Ltd. located in Qingdao City of Shandong Province, is a professional manufacturer of UHMWPE Pipe in China, we have manufactured and developed it since 2008, with high technology of working experience, we guarantee our products' quality is much more excellent than others.
We know products' quality is company's life, so we are strict in testing all of products before shipping. All of products will be strictly inspected according to quality management system.
Our quality is very excellent and our price is very competitive. We have sold to more than sixty countries, such as North America, South America, Europe, Southeast Asia, Africa, Oceania, Mid East. We wish to cooperate with more customers forever!
Our principle: Excellent Quality, Competitive Price, Best Service,
Sincerely welcome you come to visit our factory at anytime!
