China Factory S355 Q335 St52 20# Special-Shaped Steel Tube Flower Shaped Seamless Steel Pipe for Pto

Model NO.	S355 Q335 ST52 20#
Technique	Cold Drawn
Material	Carbon Steel
Surface Treatment	Galvanized
Usage	Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe, Oil/Gas Drilling, Food/Beverage/Dairy Products, Machinery Industry, Chemical Industry, Mining, Construction & Decoration, Special Purpose
Section Shape	Round
Port of Shipment	Tianjin/Qingdao
Quality	100% Tested
OEM	Accepable
Wall Thickness	1-20 mm
Length	10-1200mm
Transport Package	Standard Marine Packaging
Specification	100-12000mm
Trademark	meide
Origin	Shandong, China
HS Code	7304419000
Production Capacity	1000 Ton/Month

Specially shaped seamless steel pipes are a general term for seamless steel pipes with other cross-sectional shapes except for circular pipes. According to the different cross-sectional dimensions of steel pipes, they can be divided into equal wall thickness irregular seamless steel pipes (code D), unequal wall thickness irregular seamless steel pipes (code BD), and variable diameter irregular seamless steel pipes (code BJ). Specially shaped seamless steel pipes are widely used in various structural components, tools, and mechanical components. Compared to circular pipes, special-shaped pipes generally have larger moments of inertia and cross-sectional modulus, and have greater bending and torsional resistance.

Seamless shaped steel pipe/tube
--Precise custom outer diameter and inner diameter
--Tight tolerances, resulting in reduced machine time / Dimensional accuracy
--Smooth and Clean OD and ID surfaces
--Excellent machining characteristics
--Wider range of physical properties attainable through process and annealing optionsSpecially shaped seamless steel pipes are a general term for seamless steel pipes with other cross-sectional shapes except for circular pipes. According to the different cross-sectional dimensions of steel pipes, they can be divided into equal wall thickness irregular seamless steel pipes (code D), unequal wall thickness irregular seamless steel pipes (code BD), and variable diameter irregular seamless steel pipes (code BJ). Specially shaped seamless steel pipes are widely used in various structural components, tools, and mechanical components. Compared to circular pipes, special-shaped pipes generally have larger moments of inertia and cross-sectional modulus, and have greater bending and torsional resistance.

Seamless shaped steel pipe/tube
--Precise custom outer diameter and inner diameter
--Tight tolerances, resulting in reduced machine time / Dimensional accuracy
--Smooth and Clean OD and ID surfaces
--Excellent machining characteristics
--Wider range of physical properties attainable through process and annealing options


RODUCT NAME

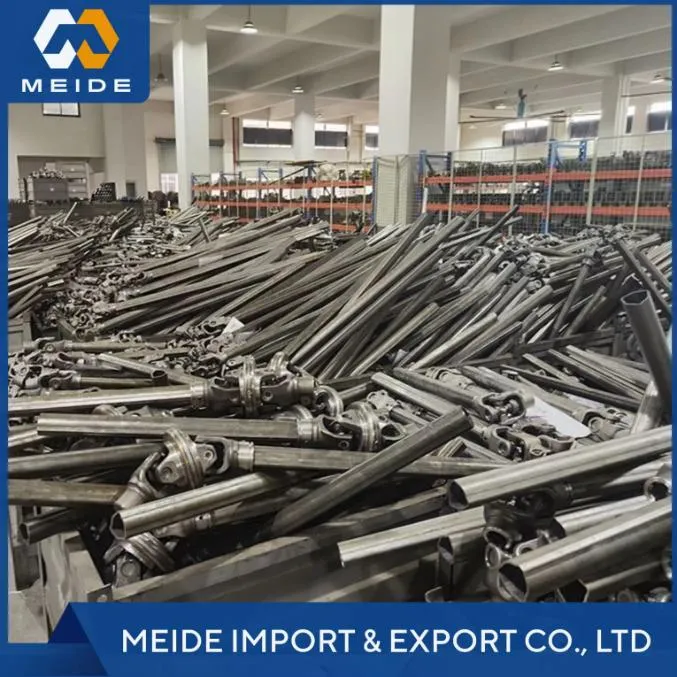

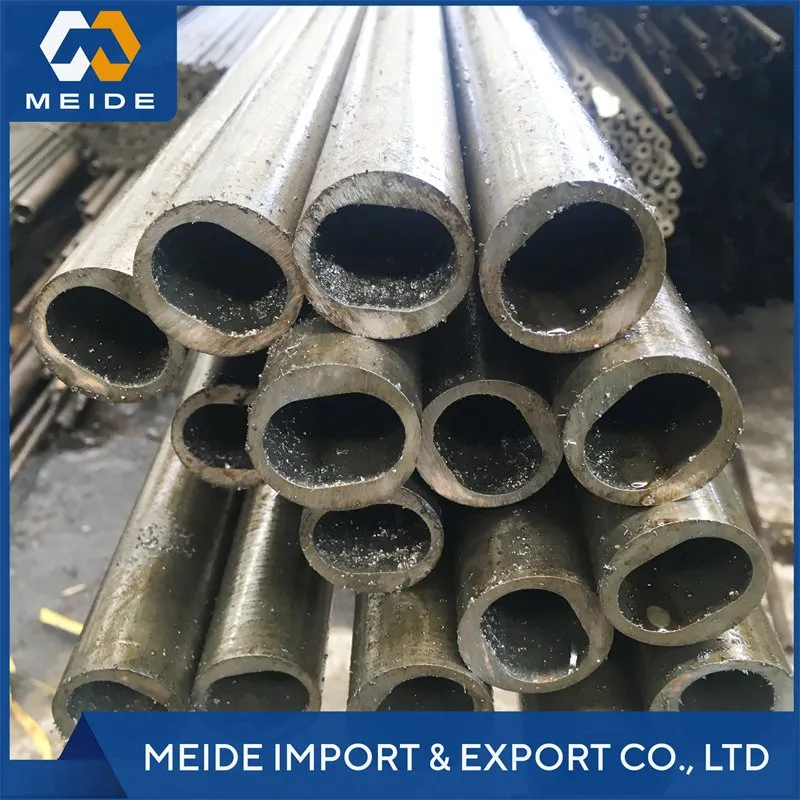

Lemon Tubes for Pto Shaft Seamless Cold Drawn Tubes for harvester transmission

Q195, Q235, Q345; ASTM A53 GRA,GRB; STKM11,ST37,ST52, 16MN,ETC.

WALL THICKNESS

0.6MM~25MM

LENGTH

LENGTH:SINGLE RANDOM LENGTH/DOUBLE RANDOM LENGTH
5M-14M,5.8M,6M,10M-12M,12M OR AS CUSTOMER'S ACTUAL REQUES

STANDARD

JIS G3466, EN 10219, GB/T 3094-2000, GB/T 6728-2002

GRADE

GRADE A, GRADE B, GRADE C

SECTION SHAPE

TRIANGLE

TECHNIQUE

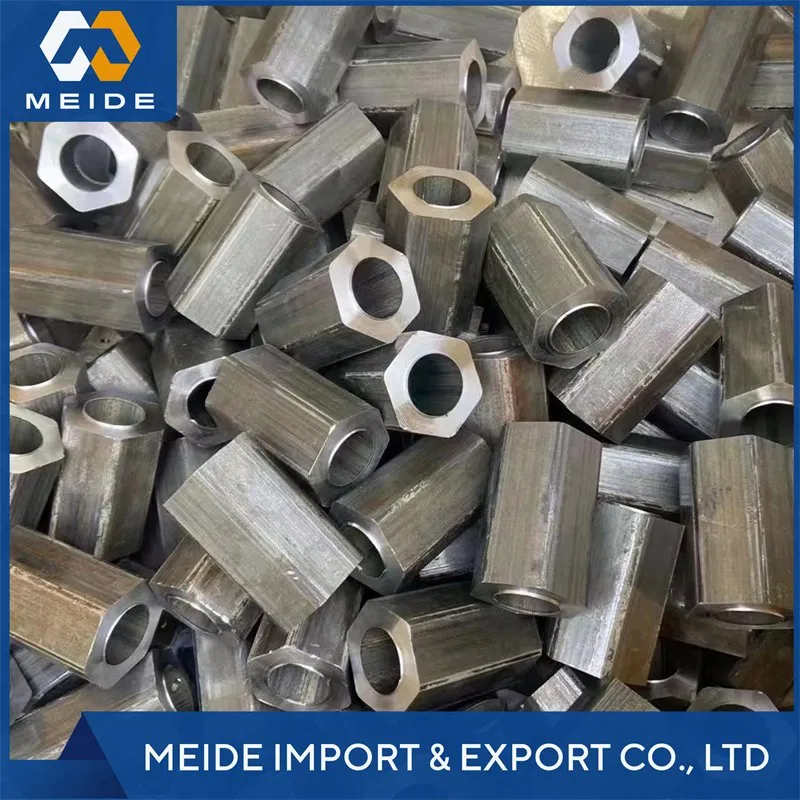

HEXAGON SHAPE STEEL PIPE

PACKING

BUNDLE, OR WITH ALL KINDS OF COLORS PVC OR AS YOUR REQUIREMENTS

ENDS

PLAIN END/BEVELED,PROTECTED BY PLASTIC CAPS ON BOTH ENDS, CUT QUARE,GROOVED,THREADED AND COUPLING,ETC.

MOQ

1 TONS, MORE QUANTITY PRICE WILL BE LOWER

SURFACE TREATMENT

1. GALVANIZED
2. PVC,BLACK AND COLOR PAINTING
3. TRANSPARENT OIL,ANTI-RUST OIL
4. ACCORDING TO CLIENTS REQUIREMENT

BRAND

MEIDE

CERTIFICATES

API ISO9001-2008,SGS.BV

DELIVERY TIME

USUALLY WITHIN 10-45 DAYS AFTER RECEIPT OF ADVANCE PAYMENT



Grade

C

Si

Mn

Cr

Ni

Mo

P

S

Cu

≤

20Mn2

0.17-0.24

0.17-0.37

1.40-1.80

≤0.30

≤0.30

≤0.10

0.030

0.030

0.30

SMn420

0.17-0.23

0.15-0.35

1.20-1.50

≤0.35

≤0.25

0.030

0.030

0.30

1524

0.19-0.25

0.15-0.30

1.35-1.65

-

-

0.040

0.050

0.20

22Mn6

0.18-0.25

0.10-0.40

1.30-1.65

≤0.40

≤0.40

≤0.10

0.025

0.035

0.30

20SiMn2MoV

0.17-0.23

0.90-1.20

2.20-2.60

≤0.30

≤0.30

0.30-0.40

0.030

0.030

0.30

15Cr

0.12-0.17

0.17-0.37

0.40-0.70

0.70-1.00

≤0.30

≤0.10

0.030

0.030

0.30

15X

0.12-0.18

0.17-0.37

0.40-0.70

0.70-1.00

≤0.30

-

0.035

0.035

0.30

SCr415

0.13-0.18

0.15-0.35

0.60-0.90

0.90-1.20

≤0.25

-

0.030

0.030

0.30

5115

0.13-0.18

0.15-0.35

0.70-0.90

0.70-0.90

-

-

0.040

0.040

-

17Cr3

0.14-0.20

0.15-0.40

0.60-0.90

0.70-1.00

-

-

0.025

0.035

0.40

1.7016

0.14-0.20

≤0.30

0.60-0.90

0.70-1.00

-

0.025

0.025

0.25

20Cr

0.18-0.24

0.17-0.37

0.50-.080

0.70-1.00

≤0.30

≤0.10

0.030

0.030

0.30

20X

0.17-0.23

0.17-0.37

0.50-0.80

0.70-1.00

≤0.30

0.035

0.035

0.30

SCr420

0.18-0.23

0.15-0.35

0.60-0.90

0.90-1.20

≤0.25

0.030

0.030

0.30

5120

0.17-0.22

0.15-0.35

0.70-0.90

0.70-0.90

0.040

0.040

-

20Cr4

0.17-0.23

0.15-0.40

0.60-0.90

0.90-1.20

0.025

0.035

0.40

40Cr

0.37-0.44

0.17-0.37

0.50-0.80

0.80-1.10

≤0.30

≤0.10

0.030

0.030

0.30

40X

0.36-0.44

0.17-0.37

0.50-0.80

0.80-1.10

≤0.30

-

0.035

0.035

0.30

SCr440

0.38-0.43

0.15-0.35

0.60-0.90

0.90-1.20

≤0.25

-

0.030

0.030

0.30

5140

0.38-0.43

0.15-0.35

0.70-1.20

0.70-0.90

-

-

0.040

0.040

-

41Cr4

0.38-0.45

0.10-0.40

0.90-1.20

0.90-1.20

-

-

0.025

0.035

0.40

1.7035

0.38-0.45

-

0.90-1.20

0.90-1.20

-

-

0.025

0.025

0.25

50Cr

0.47-0.54

0.17-0.37

0.50-0.80

0.80-1.10

≤0.30

≤0.10

0.030

0.030

0.30

50X

0.46-0.54

0.17-0.37

0.50-0.80

0.80-1.10

≤0.30

-

0.035

0.035

0.30

5150

0.48-0.53

0.15-0.35

0.70-0.90

0.70-0.90

-

-

0.040

0.040

-



^{--Precise custom outer diameter and inner diameter
--Tight tolerances, resulting in reduced machine time / Dimensional accuracy
--Smooth and Clean OD and ID surfaces
--Excellent machining characteristics}

^{--Wider range of physical properties attainable through process and annealing options}

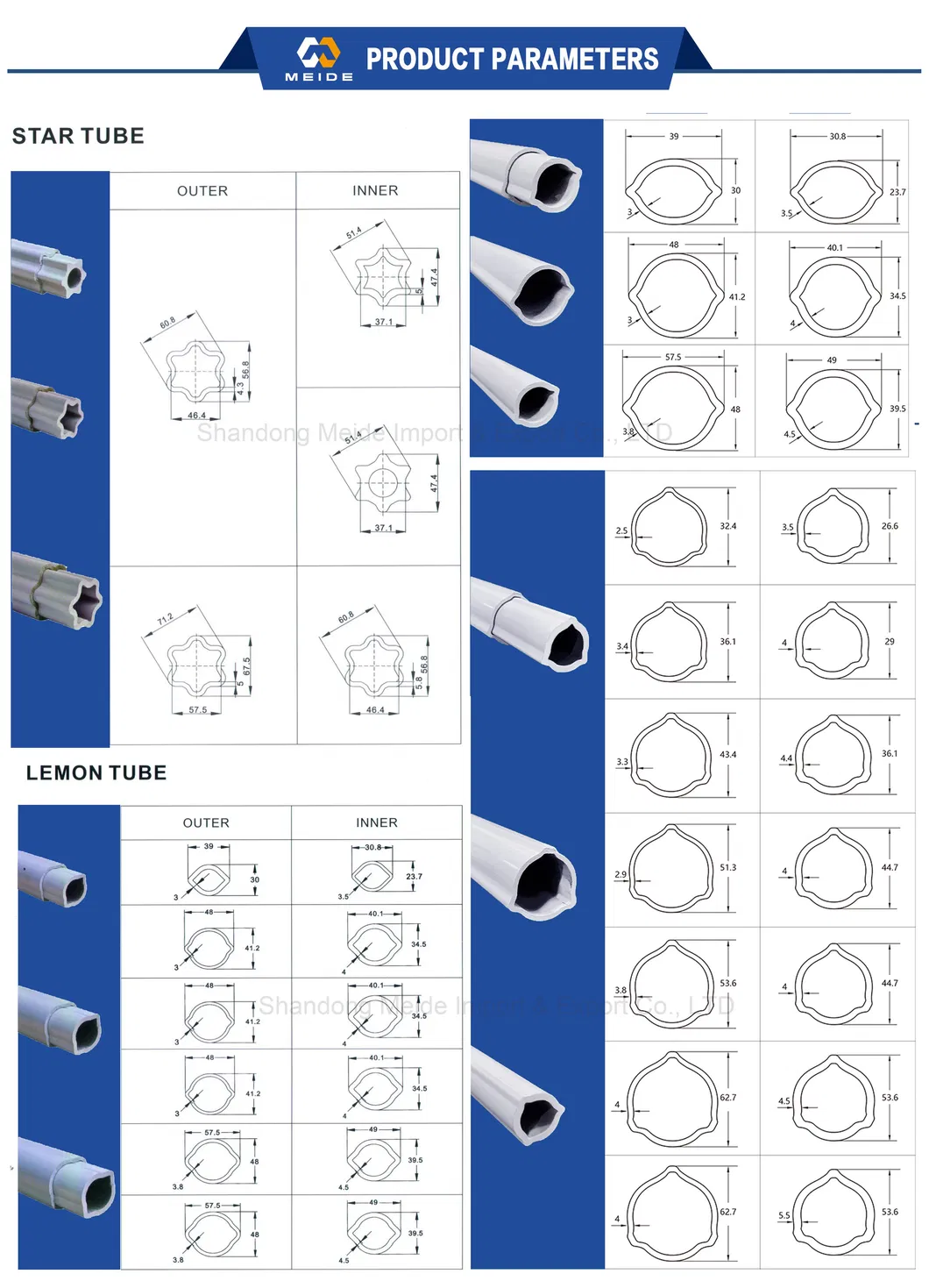

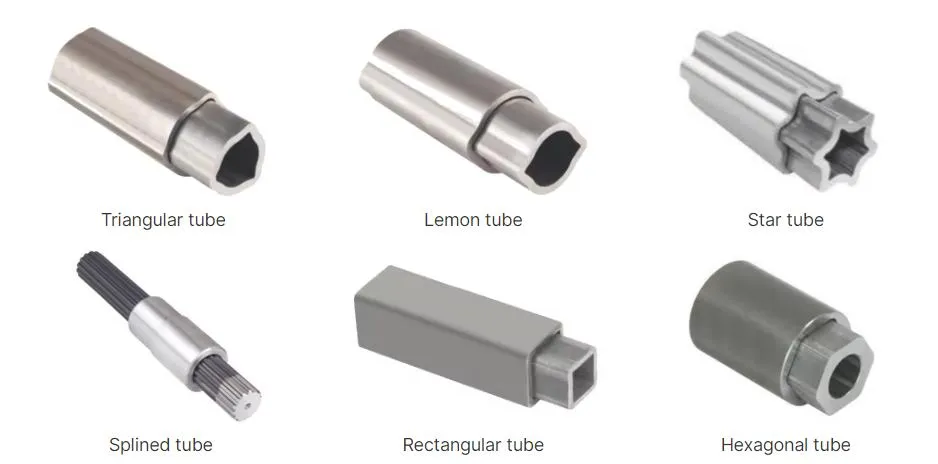

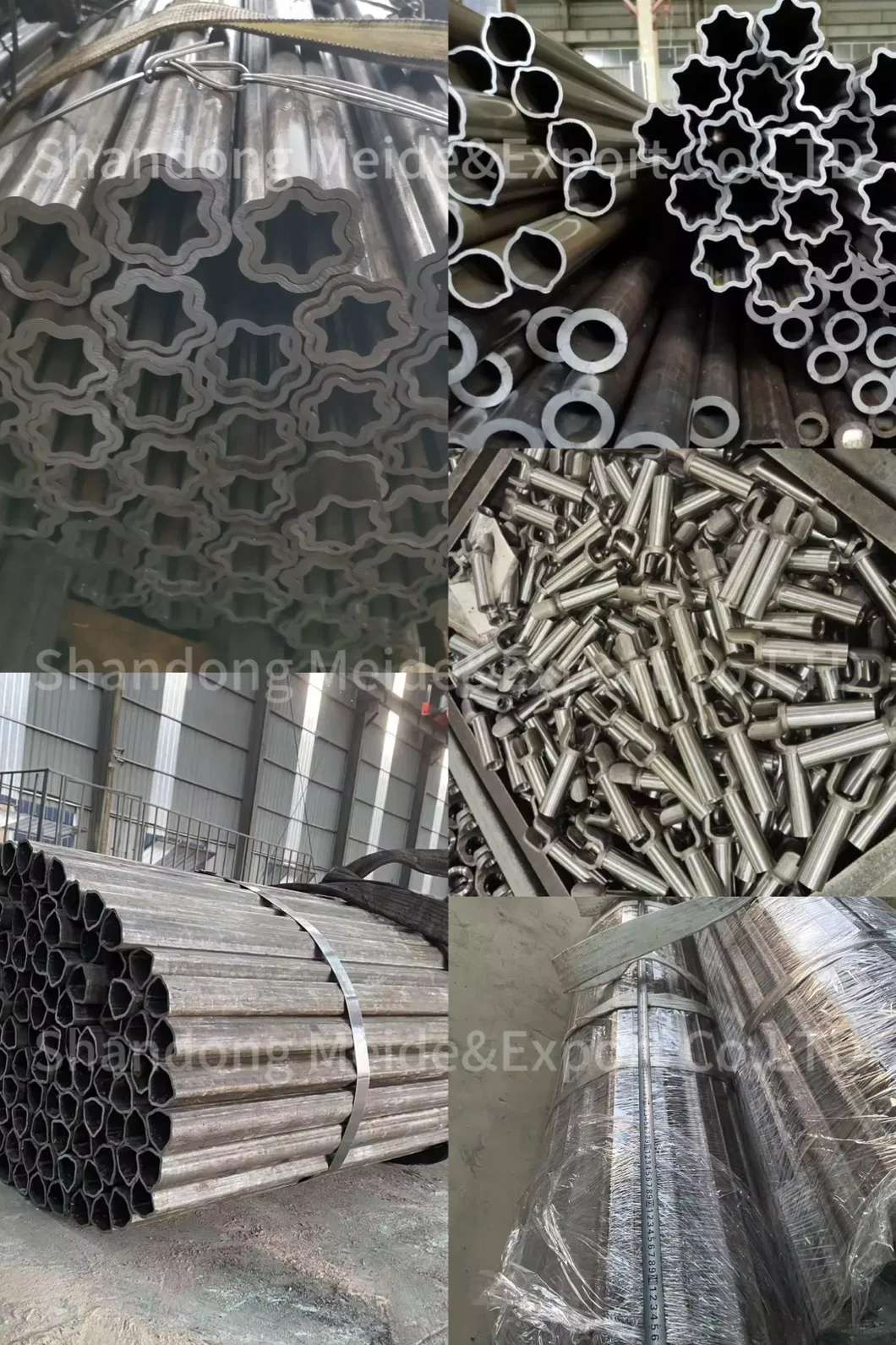

We've already got Triangular profile tube and Lemon profile tube for all the series we provide.

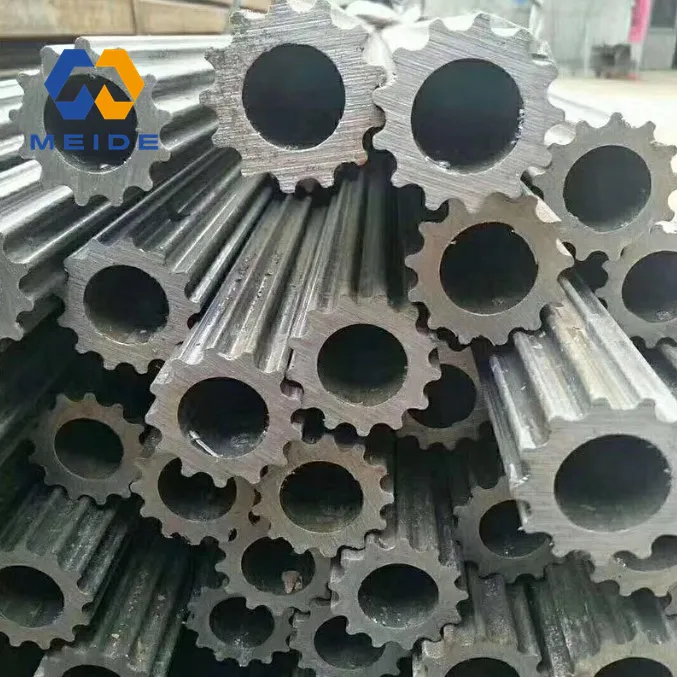

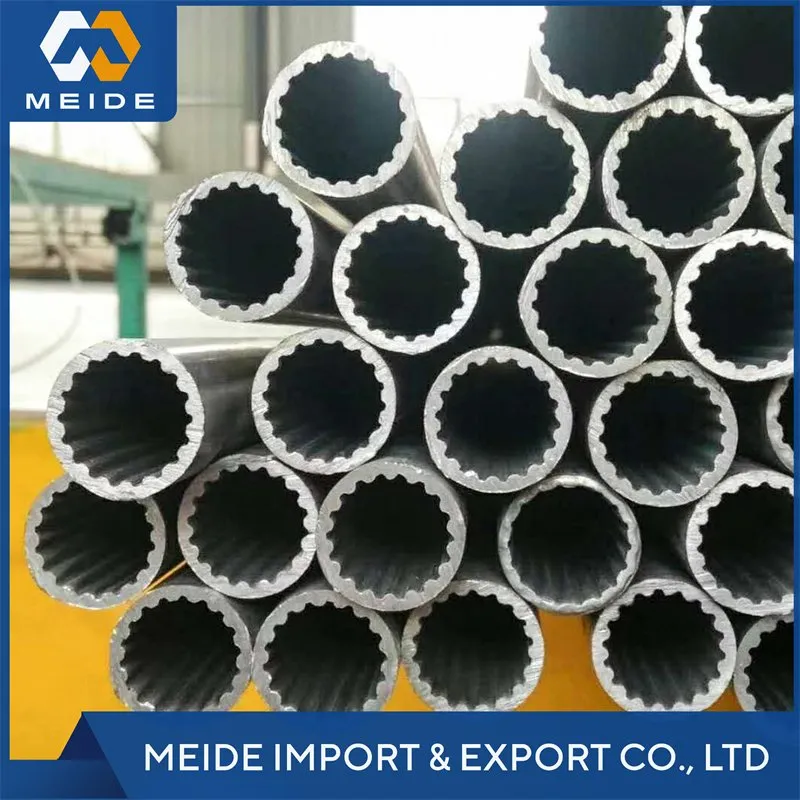

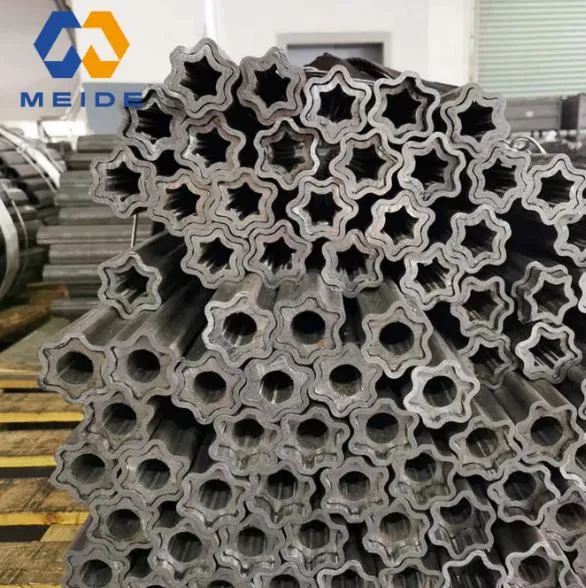

And we have some star tube, splined tube and other profile tubes required by our customers (for a certain series). (Please notice that our catalog doesnt contain all the items we produce)
If you want tubes other than triangular or lemon, please provide drawings or pictures.

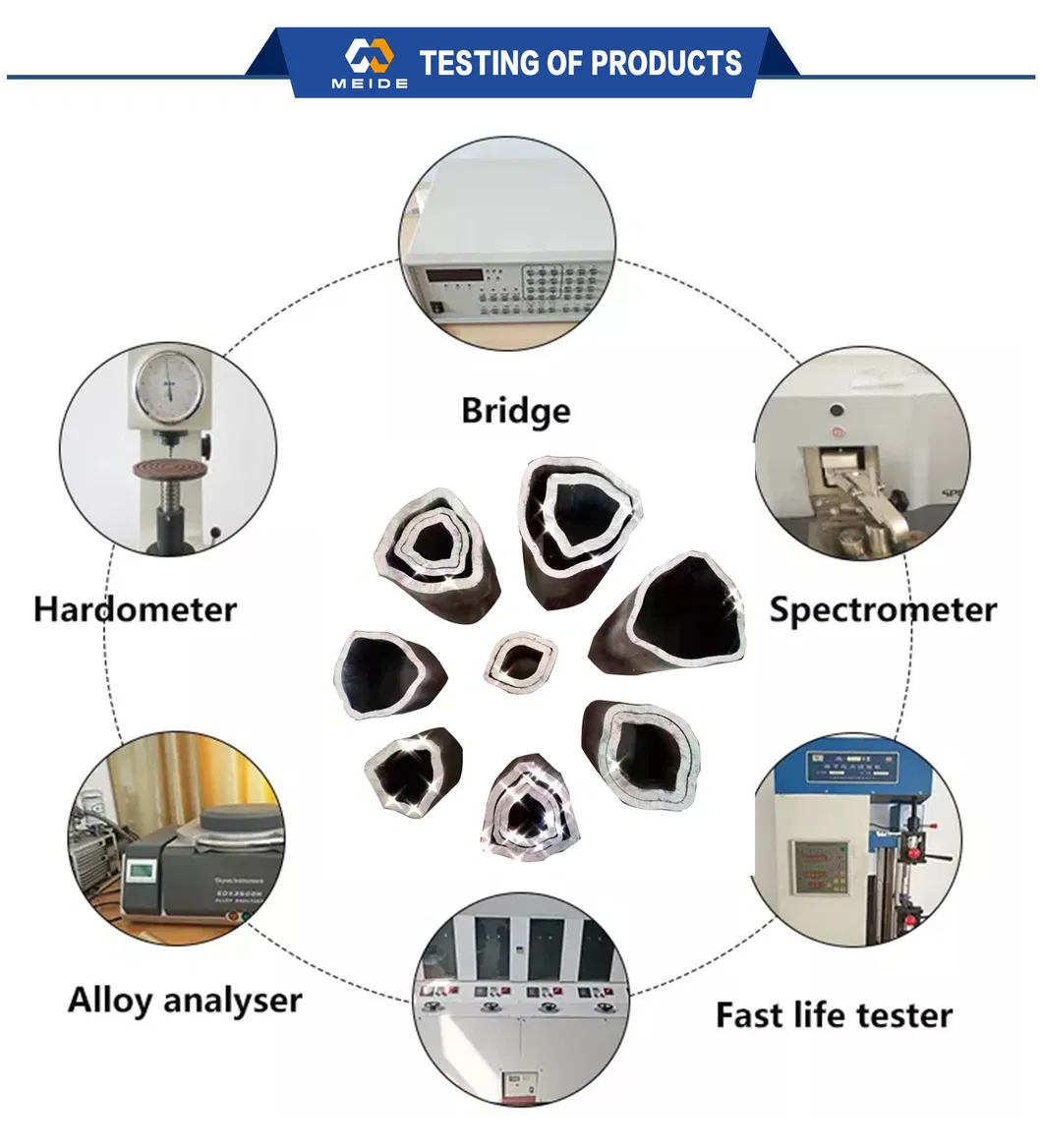

Triangle Steel Tube

Outer (mm)

Inner (mm)

H

S

H

S

1S

32.4

2.5

26.6

3.5

2S

36.1

3.4

29

4

4S

43.4

3.3

36.1

4.4

5S

51.3

2.9

44.7

4

6S

53.6

3.8

44.7

4

7S

53.6

3.8

44.7

5.5

8S

62.7

4

53.6

4.5

9S

62.7

4

53.6

5.5

1. For the storage of special-shaped steel pipe products, the site or warehouse should be selected in a clean and tidy place with smooth drainage, and away from factories and mines with harmful gases or dust. The ground should be cleaned of weeds and all debris to maintain the cleanliness of the steel.
2. In the warehouse, it is not allowed to stack materials that have a corrosive effect on steel, such as acid, alkali, salt, and sensitive soil. Different types of steel should be classified and stacked to avoid confusion and contact with corrosive objects.
3. Large steel pipes, rails, steel plates, large-diameter steel pipes, forgings, etc. can be stacked outdoors.
4. Small and medium-sized shaped steel, wire rods, steel bars, medium diameter steel pipes, steel wires, and wire ropes can be stored and placed in a well ventilated material shed, and it is important to remember to cover the top and cushion the bottom.
5. Small scale steel, thin steel plates, steel strips, small diameter or irregular steel pipes, various cold-rolled and cold-drawn steels, as well as expensive and easily corrosive metal products, can be stored and placed in storage.
6. The warehouse should be selected based on geographical conditions, and ordinary closed warehouses should be used when deemed appropriate, that is, warehouses with roofs, walls, tight windows, and ventilation devices.
7. The warehouse requires frequent maintenance of a suitable storage background, with attention to ventilation on sunny days and closed to prevent moisture on rainy days.
