3PE/3lpe Composite API Carbon Steel Tubing for Heavy-Duty Oil and Gas Pipeline Construction

Hot Selling Pipes Steel Wire Reinforced PE Composite Pipe Fiberglass Steel Wire Reinforced Composite Pipe HDPE Pipe PVC Pipe Antistaic Flame Redartant Composite Pipe for Mining Anti-corrosion Composite Pipe Thermal Insulated Pipe Big Carliber Composite Steel Pipe

Product Description

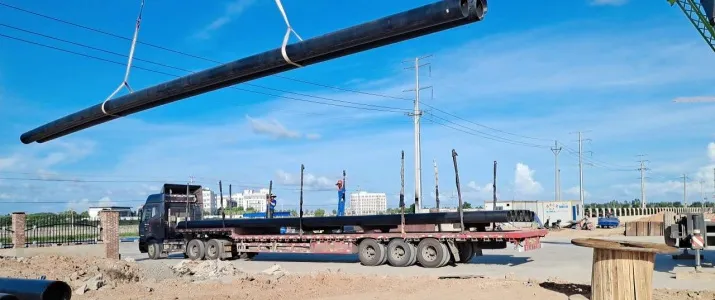

Transportation: Pipes are indispensable for the efficient, long-distance transportation of oil, gas, and related commodities. Our large-diameter transmission pipelines are pivotal in moving crude oil, natural gas, and refined products from production fields to refineries, processing facilities, and distribution hubs. This ensures an uninterrupted flow of energy and resources, enhancing operational efficiency.

Epoxy & Plastic Coated Anti-Corrosion Steel Pipe: Meticulously engineered to perform under diverse working conditions, these pipes can be tailored with various anticorrosive treatments. Perfect for buried installations, trenchless traction, pipe jacking, and open-air applications, the following anticorrosive solutions are available to cater to specific requirements:
- Buried: These pipes feature inner epoxy with outer PE, inner epoxy with outer 3PE, inner epoxy with outer 3PP, and inner & outer epoxy coatings, ensuring superior protection.
- Pipe Jacking: Designed with inner epoxy and outer 3PE, inner epoxy and outer 3PP, and inner epoxy with double-layer epoxy coatings, these pipes ensure optimal performance and durability.
- Trenchless Traction: Crafted for peak performance, these pipes include inner epoxy with outer 3PE, inner epoxy with outer 3PP, and inner epoxy with double-layer epoxy coatings.
- Open-Air Application: Constructed with inner epoxy and outer anti-UV coatings, these pipes are built to withstand environmental exposure and ensure longevity.

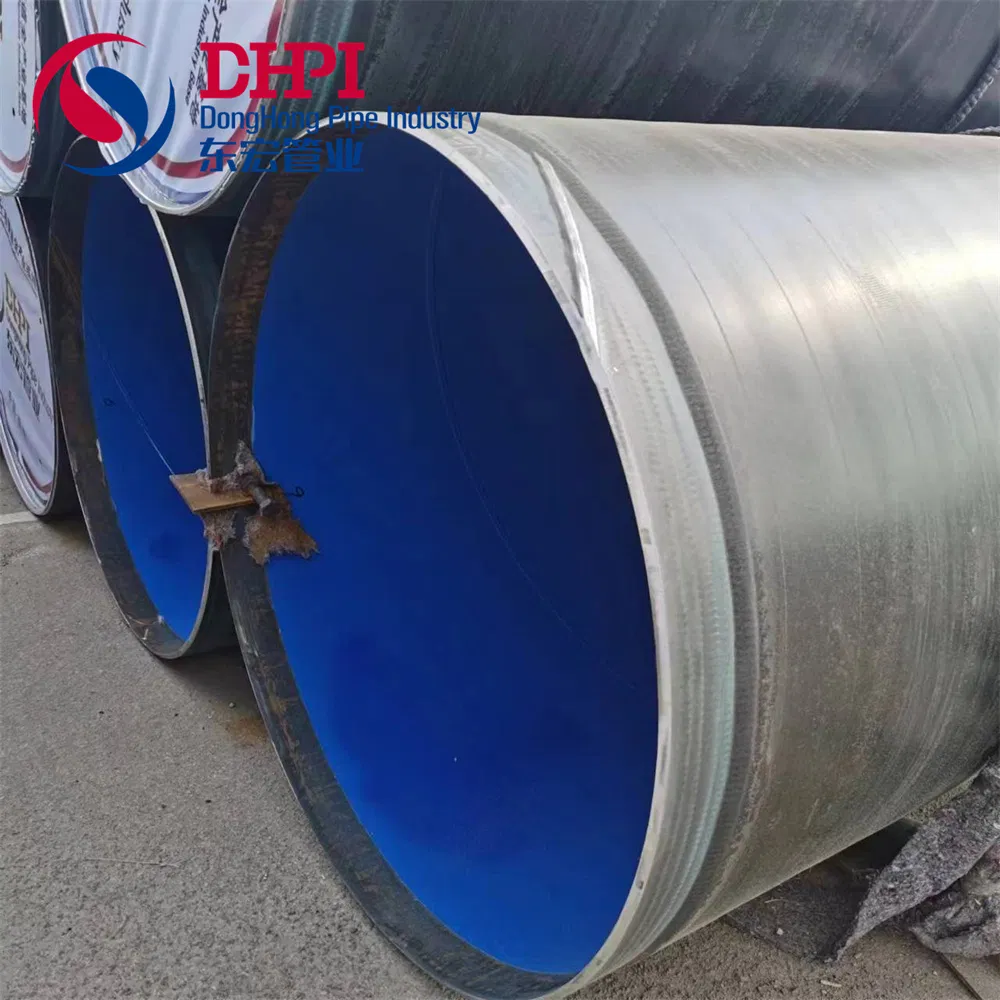

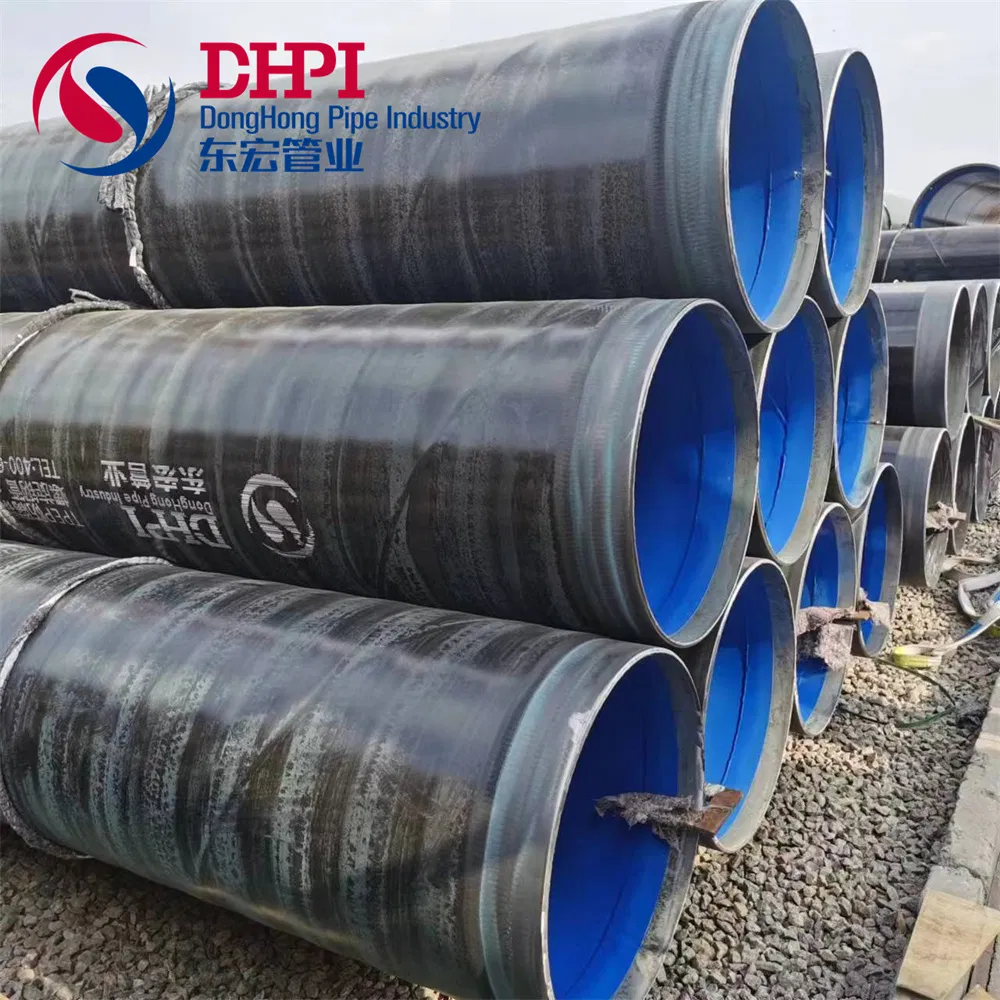

Inner Epoxy Resin Outer Polyethylene Coating Composite Steel Pipe: This specially pre-treated steel pipe boasts an inner surface coated with fusion-bonded epoxy powder and an outer surface coated with polyethylene powder. The result is a steel-plastic composite that offers exceptional corrosion resistance and outstanding performance in demanding environments.

Connection Method

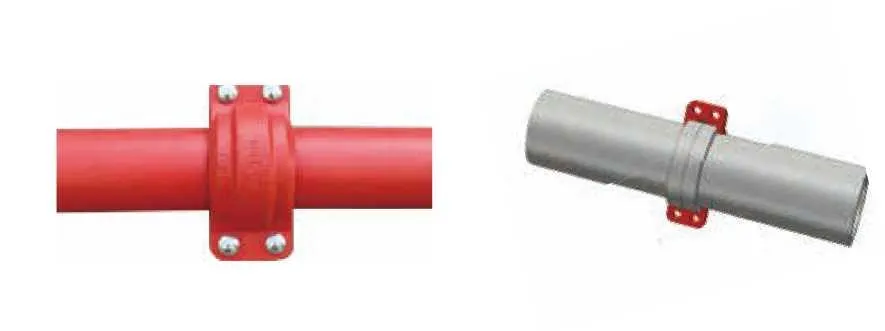

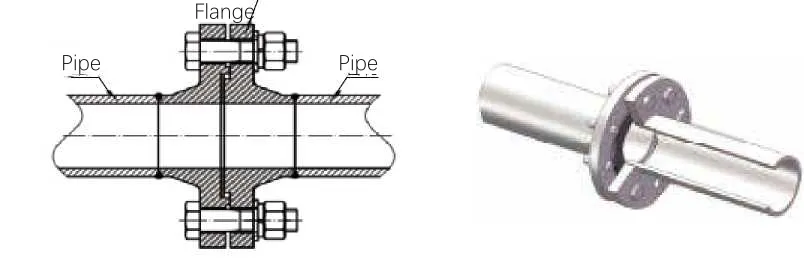

Clamp Connection Flange Connection

Product Features

Highly compatible and remarkably convenient connection
The inner and outer layers of our double-layer epoxy coating are meticulously crafted with high-quality epoxy resin. This ensures exceptional compatibility between both layers. Our solvent-free epoxy coating, a patented technology, offers unparalleled compatibility and outstanding corrosion resistance.

Superior Cathodic Protection
Our double-layer epoxy coating seamlessly integrates with cathodic protection systems, ensuring no interference and optimal performance.

Exceptional Flexibility and Resistance to Bending
Crafted from high molecular weight epoxy resin, our coating material boasts superior flexibility and exceptional resistance to bending.

Robust Scratch Resistance
The outer layer features a modified epoxy coating enhanced with specialized scratch-resistant materials, providing excellent scratch resistance.

Remarkable High Temperature Resistance
Our double-layer epoxy anticorrosive steel pipes can endure temperatures up to 110ºC, maintaining integrity under high temperature conditions.

Product Advantages

1. Our pipeline range includes calibers from DN50 to DN3600, with each piece available in lengths from 6 to 16 meters.
2. Equipped with 2 advanced powder coating production lines and 12 twin-screw extruders, we boast comprehensive R&D capabilities in powder coating and polyethylene material modification.

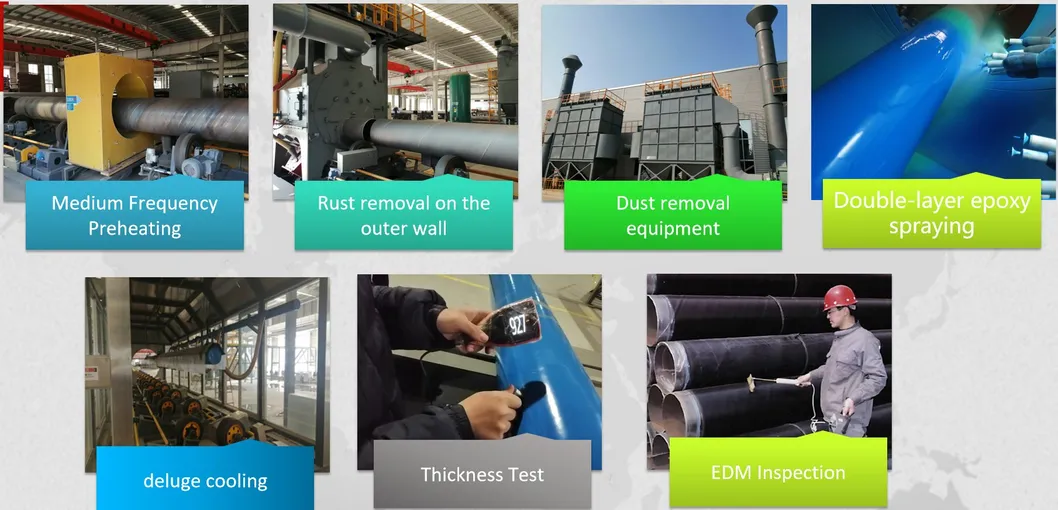

3. We are the leading manufacturer of diverse powder anticorrosion processes, offering multiple techniques such as suction coating, spraying, rolling coating, and dip coating.
4. We stand alone in the nation, integrating large-caliber steel pipe production, anti-corrosion processing, and anti-corrosion material manufacturing within a single enterprise.
5. Our socket-type anti-corrosion steel ensures utmost safety and reliability.

Product Specification

Nominal Diameter/ mm Inner Coating Layer /mm Outer coating layer,mm Ordinary level Strengthen level DN ≤65 >0.3 >0.6 >0.8 65≤DN≤150 >0.35 >0.8 >1.0 150≤DN≤300 >0.35 >0.8 >1.2 300≤DN≤800 >0.4 >1.0 >1.3 800≤DN≤1200 >0.45 >1.2 >1.8 1200≤DN≤3600 >0.45 >1.5 >1.8 Note: can be customized as customer's needs.

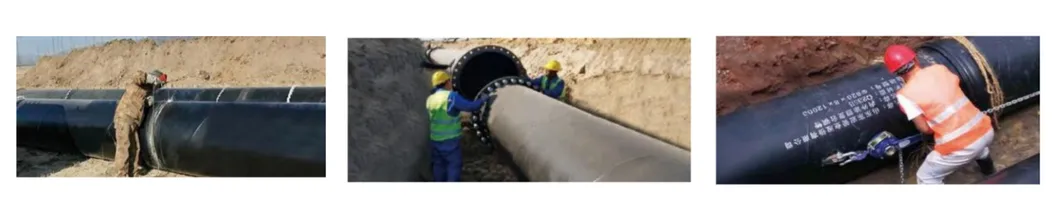

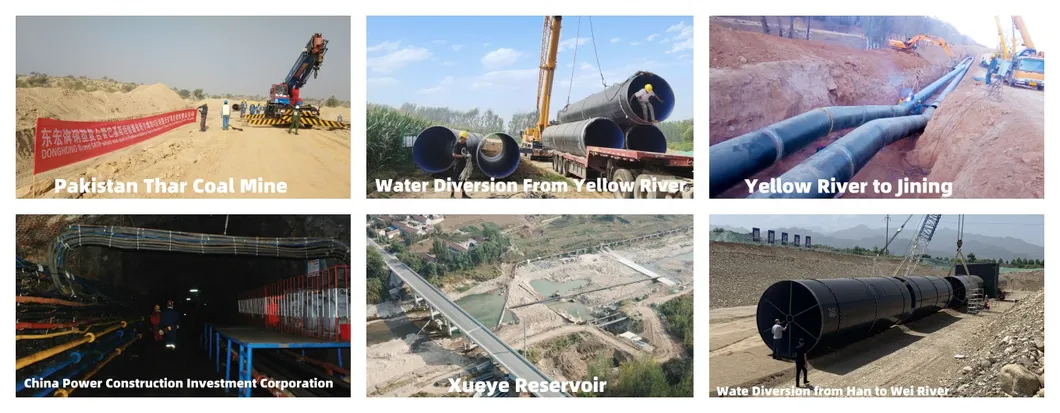

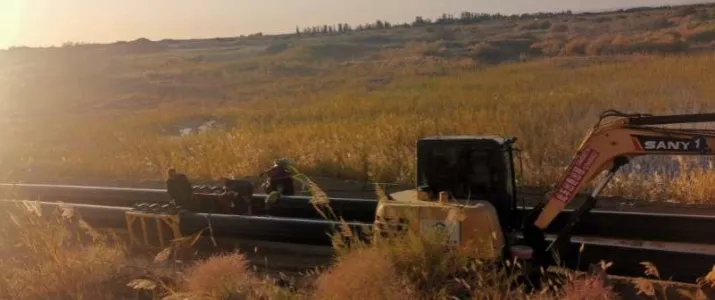

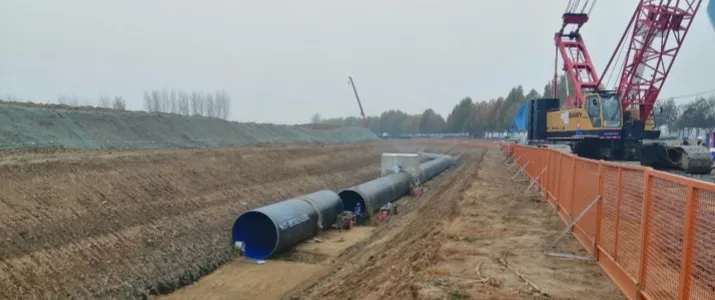

Appliation Cases

Certifications
