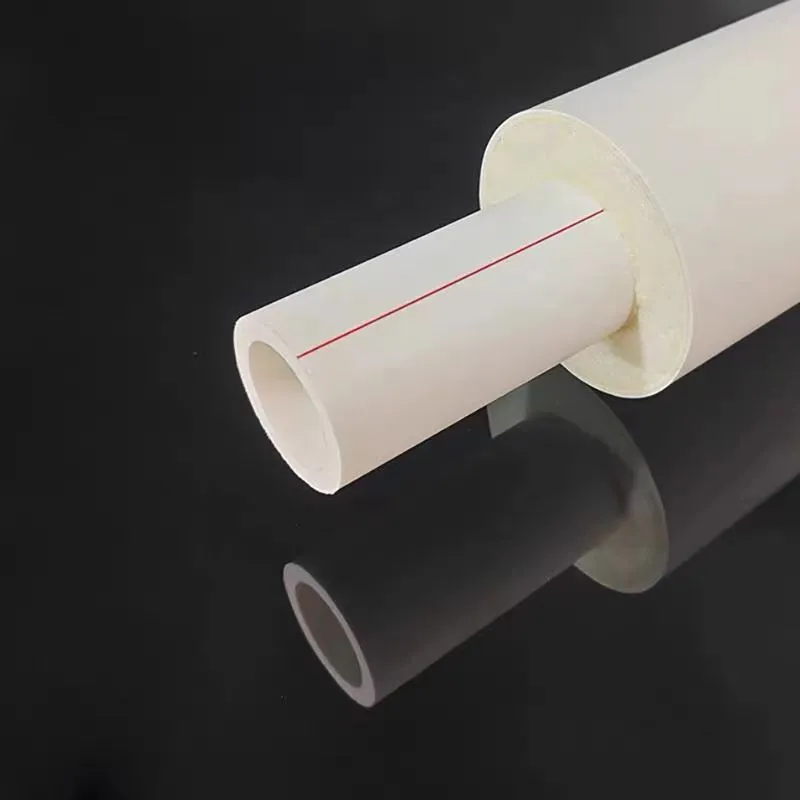

PPR Cold and Hot Insulation Pipe Three-Layer Integrated PVC Polyurethane Insulation Pipe
Detailed specification for PPR Cold and Hot Insulation Pipe Three-Layer Integrated PVC Polyurethane Insulation Pipe
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | Insulation Pipe |
| Type | Thermoplastic Pipe |
| Color | Color |
| Hollow | Hollow |
| Shape | Round |
| Usage | Water Supply Pipe, Threading Pipe |
| Sample | Provide Free Sample |
| Manufacturer | Yes |
| Certification | ISO9001 |
| Transport Package | Woven Bag or Carton |
| Specification | ppr+polyurethane+pvc |
| Trademark | Fosite |
| Origin | China |
| HS Code | 3917210000 |
1.It can be directly buried, with a short time and low cost
It has strong waterproof and anti-corrosion performance and can be directly buried underground or in water, which is necessary for all kinds of traditional insulation pipes
Attached pipe trenches are provided. This makes the project simpler, shortens the time and reduces the cost.
2.Longer service life
The service life is longer. After testing, the service life of polyurethane insulation pipes can reach 30 to 50 years, which is significantly reduced
The cost of replacing or repairing the hot water pipeline network.
3.Strong heat preservation performance
The insulation performance is more prominent. Data shows that the heat loss of polyurethane insulation pipes is only that of traditional insulation
5% of the pipe material can save a large amount of energy while significantly reducing costs.
4.Can withstand high temperatures
It has excellent mechanical energy and thermal insulation performance, and can usually withstand temperatures up to 95℃ under normal circumstances.

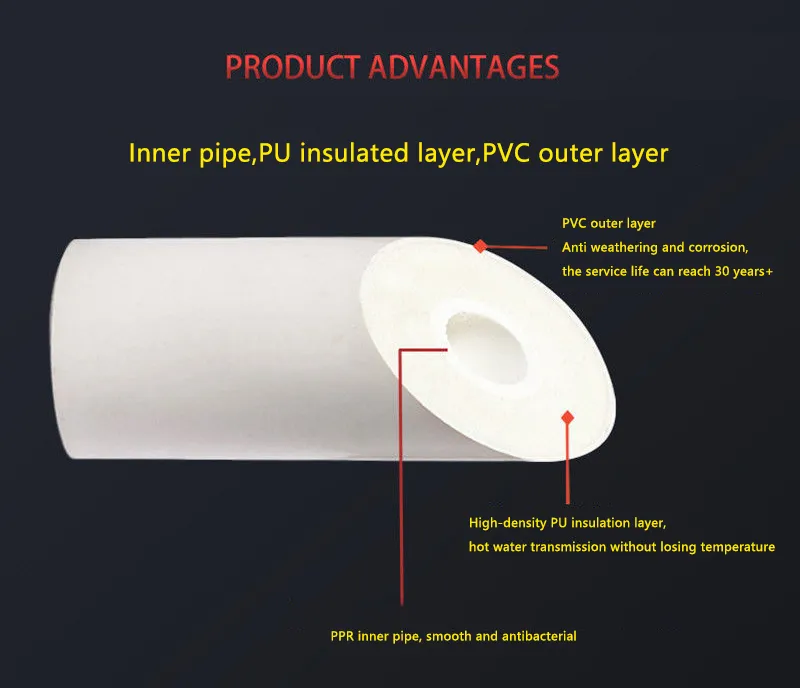

5.Strong viscosity and not easy to separate
Rigid polyurethane foam, which fully fills the gap between the inner core pipe and the outer casing, has a certain degree of adhesion
The connection strength enables the inner core tube, the outer pipe and the storage layer to form a solid whole, not easy to separate.
Specification
Size
Inner PPR pipe diameter
Outer PVC pipe diameter
Polyurethane thickness
PRCR-20*50
φ20
φ50
13.2
PRCR-20*63
φ20
φ63
19.6
PRCR-20*75
φ20
φ75
25.5
PRCR-25*50
φ25
φ50
10.7
PRCR-25*63
φ25
φ63
17.1
PRCR—25*75
φ25
φ75
23
PRCR-32*50
φ32
φ50
9
PRCR—32*63
φ32
φ63
13.7
PRCR-32*75
φ32
φ75
19.7
PRCR-40*63
φ40
φ63
9.6
PRCR-40*75
φ40
φ75
15.7
PRCR—40*90
φ40
φ90
22.5
PRCR-40*110
φ40
φ110
35
PRCR-50*75
φ50
φ75
10.7
PRCR-50*90
φ50
φ90
17.4
PRCR-50*110
φ50
φ110
27.5
PRCR—63*90
φ63
φ90
10.9
PRCR—63*110
φ63
φ110
21.5
PRCR—75*110
φ75
φ110
23.5
PRCR-90*160
φ90
φ160
32.2
PRCR-110*160
φ110
φ160
22.2
PRCR-160*200
φ160
φ200
16.5
PRCR-160*250
φ160
φ250
41
