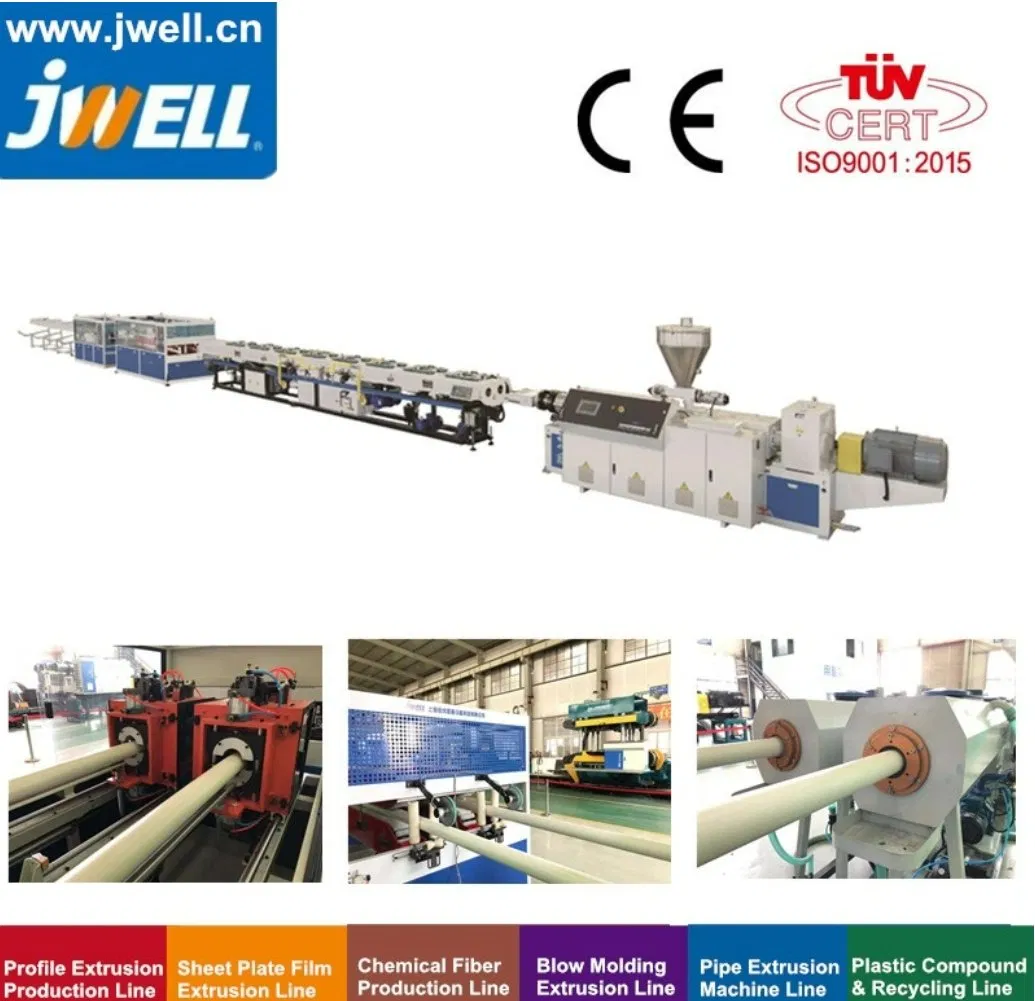

Plastic PVC PPR PE HDPE UPVC CPVC Opvc Water Gas Pipe Extruder Glass Fibre Reinforced Hose Tube Elec

Screw No.	Single-screw
Automation	Automatic
Computerized	Computerized
Certification	CE, ISO9001:2008
Customized	Customized
Condition	New
After-sales Service	Guaranteed for One Year
Extruder	90/33 Extruder
Output Capacity	250 Kg/H
Driving Motor	Servo Drive Motor
Gearbox Driving Motor	AC Motor
Converter	ABB
Barrel Material	38crmoala
Calibrator Sleeve Material	Wearing Resistant Brass
Cutting Style	No-Dust Cutter
Clamping Method	by Pneumatic
Moving Method of Platform	Drive by Servo Motor
Guarantee Period	1 Year and Service Is Available Lifelong
Max Haul-off Speed	20m/Min
Temperature Controller	Rkc or Omron
Controlling System	Siemens PLC Controlling System
Single-Screw Extruder	High- Efficiency Single-Screw Extruder
Transport Package	Pallet
Trademark	JWELL
Origin	China
HS Code	84778000
Production Capacity	Output Capacity Reaches 250 Kg/H

 PPR63 three-layer co-extruded ultra-thick pipe production line Multi-layer PPR/PE Composite Pipe Extrusion line

Properties:
PPR/Glassfiber/PPR pipe is widely used in solar energy, thermal energy circulation system, heating system and water supply, because of its higher pressure and temperature resistance, long service life, high strength and impact resistance, and the prevention of pipe line sagging.
The high-efficiency PPR/HDPE pipe extrusion line, is specially designed by JWELL company, to match PPR/HDPE material characteristics. The lines equipped with self-designed JWS series high- efficiency single-screw extruders, with SIEMENS PLC controlling system, then achieve automatic control of the entire production line from the extruder to the auxiliary machine with high output capacity and reliable extrusion.
The pipes produced by this production line are small -diameter HDPE water supply pipe, gas pipe, PPR, PE-RT, PE-X, PB, etc., which are widely used in the production of pipes of water supply and radiant floor heating for residential buildings, shopping malls, hospitals, stadiums and rural areas.

APPLICATION:

Performance characteristics:
Replacing or adding some units can also produce three or five layers of oxygen-resistant pipes, which can achieve the oxygen-resistant performance of pipes by using the barrier characteristics of EVOH. The production line is independently developed by JWELL Company, which has absorbed the advanced European technology. It has a unique structure, advanced configuration, high degree of automation and simple operation. The extruder screw adopts BM high-efficiency type, with high output, good plasticization, stability and reliability.

Main technical parameter:

JWS Series High Efficiency Single Screw Extruder:

Technical parameters:

Track Hall-off Unit:

Properties: For different pipe diameter and extruder speed requirements, we designed all kinds of the Hall-off unit, have two tracks, three tracks, four tracks, six tracks until up to 16 tracks. The wide adjustable range for the Hall-off unit, running is stable and reliable, and small noise. Each track by a separate asynchronous or servo motor drive, via digital controller keeps the accuracy of the track speed synchronization. The large capacity compression air cylinder, and very long contact lengths between pipe and tracks, can ensure a high friction tractive force. based on the switchable control for the 1/2 tracks, can switch to each other between the big pipe diameter and small pipe diameter, large scope of working for the Hall-off unit.

Technical parameters:

High-speed No-dust cutter/ Automatic Pipe Cutter:

Properties: Mainly used for cutting the HDPE, PP, PPR, PE-RT pipe. No-dust cutter can protect the environment because there is Chipless during the cutting and there is no noise. The cutting surface of the pipe is smooth and elegant. It is suitable for cutting the pipes made of different materials and in different diameters.


High-speed No-dust cutter Technical parameters:
