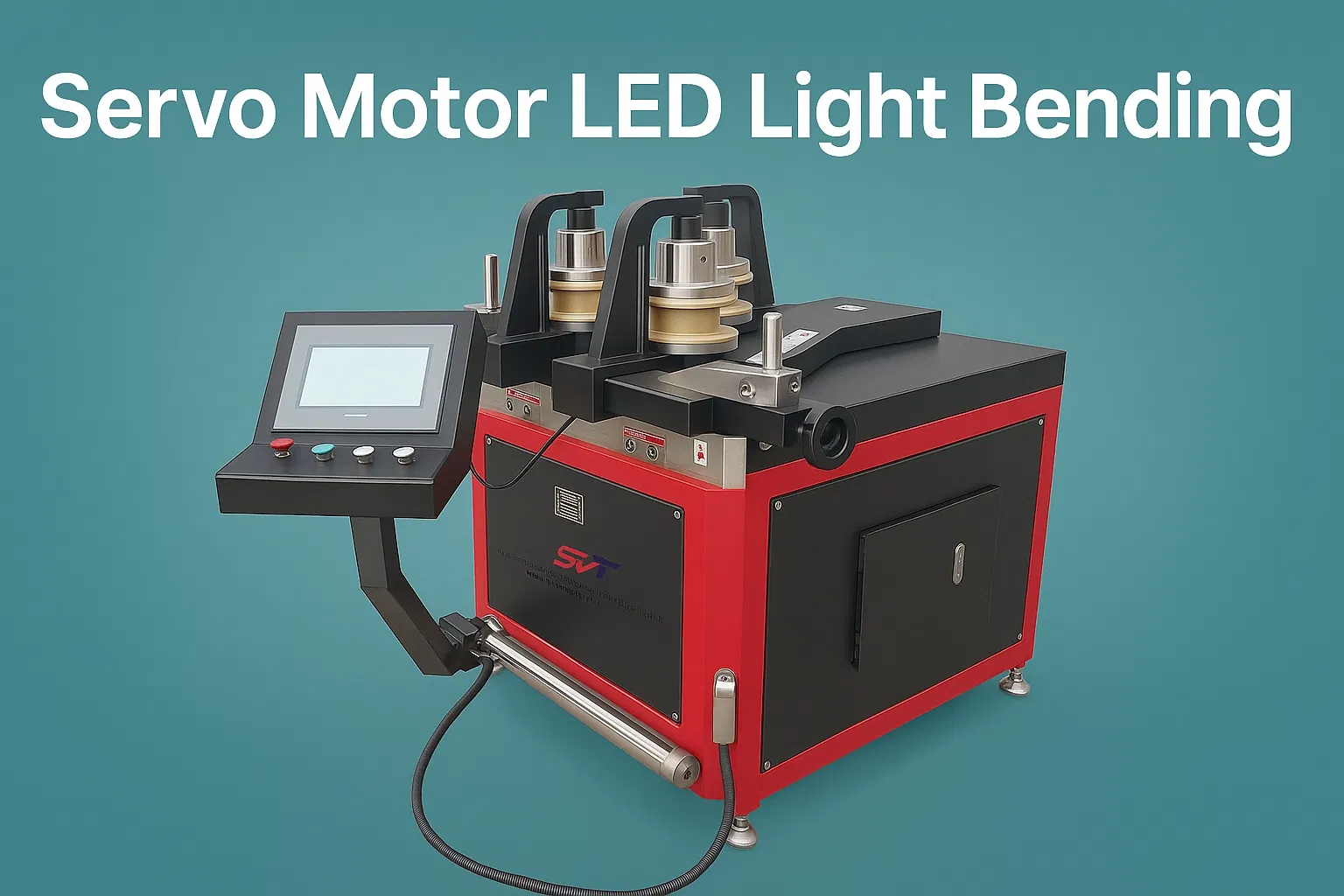

Best Sell PVC Aluminum Profile Automatic Bending Machine 20t Steel Pipe

Machine model / Unit

LGW-CNC-13T

MGW-CNC-15T

LGW-CNC-25T

MGW-CNC-25T

MGW-CNC-30T

MGW-CNC-40T

HGW-CNC-70T

Voltage (V)

380

380

380

380

380

380

380

Power (KW)

4

8

8.5

11

13

21

50

Roller speed (r/min)

1~15

1~15

1~15

1~15

1~15

1~15

1~15

Max. diameter of roller mold (mm)

240

240

240

380

380

500

600

Roller diameter (mm)

50

60

60

80

80

105

150

Fixed wheel center distance (mm)

280-600

280-600

270-600

400-800

400-800

450-1200

680-1600

Y-axis rated thrust (T)

13 (Max: 20)

15 (Max: 20)

Max: 25

25

30 (Max: 38)

40 (Max: 50)

70 (Max: 100)

Y-direction repeated positioning accuracy (mm)

≤0.01

≤0.01

≤0.02

≤0.01

≤0.02

≤0.02

≤0.02

Rated torque in X direction (n.m)

2500

4000

5000

6000

8000

11000

30000

Min. rolling radius (mm)

100

100

100

150

150

150

200

Max. cross-sectional area for processing aluminum profiles (mm²)

8000

10000

12000

16000

18000

24000

40000

Max. width for processing aluminum profiles (mm)

120

150

200

200

220

250

300

Max. axial height for processing aluminum profiles (mm)

200

200

250

250

250

300

500

Max. size for processing square steel pipes (mm)

50×50×2

60×60×3

60×60×4

80×80×5

80×80×5

100×100×6

150×150×8

Max. size for processing circular steel pipes (mm)

Φ50×2

Φ60×3

Φ60×4

Φ80×5

Φ80×6

Φ100×6

Φ150×8

Weight (kg)

900

900

1200

1800

1800

3300

13000

system

Servo motors

profiles testing

provided

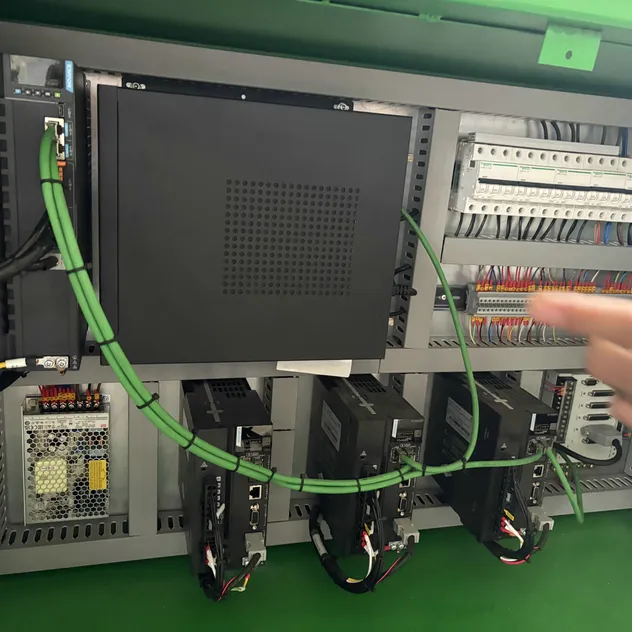

control system

PLC

warranty

1Year

material/metalprocessed

Iron, copper, aluminum, stainless steel,PVC

After-sales Service

Video technical support

machinery test report

Provided

corecomponents

motor,PLC

automation

Automatic

key selling points

Servo motor

motorpower(kw)

500

weight(kg)

1000

siderstroke(mm)

8000

throatdepth(mm)

6000

place oforigin

Shandong,China

brand name

Smatech

Product name

Aluminum Profile AutomaticBending Machine

Total power

8.0KW

Powersupply

380V50Hz

Max bending

120*200mm

profilesection

Bending achdiameter

Min.150mm

Roller diameter

50mm

Rollerrotationalspeed

1-15r/min

Overalldimension

1500*1200*1400mm

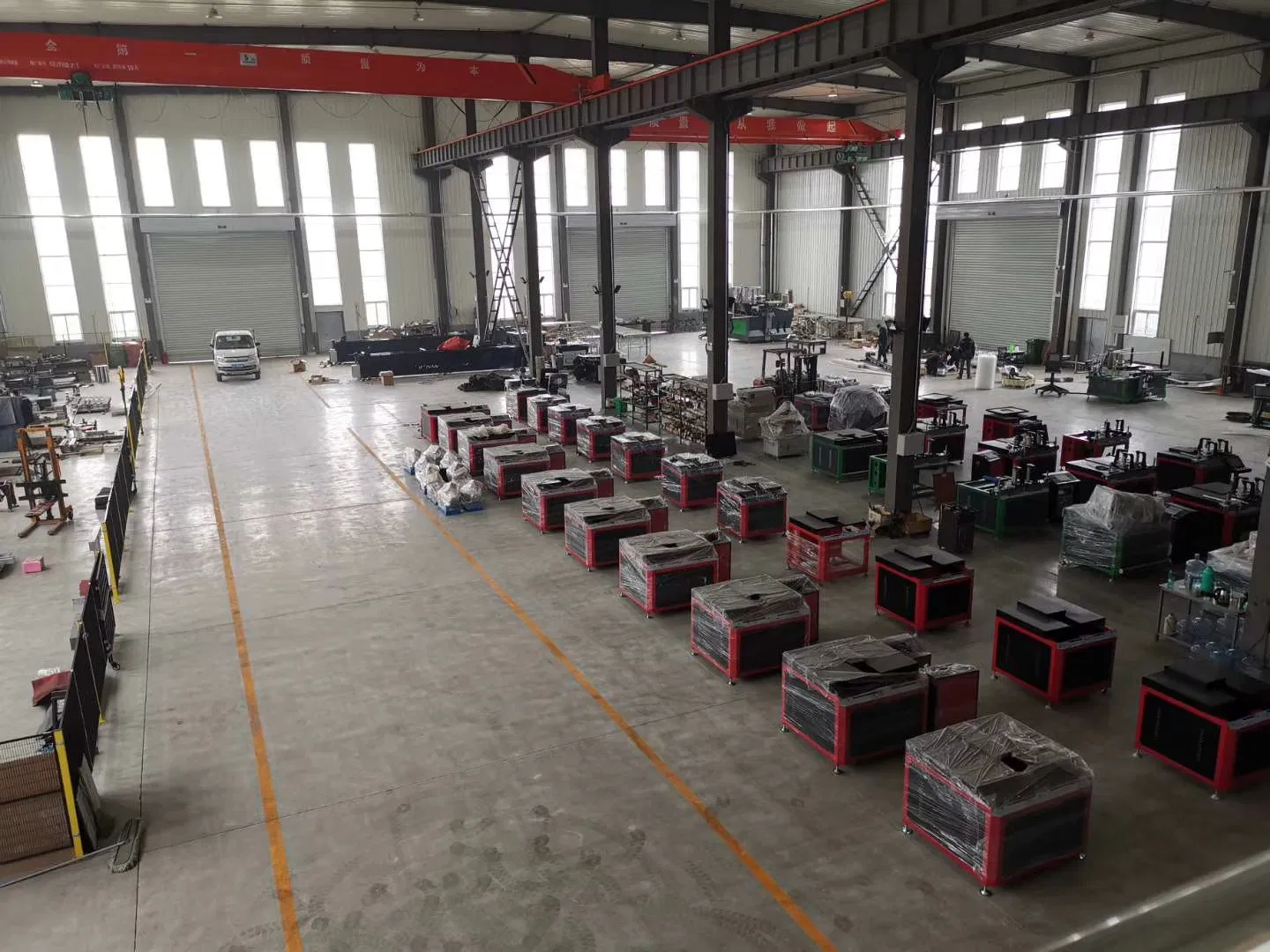

Factory view

Advantages of Profile Bending Machines:

1. Most profiles are formed in one time.Equipped with CNC control system for easy operation and high precision.

2. Driven by a servo motor to ensure high accuracy and stability during bending.the grating ruler servo motor connected with reducer,it can control more smoothly.

3. Capable of bending various shapes, including C-shape, U-shape, full circles, ovals, and multi-radius combinations.

4. User-friendly CNC software simplifies the bending process.

High Precision and Repeatability: CNC control ensures consistent quality across large batches.

Efficiency and Cost-Effectiveness: Single-step forming reduces processing time and labor costs.

Versatility: Suitable for various materials and profile types, adaptable to different project needs.

Automation and Ease of Use: PLC systems facilitate easy operation, monitoring, and adjustments.

Durability and Reliability: Robust design ensures long service life with minimal maintenance.

Enhanced Safety Features: Modern machines are equipped with safety mechanisms to protect operators.

Functions of Profile Bending Machines:
Equipment features:
- Our profile bending machine is mainly used for profiles such as Iron, copper, aluminum, stainless steel and special-shaped material. It's ideal equipment of curved process for furniture manufacturers.At present, our machines have been applied in the following industries: doors and windows/curtain walls/lighting/high-speed rail/ships/bridges/tunnels/elevator, etc.
- The machine adopts CNC controller, which make the machine features easy.handling and high precision.
- Using CNC software, makes the bending operation very simple.
- Can bend many shapes such as C shape, U shape, S shape, the whole circle and spring.
- Capable of detecting material rebound data, eliminate rebound.


Specification

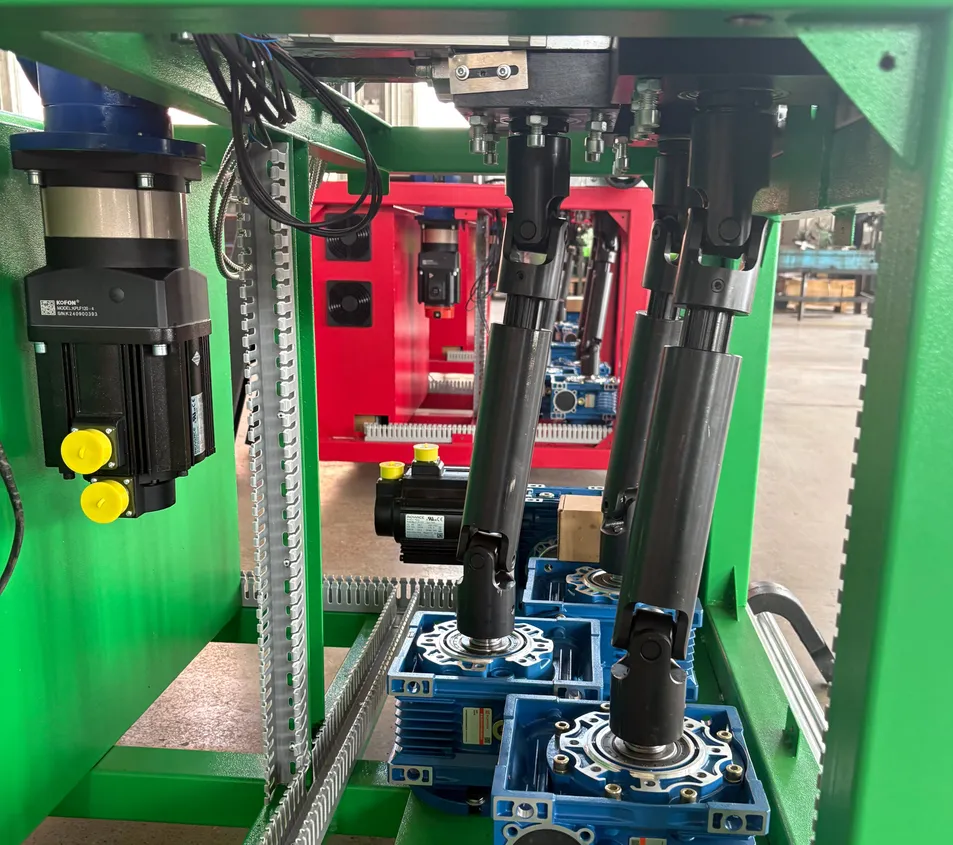

servo motor controls

High Precision Control

Our profile bending machine use servo motors,which provide accurate positioning and speed control, ensuring consistent bending angles and shapes.
Smooth Operation

 The ability to start, stop, and change speed smoothly reduces mechanical stress and improves bending quality.
Energy Efficiency

 Power is consumed only when the motor is in motion, reducing energy costs compared to traditional motors.
Flexible Programming

 Parameters such as bending radius, speed, and direction can be adjusted quickly through the control system.
Low Maintenance

 Fewer mechanical components and less wear extend the lifespan of the motor and reduce maintenance requirements.
Quieter Operation

 Lower noise levels improve the working environment for operators.

Machine tools

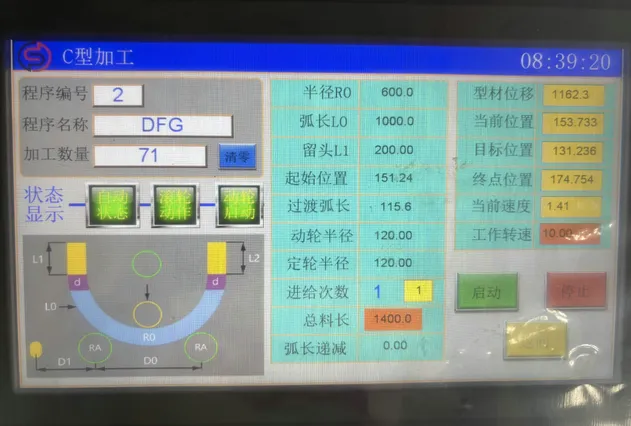

Simple human-machine interface

PARTS

We have our own machine tools, and we produce our own molds, qualitative belts, etc., which ensures the smoothness and accuracy of the production process.

After continuous system upgrades and improvements, our human-machine interface has become simpler and clearer, and the operation is simpler. Even operators without basic skills can quickly become familiar with and learn the operating procedures.

 The company fully implements the ISO9001 (2008 edition) quality management system, and implements strict supervision and inspection in every link of production, sales and after-sales service, which effectively guarantees the world-class quality of Sike machines.This ensures the quality of our profile bending machine.

Bending machine service

Pre-Sales Service

Provide free project analysis
Provide free industry-related information
Provide free workshop/floor layout drawing
Provide free electrical circuit layout drawing
Sales Service

Free domestic transportation
Free installation and commissioning
Free operator training
After-Sales Service

18 months equipment warranty, lifetime maintenance, and regular maintenance service
24-hour on-site service for key areas
Provide long-term spare parts supply
24-hour technical support hotline for equipment operation
400 666 7806

company

Jinan Smatech Machinery Co., Ltd. is a leading manufacturer specializing in high-quality door and window machinery, including double-head saws,machine center, drilling and milling machines, crimping machines and bending machines, and more. Our company stands out due to the following key advantages:

Innovative Technology

Product Quality & Durability

Customization & Flexibilit

We leverage advanced engineering and precision manufacturing techniques to deliver reliable, efficient, and innovative equipment tailored to the door and window industry.

Our machinery is built with durability and accuracy in mind, ensuring long-term performance and customer satisfaction.

We offer customized solutions to meet specific client requirements, enabling seamless integration into various production lines.
