Multi-Layer Insulated PPR Reinforced Plastic Pipe with Smart Flow Monitoring

Model NO.	Plastic Pipe
Water Absorption	＜0.01%
Contraction Percentage	＜0.4%
Tensile Strength	30~40MPa
Product Name	Plastic Pipes
Keywords	Plastic Pipe & Tube
OEM & ODM Custom	Accept
Logo Custom	Accept
Sample	Accept
Payment	T/T, L/C, Western Union
MOQ	Low MOQ
Transport Package	Standard Packaging or Customized
Specification	Standard Specifications or Customized
Trademark	MENRED
Origin	Zhejiang, China
Production Capacity	5000000pieces/Year

Product Description

PLASTIC PIPES

Plastic pipes are hollow pipe products made of synthetic resin as the main raw material, with appropriate amount of additives added through extrusion, injection molding and other processes. It mainly replaces traditional metal and concrete pipes, and is used in liquid, gas transportation and cable protection. It has the advantages of light weight, corrosion resistance and easy processing. Common plastic pipes include PVC pipes, PE pipes, PPR pipes, etc.

The most prominent features of plastic pipes are light weight, easy installation and excellent comprehensive performance. The inner wall of plastic pipes is smooth, the fluid resistance is small, and it also has the characteristics of insulation, heat preservation and long service life. Some modified plastic pipes can even withstand high temperature and high pressure to meet the needs of special working conditions.

In terms of application, plastic pipes have penetrated into many fields such as construction, municipal administration, agriculture and industry. It is used for water supply and drainage, floor heating systems in buildings; it is used as rainwater and sewage pipes and cable protection pipes in municipal engineering; it is widely used in agricultural irrigation due to its good weather resistance; in the industrial field, it is used for chemical fluid transportation, ventilation and dust removal, etc.

Product Parameters

Product NameSpecification
dn*thicknessProduct NameSpecification
dn*thickness PP-R Pipe20*2.0mmPipe Clamp20 20*2.3mm25 20*2.8mm32 20*3.4mmFlow Tee20 25*2.3mm25 25*2.8mmTube
Fitting"20×1/2″f 25*3.5mm"25×1/2″f 25*4.2mm"25×3/4″f 32*2.9mm"32×1/2″f 32*3.6mm"32×3/4″f 32*4.4mm"32×1″f 40*3.7mmFemale
Tee"20×1/2″f 40*4.5mm"25×1/2″f 40*5.5mm"25×3/4″f 50*4.5mm"32×1/2″f 50*5.6mm"32×3/4″f 50*6.9mm"32×1″f 63*5.8mm90° Female

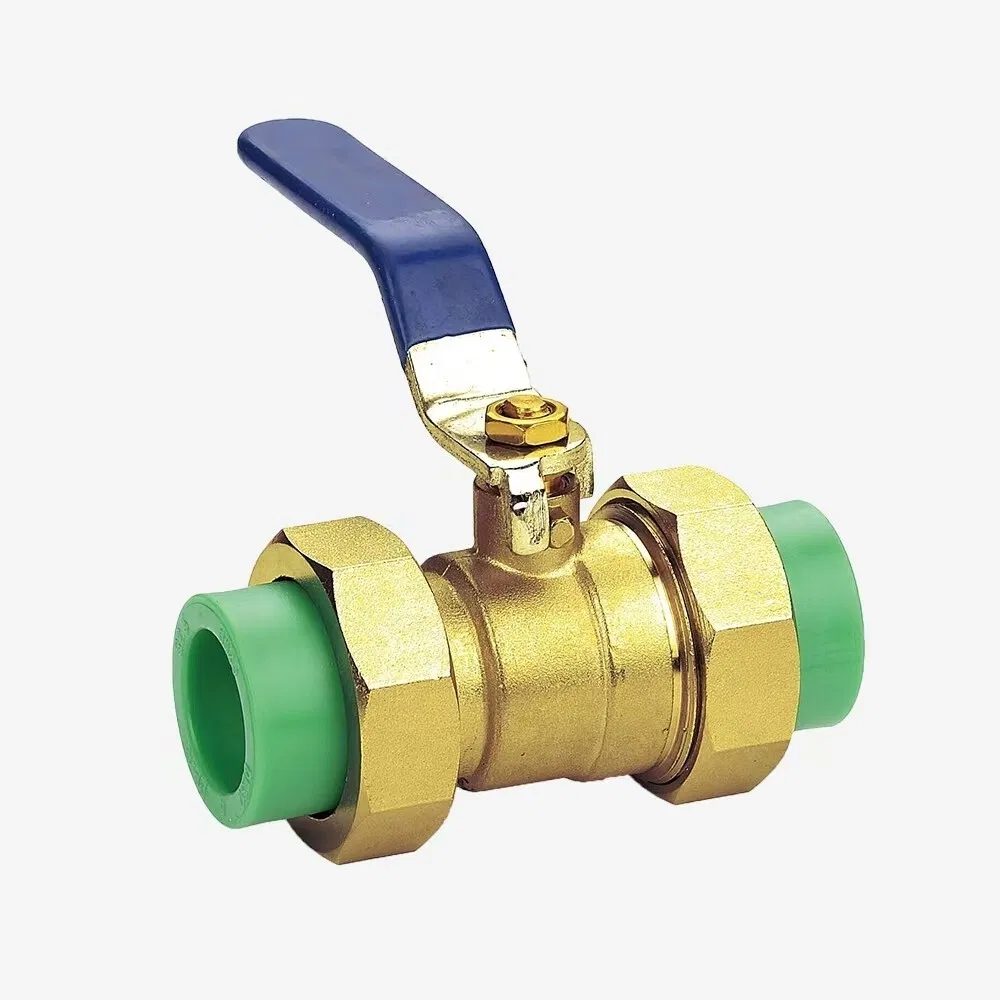

Elbow"20×1/2″f 63*7.1mm"25×1/2″f 63*8.6mm"25×3/4″f Double Activated
Ball Valve
(Copper Core)20"32×1/2″f 25"32×3/4″f 32"32×1″f Equal Diameter
Pipe Sleeve20External
Thread Fitting"20×1/2″m 25"25×1/2″m 32"25×3/4″m 25-20"32×3/4″m 32-20"32×1″m 32-25Male Tee
Fitting"20×1/2″m Equal Diameter
 90° Elbow20"25×1/2″m 25"25×3/4″m 32"32×3/4″m 25-20"32×1″m 32-2090° Male
Thread Elbow"20×1/2″m 32-25"25×1/2″m Pipe Cap20"25×3/4″m 25"32×3/4″m 32"32×1″m Pipe Plug20Double Connection
 Female Tee"20×1/2″f 25"25×1/2″f Positive Tee20Double Female Elbow"20×1/2″f 25"25×1/2″f 32U-shaped Return Ring20 Reducing Tee25-20-2525 32-20-32Inner Threaded Coupling"20×1/2″f 32-25-32"25×3/4″f Outer Threaded Coupling20×1/2″m"32×1″f 25×3/4″mOrdinary Shut-off Valve

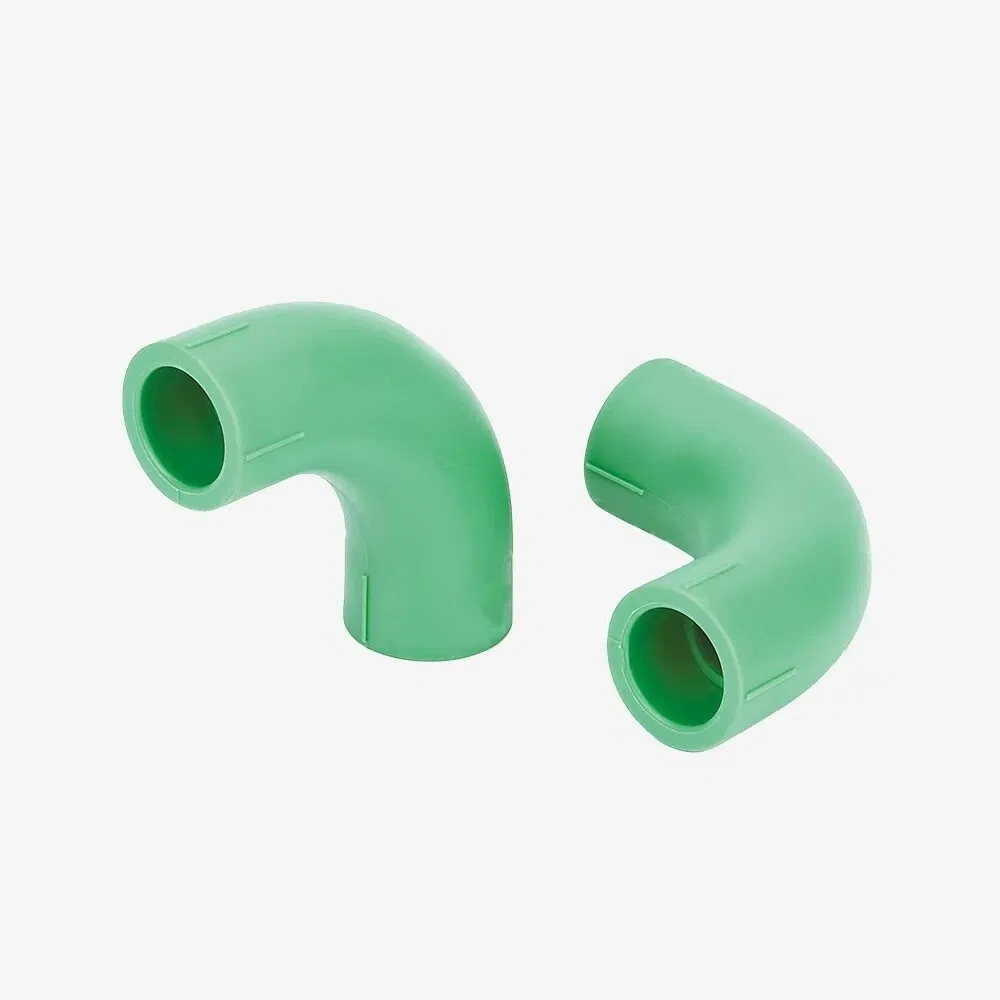

(Iron Hand Wheel)20 32×1″m25 Double Female Sleeve20×1/2″f32 Equal 45° Elbow204-Way Joints20 2525 32S-Bend20 U-Type Bridge Elbow2025 25Corner Elbow20 Plastic Elbow2025 2520 3225

Detailed Photos

LIGHTWEIGHT AND HIGH STRENGTH

Plastic pipes weigh only 1/8-1/4 of metal pipes, making them easier to transport and construct. However, they can still withstand higher pressures through enhanced modification, meeting a variety of engineering needs.

STRONG CORROSION RESISTANCE

It has excellent tolerance to chemical media such as acids, alkalis, and salt spray. It will not rust or scale after long-term use. It is particularly suitable for corrosive environments such as the chemical industry and sewage treatment.

LOW FLUID RESISTANCE

The inner wall smoothness is 5-10 times that of metal pipes, which significantly reduces transportation energy consumption and is not easy dirt to deposit.

LONG SERVICE LIFE

Under normal use conditions, the service life can reach more than 50 years (such as PE pipes), far exceeding galvanized steel pipes, greatly reducing replacement and maintenance costs.

EASY INSTALLATION AND MAINTENANCE

It uses socket connection, hot melt welding, and other methods, without the need for professional equipment, and the construction efficiency is 3-5 times higher than that of metal pipes, and no anti-rust treatment is required in the later stage.
