PE Tube Plastic Machinery

Model NO.	SJ110
Screw No.	Single-screw
Automation	Automatic
Computerized	Computerized
Certification	CE, ISO9001:2008
Customized	Customized
Condition	New
Material	Stainless Steel
Power Supply	380V Three Phase
Control System	PLC Control System
Inverter	ABB
Intelligent Temperature Controller	Omron
Operator	2-3person /Shift
After Sale Service	Life Long with Professional After Sale Team
Machine Color	as Request
Screw Material	38crmoaia
Transport Package	as Export Standard for Plastics Machine
Specification	ISO9001 CE
Trademark	suke
Origin	Qingdao, China
HS Code	84775900
Production Capacity	30sets/Year

PE/PVC Single/Double Wall Corrugated Pipe Production Extrusion  Machine Line
Description:
This corrugated production line can be used to produce single-wall or double wall corrugated pipes of PE, PP, PVC, EVA continuously, as well as PA corrugated pipes.
It calso called pvc corrugated pipe extruder/pvc corrugated pipe machine/pvc corrugated pipe production line/pe corrugated pipe extruder/pe corrugated pipe machine/pe corrugated pipe extrusion line/pe corrugated pipe production line.

Characteristics and Application of Pipe:
Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.

They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine,These corrugated pipes are especially used as wires of the up-market cars, electric conduit pipe passing, washing machine, air conditioner pipe, lamp pipes, etc.

Machine's Features:

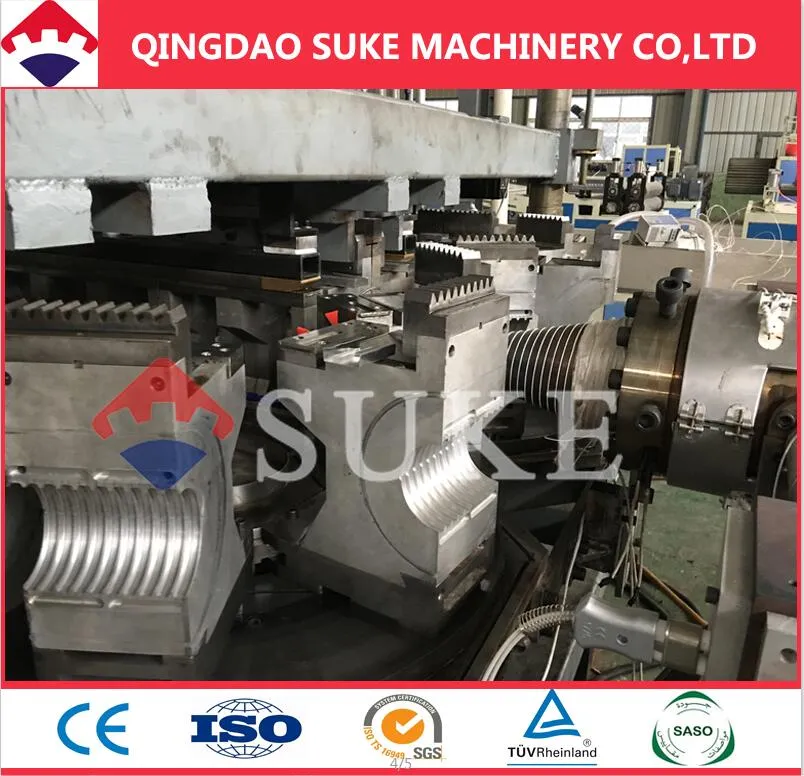

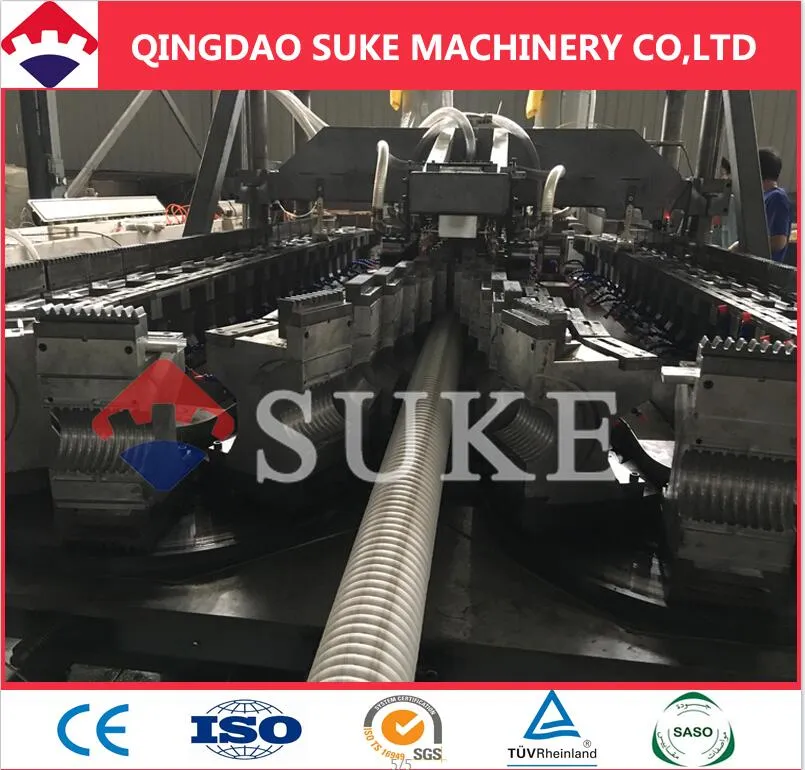

Plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall.
Machine parts list:

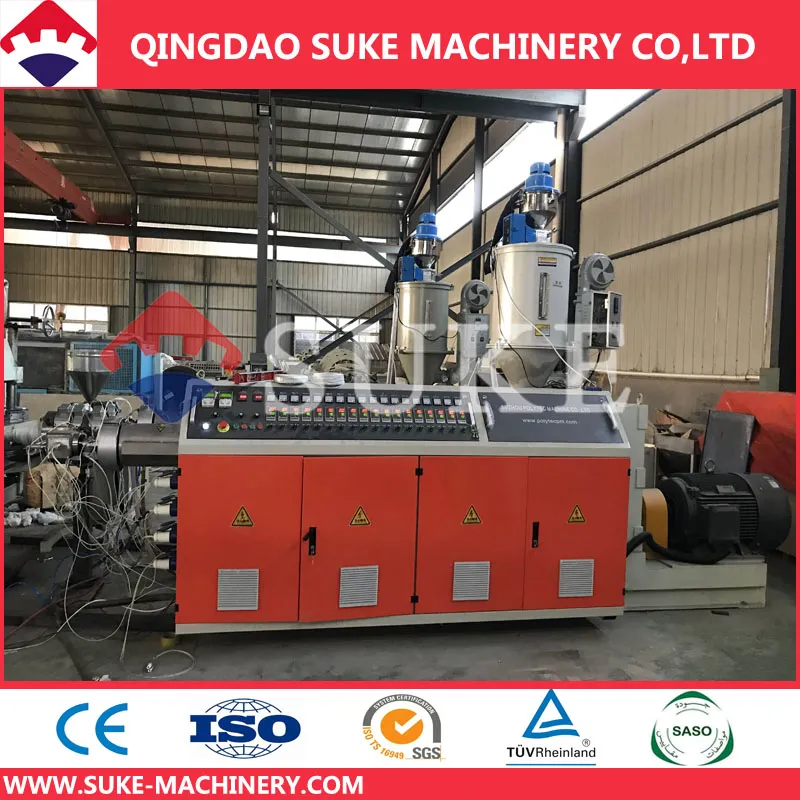

1. Single screw extruder: SJ-45/30, 65/30
2. Corruated pipe mold: 50-72pairs

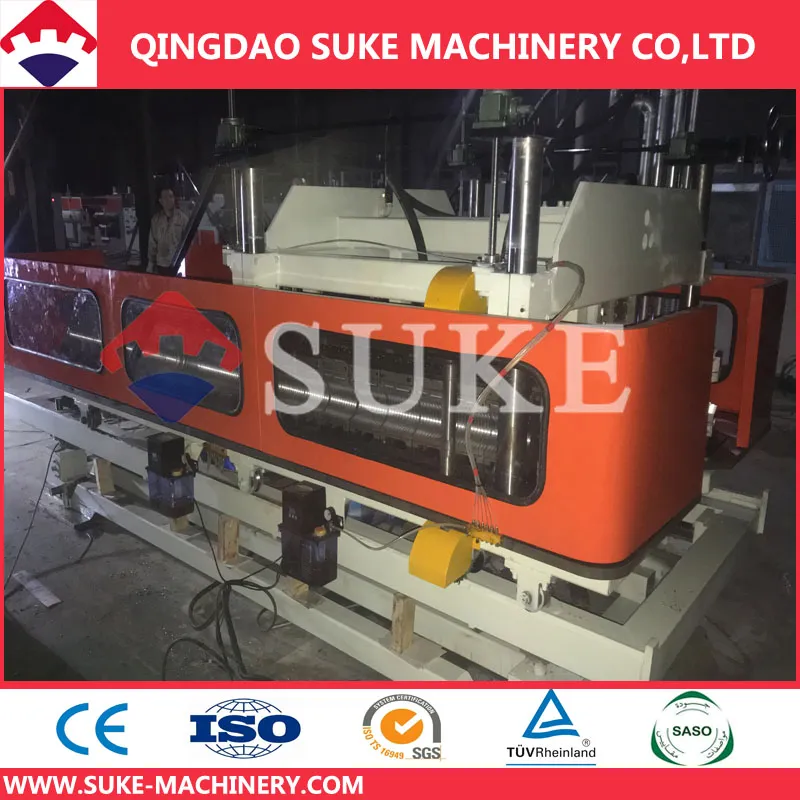

3. Corrugated pipe forming machine
4. Double station winder
5. Electric control cabinet.

Auxiliary Machine;
1. Haul-off Unit
2. Cutting Machine
3. Winding Machine

Model of the single screw extruderSJ-30BSJ-45BSJ-65BSJ-90BSJ-120BSJ-150B screw of the extruder(L/D)25-3325-3325-3325-3325-3325-33 Power of the extruder(kw)2.2-7.57.5-2218.5-5555-18590-280110-300 Heating Power (kw)5-86-1212-1816-4020-6030-80 Cooling StyleBy Fans and Water Max. Extruding Capacity (kg/h)1860180450650950
