12AWG, 600 Volts Control Cable

Conductor Material	Copper
Sheath Material	PVC
Insulation Material	PVC
Material Shape	Round Wire
Range of Application	Underground
Certification	ISO9001, CE, CCC
Brand	Jinshui
Transport Package	Drum
Trademark	JINSHUI
Origin	Zhengzhou Henan
HS Code	4101361940
Production Capacity	500km/Mongth

12AWG, 600 Volts Control Cable



Applications
Standard general purpose control cable for important control circuits in industrial plants and station control cable for utilities. Suitable for operation and interconnection of protective devices; rated circuit voltage 600 volts, recommended for operation at 75°C maximum continuous conductor temperature. For Non NEC Application Cables may be installed in open air, in ducts or conduit, or in tray or trough and direct burial.

Construction

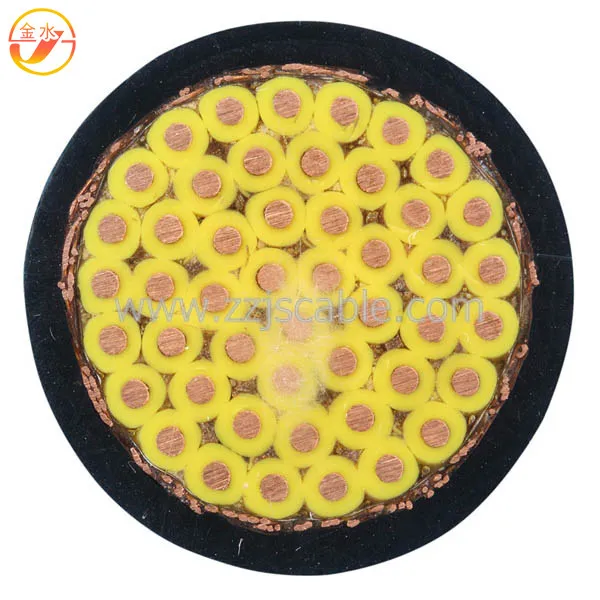

Stranded uncoated copper conductors, full color PVC or PE insulation over each conductor, two conductors flat or round, three or more conductors twisted with suitable fillers where necessary to make round, polyester or PP tape over assembly, PVC jacket overall, surface printed.

Standards
NOM-063-SCFI, NMX-J-102-ANCE
ICEA S-73-532, NEMA WC57. UL62,

Notes

·  Single conductor 20 mils high molecular weight polyethylene insulation and 10 mils polyvinyl chloride jacket, 600 Volt.
·  Color coding is ICEA Appendix E Method 1 Table E-1.

Options
·  Flexible stranded conductors per ASTM B
·  Tin-coated copper conductors per ASTM B
··1000V rated construction per ASTM

Consult AWG for a variety of alternate constructions for specific applications.

ModelSize AWGNumber  of
ConductorsStrand ClassNominal insulation thickness: mmNominal jacket thickness:
mmNominal Cable O.D.
mm JS-KVVR 5002106122Class K1.21.612.7 JS-KVVR 5003106123Class K1.21.613.8 JS-KVVR 5004106124Class K1.21.615.4 JS-KVVR 5005106125Class K1.21.616.6 JS-KVVR 5006106126Class K1.21.617.6 JS-KVVR 5007106127Class K1.21.618.0 JS-KVVR 5008106128Class K1.21.618.6 JS-KVVR 5009106129Class K1.21.621.4 JS-KVVR 500121061212Class K1.21.823.7 JS-KVVR 500151061215Class K1.21.826.3 JS-KVVR 500191061219Class K1.21.827.7 JS-KVVR 500251061225Class K1.21.833 JS-KVVR 500301061230Class K1.21.834.3 JS-KVVR 500371061237Class K1.21.837.1
