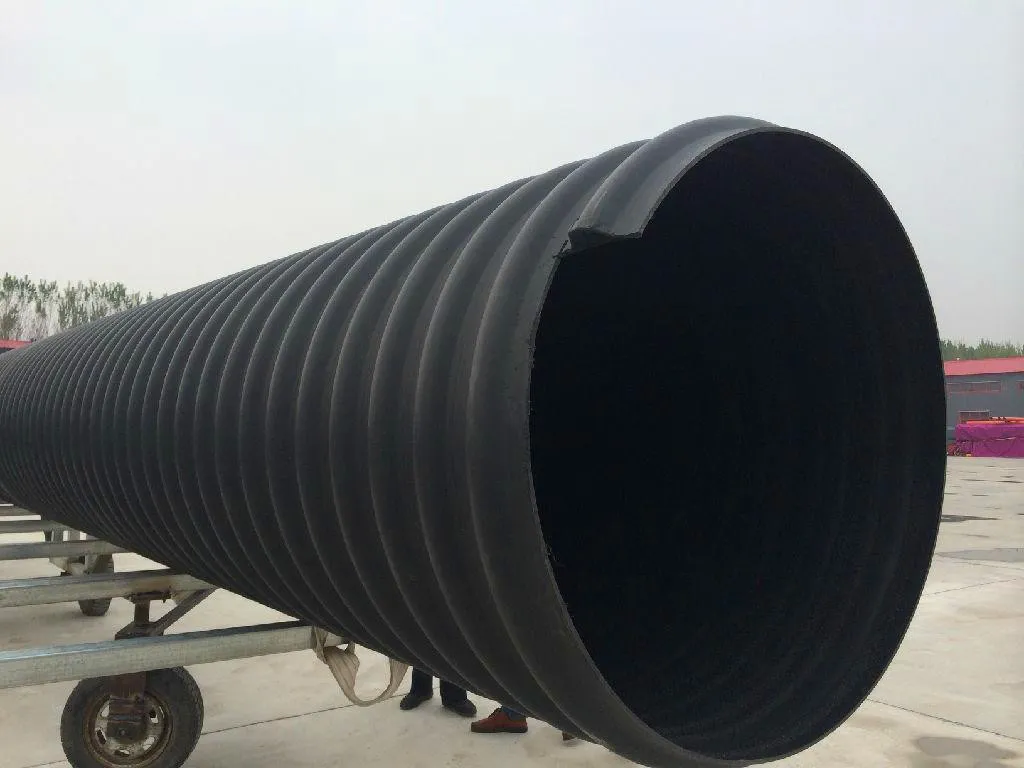

1000mm Big Size HDPE Steel Reinforced Corrugated Pipes

200mm HDPE Twin wall Corrugated Pipe , HDPE Culvert pipe ,SN8 300mm HDPE Culvert pipe,600mm SN8 Plastic waste water  corrugated pipe
SN10 800mm big diameter double wall hdpe pipe ; 1000mm HDPE twin wall waste water plumbing ,800mm SN8 HDPE Double Wall Pipe .

:

Description:
 light weight , High Strength, Anti-acid ,Anti-Alkali ,Anti-corrosion,low cost ,easy to connect and safe .HDPE twin wall corrugated pipe is one green technology products .
Features:

1. The pipe high strength ,resist compression,resist curve based on the ring-corrugated structure ;
2. High flow volume,low clash,no grim based on the smooth inwall
3. Anti-corrosion, Non-toxic , non-pollution,high stability based on the material;
4. Light weight ,install easy,low cost based on the middle empty structure ;
5. Working temperature:-60ºC to +45ºC
6. Long life: 50 years at least
7. The material is 100% recycle .save natural resource & Protect environment;

HDPE Double Wall Corrugated Pipe's Parameter Datas Norminal
Inner Diameter (DN/IN)Min.Average Inner DiameterMin. Wall  Thickness of the
Inside LayerMin. Wall Thickness of the Inside Layer under a Hollow SectionMin. Wall Thickness of the
Outside Layer under a Hollow
SectionMin.Length of Engagement of Socket DN/IN dem.mine.mine1.mine3.minA.min 100951.00.80.732 1251201.21.00.838 1501451.31.00.843 2001951.51.10.954 2252201.71.40.955 2502451.81.51.059 3002942.01.71.064 4003922.01.71.064 5004903.03.01.885 6005883.53.52.7118 10009855.05.03.0140 120011855.05.03.0162

Install instruction
Application:
 HDPE twin wall corrugated pipe mainly used in protect cable , drainage water ,low pressure pure water ;
Pipe size : 200mm.300mm.400mm,500mm,600mm,800mm
Pipe length :6M per pcs or produce upon your request .
Connect way :socket with rubber seal ;


 HEBEI Shentong Plastic Industry Co., Ltd. Was established in 2003, which is an enterprise concentrating manufacturing PLASITC pipes and fittings. The leading products are Fosite Brand PP-R PIPE AND FITTING, HDPE PIPE AND FITING, UPVC pipe and fittings, PE-RT, PEX pipes & fittings and plastic tubing welding equipment. It has advanced automatic machines.
We pursuit the quality is the first and the service is also important. Shentong has passed ISO9001, ISO4001. We have our own test lab for quality .
