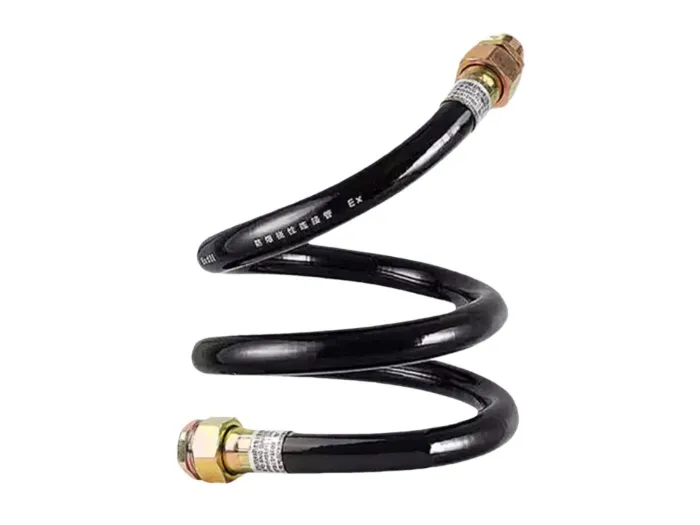

ATEX 1/4" 2" Customizable Flameproof Rubber Hose Explosion Proof Flexible Conduit
Detailed specification for ATEX 1/4" 2" Customizable Flameproof Rubber Hose Explosion Proof Flexible Conduit
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | BNG |
| Surface Treatment | Electroplating |
| Application | Industry |
| Material | Rubber/Stainless Steel |
| Certification | RoHS |
| Product Name | Explosion-Proof Flexible Conduit |
| Erosion-Proof Class | Wf2 |
| Ex-Proof Mark | Ex D Iic GB/Exe Lic GB/ Ex Td A21IP65 |
| Working Temp | -30 - 40℃ |
| Internal Nominal Diameter | 15mm/20mm/25mm/32mm |
| Tube Thread | G/NPT/Metric |
| Length Customizable | 50cm, 100cm, or Even 100m |
| Transport Package | Carton |
| Specification | 0.7kg/1kg/1.15kg/1.3kg |
| Trademark | Maxtree |
| Origin | China |
ATEX 1/4" 2" Customizable Flameproof Rubber Hose Explosion Proof Flexible Conduit
Product Parameters
Ex tD A21IP65
DIAMETER:
· The tube thread can be replaced by G1/2", G3/4", G1" G1 1/4", G1 1/2", G2" G2 1/2", G3" G4" etc.
· The minimum bending radius can be replaced by 80mm, 110mm, 145mm, 180mm, 210mm, 250mm, 350mm, 400mm, 500mm etc.
· The Ex explosion-proof mark is obvious, which is more secure and safer.
· Carbon steel joints, surface electroplating treatment, anti-corrosion; threaded connection, good airtightness, and anti-protection function.

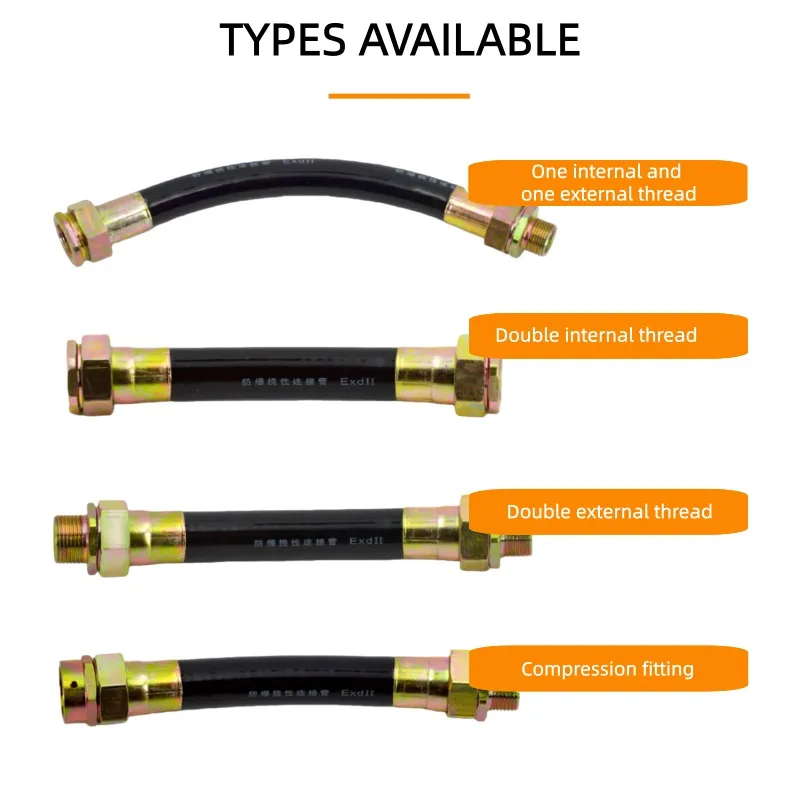

· Various lengths, various models, and various connectors can be selected.
· Efficient waterproof performance, can also be installed and used outdoors.
· The Bushings of the flexible tubes can be choose inner bushings, outer bushings, or threaded plugs
· Rubber plastic, steel net andstainless steel net is optional
· The thread could be specially made upon request,such as NPT, G and Metric thread.
· Length can be customized: 50cm, 100cm, or even 100m.
· Marine and Offshore
· Power Generation
· Food and Beverage Processing
· Pharmaceutical Industry
· Water Treatment Facilities
· Transportation
· Oil and Gas Stations
· Loading Docks
· Harsh Location
· Workshop
Product Description
An explosion-proof flexible conduit is a protective, bendable cable conduit designed for hazardous locations where flammable gases, vapors, or dust may be present. It provides reliable mechanical protection, vibration absorption, and secure wiring pathways between electrical equipment, ensuring safe operation while maintaining explosion-proof integrity.
01 /

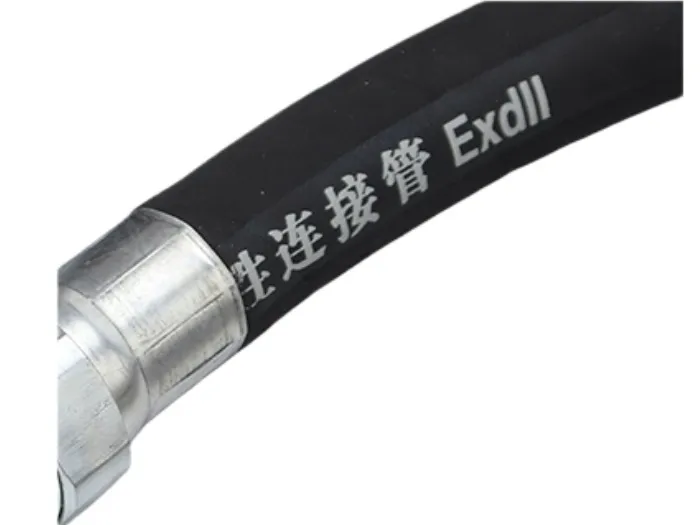

Ex-Proof Marking
The prominent and clearly visible Ex explosion-proof marking ensures immediate recognition of the product's safety rating and functional characteristics, fully compliant with relevant explosion-protection standards.
02 /

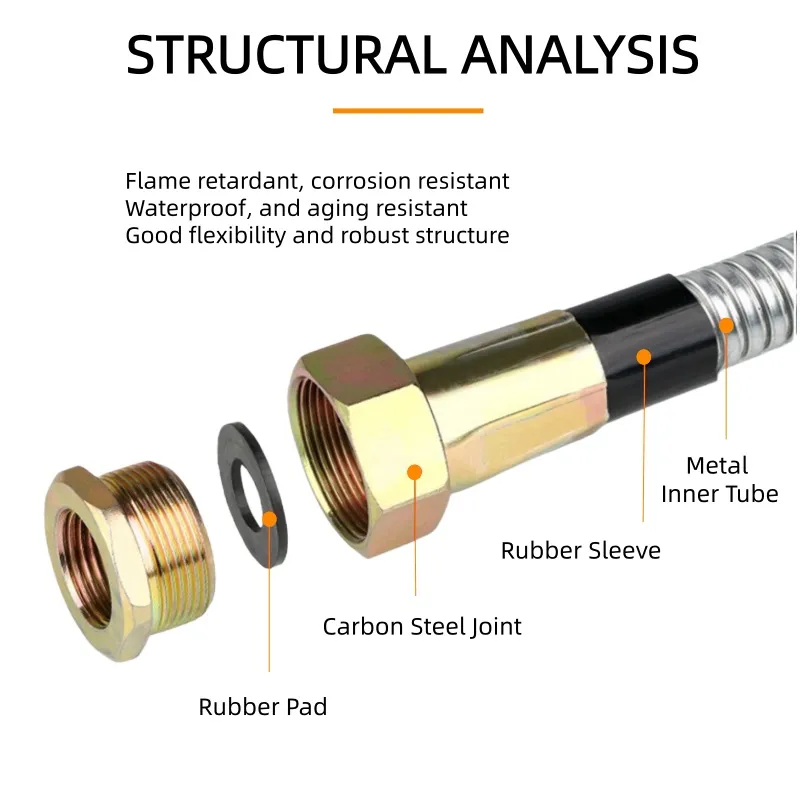

Flame-Retardant Conduit
The inner tube is constructed from high-quality corrugated material, offering excellent flame-retardant, corrosion-resistant, water-resistant, oil-resistant, and anti-aging properties. Its robust flexibility ensures long-term reliability in harsh industrial environments.
03 /
Superior Flexibility
The conduit provides outstanding bending performance and fatigue resistance, allowing it to be flexed in multiple directions without cracking or deformation-ideal for installations with vibration or limited space.
04 /
High-Strength Carbon Steel Fittings
The end fittings are manufactured from premium carbon steel with a corrosion-resistant electroplated surface. The precise, high-strength threads ensure firm and secure engagement with other connectors, enhancing sealing performance and overall system safety.
05 /
Detachable Union Connectors
Both ends feature detachable union-style connectors, allowing fast and convenient installation, removal, and maintenance without compromising sealing or explosion-proof performance-significantly improving on-site efficiency.
Product Specifications
OF APPLICABLE CABLE
BENDING RADIUS

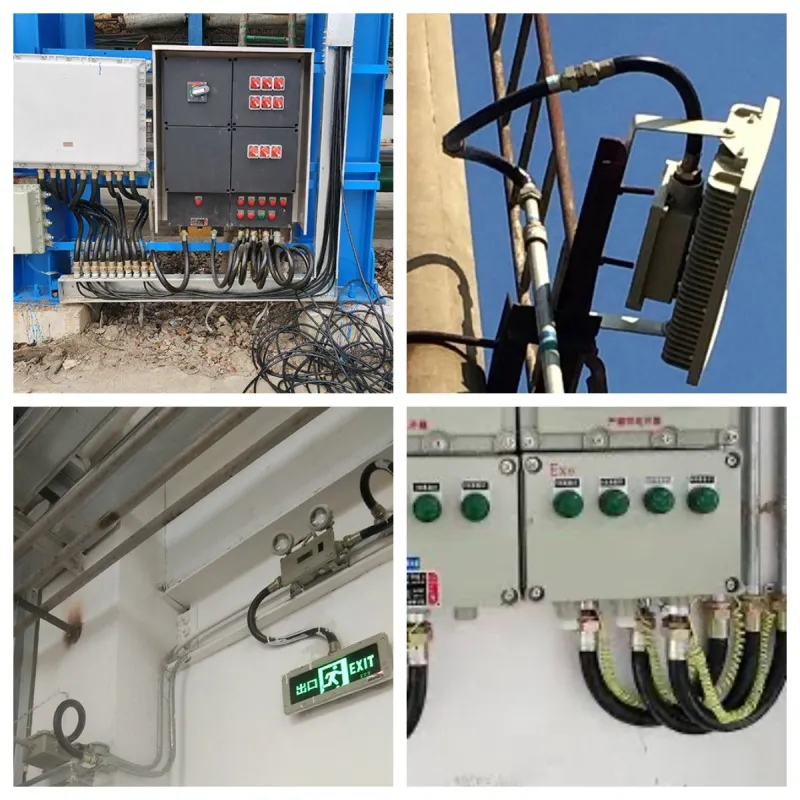

Product Application
Product Applications:
· Chemical Processing
· Marine and Offshore
· Power Generation
· Food and Beverage Processing
· Pharmaceutical Industry
· Water Treatment Facilities
· Transportation
· Oil and Gas Stations
· Loading Docks
· Harsh Location
· Workshop
