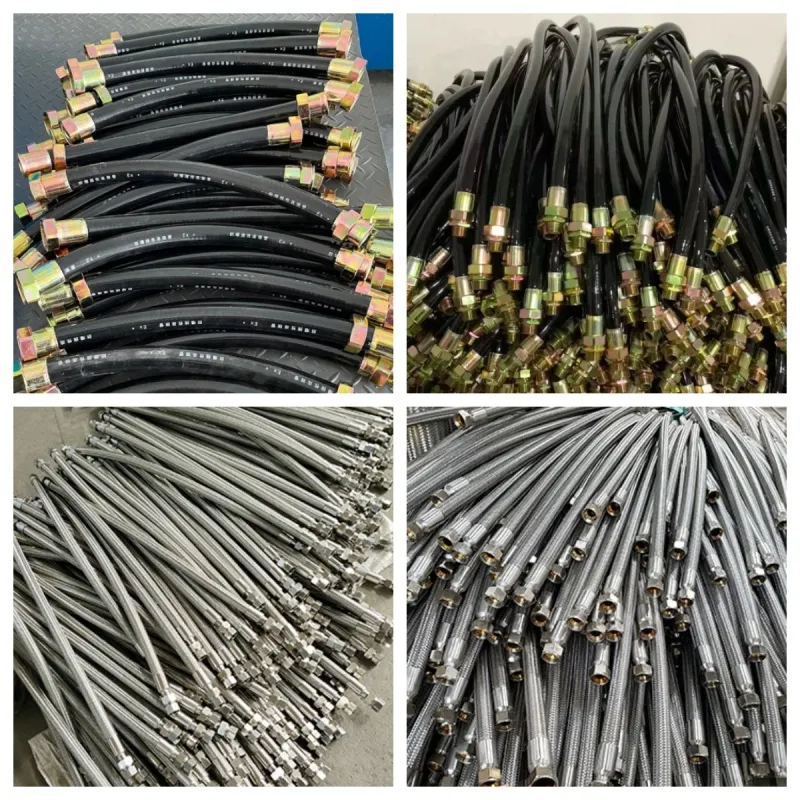

ATEX OEM IP65 Waterproof SS304 15mm 20mm Explosion Proof Flexible Connection Conduit
Detailed specification for ATEX OEM IP65 Waterproof SS304 15mm 20mm Explosion Proof Flexible Connection Conduit
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | BNG |
| Application | Industry |
| Material | Stainless Steel/PVC |
| Certification | RoHS |
| Product Name | Explosion-Proof Flexible Conduit |
| Erosion-Proof Class | Wf2 |
| Ex-Proof Mark | Ex D Iic GB/Exe Lic GB/ Ex Td A21IP65 |
| Working Temp | -30 - 40℃ |
| Internal Nominal Diameter | 15mm/20mm/25mm/32mm |
| Tube Thread | G/NPT/Metric |
| Length Customizable | 50cm, 100cm, or Even 100m |
| Transport Package | Carton |
| Specification | 0.7kg/1kg/1.15kg/1.3kg |
| Trademark | Maxtree |
| Origin | China |
ATEX OEM IP65 Waterproof SS304 15mm 20mm Explosion Proof Flexible Connection Conduit
Product Parameters
Ex tD A21IP65
DIAMETER:
· The tube thread can be replaced by G1/2", G3/4", G1" G1 1/4", G1 1/2", G2" G2 1/2", G3" G4" etc.
· The minimum bending radius can be replaced by 80mm, 110mm, 145mm, 180mm, 210mm, 250mm, 350mm, 400mm, 500mm etc.
· The Ex explosion-proof mark is obvious, which is more secure and safer.
· Carbon steel joints, surface electroplating treatment, anti-corrosion; threaded connection, good airtightness, and anti-protection function.
· Various lengths, various models, and various connectors can be selected.
· Efficient waterproof performance, can also be installed and used outdoors.
· The Bushings of the flexible tubes can be choose inner bushings, outer bushings, or threaded plugs
· Rubber plastic, steel net andstainless steel net is optional
· The thread could be specially made upon request,such as NPT, G and Metric thread.
· Length can be customized: 50cm, 100cm, or even 100m.
· Marine and Offshore
· Power Generation
· Food and Beverage Processing
· Pharmaceutical Industry
· Water Treatment Facilities
· Transportation
· Oil and Gas Stations
· Loading Docks
· Harsh Location
· Workshop
Product Description
An explosion-proof flexible conduit is a protective, bendable cable conduit designed for hazardous locations where flammable gases, vapors, or dust may be present. It provides reliable mechanical protection, vibration absorption, and secure wiring pathways between electrical equipment, ensuring safe operation while maintaining explosion-proof integrity.
01 /

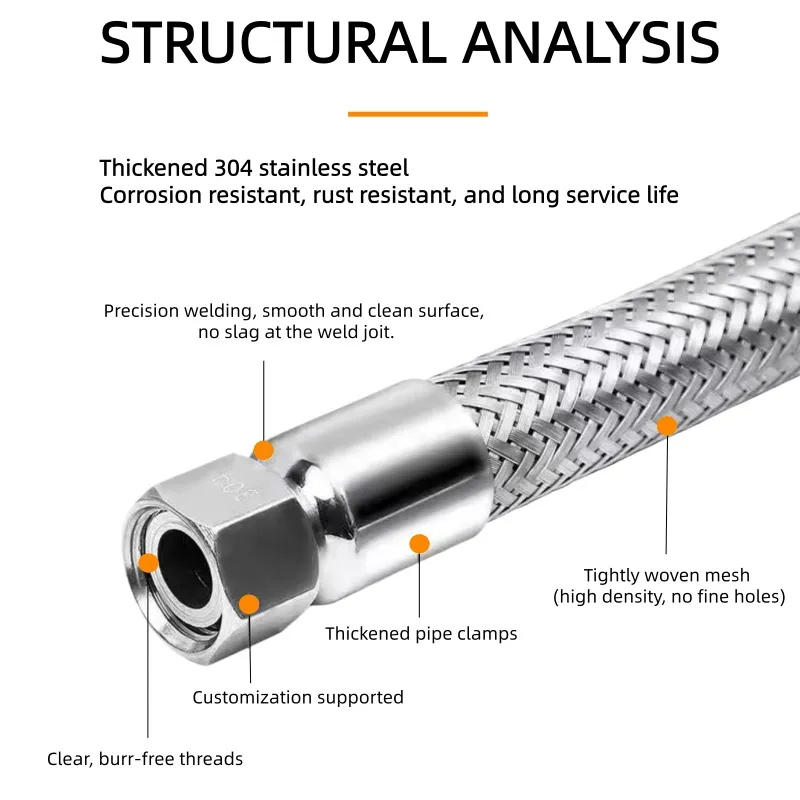

304 Stainless Steel ConstructionCrafted from high-quality 304 stainless steel with a smooth, polished finish. The material offers excellent stability, rust resistance, and corrosion protection, making it suitable for demanding environments.
02 /
Braided Mesh & Corrugated Tube StructureDesigned with a tightly woven stainless-steel braided outer layer and a pressure-resistant corrugated inner tube. The compact structure and bright, uniform braid ensure reliable performance under high temperature and high pressure conditions.
03 /
Stable Structural PerformanceBuilt with a solid overall structure featuring good flexibility, clear and precise threads, and a refined glossy surface. Excellent sealing performance ensures secure and reliable installation.
04 /
High Strength & FlexibilityThe thickened inner tube provides enhanced durability, higher mechanical strength, and long service life, while still maintaining strong flexibility without cracking during long-term use.
05 /
Non-Standard Customization AvailableA full range of specifications is in stock. Custom lengths, thread types, and structural options can be tailored according to customer requirements to meet various installation needs.
Product Specifications
OF APPLICABLE CABLE
BENDING RADIUS
Product Application
Product Applications:
· Chemical Processing
· Marine and Offshore
· Power Generation
· Food and Beverage Processing
· Pharmaceutical Industry
· Water Treatment Facilities
· Transportation
· Oil and Gas Stations
· Loading Docks
· Harsh Location
· Workshop
